ANT-GNSS-CSM-02-3m Series

Wireless GNSS antennas with SMA (male) connector

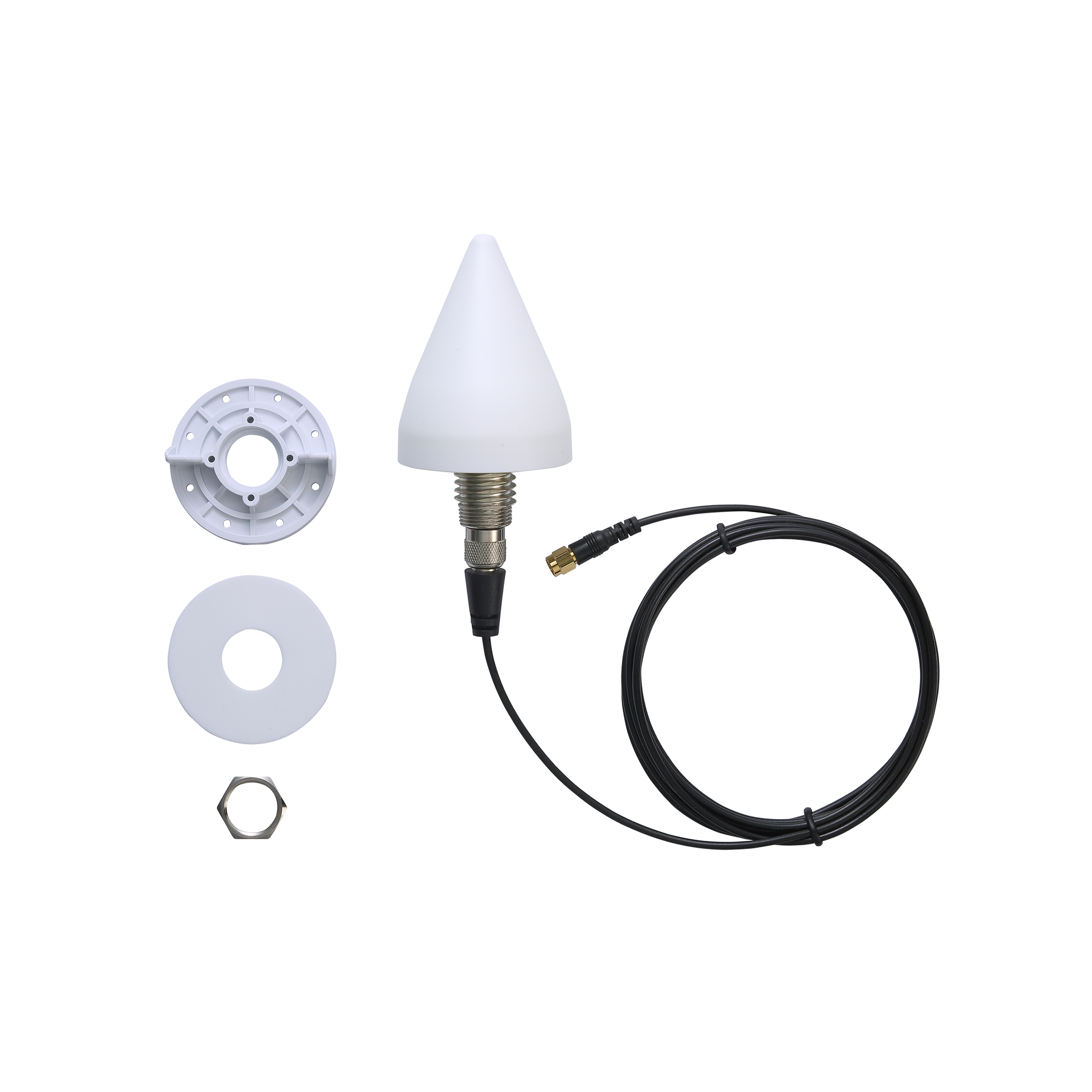

moxa-ant-gnss-csm-02-3m-series-image-(1).jpg | Moxa

Features and Benefits

  • Waterproof housing to protect against high-temperature and high-pressure water jets
  • High-gain antenna to enhance performance
  • Cone-shaped design to reduce the effects of snow and dust coverage
  • 3-meter cable
  • Flexible installation
  • SMA connector (male) supported

Contact Sales

Introduction

The ANT-GNSS-CSM-02-3m Series is an omnidirectional cone-shaped antenna suitable for GNSS applications. The antenna provides a gain of 2 dBic and is designed to operate in temperatures ranging from -40 to 85°C.

  • Frequency

    1561 to 1606 MHz

  • Antenna Type

    Omni-directional

  • Typical Antenna Gain

    Without low noise amplifier:
    -0.5 dBic @ 1561 MHz (BDS)
    2 dBic @ 1575.42 MHz (GPS)
    0.6 dBic @ 1598 to 1606 MHz (GLONASS)

    With low noise amplifier:
    35 dB

  • Connector

    SMA (male)

  • Impedance

    50 ohms

  • Polarization

    Vertical
    Linear

  • V.S.W.R.

    < 2.0 (max.)

  • Weight

    Without cable and connector: 125 g (0.28 lb)

  • Dimensions

    φ 60.5 (D) x 79.2 (H) mm

  • Radome Color

    White

  • Radome Material

    Plastic

  • Installation

    Screw mount

  • Cable

    RG-174

  • Cable Length

    3 m

  • IP Rating

    IP67

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (30°C, non-condensing)

Support Documents

FILTER

All Datasheet
Name Type Version Release Date
Datasheet for ANT-GNSS-CSM-02-3m Series
819.8 KB 		Datasheet v1.0 May 31, 2023 May 31, 2023

Available Models (1)

Show Images
Compare

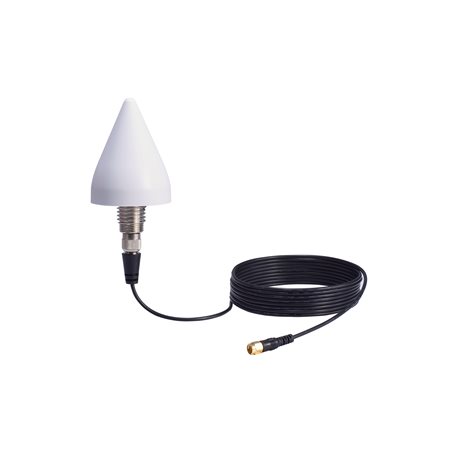

moxa-ant-gnss-csm-02-3m-image.jpg | MoxaANT-GNSS-CSM-02-3m
