A-CRF-SMSF Series

Wireless antenna cables with SMA (male) to SMA (female) connectors

moxa-a-crf-smsf-series-image-(1).jpg | Moxa

Features and Benefits

  • Compact form factor
  • Lightweight for portable deployment
  • SMA connector (male) supported
  • Straight mount or magnetic base mount
  • 1 m, 3 m, 5 m options available

Contact Sales

Introduction

The A-CRF-SMSF Series is a set of cable accessories with SMA (male) to SMA (female) connectors and magnetic base mount options.

  • Connector Type

    SMA Jack (Female) to SMA Plug (Male)

  • Cable Type

    A-CRF-SMSF-R3-100: RG-174
    A-CRF-SMSF-L1-300: LMR195
    A-CRF-SMSF-C2-300: CFD-200
    A-CRF-SMSF-C2-500: CFD-200

  • Cable Length

    A-CRF-SMSF-R3-100: 1 m
    A-CRF-SMSF-L1-300: 3 m
    A-CRF-SMSF-C2-300: 3 m
    A-CRF-SMSF-C2-500: 5 m

  • Dimensions

    Height: 40.5 mm (including base)

  • Impedance

    50 ohms

  • V.S.W.R.

    ≤ 2.0 @ 100 MHz to 3 GHz
    ≤ 2.5 @ 4000 MHz to 5 GHz

  • Radome Material

    Plastic

  • Radome Color

    Black

  • Installation

    A-CRF-SMSF-R3-100: Magnetic mount
    A-CRF-SMSF-L1-300: Magnetic mount
    A-CRF-SMSF-C2-300: N/A
    A-CRF-SMSF-C2-500: N/A

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

Support Documents

Name Type Version Release Date
Datasheet for A-CRF-SMSF Series
918.1 KB
Datasheet v1.2 Oct 31, 2022 Oct 31, 2022

Available Models (4)

Show Images

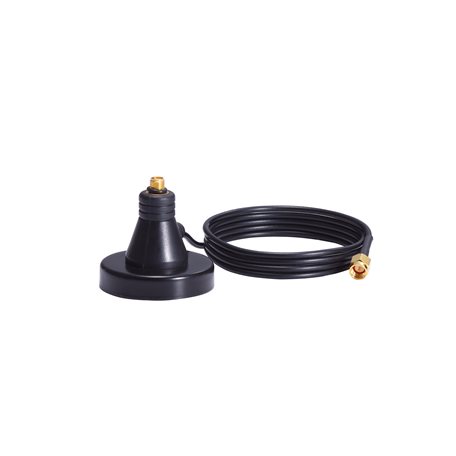

moxa-a-crf-smsf-r3-100-image.jpg | MoxaA-CRF-SMSF-R3-100A-CRF-SMSF-L1-300A-CRF-SMSF-C2-300A-CRF-SMSF-C2-500
Cable TypeRG-174LMR195CFD-200CFD-200
Connector TypeSMA (male) to SMA (female)SMA (male) to SMA (female)SMA (male) to SMA (female)SMA (male) to SMA (female)
Cable Length1 m3 m3 m5 m
