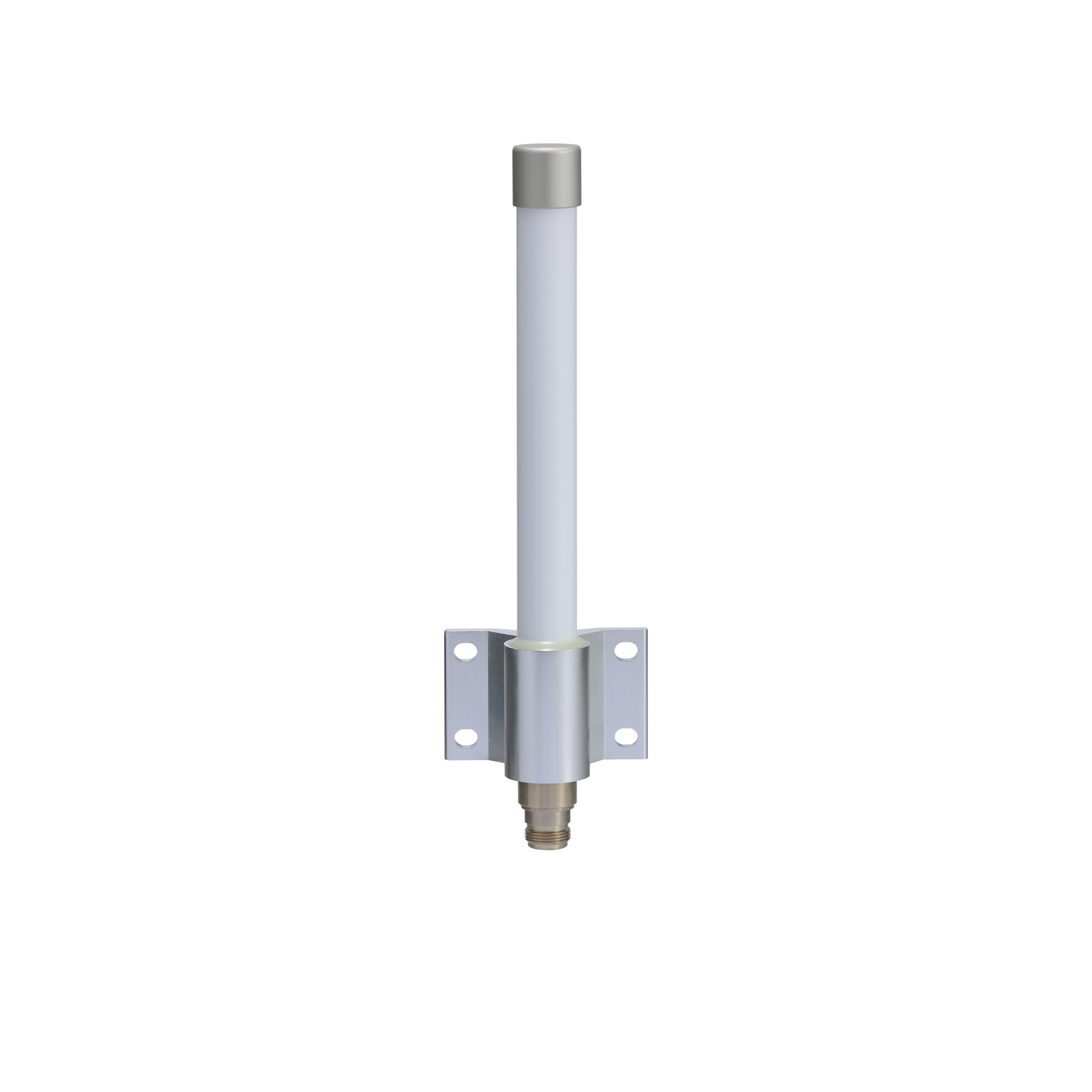

The ANT-WDB-ANF-0407 is an omni-directional lightweight compact dual-band high-gain antenna that comes with waterproof N-type connectors. The IP65-rated housing, pole-mounting support, and a wide operating temperature range of -40 to 80°C make it suitable for outdoor use.
Frequency: 2.4 GHz
Frequency: 5 GHz
Save
2.4 to 2.5 GHz or 5.1 to 5.9 GHz
Omni-directional
4/7 dBi
N-type (female)
50 ohms
Linear
360°
80°
1:1.5 max.
10 W (max.)
IP65
Diameter: 35 mm (1.38 in) Length: 238 mm (9.37 in)
297 g (0.65 lb) Note: Includes the antenna holder
White
Fiberglass
Pole mount
-40 to 80°C (-40 to 176°F)
5 to 95% (30°C, non-condensing)
1 year
See www.moxa.com/warranty
