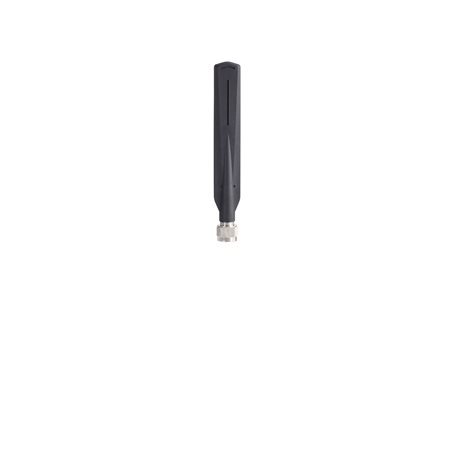

The ANT-WDB-ANM-0502 is an omni-directional lightweight compact dual-band high-gain antenna that comes with waterproof N-type connectors. The IP67-rated housing, pole-mounting support and a wide operating temperature range of -40 to 80°C make it suitable for outdoor use.
Frequency: 2.4 GHz
Frequency: 5 GHz
Save
2.4 to 2.5, 5.1 to 5.9 GHz
Omni-directional
5/2 dBi
N-type (male)
50 ohms
Linear
360°
65°
1:2 max.
2 W (max.)
72 g (0.16 lb)
189.4 mm (7.46 in)
26 mm (1.02 in)
IP67
Black
NY66
Straight mount
-40 to 80°C (-40 to 176°F)
5 to 95% (30°C, non-condensing)
1 year
See www.moxa.com/warranty
