ANT-WDB-ARM-02 Series

2.4 or 5 GHz, dual-band, omnidirectional, indoor, rubber-duck antennas

moxa-ant-wdb-arm-02-series-image-1-(1).jpg | Moxa

Features and Benefits

  • Small size for easy installation
  • Lightweight for portable deployment
  • Tilt and swivel design
  • Flexible installation
  • RP-SMA-type (male) connector

Contact Sales

Introduction

The ANT-WDB-ARM-02 is an omni-directional lightweight compact dual-band indoor antenna. The antenna provides a gain of 2/2 dBi and is designed to operate in temperatures from -40 to 80°C.

Field Patterns

Frequency: 2.4 GHz

Frequency: 5 GHz

  • Frequency

    2.4 to 2.5, 5.2 to 5.8 GHz

  • Antenna Type

    Omni-directional

  • Typical Antenna Gain

    2/2 dBi

  • Connector

    RP-SMA (male)

  • Impedance

    50 ohms

  • Polarization

    Vertical

  • HPBW/Horizontal

    360°

  • HPBW/Vertical

    80°

  • V.S.W.R.

    2:1 max.

  • Weight

    10 g (0.02 lb)

  • Length

    108 mm (4.25 in)

  • Radome Color

    Black

  • Radome Material

    Plastic

  • Installation

    Straight mount

  • Operating Temperature

    -40 to 80°C (-40 to 176°F)

  • Storage Temperature (package included)

    -40 to 80°C (-40 to 176°F)

  • Ambient Relative Humidity

    5 to 95% (30°C, non-condensing)

Support Documents

Name Type Version Release Date
Datasheet for ANT-WDB-ARM-02 Series
1.4 MB
Datasheet v1.1 Jan 11, 2019 Jan 11, 2019

Available Models (1)

Show Images

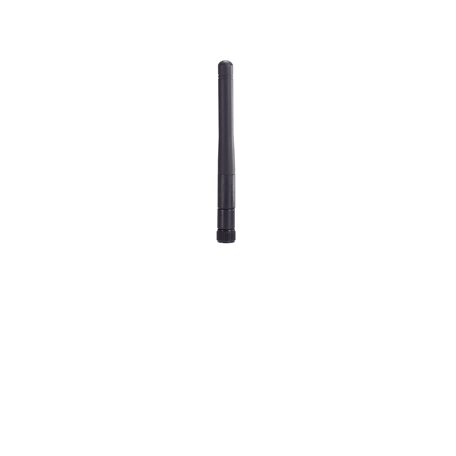

moxa-ant-wdb-arm-02-image.jpg | MoxaANT-WDB-ARM-02
Frequency2.4 to 2.5, 5.2 to 5.8 GHz
Antenna TypeOmni-directional
Antenna Gain2/2 dBi
ConnectorRP-SMA (male)
