WLAN Antennas

Moxa offers a wide variety of WLAN antennas that are easy to install and simplify the process of establishing wireless networks.

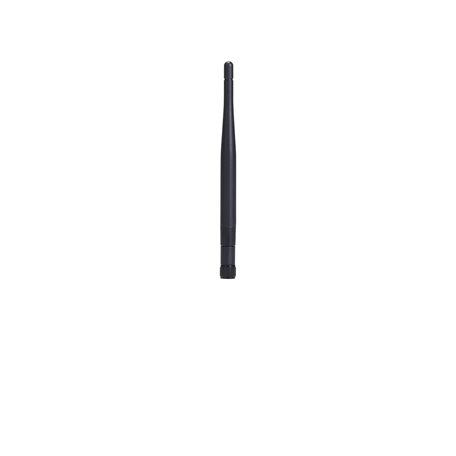

ANT-WDB-ARM-0202
ANT-WDB-ARM-0202 Series

2 dBi at 2.4 GHz or 2 dBi at 5 GHz, RP-SMA (male), dual-band, omnidirectional antenna

Antenna Characteristics
  • Frequency

    • 2.4 to 2.5, 4.9 to 5.825 GHz
  • Antenna Type

    • Omni-directional
  • Typical Antenna Gain

    • 2/2 dBi
  • Connector

    • RP-SMA (male)
  • Impedance

    • 50 ohms
  • Polarization

    • Linear
  • HPBW/Horizontal

    • 360°
  • V.S.W.R.

    • 2:1 max.
  • Power Handling

    • 1 W (max.)
Physical Characteristics
  • Weight

    • 9.65 g (0.02 lb)
  • Length

    • 136 mm (5.35 in)
  • Radome Color

    • Black
  • Radome Material

    • Plastic
  • Installation

    • Straight mount
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (30°C, non-condensing)
