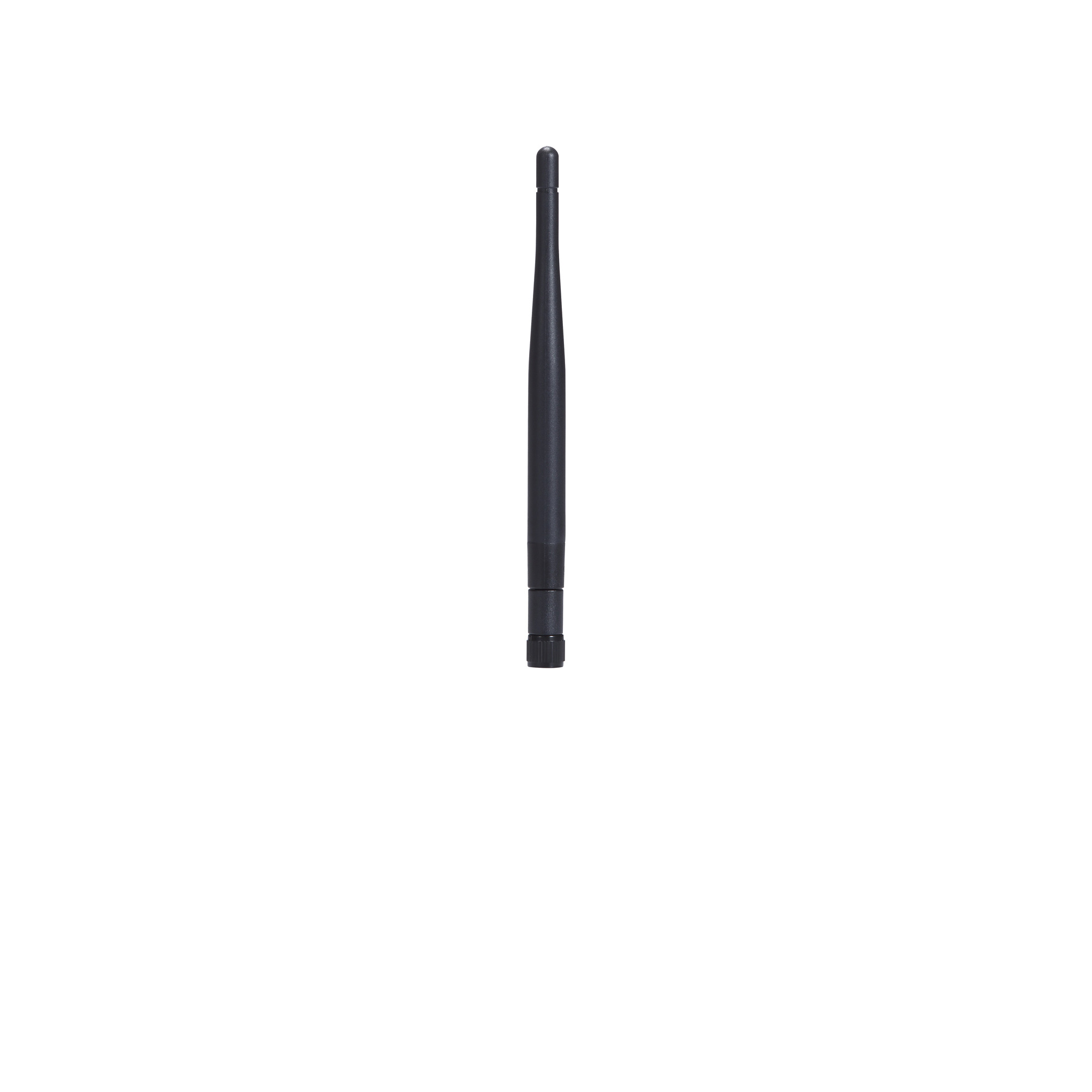

ANT-WDB-ARM-0202 Series

2 dBi at 2.4 GHz or 2 dBi at 5 GHz, RP-SMA (male), dual-band, omnidirectional antennas

moxa-ant-wdb-arm-0202-series-image-1-(1).jpg | Moxa

Features and Benefits

  • Small size for easy installation
  • Lightweight for portable deployment
  • Tilt and swivel design
  • Flexible installation
  • RP-SMA-type (male) connector

Contact Sales

Introduction

The ANT-WDB-ARM-0202 is an omni-directional lightweight compact dual-band indoor antenna with RP-SMA (male) connectors. The antenna provides a gain of 2/2 dBi and is designed to operate in temperatures from -40 to 75°C.

Field Patterns

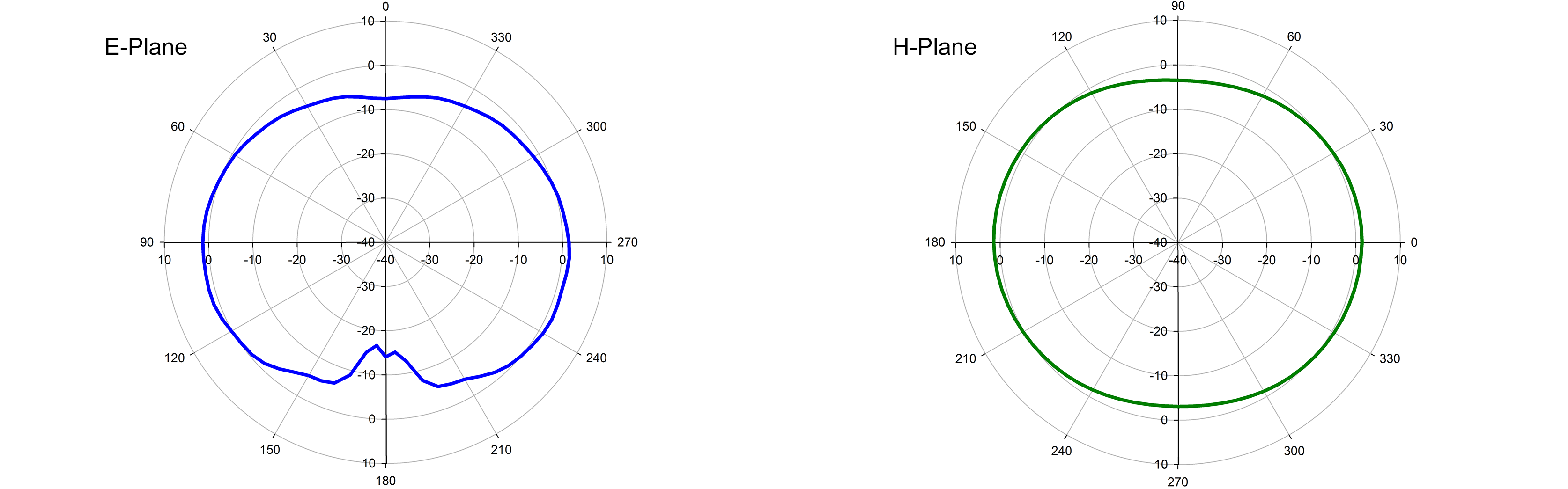

Frequency: 2.4 GHz

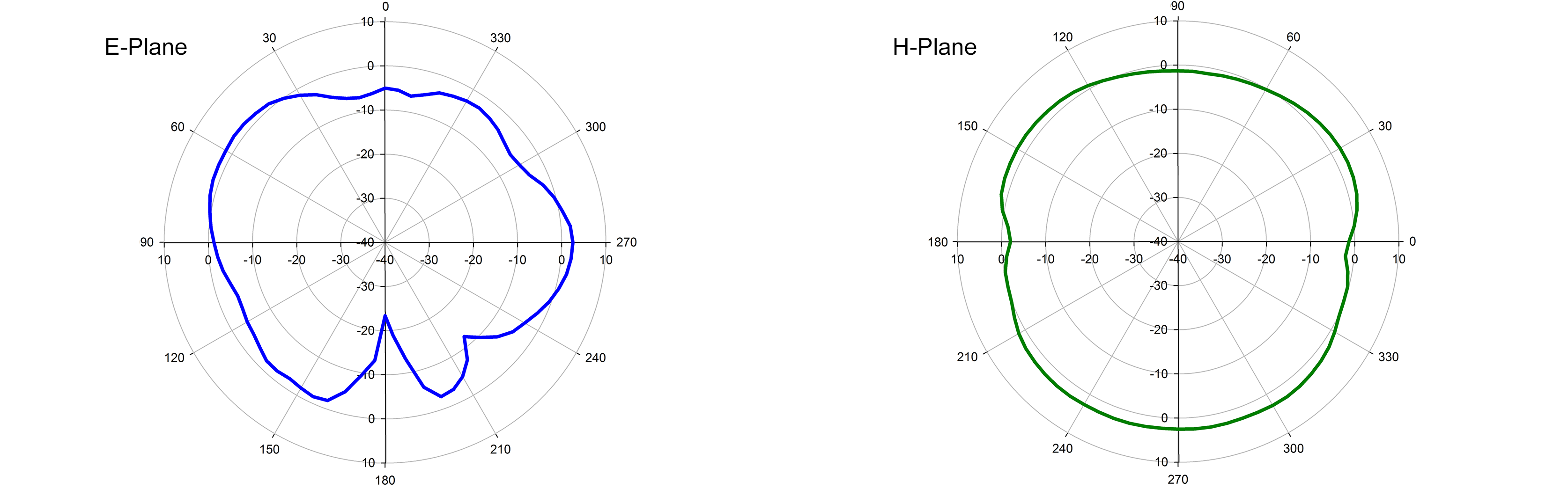

Frequency: 5 GHz

  • Frequency

    2.4 to 2.5, 4.9 to 5.825 GHz

  • Antenna Type

    Omni-directional

  • Typical Antenna Gain

    2/2 dBi

  • Connector

    RP-SMA (male)

  • Impedance

    50 ohms

  • Polarization

    Linear

  • HPBW/Horizontal

    360°

  • V.S.W.R.

    2:1 max.

  • Power Handling

    1 W (max.)

  • Weight

    9.65 g (0.02 lb)

  • Length

    136 mm (5.35 in)

  • Radome Color

    Black

  • Radome Material

    Plastic

  • Installation

    Straight mount

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (30°C, non-condensing)
