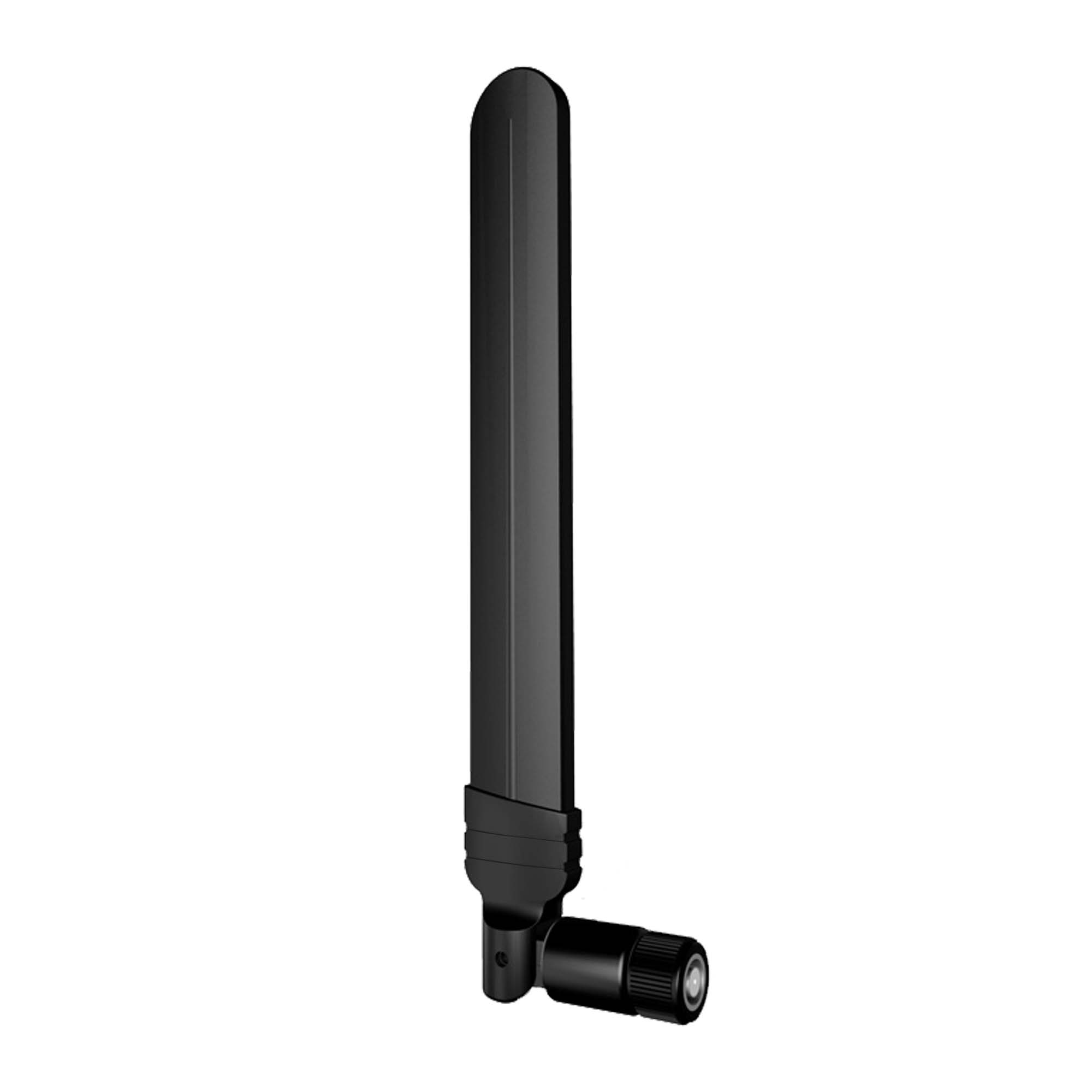

ANT-WDB6-ARM-05 Series

2 dBi at 2.4 GHz or 2 dBi at 5 GHz or 3 dBi at 6 GHz, tri-band dipole antennas with RP-SMA (female) connector

moxa-ant-wdb6-arm-05-series-image-(1).jpg | Moxa

Features and Benefits

  • Small size for easy installation
  • Lightweight for portable deployment
  • Tilt and swivel design
  • Flexible installation
  • RP-SMA-type (female) connector

Contact Sales

Introduction

The ANT-WDB6-ARM-05 is an omni-directional lightweight compact tri-band indoor antenna. The antenna provides a gain of 2/2/3 dBi and is designed to operate in temperatures from -40 to 85°C.

  • Frequency

    6.025 to 7.125 GHz
    5.15 to 5.925 GHz
    2.4 to 2.5 GHz

  • Antenna Type

    Omni-directional

  • Typical Antenna Gain

    2/2/3 dBi

  • Connector

    RP-SMA (female)

  • Impedance

    50 ohms

  • Polarization

    Linear

  • V.S.W.R.

    2:1 max.

  • Weight

    19.1 g (0.04 lb)

  • Length

    176 mm (6.93 in)

  • Radome Color

    Black

  • Radome Material

    Plastic

  • Installation

    Straight mount

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (30°C, non-condensing)

Support Documents

FILTER

All Datasheet
Name Type Version Release Date
Datasheet for ANT-WDB6-ARM-05 Series
308.9 KB 		Datasheet v1.0 Oct 30, 2025 Oct 30, 2025

Available Models (1)

Show Images
Compare
ANT-WDB6-ARM-05
Frequency2.4 GHz to 2.5 GHz
5.15 GHz to 5.925 GHz
6.025 GHz to 7.125 GHz
Antenna TypeOmni-directional
Active Antenna Gain2/2/3 dBi
Connector TypeRP-SMA (female)
