WLAN Antennas

Moxa offers a wide variety of WLAN antennas that are easy to install and simplify the process of establishing wireless networks.

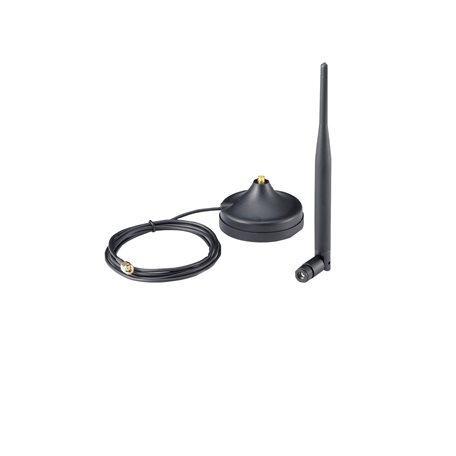

ANT-WSB-AHRM-05-1.5m
ANT-WSB-AHRM-05-1.5m Series

5 dBi at 2.4 GHz, RP-SMA (male), omnidirectional/dipole antenna, 1.5 m cable

Antenna Characteristics
  • Frequency

    • 2.4 to 2.5 GHz
  • Antenna Type

    • Omni-directional, Rubber antenna
  • Typical Antenna Gain

    • 5 dBi
  • Connector

    • RP-SMA (male)
  • Impedance

    • 50 ohms
  • Polarization

    • Linear
  • HPBW/Horizontal

    • 360°
  • HPBW/Vertical

    • 80°
  • V.S.W.R.

    • 2:1 max.
Physical Characteristics
  • Weight

    • 300 g (0.66 lb)
  • Length (including base)

    • 236 mm (9.29 in)
  • Radome Color

    • Black
  • Radome Material

    • Plastic
  • Installation

    • Magnetic mount
  • Cable

    • RG-174
  • Cable Length

    • 1.5 m
Environmental Limits
  • Operating Temperature

    • -40 to 80°C (-40 to 176°F)
  • Storage Temperature (package included)

    • -40 to 80°C (-40 to 176°F)
  • Ambient Relative Humidity

    • 5 to 95% (30°C, non-condensing)
