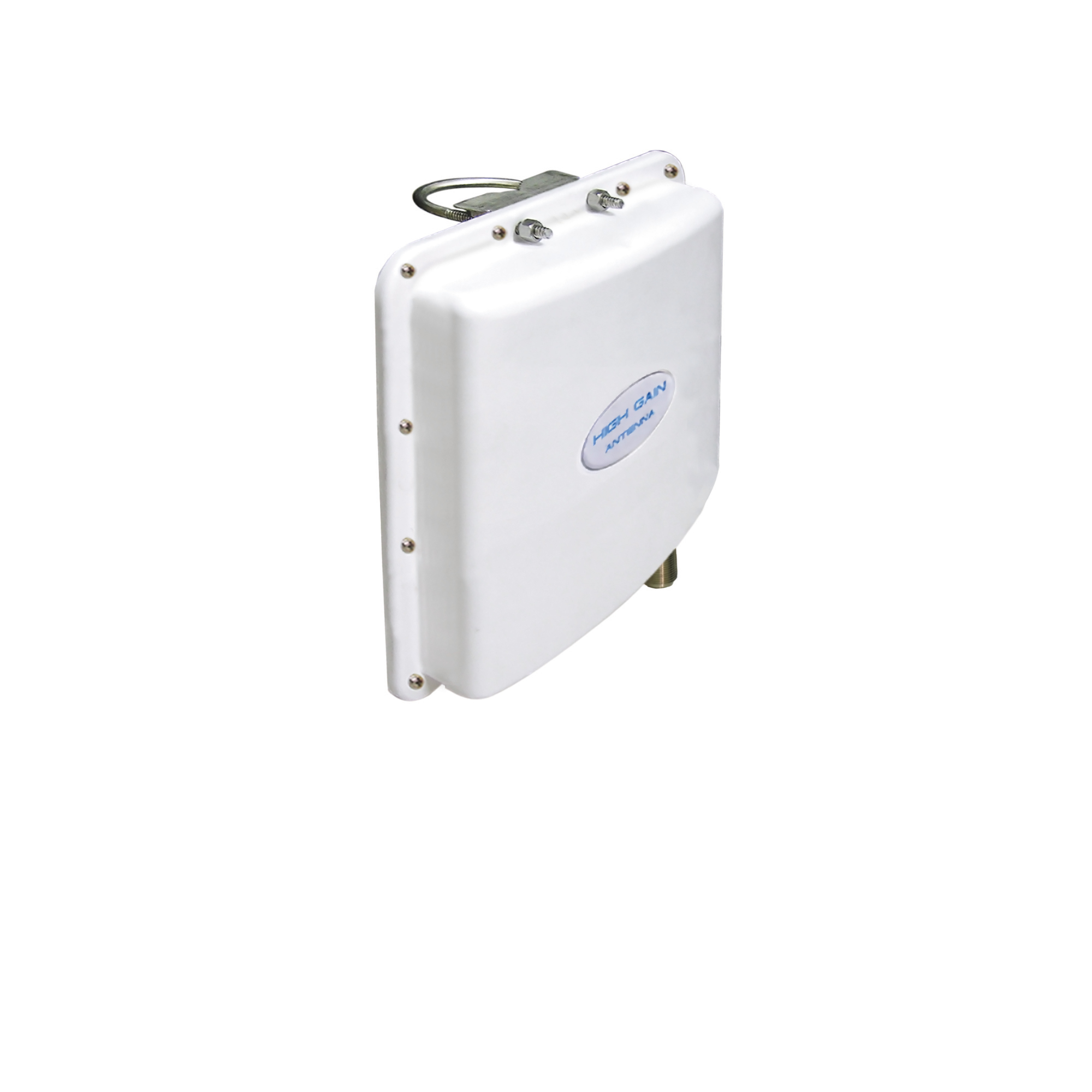

ANT-WSB-PNF-12-02 Series

12 dBi at 2.4 GHz, N-type (female), single-band directional antenna

moxa-ant-wsb-pnf-12-02-series-image-(1).jpg | Moxa

Features and Benefits

  • High-gain antenna to enhance performance
  • Waterproof N-type connector
  • Pole-mounting support
  • Housing provides IP65 protection
  • -40 to 85°C operating temperature range

Contact Sales

Introduction

The ANT-WSB-PNF-12-02 is asingle-band high-gain directional panel antenna with a waterproof N-type female connector. The antenna provides a gain of 12 dBi at 2.4 GHz. The IP65-rated housing, pole-mounting support, and wide operating temperature range of -40 to 85°C make it suitable for outdoor use.

Field Patterns

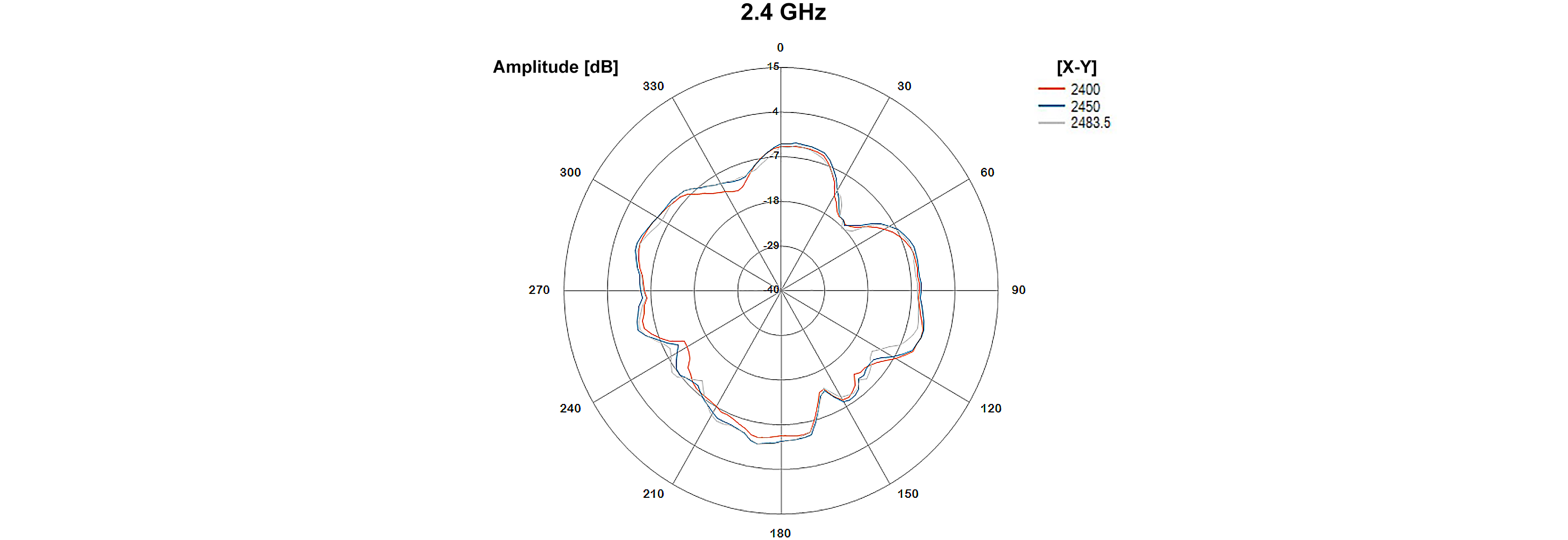

X-Y Plane

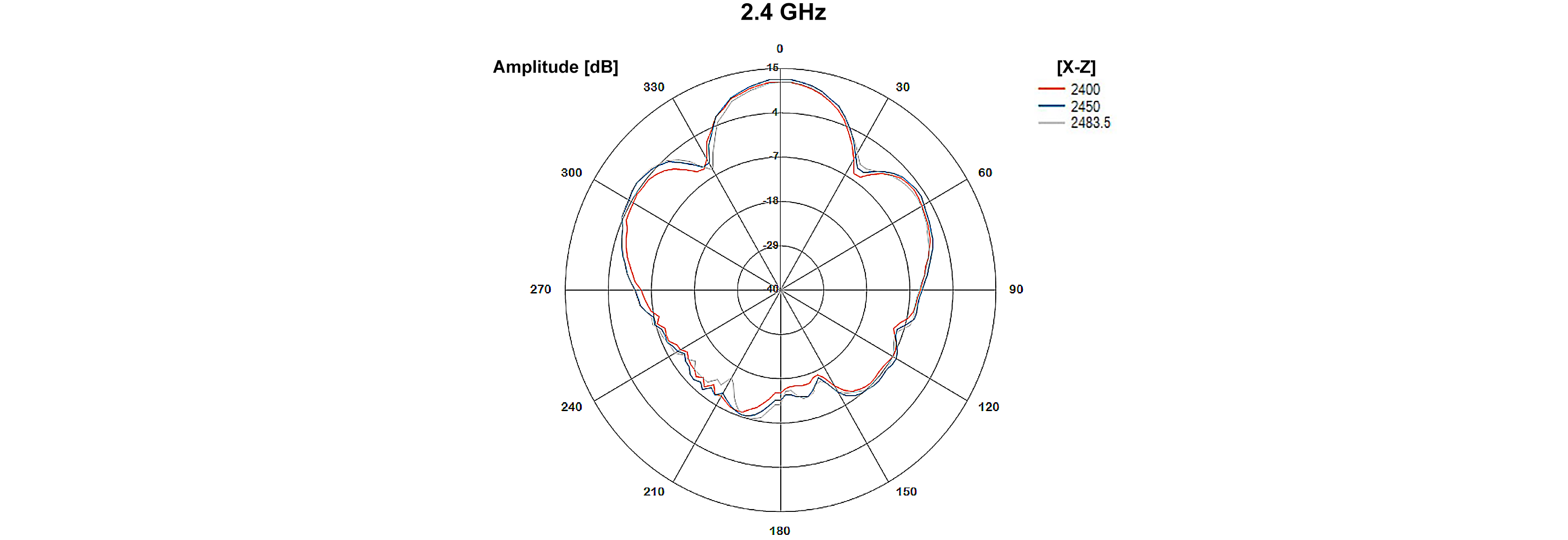

X-Z Plane

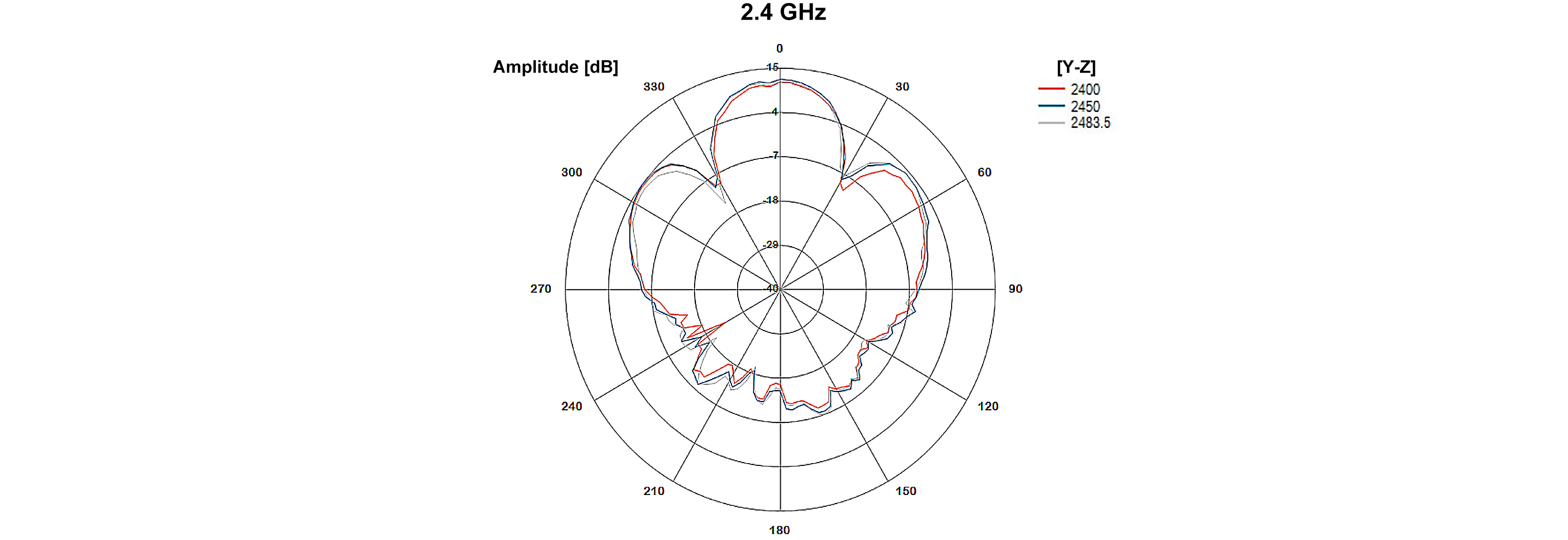

Y-Z Plane

  • Frequency

    2.4 to 2.4835 GHz

  • Antenna Type

    Directional, Panel

  • Typical Antenna Gain

    12 dBi

  • Connector

    N-type (female)

  • Impedance

    50 ohms

  • HPBW/Horizontal

    30°

  • HPBW/Vertical

    30°

  • V.S.W.R.

    1:2.0 max.

  • Power Handling

    10 W (max.)

  • Polarization

    Vertical

  • IP Rating

    IP65

  • Dimensions

    260 x 260 x 44 mm (10.27 x 10.27 x 1.73 in)

  • Radome Color

    White

  • Radome Material

    PC and ABS

  • Installation

    Pole mount

  • Weight

    796 g (1.75 lb)

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

Support Documents

FILTER

All Datasheet
Name Type Version Release Date
Datasheet for ANT-WSB-PNF-12-02 Series
1.4 MB 		Datasheet v1.0 Mar 17, 2021 Mar 17, 2021

Available Models (1)

Show Images
Compare
moxa-ant-wsb-pnf-12-02-image.jpg | MoxaANT-WSB-PNF-12-02
Frequency2.4 to 2.4835 GHz
Antenna TypeDirectional, panel
Antenna Gain12 dBi
Connector TypeN-type (female)
