MAT-WDB-DA-RM-2-0203-1m Series

2 dBi at 2.4 GHz or 3 dBi at 5 GHz, RP-SMA-type(male), 2x2 MIMO, dual-band desktop antennas with 1 m cables

moxa-mat-wdb-da-rm-2-0203-1m-series-image-1-(1).jpg | Moxa

Features and Benefits

  • Small size for easy installation
  • Desktop mount
  • RP-SMA-type (male) connector

Contact Sales

Introduction

The MAT-WDB-DA-RM-2-0203-1m antenna is a compact MIMO 2x2 dual-band desktop antenna with a RP-SMA-type (male) connector. The antenna can be used in both the 2.4 GHz and 5 GHz frequencies, provides an antenna gain of 2/3 dBi, and comes with a 1-m cable.

Field Patterns

Port 1 Frequency: 2.4 GHz

Port 2 Frequency: 2.4 GHz

Port 1 Frequency: 5 GHz

Port 2 Frequency: 5 GHz

  • Frequency

    2.4 to 2.5, 4.9 to 5.85 GHz

  • Antenna Type

    MIMO 2x2
    Omni-directional

  • Typical Antenna Gain

    2/3 dBi

  • Connector

    RP-SMA (male)

  • Impedance

    50 ohms

  • Polarization

    Linear
    Vertical

  • HPBW/Horizontal

    360/114°

  • HPBW/Vertical

    75/54°

  • V.S.W.R.

    2:1 max.

  • Power Handling

    2 W (max.)

  • Weight

    156 g (0.34 lb)

  • Length (including RF cable)

    1094.3 mm (43.08 in)

  • IP Rating

    IP55

  • Radome Color

    Black

  • Radome Material

    PC-1250G

  • Installation

    Desktop Mount

  • Cable

    RG-174

  • Cable Length

    1 m

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (30°C, non-condensing)

Support Documents

Name Type Version Release Date
Datasheet for MAT-WDB-DA-RM-2-0203-1m Series
5.1 MB
Datasheet v1.3 Dec 06, 2023 Dec 06, 2023

Available Models (1)

Show Images

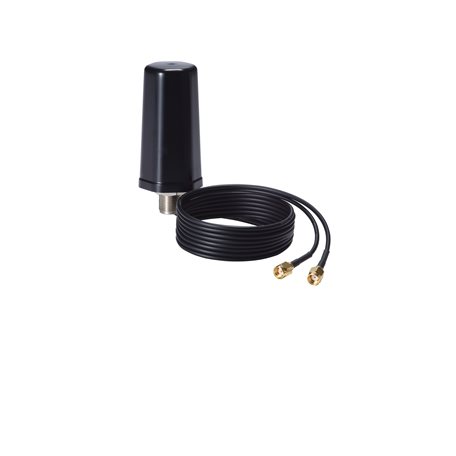

moxa-mat-wdb-da-rm-2-0203-1m-image.jpg | MoxaMAT-WDB-DA-RM-2-0203-1m
Frequency2.4 to 2.5, 4.9 to 5.85 GHz
Antenna TypeMIMO 2x2, Omni-directional
Antenna Gain2/3 dBi
ConnectorRP-SMA (male)
