MAT-WDB-PA-NF-2-0708 Series

7 dBi at 2.4 GHz or 8 dBi at 5 GHz, N-type (female), 2x2 MIMO, dual-band panel antennas

moxa-mat-wdb-pa-nf-2-0708-series-image-1-(1).jpg | Moxa
moxa-mat-wdb-pa-nf-2-0708-series-image-2-(1).jpg | Moxa

Features and Benefits

  • Lightweight
  • Compact form factor
  • Pole-mounting support
  • -40 to 75°C operating temperature range

Contact Sales

Introduction

The MAT-WDB-PA-NF-2-0708 antenna is a compact MIMO 2x2 dual-band panel antenna with an N-type (female) connector. The antenna can be used in both the 2.4 GHz and 5 GHz frequencies and provides a gain of 7/8 dBi.

Field Patterns

Port 1 Frequency: 2.4 GHz

Port 2 Frequency: 2.4 GHz

Port 1 Frequency: 5 GHz

Port 2 Frequency: 5 GHz

  • Frequency

    2.4 to 2.5, 4.9 to 5.9 GHz

  • Antenna Type

    MIMO 2x2, Directional, Panel

  • Typical Antenna Gain

    7/8 dBi

  • Connector

    N-type (female)

  • Impedance

    50 ohms

  • Polarization

    Vertical

  • HPBW/Horizontal

    90°

  • HPBW/Vertical

    50°

  • V.S.W.R.

    2:1 max.

  • Power Handling

    2 W (max.)

  • Dimensions

    206 x 177 x 45 mm (8.11 x 6.97 x 1.77 in)

  • Weight

    935 g (2.06 lb)

  • Radome Color

    White

  • Radome Material

    ABS

  • Installation

    Pole mount

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (30°C, non-condensing)

Support Documents

Name Type Version Release Date
Datasheet for MAT-WDB-PA-NF-2-0708 Series
2.0 MB
Datasheet v1.0 Nov 12, 2018 Nov 12, 2018

Available Models (1)

Show Images

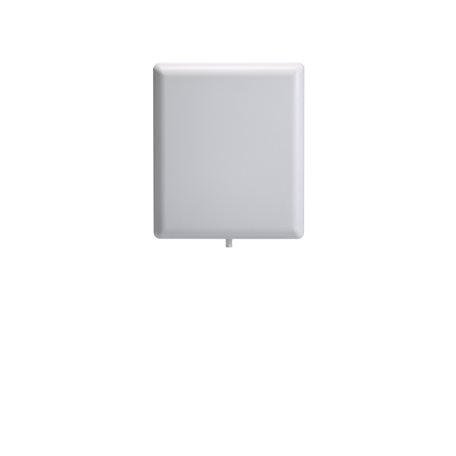

moxa-mat-wdb-pa-nf-2-0708-image.jpg | MoxaMAT-WDB-PA-NF-2-0708
Frequency2.4 to 2.5, 4.9 to 5.9 GHz
Antenna TypeMIMO 2x2, Directional, Panel
Antenna Gain7/8 dBi
ConnectorN-type (female)
