Arm-Based Computers

Moxa's Arm-based compact fanless industrial-grade computers are wireless-ready and come with comprehensive security features. They are built for space-critical applications. The computers are specifically designed for long-term operations and come with both a 5-year hardware warranty and 10-year support for Moxa Industrial Linux, making them an ideal choice for remote monitoring and data-acquisition applications.



For more information, visit our Arm Linux IIoT gateway solution portal site.

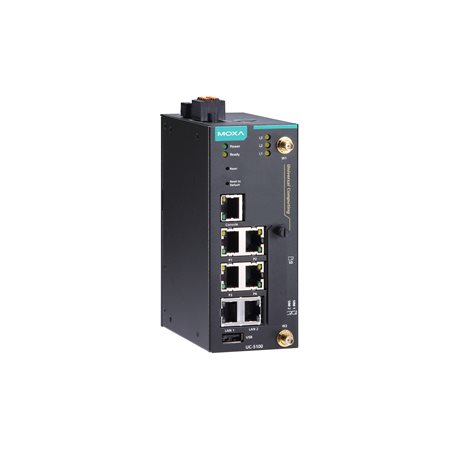

UC-5102-LX
UC-5100 Series

Arm-based wireless-enabled industrial computing platform with Cortex-A8 1 GHz CPU, 2 Ethernet ports, 4 serial ports, 1 SD slot, 1 Mini PCIe slot, 4 DIs, 4 DOs, 1 USB port, -10 to 60°C operating temperature

Computer
  • CPU

    • Armv7 Cortex-A8 1 GHz
  • DRAM

    • 512 MB DDR3
  • Supported OS

    • Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL
      See www.moxa.com/MIL
  • Storage Pre-installed

    • 8 GB eMMC
  • Storage Slot

    • SD slots x 1
  • Expansion Slots

    • mPCIe slots x 1
Computer Interface
  • Ethernet Ports

    • Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
  • Serial Ports

    • RS-232/422/485 ports (software-selectable, RJ45 connector) x 4
  • Digital Input

    • DIs x 4
  • Digital Output

    • DOs x 4
  • USB 2.0

    • USB 2.0 hosts x 1, type-A connectors
  • Number of SIMs

    • 2
  • SIM Format

    • Micro
  • Buttons

    • Reset button
      DIP switch for serial and CAN port configuration
  • Console Port

    • RS-232 (TxD, RxD, GND), RJ45 output (115200, n, 8, 1)
Ethernet Interface
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface
  • Baudrate

    • 50 bps to 921.60 kbps
  • Data Bits

    • 7, 8
  • Stop Bits

    • 1, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • RTS/CTS, XON/XOFF
      ADDC (automatic data direction control) for RS-485
      RTS Toggle (RS-232 only)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Digital Inputs
  • Voltage

    • 0 to 0.8 VDC
      2.0 to 5.5 VDC
Digital Outputs
  • Current Rating

    • 24 mA per channel
  • Voltage

    • 0 to 0.55 VDC
      2.5 to 3.3 VDC
LED Indicators
  • LAN

    • 2 per port (10/100 Mbps)
  • Serial

    • 2 per port (Tx, Rx)
  • Wireless Signal Strength

    • Cellular/Wi-Fi x 3
Physical Characteristics
  • Dimensions

    • 57 x 136 x 100 mm (2.24 x 5.35 x 3.94 in)
  • Weight

    • 600 g (1.32 lb)
  • Housing

    • Metal
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Power Parameters
  • Input Voltage

    • 9 to 48 VDC
  • Input Current

    • 0.95 A @ 9 VDC, 0.23 A @ 48 VDC
  • Power Consumption

    • 11 W
Environmental Limits
  • Operating Temperature

    • -10 to 60°C (14 to 140°F)
  • Storage Temperature

    • -20 to 70°C (-4 to 158°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Vibration

    • 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
  • Shock

    • IEC 60068-2-27
Standards and Certifications
  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Safety

    • UL 60950-1
      IEC 60950-1
      EN 62368-1
  • Green Product

    • RoHS, CRoHS, WEEE
Reliability
  • Alert Tools

    • External RTC (real-time clock)
  • Automatic Reboot Trigger

    • External WDT (watchdog timer)
MTBF
  • Time

    • 729,538 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
