Arm-Based Computers

Moxa's Arm-based computing family offers wireless-ready, compact, and fanless industrial computers built for space-critical automation applications. These computers are specially designed for long-term operation and come with both a 5-year hardware warranty and 10-year support for Moxa's Industrial Linux, making them the ideal choice for remote monitoring and data acquisition applications.



For more information, visit our Arm Linux IIoT gateway solution portal site.

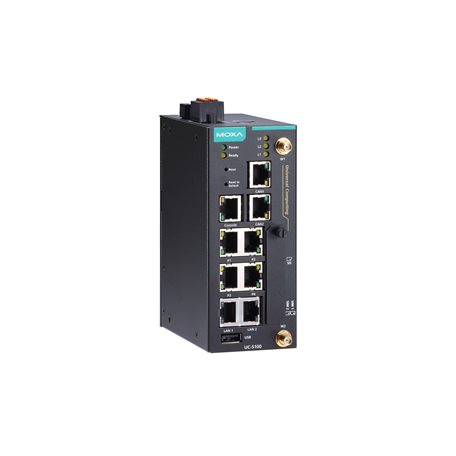

UC-5112-T-LX
UC-5100 Series

Arm-based wireless-enabled industrial computing platform with Cortex-A8 1 GHz CPU, 2 Ethernet ports, 4 serial ports, 1 SD socket, 1 Mini PCIe socket, 2 CAN ports, 4 DIs, 4 DOs, 1 USB port, -40 to 85°C operating temperature

Computer
  • CPU

    • Armv7 Cortex-A8 1 GHz
  • Pre-installed OS

    • Linux Debian 9 kernel 4.4 (Moxa Industrial Linux)
  • DRAM

    • 512 MB DDR3
  • Storage Pre-installed

    • 8 GB eMMC
  • Storage Slot

    • SD slots x 1
  • Expansion Slots

    • miniPCIe slots x 1
Computer Interface
  • USB 2.0

    • USB 2.0 hosts x 1, type-A connectors
  • Number of SIMs

    • 2
  • SIM Format

    • Micro
  • Serial Ports

    • RS-232/422/485 ports x 4, software selectable (RJ45)
  • Digital Input

    • DIs x 4
  • Digital Output

    • DOs x 4
  • Buttons

    • Reset button, DIP switch for serial and CAN port configuration
  • Console Port

    • RS-232 (TxD, RxD, GND), RJ45 output (115200, n, 8, 1)
Ethernet Interface
  • Ethernet Ports

    • Auto-sensing 10/100 Mbps ports (RJ45 connector) x 2
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface
  • Serial Ports

    • 4 x RS-232/422/485
  • Data Bits

    • 5, 6, 7, 8
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 1.5, 2
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
CAN Interface
  • No. of Ports

    • 2
  • Signals

    • CAN_L, CAN_H, CAN Signal GND
  • Terminator

    • N/A, 120 ohms (by DIP)
Digital Inputs
  • Voltage

    • 0 to 0.8 VDC
      2.0 to 5.5 VDC
Digital Outputs
  • Current Rating

    • 24 mA per channel
  • Voltage

    • 0 to 0.55 VDC
      2.5 to 3.3 VDC
LED Indicators
  • LAN

    • 2 per port (10/100 Mbps)
  • Serial

    • 2 per port (Tx, Rx)
  • CAN

    • 2 per port (Tx, Rx)
  • Wireless Signal Strength

    • Cellular/Wi-Fi x 3
Physical Characteristics
  • Housing

    • Metal
  • Weight

    • 600 g (1.32 lb)
  • Dimensions

    • 57 x 136 x 100 mm (2.24 x 5.35 x 3.94 in)
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Power Parameters
  • Input Voltage

    • 9 to 48 VDC
  • Input Current

    • 0.95 A @ 9 VDC, 0.23 A @ 48 VDC
  • Power Consumption

    • 6 W
Environmental Limits
  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)
  • Storage Temperature

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Vibration

    • 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
  • Shock

    • IEC 60068-2-27
Standards and Certifications
  • Safety

    • UL 60950-1, EN 60950-1, IEC 60950-1
  • EMC

    • EN 55032/24, EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Green Product

    • RoHS, CRoHS, WEEE
Reliability
  • Alert Tools

    • External RTC (real-time clock)
  • Automatic Reboot Trigger

    • External WDT (watchdog timer)
MTBF
  • Time

    • 568,997 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
