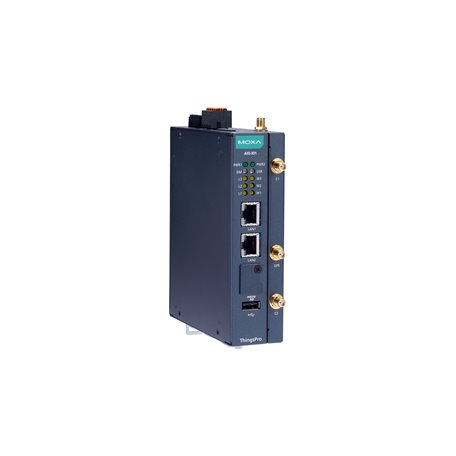

AIG-301-T-AP-AZU-LX
AIG-301 Series

2-port Modbus to Azure advanced IIoT gateways with Arm® Cortex™-A7 dual-core 1 GHz processor, Azure IoT Edge, LTE Cat. 4 module for Asia-Pacific region, -40 to 70°C operating temperature

Computer
  • CPU

    • Armv7 Cortex-A7 dual-core 1 GHz
  • DRAM

    • 2 GB DDR3L
  • Storage Pre-installed

    • 16 GB eMMC
  • Pre-installed OS

    • Moxa Industrial Linux (Debian 9, Kernel 4.4)
  • No. of Tags Supported

    • 2048
Computer Interface
  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
  • Serial Ports

    • RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)
  • CAN Ports

    • CAN 2.0 A/B x 1 (DB9 male)
  • Digital Input

    • DIs x 4
  • Digital Output

    • DOs x 4
  • USB 2.0

    • USB 2.0 hosts x 1, type-A connectors
  • Wi-Fi Antenna Connector

    • RP-SMA x 2
  • Cellular Antenna Connector

    • SMA x 2
      (excluding AIG-301-AZU-LX/T-AZU-LX models)
  • GPS Antenna Connector

    • SMA x 1 (excluding AIG-301-AZU-LX/T-AZU-LX models)
  • Expansion Slots

    • AIG-301-CN-AZU-LX/T-CN-AZU-LX: mPCIe slot x 2
      All other models: mPCIe slot x 1
  • SIM Format

    • Nano
      (excluding AIG-301-AZU-LX/T-AZU-LX models)
  • Number of SIMs

    • 2
  • Buttons

    • Reset button
      Reset to factory default
  • TPM

    • TPM v2.0
Ethernet Interface
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 2
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Industrial Protocols

    • Modbus TCP Client (Master) / Server (Slave)
      Generic MQTT
      Azure IoT Device
      AWS IoT Core
      Azure IoT Edge
      Sparkplug B Client
      OPC UA Server
      FTP/SFTP
  • Configuration Options

    • Web Console (HTTP/HTTPS)
      ThingsPro Proxy Utility
  • Time Management

    • NTP Server/Client
      GPS
Serial Interface
  • No. of Ports

    • 2
  • Connector

    • DB9 male
  • Baudrate

    • 300 bps to 921.6 kbps
  • Data Bits

    • 7, 8
  • Stop Bits

    • 1, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • RTS/CTS, XON/XOFF
  • Console Port

    • 1 x 4-pin header
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Serial Software Features
  • Industrial Protocols

    • Modbus RTU/ASCII Master
CAN Interface
  • No. of Ports

    • 1
  • Connector

    • DB9 male
  • Baudrate

    • 10 to 1000 kbps
  • Industrial Protocols

    • CAN 2.0A
      CAN 2.0B
  • Signals

    • CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND
  • Isolation

    • 2 kV (built-in)
Digital Inputs
  • Connector

    • Spring-type Euroblock terminal
  • Sensor Type

    • Wet contact (NPN)
      Dry contact
  • Dry Contact

    • Off: open
      On: short to GND
  • Wet Contact (DI to COM)

    • On: 10 to 30 VDC
      Off: 0 to 3 VDC
  • Isolation

    • 3K VDC
Digital Outputs
  • Connector

    • Spring-type Euroblock terminal
  • Current Rating

    • 200 mA per channel
  • I/O Type

    • Sink
  • Voltage

    • 24 VDC
      nominal, open collector to 30 VDC
Cellular Interface
  • Cellular Standards

    • LTE Cat. 4
  • Band Options (US)

    • LTE Band 2 (1900 MHz) / LTE Band 4 (1700 MHz) / LTE Band 5 (850 MHz) / LTE Band 12 (700 MHz) / LTE Band 13
      (700 MHz) / LTE Band 14 (700 MHz) / LTE Band 66 (1700 MHz) / LTE Band 71 (600 MHz)
      UMTS/HSPA 850 MHz / 1900 MHz
      Carrier Approval: Verizon, AT&T
  • Band Options (EU)

    • LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7
      (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz)
      UMTS/HSPA 900 MHz / 1800 MHz / 2100 MHz
  • Band Option (APAC)

    • LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 28 (700 MHz)
      UMTS/HSPA 850 MHz / 900 MHz / 2100 MHz
GPS Interface
  • Receiver Types

    • GPS/GLONASS/BeiDou/Galileo/QZSS
  • Accuracy

    • Position: 2.0 m @CEP50
  • Time to First Fix (TTFF)

    • Hot start: 1.1 s
      Warm start: 22.1 s
      Cold start: 29.9 s
  • Sensitivity

    • Acquisition: -147 dBm
      Cold starts: -145 dBm
      Tracking: -160 dBm
  • Update Rate

    • 1 Hz
Azure IoT Edge
  • Versions Supported

    • v1.4.33
  • Authentication Methods

    • Manual / Connection String
      DPS / Symmetric Encryption
      DPS / X.509 Certificate
      DPS / TPM
  • Azure Direct Methods

    • Reboot
      Software Upgrade
      Remote API Invocation
  • Azure Module Twin

    • Device Configuration
  • Moxa Functions

    • Custom Payload
      Message Group
Sparkplug B Client
  • Versions Supported

    • v2.2
  • Node Commands (NCMD)

    • Next Broker
      Reboot
      Rebirth
  • Moxa Functions

    • Store and Forward
      Custom Payload
OPC UA Server
  • No. of Client Connections

    • 4
  • Security

    • Sign and encrypt with policies Basic128Rsa15, Basic256, and Basic256Sha256
  • User Authentication and Authorization

    • Username/password
  • Supported Profiles

    • OPC UA v1.02
  • No. of Supported Tags

    • 1000
Generic MQTT Client
  • Versions Supported

    • v3.1.1
      v3.1
  • QoS Levels

    • 0, 1, 2
  • Authentication Methods

    • Username and password
  • Secure Transmission

    • TLS 1.0
      TLS 1.1
      TLS 1.2
  • Native Capabilities

    • Keep Alive
      Retain Message
      Clean Session
      Will and Testament
  • Moxa Functions

    • Store and Forward
      Custom Payload
      Remote API Invocation
Azure IoT Device
  • Connection Protocols Supported

    • MQTT
      MQTT over WebSockets
      AMQP
      AMQP over WebSockets
  • Authentication Methods

    • Symmetric Key
      X.509 Certificate
  • Azure Direct Methods

    • Reboot
      Software Upgrade
      Remote API Invocation
AWS IoT Core
  • QoS Levels

    • 0,1
  • Authentication Methods

    • X.509 Certificate
      Private Key
      Trusted Root CA
  • Native Capabilities

    • Keep Alive
  • Moxa Functions

    • Store and Forward
      Custom Payload
  • Commands Invokable Via Jobs

    • Reboot
      Software Upgrade
      Remote API Invocation
Modbus RTU/ASCII
  • Mode

    • Client (Master)
  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Commands

    • 256 per port
  • Max. No of Connected Devices

    • 62
Modbus TCP
  • Mode

    • Client (Master), Server (Slave)
  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Server Connections

    • 64
  • Max. No. of Client Connections

    • 4
  • Max. No. of Commands

    • 2048
LED Indicators
  • System

    • Power x 2
      User x 1
      SIM card indicator x 1
  • LAN

    • 2 per port (10/100/1000 Mbps)
  • Wireless Signal Strength

    • Cellular/Wi-Fi x 6
Power Parameters
  • No. of Power Inputs

    • Redundant dual inputs
  • Input Voltage

    • 12 to 48 VDC
  • Input Current

    • AIG-301-AZU-LX/T-AZU-LX: 0.4 A @ 12 VDC
      AIG-301-CN-AZU-LX/T-CN-AZU-LX: 0.5 A @ 12 VDC
      All other models: 0.7 A @ 12 VDC
  • Power Consumption

    • AIG-301-AZU-LX/T-AZU-LX: 4.8 W
      AIG-301-CN-AZU-LX/T-CN-AZU-LX: 6.0 W
      All other models: 8.4 W
  • Power Connector

    • 4-pin terminal block
Reliability
  • Automatic Reboot Trigger

    • External WDT (watchdog timer)
Physical Characteristics
  • Housing

    • Metal
      SECC
  • IP Rating

    • IP30
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
  • Dimensions

    • AIG-301-AZU-LX/T-AZU-LX: 141.5 x 120 x 27 mm (5.7 x 4.72 x 1.06 in)
      All other models: 141.5 x 120 x 39 mm (5.7 x 4.72 x 1.54 in)
  • Weight

    • AIG-301-AZU-LX/T-AZU-LX: 560 g (1.23 lb)
      AIG-301-CN-AZU-LX/T-CN-AZU-LX: 745 g (1.64 lb)
      All other models: 750 g (1.65 lb)
Environmental Limits
  • Operating Temperature

    • Standard temp. models:
      AIG-301-US-AZU-LX, AIG-301-EU-AZU-LX, AIG-301-APAZULX, AIG-301-CN-AZU-LX: -20 to 70°C (-4 to 158°F)
      AIG-301-AZU-LX: -20 to 85°C (-4 to 185°F)
      Wide Temp. Models:
      AIG-301-T-US-AZU-LX, AIG-301-T-EU-AZU-LX, AIG- 301-TAPAZU-LX, AIG-301-T-CN-AZU-LX: -40 to 70°C (-40 to 158°F))
      AIG-301-T-AZU-LX: –40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Shock

    • IEC 60068-2-27
  • Vibration

    • 2 Grms @ IEC 60068-2-64, random wave, 5 to 500 Hz, 1 hr per axis (without USB devices attached)
Standards and Certifications
  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Safety

    • UL 62368-1
      EN 62368-1
  • Radio

    • TELEC
      NCC
      KC
      RCM
  • Carrier Approvals

    • AT&T
      Verizon
      PTCRB
  • RED

    • EN 301 489-1/17/19/52
      EN 301 908-1
      EN 303 413
      EN 62311
  • Hazardous Locations

    • Class I Division 2, ATEX
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • AIG-301-AZU-LX/T-AZU-LX: 794,092 hrs
      AIG-301-US-AZU-LX/T-US-AZU-LX, AIG-301-EU-AZU-LX/T-EU-AZU-LX, AIG-301-AP-AZU-LX/T-AP-AZU-LX: 683,818 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
