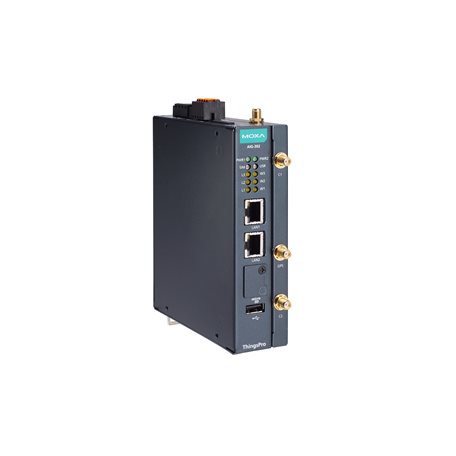

AIG-302-T-EU-AZU-LX
AIG-302 Series

2-port Modbus RTU/ASCII/TCP to MQTT/Azure cloud-ready gateway for the EU region with Arm® Cortex™-A7 dual-core 1GHz processor, Azure IoT Edge software, -40 to 70°C operating temperature

Computer

  • CPU

    • Armv7 Cortex-A7 dual-core 1 GHz

  • DRAM

    • 2 GB DDR3L

  • Storage Pre-installed

    • 32 GB eMMC

  • Pre-installed OS

    • Moxa Industrial Linux (Debian 11, kernel 5.10.x)

  • No. of Tags Supported

    • 3000
Computer Interface

  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2

  • Serial Ports

    • RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

  • CAN Ports

    • CAN 2.0 A/B x 1 (DB9 male)

  • Digital Input

    • DIs x 4

  • Digital Output

    • DOs x 4

  • USB 2.0

    • USB 2.0 hosts x 1, type-A connectors

  • Wi-Fi Antenna Connector

    • RP-SMA x 2

  • Cellular Antenna Connector

    • SMA x 2

  • GPS Antenna Connector

    • SMA x 1

  • Expansion Slots

    • mPCIe slots x 1

  • SIM Format

    • Nano

  • Number of SIMs

    • 2

  • Buttons

    • Reset button
      Reset to factory default

  • TPM

    • TPM v2.0
Ethernet Interface

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 2
Ethernet Software Features

  • Industrial Protocols

    • Modbus TCP Client/Server
      Generic MQTT
      Azure IoT Device
      Azure IoT Edge

  • Configuration Options

    • Web Console (HTTP/HTTPS)
      AIG QuickON

  • Time Management

    • NTP Server/Client
      GPS

  • Security

    • OpenVPN Client,
      SSH
      HTTPS/SSL
      TLS
      Firewall
Serial Interface

  • No. of Ports

    • 2

  • Connector

    • DB9 male

  • Baudrate

    • 300 bps to 921.6 kbps

  • Data Bits

    • 7, 8

  • Stop Bits

    • 1, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • RTS/CTS, XON/XOFF

  • Console Port

    • 1 x 4-pin header
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
Serial Software Features

  • Industrial Protocols

    • Modbus RTU/ASCII Master
CAN Interface

  • No. of Ports

    • 1

  • Connector

    • DB9 male

  • Baudrate

    • 10 to 1000 kbps

  • Industrial Protocols

    • CAN 2.0A
      CAN 2.0B

  • Signals

    • CAN_H, CAN_L, CAN_GND, CAN_SHLD, CAN_V+, GND

  • Isolation

    • 2 kV (built-in)
Digital Inputs

  • Connector

    • Spring-type Euroblock terminal

  • Sensor Type

    • Wet contact (NPN)
      Dry contact

  • Dry Contact

    • Off: open
      On: short to GND

  • Wet Contact (DI to COM)

    • On: 10 to 30 VDC
      Off: 0 to 3 VDC

  • Isolation

    • 3K VDC
Digital Outputs

  • Connector

    • Spring-type Euroblock terminal

  • Current Rating

    • 200 mA per channel

  • I/O Type

    • Sink

  • Voltage

    • 24 VDC
      nominal, open collector to 30 VDC
Cellular Interface

  • Cellular Standards

    • LTE Cat. 4

  • Band Options (US)

    • LTE Band 2 (1900 MHz) / LTE Band 4 (1700 MHz) / LTE Band 5 (850 MHz) / LTE Band 12 (700 MHz) / LTE Band 13 (700 MHz) / LTE Band 14 (700 MHz) / LTE Band 66 (1700 MHz) / LTE Band 71 (600 MHz)
      UMTS/HSPA 850 MHz / 1900 MHz
      Carrier Approval: Verizon, AT&T

  • Band Options (EU)

    • LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz)
      UMTS/HSPA 900 MHz / 1800 MHz / 2100 MHz

  • Band Option (APAC)

    • LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 28 (700 MHz)
      UMTS/HSPA 850 MHz / 900 MHz / 2100 MHz
GPS Interface

  • Receiver Types

    • GPS/GLONASS/BeiDou/Galileo/QZSS

  • Accuracy

    • Position: 2.0 m @CEP50

  • Time to First Fix (TTFF)

    • Hot start: 1.1 s
      Warm start: 22.1 s
      Cold start: 29.9 s

  • Sensitivity

    • Cold starts: -145 dBm
      Acquisition: -147.0 dBm
      Tracking: -160 dBm

  • Update Rate

    • 1 Hz
Azure IoT Edge

  • Versions Supported

    • v1.4.20

  • Authentication Methods

    • Manual / Connection String
      DPS / Symmetric Encryption
      DPS / X.509 Certificate
      DPS / TPM

  • Azure Direct Methods

    • Reboot
      Software Upgrade
      Remote API Invocation

  • Azure Module Twin

    • Device Configuration

  • Moxa Functions

    • Custom Payload
      Message Group
Generic MQTT Client

  • Versions Supported

    • v3.1.1
      v3.1

  • QoS Levels

    • 0, 1, 2

  • Authentication Methods

    • Username and password

  • Secure Transmission

    • TLS 1.0
      TLS 1.1
      TLS 1.2

  • Native Capabilities

    • Keep Alive
      Retain Message
      Clean Session
      Will and Testament

  • Moxa Functions

    • Store and Forward
      Custom Payload
      Remote API Invocation
Azure IoT Device

  • Connection Protocols Supported

    • MQTT
      MQTT over WebSockets
      AMQP
      AMQP over WebSockets

  • Authentication Methods

    • Symmetric Key
      X.509 Certificate

  • Azure Direct Methods

    • Reboot
      Software Upgrade
      Remote API Invocation
Modbus RTU/ASCII

  • Mode

    • Client

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Commands

    • 256 per port

  • Max. No of Connected Devices

    • 62
Modbus TCP

  • Mode

    • Client/Server

  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Server Connections

    • 64

  • Max. No. of Client Connections

    • 4

  • Max. No. of Commands

    • 3000
LED Indicators

  • System

    • Power x 2
      User x 1
      SIM card indicator x 1

  • LAN

    • 2 per port (10/100/1000 Mbps)

  • Wireless Signal Strength

    • Cellular/Wi-Fi x 6
Power Parameters

  • No. of Power Inputs

    • Redundant dual inputs

  • Input Voltage

    • 12 to 48 VDC

  • Input Current

    • 1 A @ 12 VDC

  • Power Consumption

    • 12 W

  • Power Connector

    • 4-pin terminal block
Reliability

  • Automatic Reboot Trigger

    • External WDT (watchdog timer)
Physical Characteristics

  • Housing

    • Metal
      SECC

  • IP Rating

    • IP30

  • Weight

    • 750 g (1.65 lb)

  • Dimensions

    • 141.5 x 120 x 39 mm (5.7 x 4.72 x 1.54 in)

  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Shock

    • IEC 60068-2-27

  • Vibration

    • 2 Grms @ IEC 60068-2-64, random wave, 5 to 500 Hz, 1 hr per axis (without USB devices attached)
Standards and Certifications

  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Safety

    • UL 62368-1
      EN 62368-1

  • Radio

    • NCC
      KC
      RCM
      TELEC

  • Carrier Approvals

    • AT&T
      Verizon
      PTCRB

  • RED

    • EN 301 489-1/19/52
      EN 301 908-1
      EN 303 413
      EN 62311

  • Hazardous Locations

    • Class I Division 2, ATEX

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 1,403,998 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
