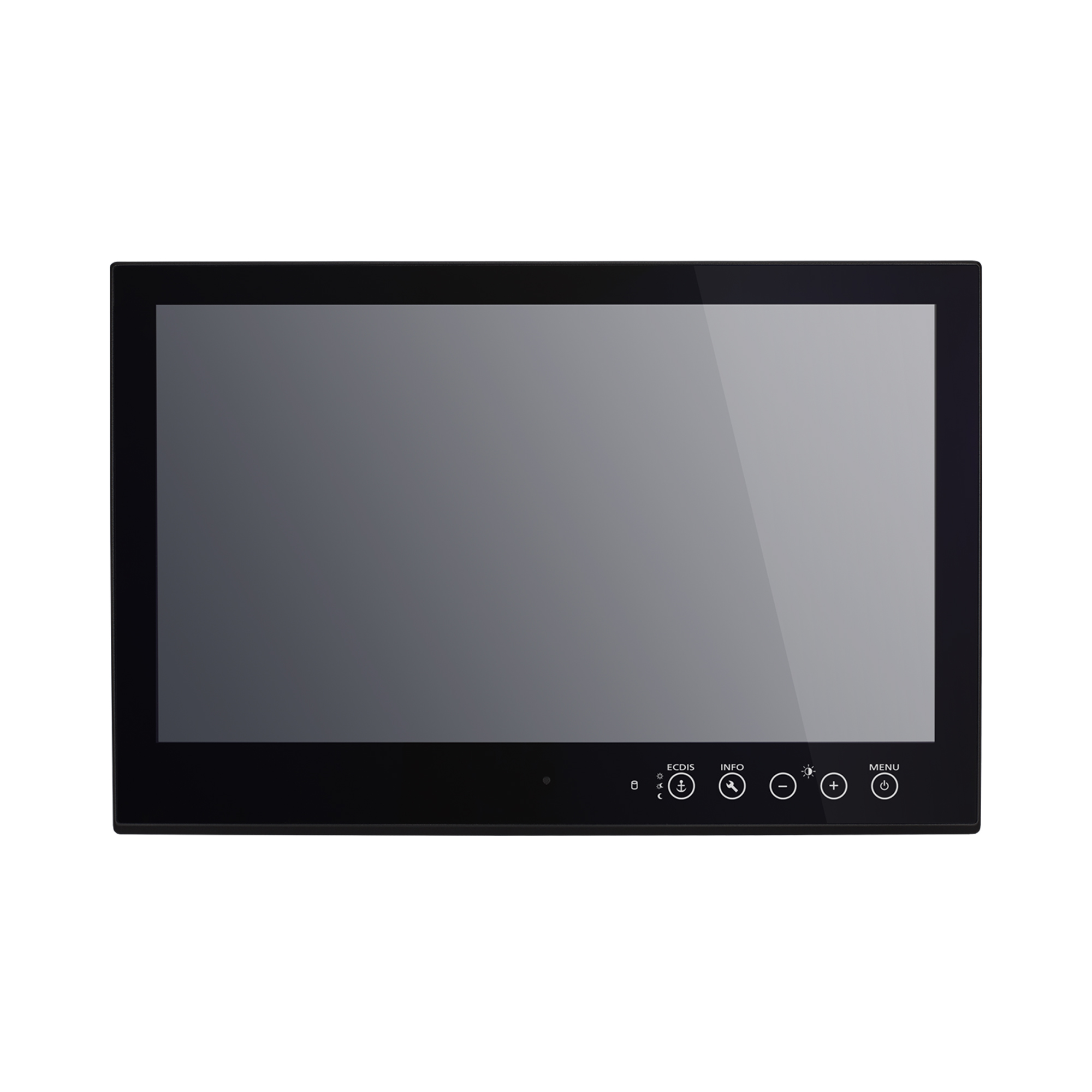

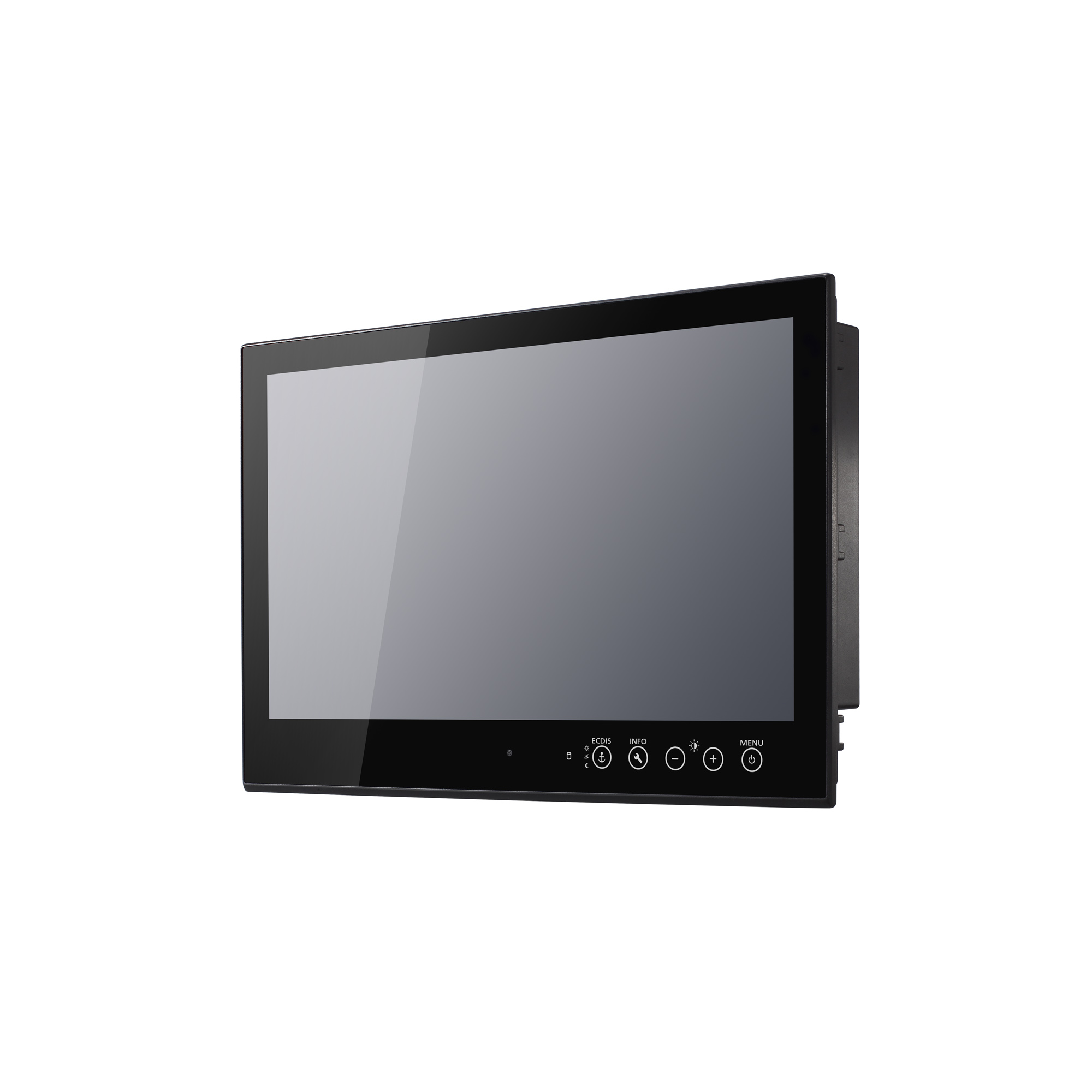

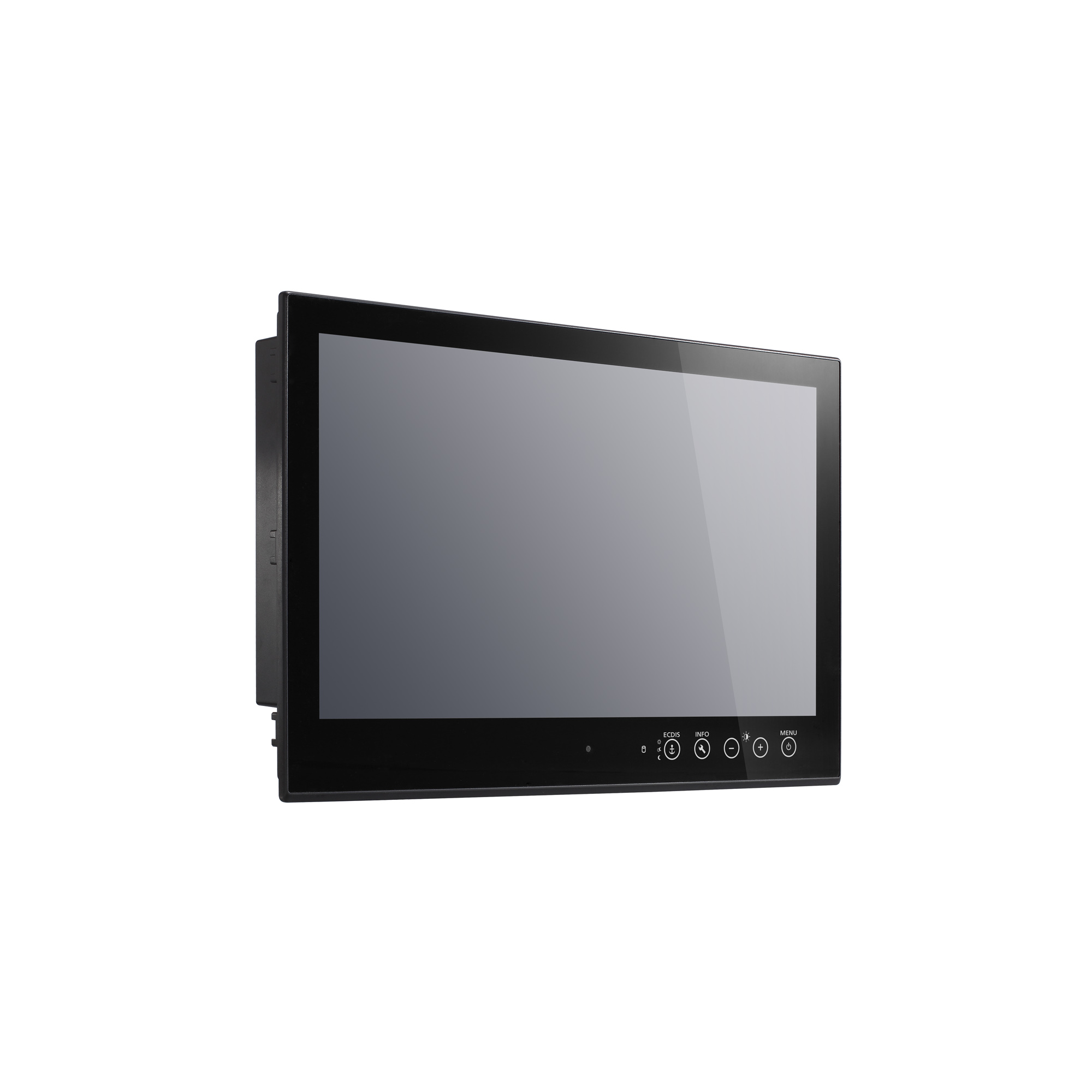

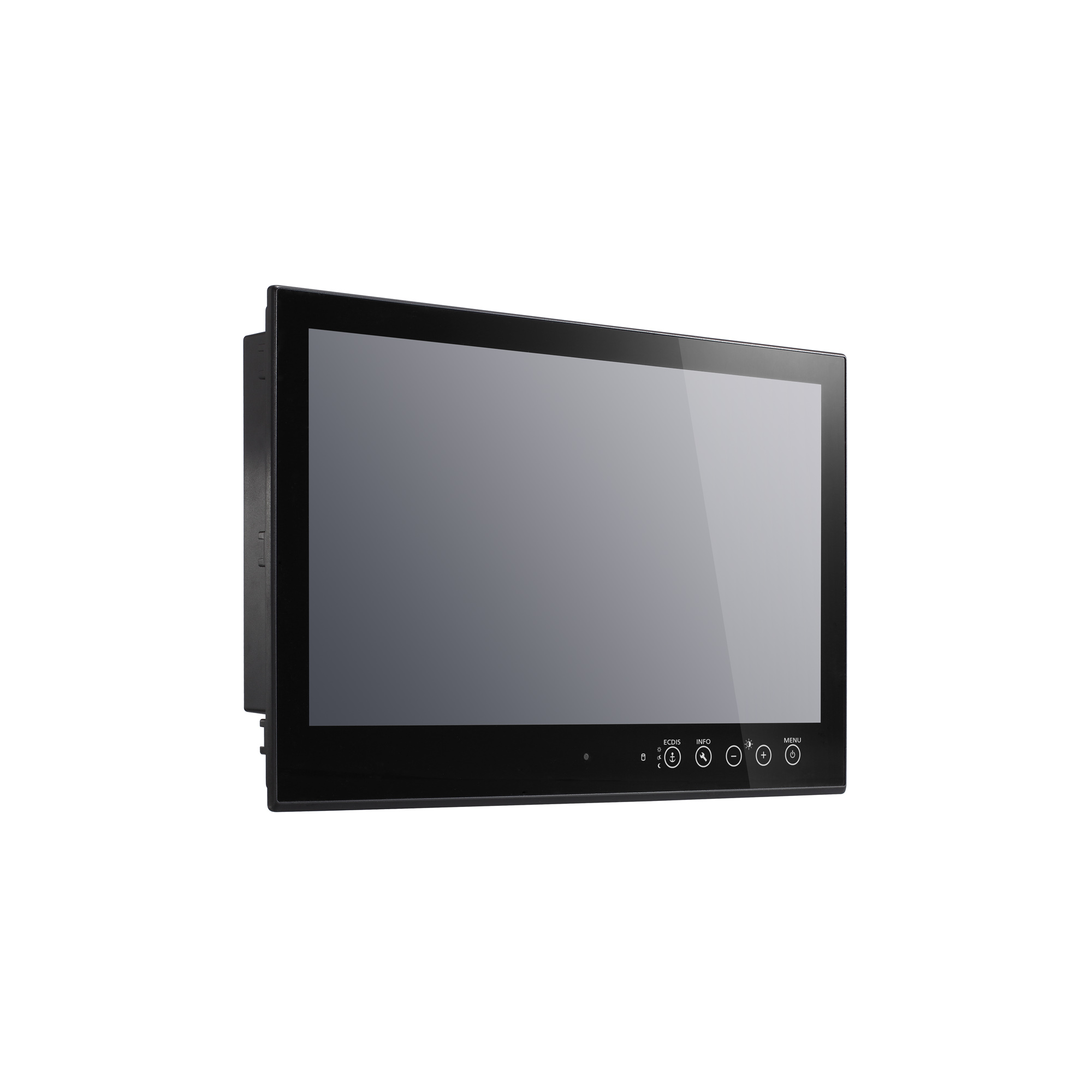

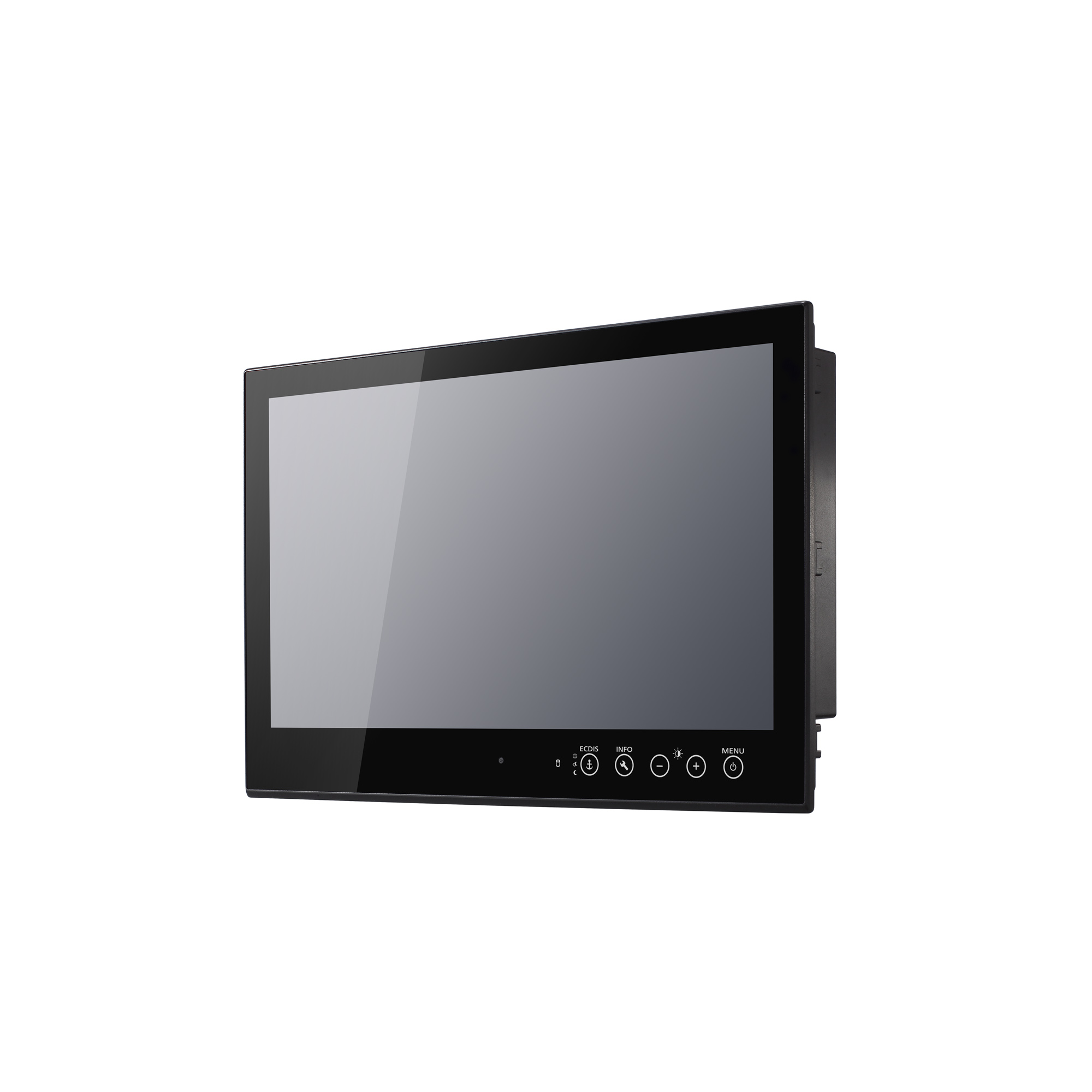

MD-224 Series

24-inch marine display

moxa-md-224-series-image-1-(1).jpg | Moxa
moxa-md-224-series-image-2-(1).jpg | Moxa
moxa-md-224-series-image-3-(1).jpg | Moxa
moxa-md-224-series-image-4-(1).jpg | Moxa
moxa-md-224-series-image-5-(1).jpg | Moxa

Features and Benefits

  • 24-inch display, 16:9 aspect ratio
  • 300-nit or sunlight-readable 1000-nit LED backlight
  • Color calibrated for ECDIS compliance (available by CTOS)
  • Full range dimming, 0 to 100%
  • SavvyTouch display controls
  • Built-in RS-232/422/485 interfaces
  • Dual power supplies (AC & DC)
  • IP54-rated front panel (IP66 available by request)

Certifications

  • moxa-dnv-gl-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa

Contact Sales

Introduction

The MD-224 Series of marine displays come with full range dimming, wide viewing angles, and optional optical bonding. These displays are built with a small-profile modular design that allows easier integration into industrial marine systems, thereby reducing deployment costs and overall time-to-market.

The innovative and user-friendly SavvyTouch display controls offer several unique features not found in most marine display consoles: a proximity sensor for convenient adjustments in dark conditions, an info button for immediate updates of power status, and a quick-switch to adjust between day, dusk, and night-time ECDIS modes (for color-calibrated ECDIS models only).

The MD-224 Series displays are compliant with IEC 60945, DNV, ABS, and IACS E10, making them suitable for maritime applications. Their IP54-rated (IP66-rated models available on request) enclosure provides additional protection against dust and moisture above and beyond the limits established by these international standards bodies.

ECDIS-approved models are also available, offering an excellent HMI solution for ECDIS charting and navigation stations.

Appearance

  • Aspect Ratio

    16:9

  • Contrast Ratio

    5,000:1

  • Max. No. of Colors

    16.7M (8-bit/color)

  • Panel Size

    24-inch viewable image

  • Panel Type

    MVA

  • Pixels

    1920 x 1080

  • Response Time

    25 ms (gray to gray)

  • Viewing Angles

    178°/178°

  • Light Intensity (Brightness)

    MD-224X/224Z: 300 cd/m2
    MD-224Z-HB: 1000 cd/m2

  • Serial Ports

    RS-232 ports x 1 (DB9 male)
    RS-232/422/485 ports x 1, software-selectable (terminal block)

  • Video Input

    DVI-D x 1, 29-pin DVI-D connectors (female)
    VGA x 1, 15-pin D-sub connector (female)

  • Touch Type

    MD-224Z/224Z-HB: Capacitive Touch (PCAP)
    MD-224X: None

  • Touch Support Points

    MD-224Z/224Z-HB: 4 points

  • Baudrate

    50 bps to 115.2 kbps

  • Data Bits

    5, 6, 7, 8

  • Flow Control

    RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)

  • Parity

    None, Even, Odd, Space, Mark

  • Stop Bits

    1, 1.5, 2

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Input Voltage

    100 to 240 VAC, 24 VDC (18 to 30 V)

  • Power Consumption

    40 W (max.)

  • Housing

    Metal

  • IP Rating

    MD-224X: IP54, front
    MD-224X: IP22, rear
    MD-224Z: IP54, front
    MD-224Z: IP22, rear
    MD-224Z-HB: IP66, front
    MD-224Z-HB: IP22, rear

  • Dimensions

    595 x 393 x 75 mm (23.43 x 15.47 x 2.95 in)

  • Weight

    9,570 g (21.10 lb)

  • Installation

    Desktop, Panel mounting, VESA mounting

  • Operating Temperature

    -15 to 55°C (5 to 131°F)

  • Storage Temperature (package included)

    -20 to 60°C (-4 to 140°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 1k V

  • Maritime

    ABS, CCS, DNV-GL, IEC 60945

  • Safety

    UL 60950-1

Support Documents

Name Type Version Release Date
QIG for MD-219/224 Series
1.7 MB
QIG v2.1 May 26, 2021 May 26, 2021
Datasheet for MD-224 Series
773.5 KB
Datasheet v1.2 Apr 23, 2020 Apr 23, 2020
Manual for MD-224 Series (Hardware)
7.1 MB
Manual v2.0 Mar 20, 2017 Mar 20, 2017

Available Models (3)

Show Images
moxa-md-224x-image.jpg | MoxaMD-224Xmoxa-md-224z-image.jpg | MoxaMD-224Zmoxa-md-224z-hb-image.jpg | MoxaMD-224Z-HB
Panel24" (16:9)
300 nits
24" (16:9)
300 nits
24" (16:9)
1000 nits
Video Inputs1 x VGA
1 x DVI-D
1 x VGA
1 x DVI-D
1 x VGA
1 x DVI-D
TouchscreenMulti-touchMulti-touch
Power Input24 VDC (18-30 V)
100-240 VAC
24 VDC (18-30 V)
100-240 VAC
24 VDC (18-30 V)
100-240 VAC
IP RatingIP54 (front),
IP22 (rear)
IP54 (front),
IP22 (rear)
IP66 (front),
IP22 (rear)
Operating Temp.-15 to 55°C-15 to 55°C-15 to 55°C
