IIoT Gateway Starter Kit

Moxa’s Arm-based industrial computer preinstalled with ThingsPro data-acquisition software

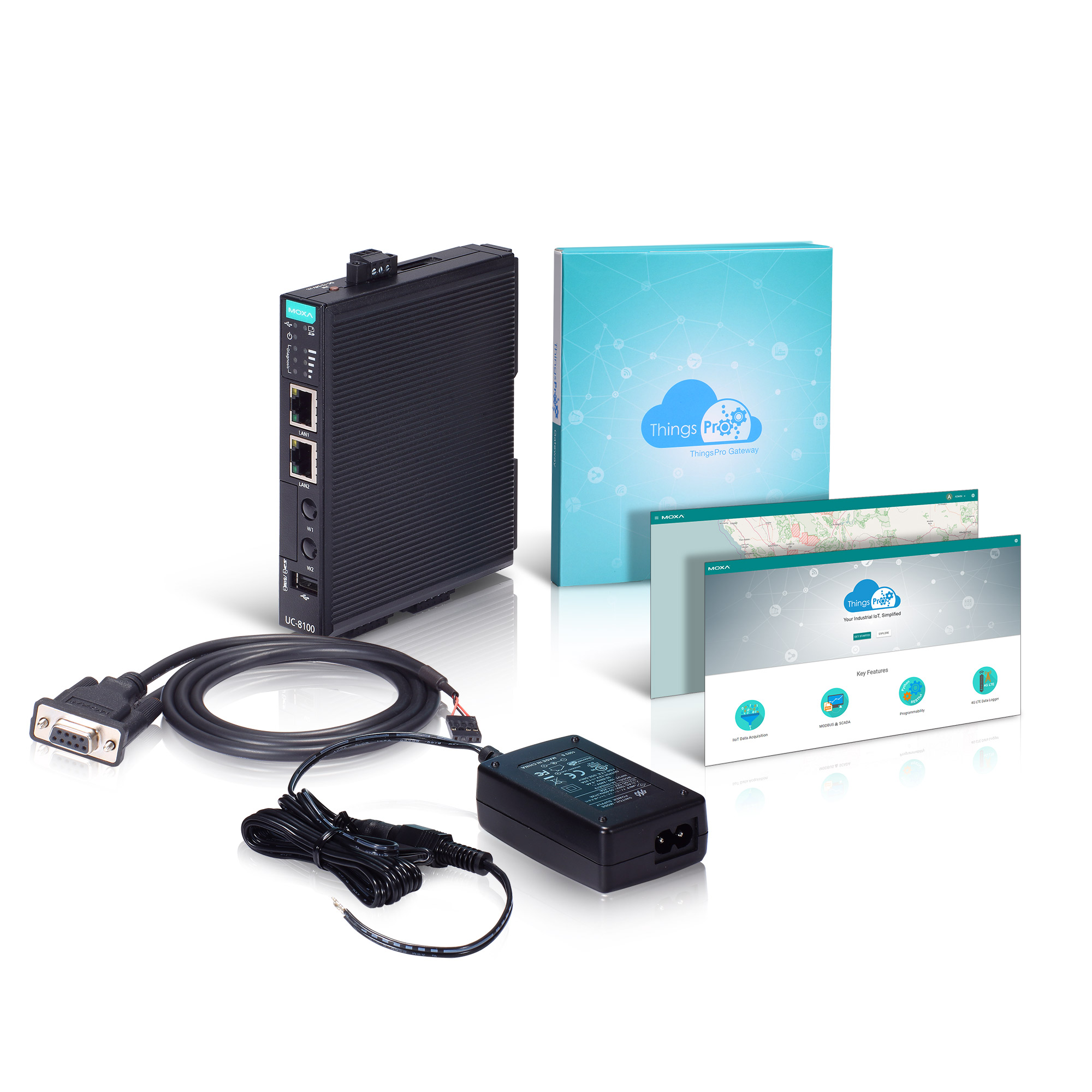

moxa-iiot-gateway-starter-kit-image-1-(1).jpg | Moxa

Features and Benefits

  • Ready-to-deploy UC-8112-LX edge computer with ThingsPro Gateway software preinstalled
  • Easy-to-use web UI for Modbus DAQ, MQTT connectivity, and wireless communication for efficient edge-to-core data transformation
  • RESTful APIs and Modbus APIs for implementing all ThingsPro Gateway software functions
  • LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
  • Open platform design that supports the Linux kernel 4.1 with Debian 8

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa

Contact Sales

ThingsPro Gateway Software

Moxa’s ThingsPro Gateway is a groundbreaking software package designed for Industrial Internet of Things (IIoT) applications. It bridges the gap between IT (Information Technology) and OT (Operational Technology) by offering an easy-to-use web UI for Modbus data acquisition, LTE connectivity, and MQTT communications. With ThingsPro Gateway, you can focus on software application development for your IIoT business. ThingsPro Gateway supports a number of useful software functions and provides a Modbus API and RESTful API for future software integration and enhancement.

More information: https://www.moxa.com/doc/specs/ThingsPro_Gateway.pdf

UC-8112-LX Edge Computer

The UC-8112-LX industrial-grade Arm-based edge computer may be tiny, but it has everything you need for field-site deployment. It packs a 1 GHz Arm processor, 512 MB RAM, two LAN ports, and two serial ports into a compact, rugged, palm-sized box. It also supports a wide range of wireless accessories to add LTE or Wi-Fi connectivity, if needed. Following the industry trend of implementing distributed-grid and smart-manufacturing designs, industrial-grade computers add essential field-site intelligence for RMAC (Remote Monitoring And Control), Intelligent Data Logger, Software-based RTU, and Protocol Converter applications. The UC-8112-LX’s open platform design supports Debian 8, and the Linux kernel is based on Moxa’s SLTS (Superior Long Term Support) Linux kernel v4.x to ensure that your software assets will be useful for longer than would otherwise be possible.

More information: https://www.moxa.com/doc/specs/UC-8112-LX.pdf

Support Documents

Name Type Version Release Date
Datasheet for IIoT Gateway Starter Kit
476.1 KB
Datasheet v1.0 2018-11-12 Nov 12, 2018
Manual for IIoT Gateway Starter Kit (ThingsPro Programming Guide)
15.0 MB
Manual v2.0 2018-05-21 May 21, 2018
Manual for IIoT Gateway Starter Kit
3.1 MB
Manual v2.0 2018-04-30 Apr 30, 2018
Manual for IIoT Gateway Starter Kit
8.0 MB
Manual v6.0 2018-04-26 Apr 26, 2018
Tech Note for IIoT Gateway Starter Kit (Using Google Cloud SDK with ThingsPro)
1.8 MB
Tech Note v1.1 2017-11-09 Nov 09, 2017
Manual for IIoT Gateway Starter Kit
2.1 MB
Manual v3.0 2017-07-03 Jul 03, 2017
Tech Note for IIoT Gateway Starter Kit (How to Publish Processed Data to AWS IoT)
994.2 KB
Tech Note v1.0 2017-05-24 May 24, 2017
Tech Note for IIoT Gateway Starter Kit (ThingsPro AWS IoT Application)
1.6 MB
Tech Note v1.0 2017-05-24 May 24, 2017
Tech Note for IIoT Gateway Starter Kit (ThingsPro Device Groups and Task Queue)
1.1 MB
Tech Note v1.0 2017-05-24 May 24, 2017
Tech Note for IIoT Gateway Starter Kit (ThingsPro Real-Time Monitoring MQTT)
1.1 MB
Tech Note v1.0 2017-05-24 May 24, 2017
Tech Note for IIoT Gateway Starter Kit (ThingsPro Using Log Upload)
1.1 MB
Tech Note v1.0 2017-04-24 Apr 24, 2017
Tech Note for IIoT Gateway Starter Kit (ThingsPro Using OpenVPN Remote Control)
1.1 MB
Tech Note v1.0 2017-04-24 Apr 24, 2017
Tech Note for IIoT Gateway Starter Kit (Running ATnT M2X Service on UC-81XX)
1.4 MB
Tech Note v1.0 2017-02-03 Feb 03, 2017
Tech Note for IIoT Gateway Starter Kit (Getting Started MS Azure IoT on UC8100-LX)
1.8 MB
Tech Note v1.0 2017-01-20 Jan 20, 2017
Tech Note for IIoT Gateway Starter Kit (AWS IoT on UC8100 Using Embedded C SDK)
1.2 MB
Tech Note v1.0 2017-01-17 Jan 17, 2017
Tech Note for IIoT Gateway Starter Kit (Moving Your Application from Raspberry Pi to UC8100-LX)
1.2 MB
Tech Note v1.0 2017-01-17 Jan 17, 2017
Compatibility Guide for IIoT Gateway Starter Kit
236.4 KB
Compatibility Guide v2.1 2016-12-15 Dec 15, 2016
QIG for IIoT Gateway Starter Kit (SW QIG)
486.5 KB
QIG v1.0 2015-05-20 May 20, 2015
Manual for IIoT Gateway Starter Kit
11.1 MB
Manual v1.0 2015-05-20 May 20, 2015
QIG for IIoT Gateway Starter Kit (Hardware)
934.9 KB
QIG v1.0 2014-06-26 Jun 26, 2014

Available Models (1)

Show Images
moxa-iiot-gateway-starter-kit-image.jpg | MoxaUC-8112-LX-STK
DescriptionUC-8112-LX edge computer development kit with ThingsPro Gateway software (ThingsPro-GW) preinstalled
NoteMaximum of two orders per account
Add to QuoteView Bag
Added To Bag

IIoT Gateway Starter Kit

UC-8112-LX-STK

moxa-iiot-gateway-starter-kit-image.jpg | Moxa
