x86 Computers

Moxa’s x86 industrial-grade fanless computers have passed rigorous tests and strictly adhere to industrial standards to ensure they can provide long-lasting, reliable operation even in harsh environments, making them perfect for a variety of industrial-automation applications.

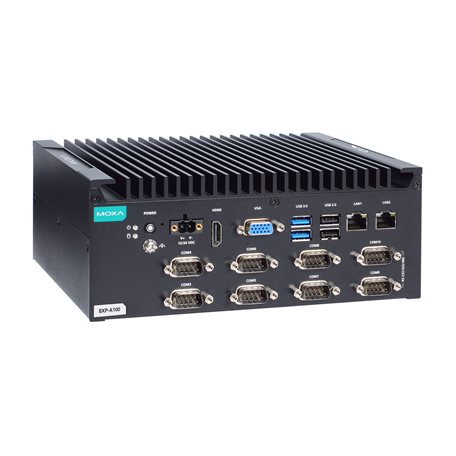

BXP-A100-E2-8C-T
BXP-A100 Series

Box computer with Intel Atom® x6211E processor, 2 LAN ports, 10 serial ports, 4 DIs, 4 DOs, 2 USB 3.0 ports, 4 USB 2.0 ports, 1 VGA port, 1 HDMI port, 1 CFast slot, 1 SD slot, 12/24 VDC power input, -30 to 60°C operating temperature

Computer
  • CPU

    • BXP-A100-E2 Models: Intel Atom® x6211E processor (Dual core, 1.5M cache, 1.30 GHz)
      BXP-A100-E4 Models: Intel Atom® x6425E processor (Quad core, 1.5M cache, 2.00 GHz)
  • System Memory Slot

    • SODIMM DDR4 slots x 1, up to 32 GB max.
  • System Memory Pre-installed

    • 8 GB DDR4
  • Storage Slot

    • CFast slot x 1 (SATAIII interface)
      SD slots x 1, SD 3.0 interface (SDHC/SDXC)
  • Storage Pre-installed

    • BXP-A100-E2-T-Win10/BXP-A100-E4-T-Win10: 64 GB CFast card
  • Supported OS

    • Windows Images and Drivers Supported:
      - Windows 10 IoT Enterprise LTSC 2021 64-bit
      - Windows 11 Professional 64-bit

      Linux Drivers Supported:
      - Debian 11 (kernel 5.10)
      - Ubuntu 22.04 LTS (kernel 5.15)
      - RHEL 9 (kernel 5.14)
  • Graphics Controller

    • Intel® UHD Graphics
Computer Interface
  • Ethernet Ports

    • BXP-A100-E2-8L-T/E4-8L-T:
      Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 10
      BXP-A100-E2-2L3C-T/E4-2L3C-T:
      Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
      All Other Models:
      Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
  • Serial Ports

    • BXP-A100-E2-8C-T/E4-8C-T:
      RS-232/422/485 ports x 10, software selectable (DB9 male) x 10
      BXP-A100-E2-2L3C-T/E4-2L3C-T:
      RS-232/422/485 ports x 5, software selectable (DB9 male) x 5
      All Other Models:
      RS-232/422/485 ports x 2, software selectable (DB9 male) x 2
  • USB 3.0

    • USB 3.0 hosts x 2, type-A connectors
  • USB 2.0

    • USB 2.0 hosts x 4, type-A connectors
  • Digital Input

    • DIs x 4
  • Digital Output

    • DOs x 4
  • TPM

    • TPM v2.0
  • Video Output

    • HDMI 2.0b x 1, (type-A connector)
      VGA x 1, 15-pin D-sub connector (female)
  • Buttons

    • Reset button
      Power button
Ethernet Interface
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface
  • Baudrate

    • 50 bps to 115.2 kbps
  • Connector

    • DB9 male
  • Data Bits

    • 5, 6, 7, 8
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 1.5, 2
  • Flow Control

    • RTS/CTS, XON/XOFF
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs
  • Connector

    • Spring-type Euroblock terminal
  • Sensor Type

    • Dry contact
  • Dry Contact

    • Logic 0: Short to GND
      Logic 1: Open
Digital Outputs
  • Connector

    • Spring-type Euroblock terminal
  • I/O Type

    • Sink
  • Current Rating

    • 200 mA per channel
  • Voltage

    • 0 to 24 VDC
LED Indicators
  • System

    • Power x 1
      Storage x 1
  • LAN

    • 2 per port (10/100/1000 Mbps)
Power Parameters
  • Input Voltage

    • 12/24 VDC
  • Power Connector

    • Screw-fastened Euroblock terminal
  • Power Consumption

    • 50 W
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP20
  • Dimensions

    • BXP-A100-E2-T/E4-T/E2-T-Win10/E4-T-Win10:
      210 x 166 x 48 mm (8.27 x 6.54 x 1.9 in)
      BXP-A100-E2-8L-T/E4-8L-T/E2-2L3C-T/E4-2L3C-T:
      210 x 166 x 65.5 mm (8.27 x 6.54 x 2.58 in)
      BXP-A100-E2-8C-T/E4-8C-T:
      210 x 166 x 83 mm (8.27 x 6.54 x 3.27 in)
  • Weight

    • BXP-A100-E2-T/E4-T/E2-T-Win10/E4-T-Win10:
      2,015 g (4.44 Ib)
      BXP-A100-E2-8L-T/E4-8L-T:
      2,355 g (5.19 Ib)
      BXP-A100-E2-2L3C-T/E4-2L3C-T:
      2,208 g (4.86 Ib)
      BXP-A100-E2-8C-T/E4-8C-T:
      2,385 g (5.25 Ib)
  • Installation

    • Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -30 to 60°C (-22 to 140°F)
  • Storage Temperature

    • -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
      BSMI
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
  • Safety

    • UL 62368-1 (CB)
      BSMI
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-64
  • Package Drop Test

    • ISTA 1A
  • Package Vibration Test

    • ISTA 1A
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
Reliability
  • Time Source

    • Built-in RTC (real-time clock) with lithium-battery backup
  • Automatic Reboot Trigger

    • Built-in WDT
MTBF
  • Time

    • 556,511 hrs
  • Standards

    • Telcordia (Bellcore), GB
