DA-820E Power Modules

Power modules for the DA-820E Series

moxa-da-820e-power-modules-image-(1).jpg | Moxa
moxa-da-820e-power-modules-image-1-(1).jpg | Moxa

Features and Benefits

  • Isolated power supply
  • Hot-swappable
  • -40 to 85°C wide operating temperature

Contact Sales

Introduction

The DA-820E Power Modules comprise of isolated, hot-swappable power modules specifically engineered for the Moxa DA-820E Series industrial computers. These versatile power modules enable compatible systems to utilize a wide input power range of 100 to 240 VAC / VDC and 48 VDC. In additon, they are designed to operate in a wide operating temperature range of -40 to 85°C, ensuring consistent and reliable performance.

  • Input Voltage

    DA-PWR-150-HV: 100 to 240 VAC, 50 to 60 Hz
    DA-PWR-120-LV: 48 VDC

  • Operating Voltage

    DA-PWR-150-HV: 90 to 264 VAC, 50 to 60 Hz
    DA-PWR-150-HV: 90 to 264 VDC
    DA-PWR-120-LV: 12

  • Overload Current Protection

    Supported

  • Overload Voltage Protection

    Supported

  • Overload Temperature Protection

    Supported

  • Weight

    DA-PWR-150-HV: 840 g (1.85 lb)
    DA-PWR-120-LV: 779 g (1.72 lb)

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

  • Time

    DA-PWR-150-HV: 905,396 hrs
    DA-PWR-120-LV: 6,673,933 hrs

  • Standards

    Telcordia Standard SR-332

Support Documents

FILTER

All Datasheet
Name Type Version Release Date
Datasheet for DA-820E Power Modules
4.9 MB 		Datasheet v1.0 Feb 24, 2025 Feb 24, 2025

Available Models (2)

Show Images
Compare
moxa-da-pwr-150-hv-image.jpg | MoxaDA-PWR-150-HV
Compare

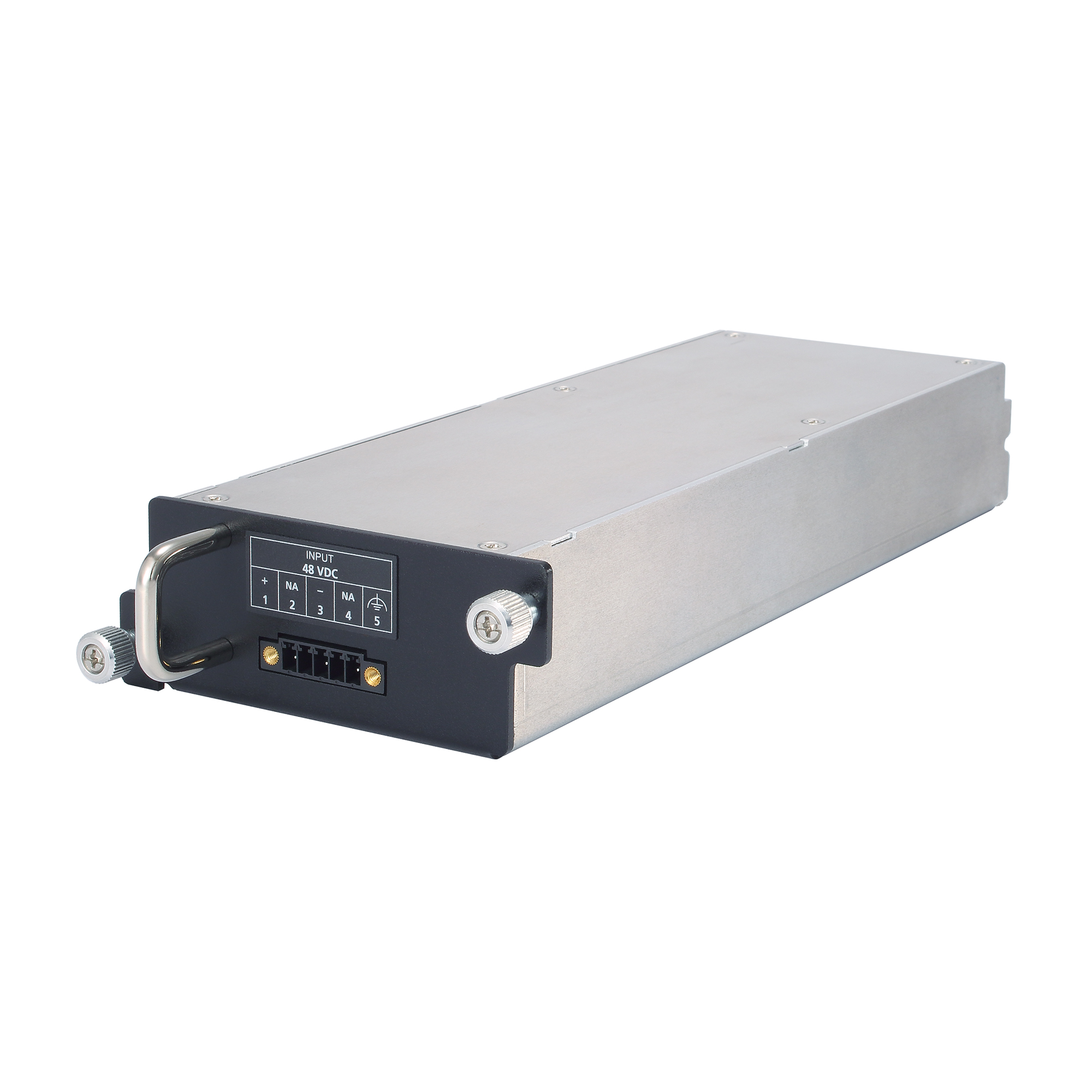

moxa-da-pwr-120-lv-image.jpg | MoxaDA-PWR-120-LV
Input Voltage100 to 240 VAC, 50 to 60 Hz
100 to 240 VDC		48 VDC
Operating Voltage90 to 264 VAC, 50 to 60 Hz
90 to 264 VDC		12 VDC
Supported SeriesDA-820E SeriesDA-820E Series
