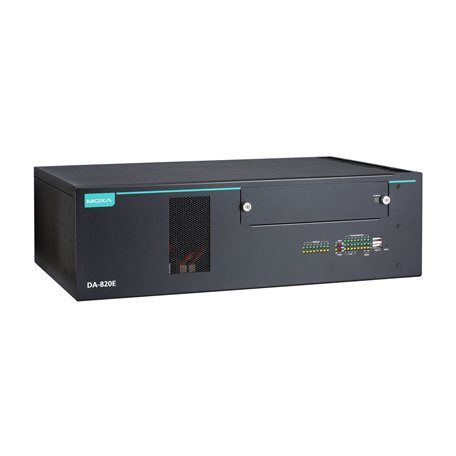

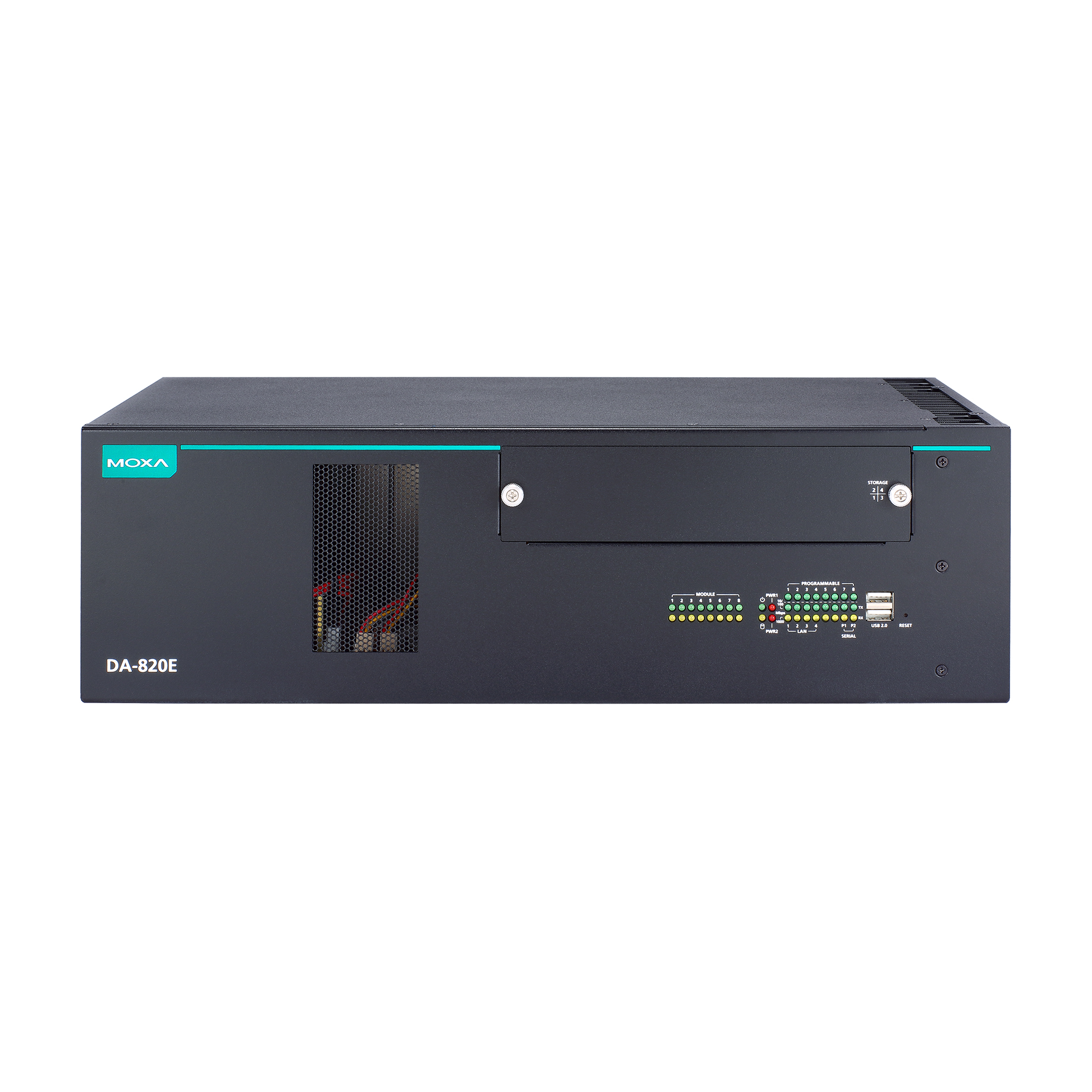

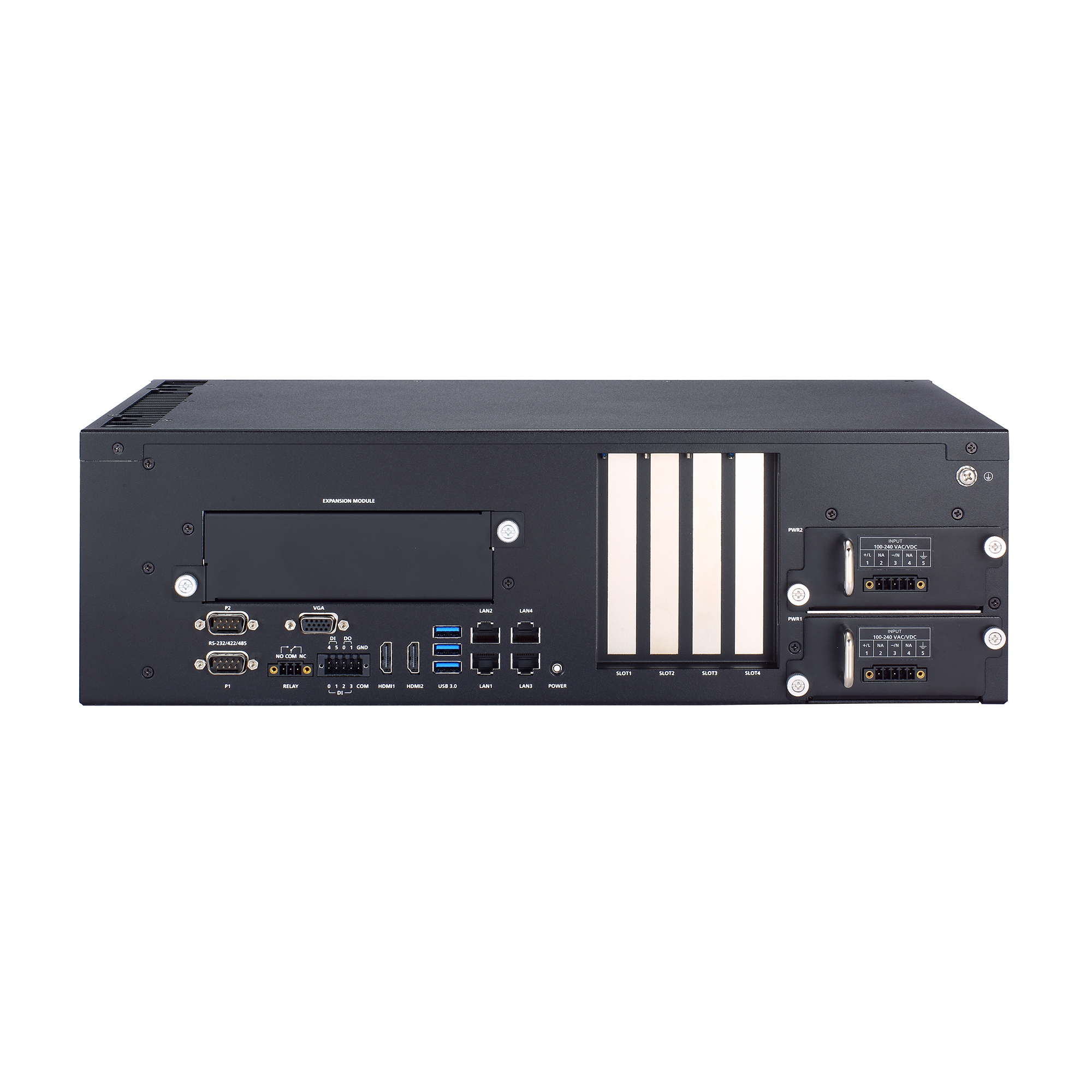

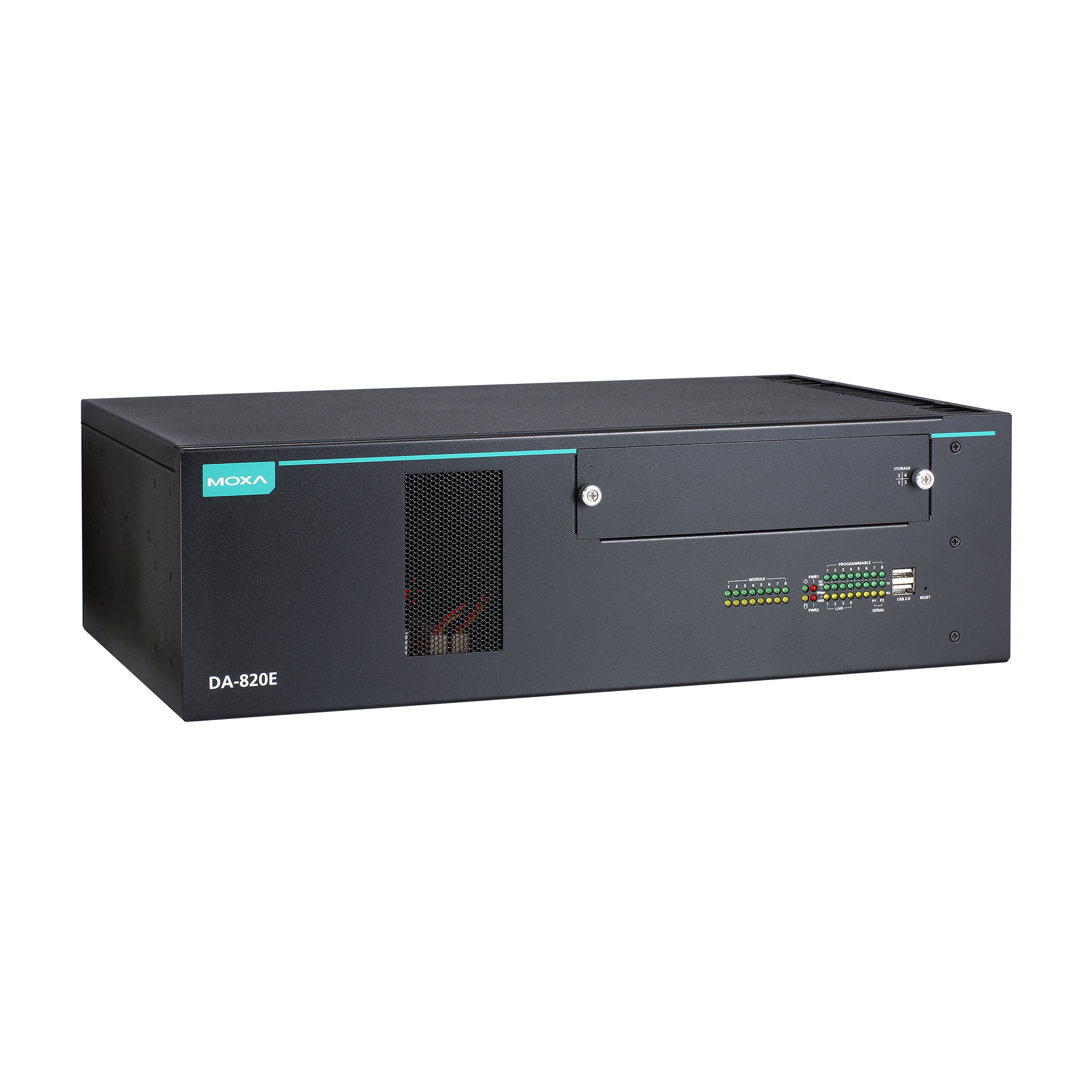

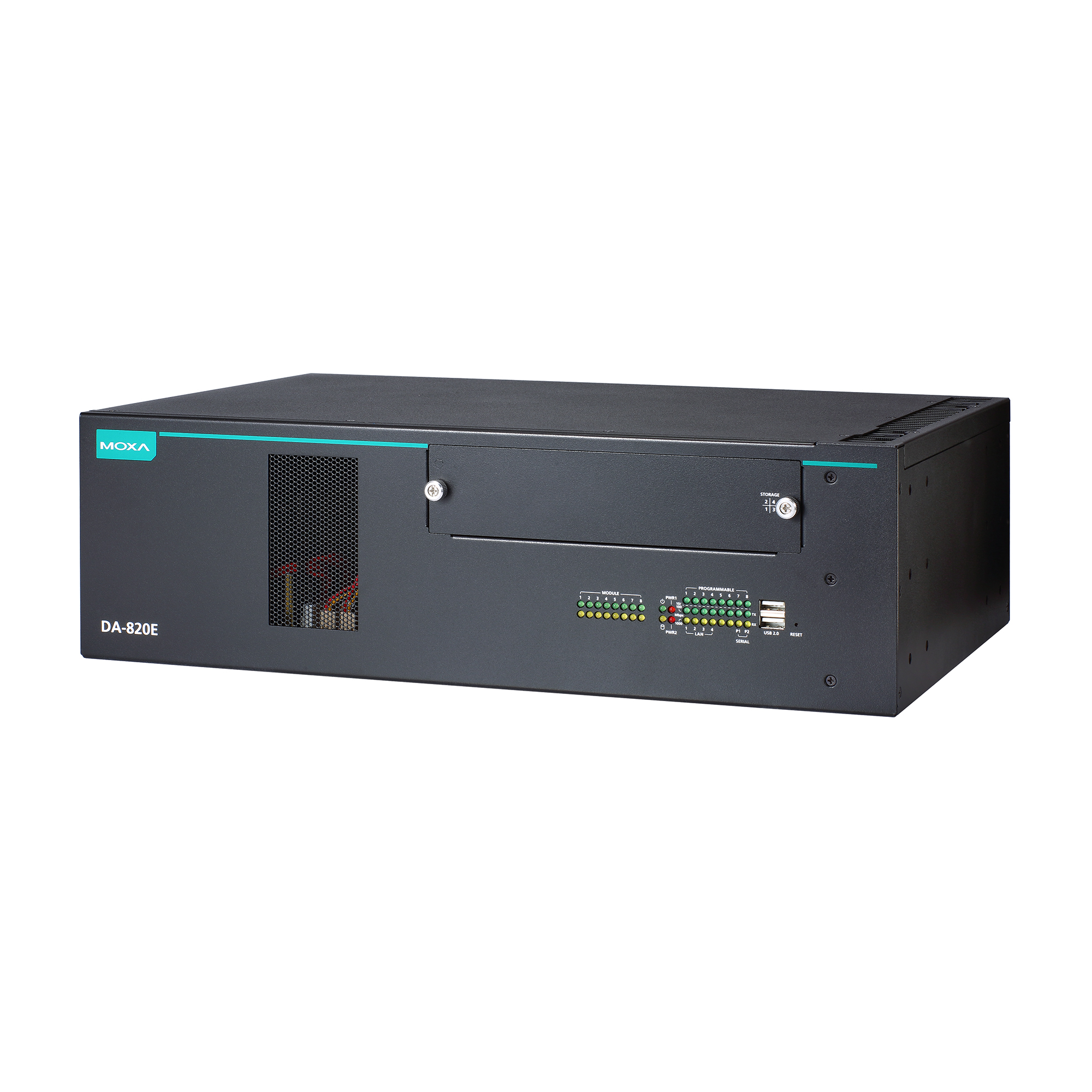

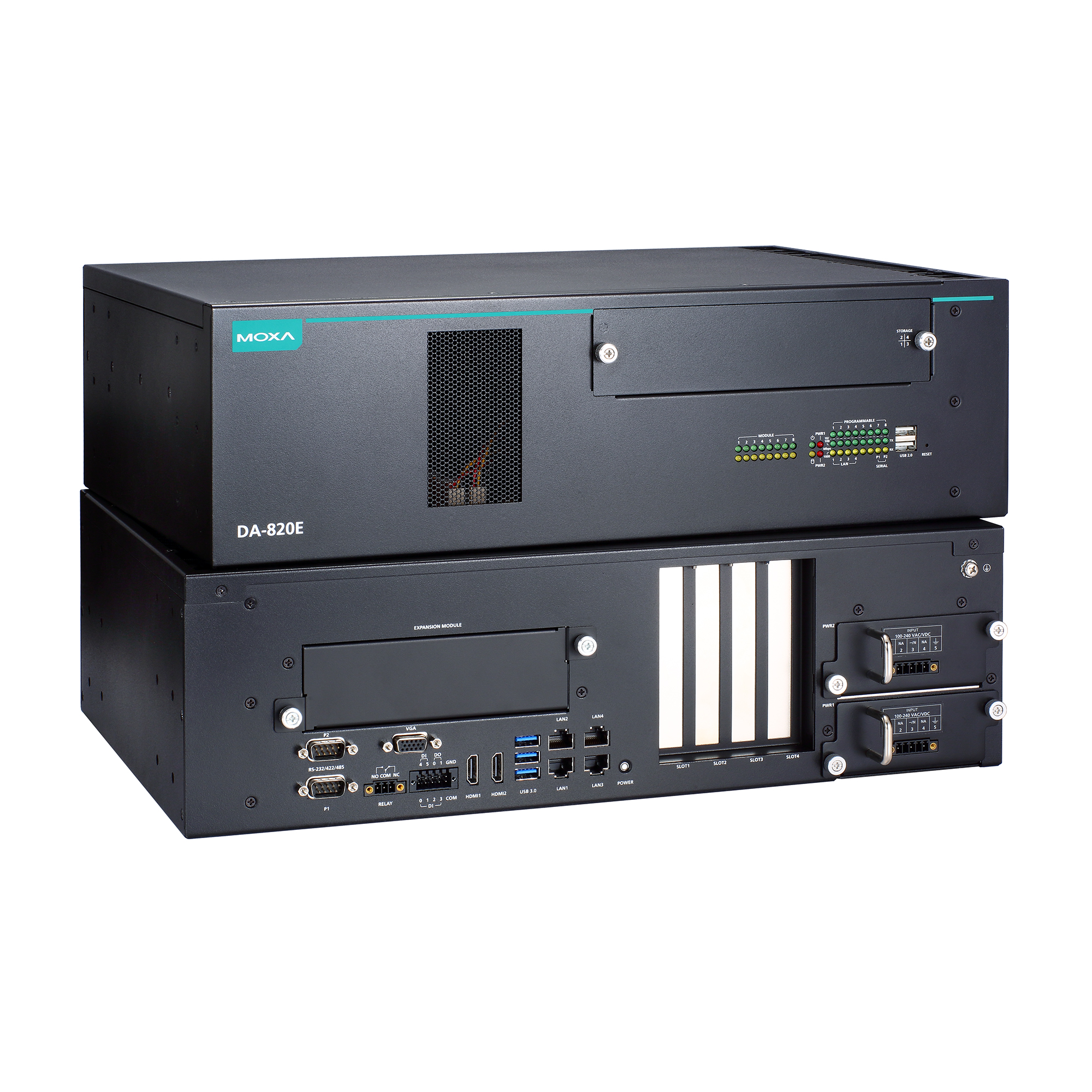

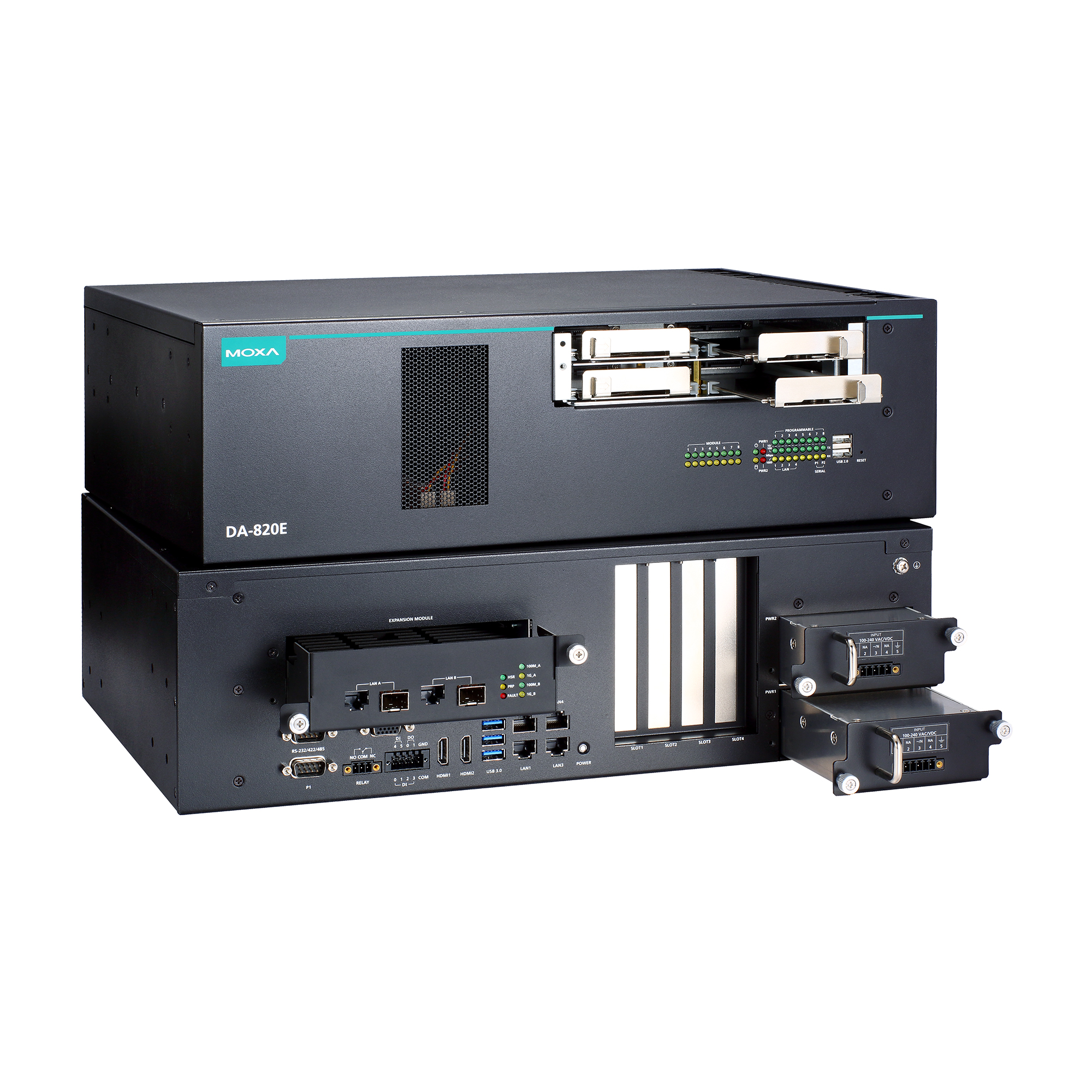

DA-820E Series

IEC 61850-3 3U rackmount computers with 13th Gen Intel® Core™ processor, hot-swappable power module, -40 to 70°C operating temperature

moxa-da-820e-series-image-(1).jpg | Moxa
moxa-da-820e-series-image-1-(1).jpg | Moxa
moxa-da-820e-series-image-2-(1).jpg | Moxa
moxa-da-820e-series-image-3-(1).jpg | Moxa
moxa-da-820e-series-image-4-(1).jpg | Moxa
moxa-da-820e-series-image-5-(1).jpg | Moxa
moxa-da-820e-series-image-6-(1).jpg | Moxa

Features and Benefits

  • IEC 61850-3, IEEE 1613, and IEC 60255 compliant power-automation computer
  • EN 50121-4 compliant for railway wayside applications
  • 13th Gen Intel® Core™ processor
  • 4 SSD slots with Intel® RST RAID 0/1 support for SSD slot 1 and 2
  • Up to 64 GB RAM (two built-in SODIMM DDR4 memory slots)
  • PRP/HSR technology for network redundancy (with a PRP/HSR expansion module)
  • Security options such as TPM 2.0, UEFI Secure Boot and physical security
  • 1 PCIe x8 (4-lane) and 3 PCIe x1 for expansion modules
  • Redundant power supplies (100 to 240 VAC/VDC and 48 VDC) with hot-swappable power module design

Certifications

  • moxa-iec61850-3-ieee1613-black-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-ul-rec-certification-logo-image.png | Moxa

Contact Sales

Introduction

The DA-820E Series is a high-performance 3U rackmount industrial computer powered by 13th Gen Intel® Core™ i3/i5/i7 processors, offering exceptional computing capabilities. It features a versatile I/O design, including 3 display ports (2 HDMI and 1 VGA), 6 USB ports, 4 Gigabit LAN ports, two 3-in-1 RS-232/422/485 serial ports, 6 DI ports, 2 DO ports, 4 standard PCIe expansion slots, and 1 proprietary expansion slot. Additionally, it is equipped with 4 hot-swappable 2.5” SSD slots, supporting Intel® RST RAID 0/1 functionality on SSD slots 1 and 2 for enhanced storage performance and reliability.

Engineered specifically for substation applications, the DA-820E complies with IEC 61850-3, IEEE 1613, and IEC 60255 standards, guaranteeing ruggedness, reliability, and seamless integration with Intelligent Electronic Devices (IEDs) in demanding substation automation systems. Leveraging its 13th Gen Intel® processor, the DA-820E delivers the high computing power required for modern, complex software applications, such as virtualization, in addition to traditional OT SCADA functionalities.

Appearance

  • CPU

    Intel® Core™ i3-1320PE
    Intel® Core™ i5-1340PE
    Intel® Core™ i7-1370PE

  • System Memory Slot

    SODIMM DDR4 slots x 2

  • DRAM

    64 GB max.
    (SODIMM x 2, each supporting 3200 MHz and 32 GB max. per module)

  • Graphics Controller

    Intel® Core™ i3-1320PE: Intel® UHD Graphics
    Intel® Core™ i5-1340PE: Intel® Iris® Xe Graphics eligible
    Intel® Core™ i7-1370PE: Intel® Iris® Xe Graphics eligible

  • Storage Slot

    2.5-inch HDD/SSD slots x 4
    M.2 M-key 2280 slot x 1

  • Supported OS

    Windows 10 IoT Enterprise LTSC 2021
    Windows 11 IoT Enterprise LTSC 2024
    Windows Server 2022
    Ubuntu 22.04.3 LTS
    Debian 12
    RHEL 9.4

  • Ethernet Ports

    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4

  • Serial Ports

    RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

  • Digital Input

    DIs x 6

  • Digital Output

    DOs x 2

  • USB 2.0

    USB 2.0 hosts x 3, type-A connectors
    2 ports on the front panel, 1 port inside the computer for USB dongle-based security

  • USB 3.0

    USB 3.0 hosts x 3, type-A connectors
    3 ports on the rear panel

  • Expansion Slots

    PCIe x8 (4-lane) slot x 1
    PCIe x1 slots x 3
    Proprietary slot x 1

  • Video Output

    HDMI x 2, HDMI connector (type A)
    (up to 3840 x 2160 resolution at 60Hz)

    VGA x 1, 15-pin D-sub connector (female)
    (up to 1920 x 1200 resolution at 60 Hz)

  • TPM

    TPM v2.0

  • Secure Boot

    UEFI

  • System

    Power x 1
    Storage x 1
    Power failure detection x 2
    Programmable x 8

  • Serial

    2 per port (Tx, Rx)

  • LAN

    8 per port (10/100/1000 Mbps)

  • Baudrate

    300 bps to 115.2 kbps

  • Connector

    DB9 male

  • Isolation

    2 kV

  • Serial Standards

    RS-232/422/485

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Digital Input Channels

    DIs x 6

  • Connector

    Screw-fastened Euroblock terminal

  • I/O Mode

    DI

  • Isolation

    3k VDC

  • Sensor Type

    Dry contact
    Wet contact (NPN)

  • Dry Contact

    Logic 0: Close to GND
    Logic 1: Open

  • Wet Contact (COM to DI)

    Logic 0: 10 to 30 VDC
    Logic 1: 0 to 3 VDC

  • Digital Output Channels

    DOs x 2

  • Connector

    Screw-fastened Euroblock terminal

  • Current Rating

    200 mA per channel

  • I/O Type

    Sink

  • Voltage

    0 to 30 VDC

  • Isolation

    3k VDC

  • Input Current

    100 to 240 VAC, 50/60 Hz, 1.75 to 0.66 A (max)
    100 to 240 VDC, 1.65 to 0.66 A (max)
    48 VDC, 3.12 A

  • Input Voltage

    100 to 240 VAC
    100 to 240 VDC
    48 VDC

  • Power Consumption

    DA-PWR-150-HV: 140 W (max.)
    DA-PWR-120-LV: 130 W (max.)

  • Power Button

    Reset button (front panel)
    ON/OFF (rear panel)

  • Housing

    Metal

  • Dimensions (without ears)

    440 x 301 x 132,55 mm (17.32 x 11.85 x 5.22 in)

  • Weight

    11,860 g (26.15 lb)

  • Installation

    19-inch rack mounting

  • Operating Temperature

    -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 61000-6-2/-6-4
    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8: 20 A/m
    IEC 61000-4-11

  • Power Substation

    IEC 61850-3
    IEEE 1613

  • Protection Relay

    IEC 60255

  • Safety

    IEC 62368-1
    UL 62368-1

  • Shock

    IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    293,786 hrs

  • Standards

    Telcordia Standard SR-332
