DA-820E-C3-HH-T
DA-820E Series

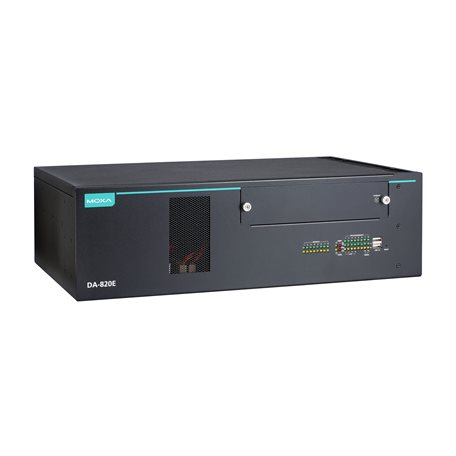

IEC 61850-3 3U rackmount computer with 13th Gen Intel® Core™ i3-1320PE processor, 4 GbE ports, 2 RS-232/422/485 serial ports, 6 DIs, 2 DOs, 3 USB 3.0 ports, 2 USB 2.0 ports, 2 HDMI ports, 1 VGA port, 1 M.2 M-key slot, 4 SATA slots, 2 DA-PWR-150-HV power modules, -40 to 70°C operating temperature

Computer

  • CPU

    • Intel® Core™ i3-1320PE
      Intel® Core™ i5-1340PE
      Intel® Core™ i7-1370PE

  • System Memory Slot

    • SODIMM DDR4 slots x 2

  • DRAM

    • 64 GB max.
      (SODIMM x 2, each supporting 3200 MHz and 32 GB max. per module)

  • Graphics Controller

    • Intel® Core™ i3-1320PE: Intel® UHD Graphics
      Intel® Core™ i5-1340PE: Intel® Iris® Xe Graphics eligible
      Intel® Core™ i7-1370PE: Intel® Iris® Xe Graphics eligible

  • Storage Slot

    • 2.5-inch HDD/SSD slots x 4
      M.2 M-key 2280 slot x 1

  • Supported OS

    • Windows 10 IoT Enterprise LTSC 2021
      Windows 11 IoT Enterprise LTSC 2024
      Windows Server 2022
      Ubuntu 22.04.3 LTS
      Debian 12
      RHEL 9.4
Computer Interface

  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4

  • Serial Ports

    • RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

  • Digital Input

    • DIs x 6

  • Digital Output

    • DOs x 2

  • USB 2.0

    • USB 2.0 hosts x 3, type-A connectors
      2 ports on the front panel, 1 port inside the computer for USB dongle-based security

  • USB 3.0

    • USB 3.0 hosts x 3, type-A connectors
      3 ports on the rear panel

  • Expansion Slots

    • PCIe x8 (4-lane) slot x 1
      PCIe x1 slots x 3
      Proprietary slot x 1

  • Video Output

    • HDMI x 2, HDMI connector (type A)
      (up to 3840 x 2160 resolution at 60Hz)

      VGA x 1, 15-pin D-sub connector (female)
      (up to 1920 x 1200 resolution at 60 Hz)

  • TPM

    • TPM v2.0

  • Secure Boot

    • UEFI
LED Indicators

  • System

    • Power x 1
      Storage x 1
      Power failure detection x 2
      Programmable x 8

  • Serial

    • 2 per port (Tx, Rx)

  • LAN

    • 8 per port (10/100/1000 Mbps)
Serial Interface

  • Baudrate

    • 300 bps to 115.2 kbps

  • Connector

    • DB9 male

  • Isolation

    • 2 kV

  • Serial Standards

    • RS-232/422/485
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs

  • Digital Input Channels

    • DIs x 6

  • Connector

    • Screw-fastened Euroblock terminal

  • I/O Mode

    • DI

  • Isolation

    • 3k VDC

  • Sensor Type

    • Dry contact
      Wet contact (NPN)

  • Dry Contact

    • Logic 0: Close to GND
      Logic 1: Open

  • Wet Contact (COM to DI)

    • Logic 0: 10 to 30 VDC
      Logic 1: 0 to 3 VDC
Digital Outputs

  • Digital Output Channels

    • DOs x 2

  • Connector

    • Screw-fastened Euroblock terminal

  • Current Rating

    • 200 mA per channel

  • I/O Type

    • Sink

  • Voltage

    • 0 to 30 VDC

  • Isolation

    • 3k VDC
Power Parameters

  • Input Current

    • 100 to 240 VAC, 50/60 Hz, 1.75 to 0.66 A (max)
      100 to 240 VDC, 1.65 to 0.66 A (max)
      48 VDC, 3.12 A

  • Input Voltage

    • 100 to 240 VAC
      100 to 240 VDC
      48 VDC

  • Power Consumption

    • DA-PWR-150-HV: 140 W (max.)
      DA-PWR-120-LV: 130 W (max.)

  • Power Button

    • Reset button (front panel)
      ON/OFF (rear panel)
Physical Characteristics

  • Housing

    • Metal

  • Dimensions (without ears)

    • 440 x 301 x 132,55 mm (17.32 x 11.85 x 5.22 in)

  • Weight

    • 11,860 g (26.15 lb)

  • Installation

    • 19-inch rack mounting
Environmental Limits

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 61000-6-2/-6-4
      EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8: 20 A/m
      IEC 61000-4-11

  • Power Substation

    • IEC 61850-3
      IEEE 1613

  • Protection Relay

    • IEC 60255

  • Safety

    • IEC 62368-1
      UL 62368-1

  • Shock

    • IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 293,786 hrs

  • Standards

    • Telcordia Standard SR-332
