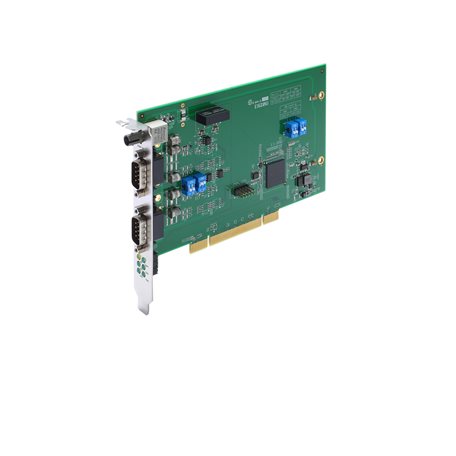

DA-IRIG-B-S-02-T
DA-IRIGB-B-S Series Expansion Modules

IRIG-B expansion module, PCI interface, 1 fiber IRIG-B input, 1 DB9M input/output, 1 DB9M output, -40 to 75°C operating temperature

IRIG-B Interface
  • Interface

    • 2 x DB9 male and 1x ST Fiber port
  • Input Signal

    • Single or Differential
  • Input Signal Level

    • Single: High -> Open, Low -> Short to GND
      Differential: D+ - D- > 0.2 V, RxD is High, D+ - D- < -0.2 V, RxD is Low
  • Accuracy (Time Synchronization)

    • ±1 µs
  • Accuracy (Free Running)

    • ±500 ms @ 24 hr
Hardware Requirements
  • Bus

    • PCI slots x 1
Physical Characteristics
  • Dimensions (without ears)

    • 167.64 x 106.68 mm (6.6 x 4.2 in)
  • Weight

    • 120 g (0.26 lb)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 1,210,356 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
