DRP-A100 Series

DIN-rail computers with Elkhart Lake Intel Atom® X Series processor base model and high-interface models

moxa-drp-a100-series-image-(1).jpg | Moxa
moxa-drp-a100-series-image-1-(1).jpg | Moxa
moxa-drp-a100-series-image-2-(1).jpg | Moxa
moxa-drp-a100-series-image-3-(1).jpg | Moxa
moxa-drp-a100-series-image-4-(1).jpg | Moxa
moxa-drp-a100-series-image-5-(1).jpg | Moxa
moxa-drp-a100-series-image-6-(1).jpg | Moxa

Features and Benefits

  • DIN-rail mountable computers with fanless design
  • Intel Atom® x6211E dual-core 1.30 GHz or x6425E quad-core 2.0 GHz processor
  • Rich interface options for up to 8 serial and 10 LAN ports
  • Compact size to fit most field applications
  • -30 to 60°C operating temperature range

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-bsmi-certification-logo-image.png | Moxa

Contact Sales

Introduction

The DRP-A100 Series DIN-rail mountable computers are powered by either an Intel Atom® x6211E dual-core 1.30 GHz or an Intel Atom® x6425E quad-core 2.0 GHz processor. The computers come with a rich set of interface options including up to 8 software-selectable RS-232/422/485 serial ports and up to 10 gigabit Ethernet ports. The communication interfaces are located on the front and rear sides of the product, enabling easy access and expansion for industrial applications. A dual-storage design that includes CFast and SD slots enables easy storage expansion. A unique battery-fastener cover secures the battery in place and ensures stability in all operating environments while a trap-door design for the battery slot enables easy battery swapping without having to remove the cover. The DRP-A100 Series is a reliable, durable, and versatile yet user-friendly computing platform for industrial applications.

The DRP-A100 compact computers come in a fanless design and can withstand a temperature range of -30 to 60°C, making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The DRP-A100 Series is an intelligent computing solution that perfectly fulfills both OT and IT requirements of industrial environments.

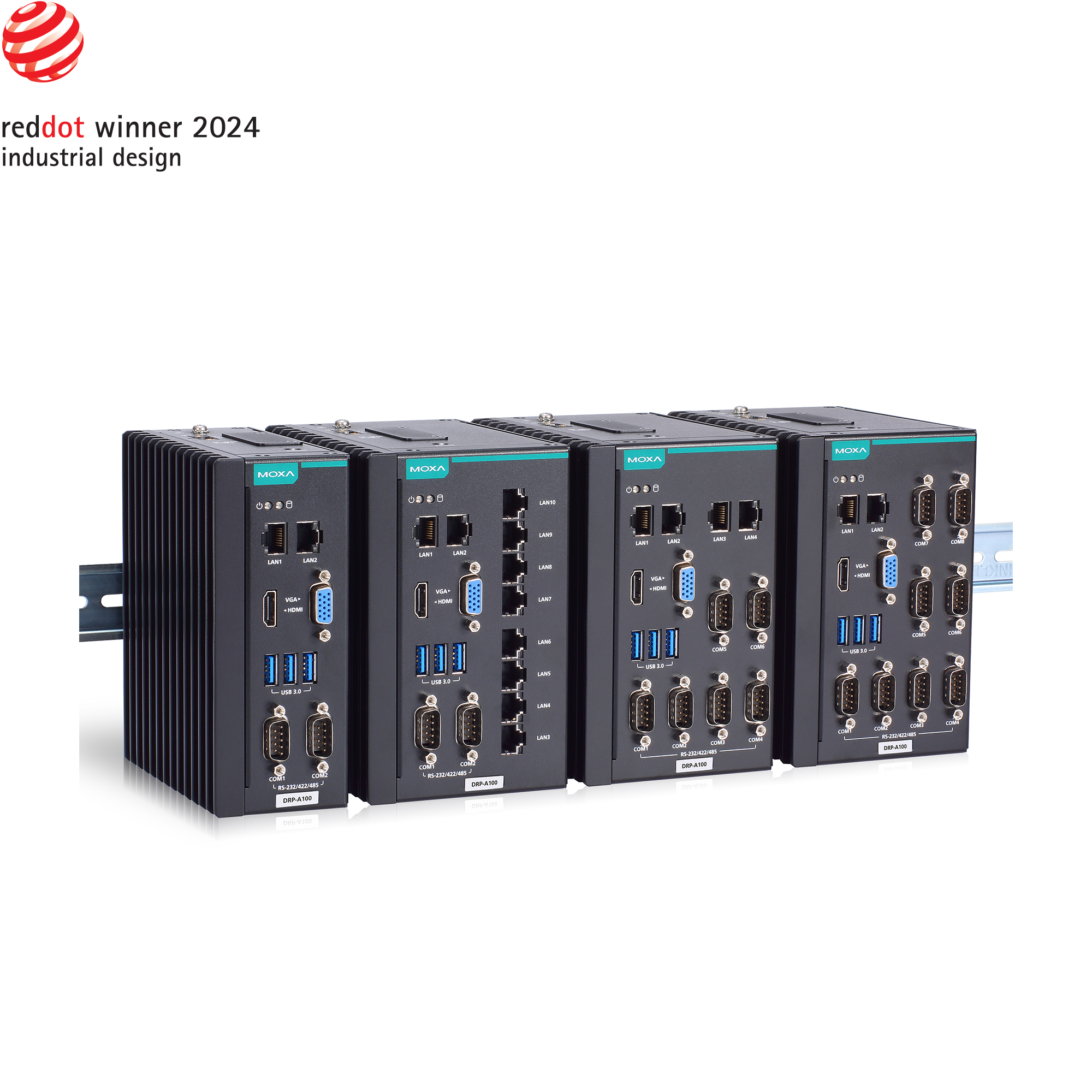

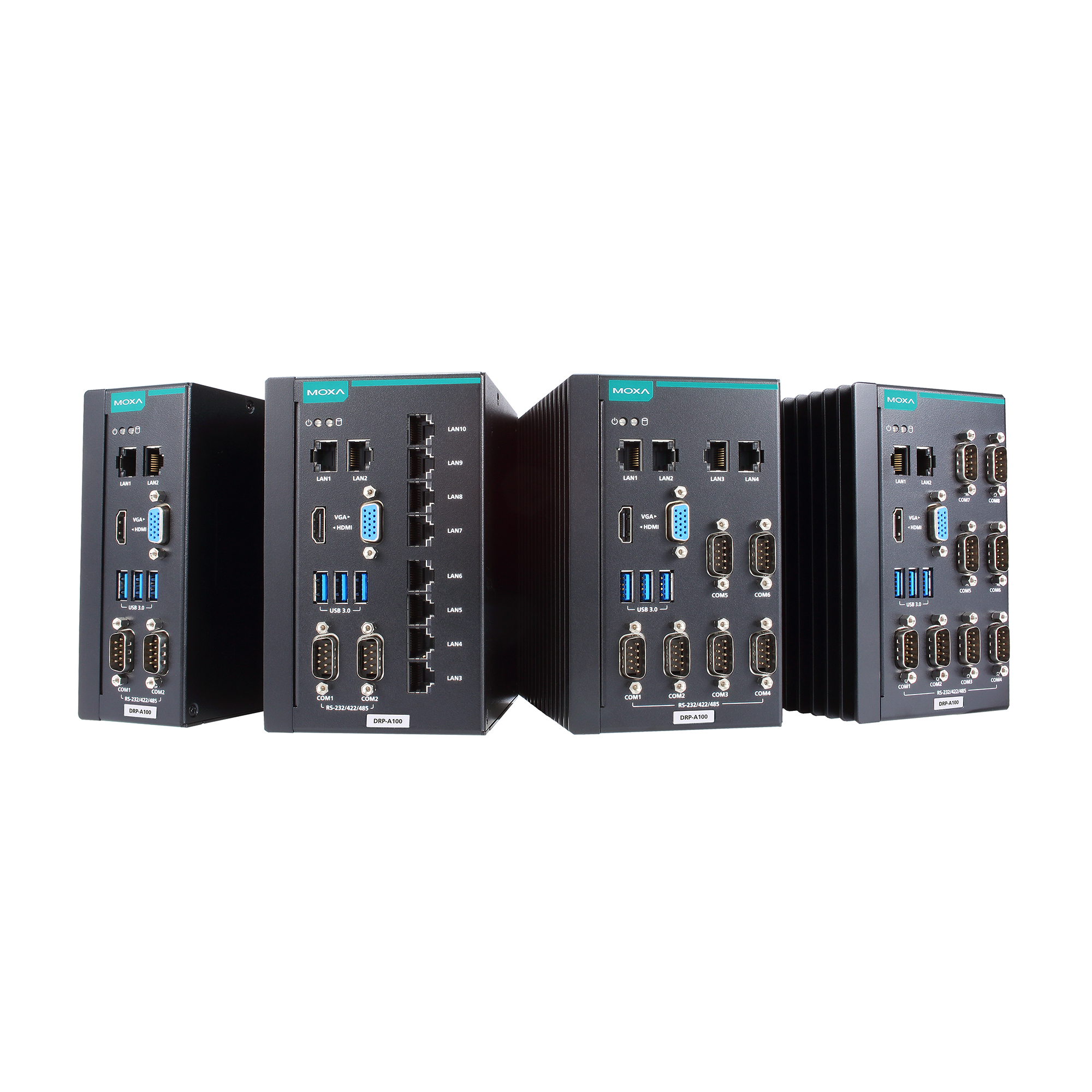

Appearance

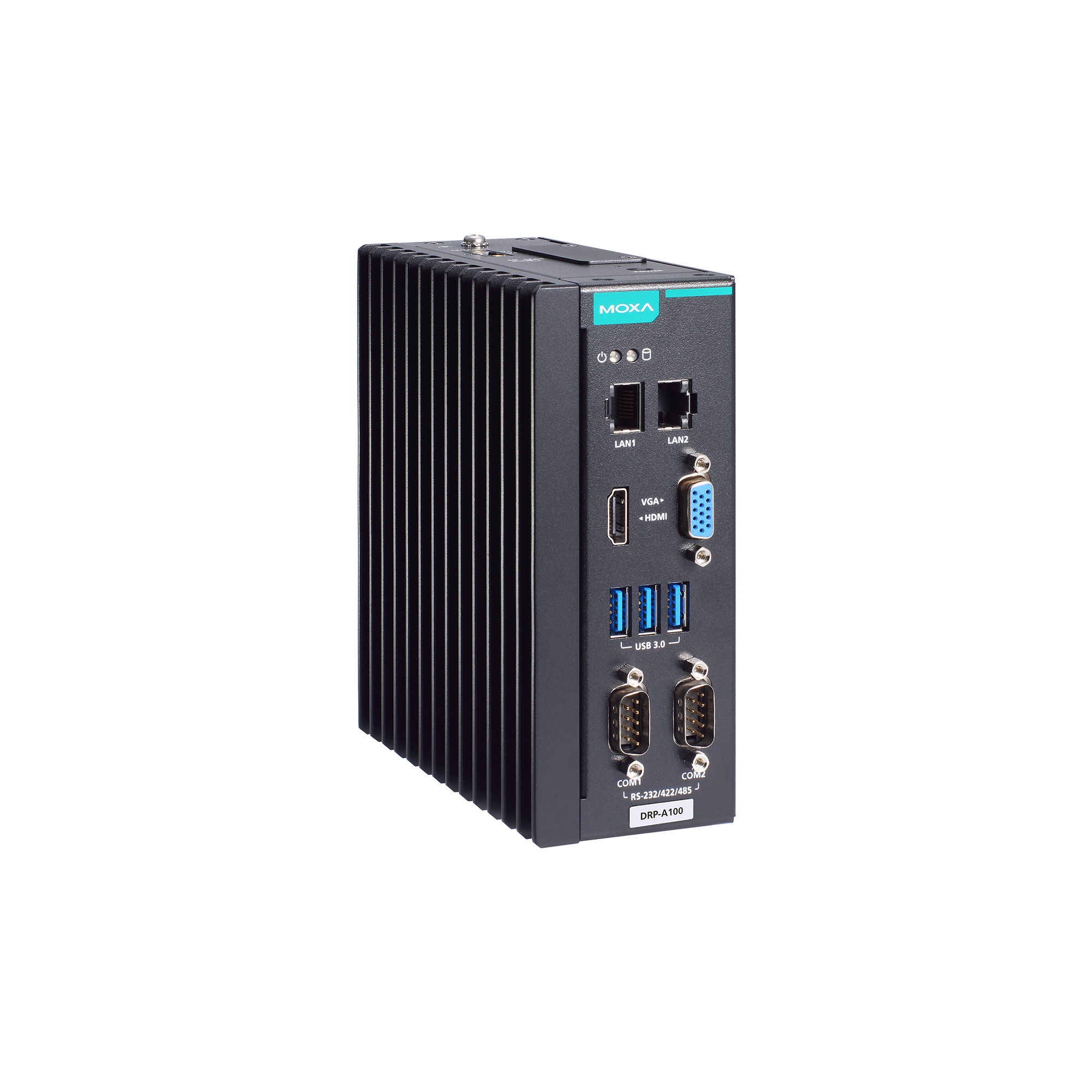

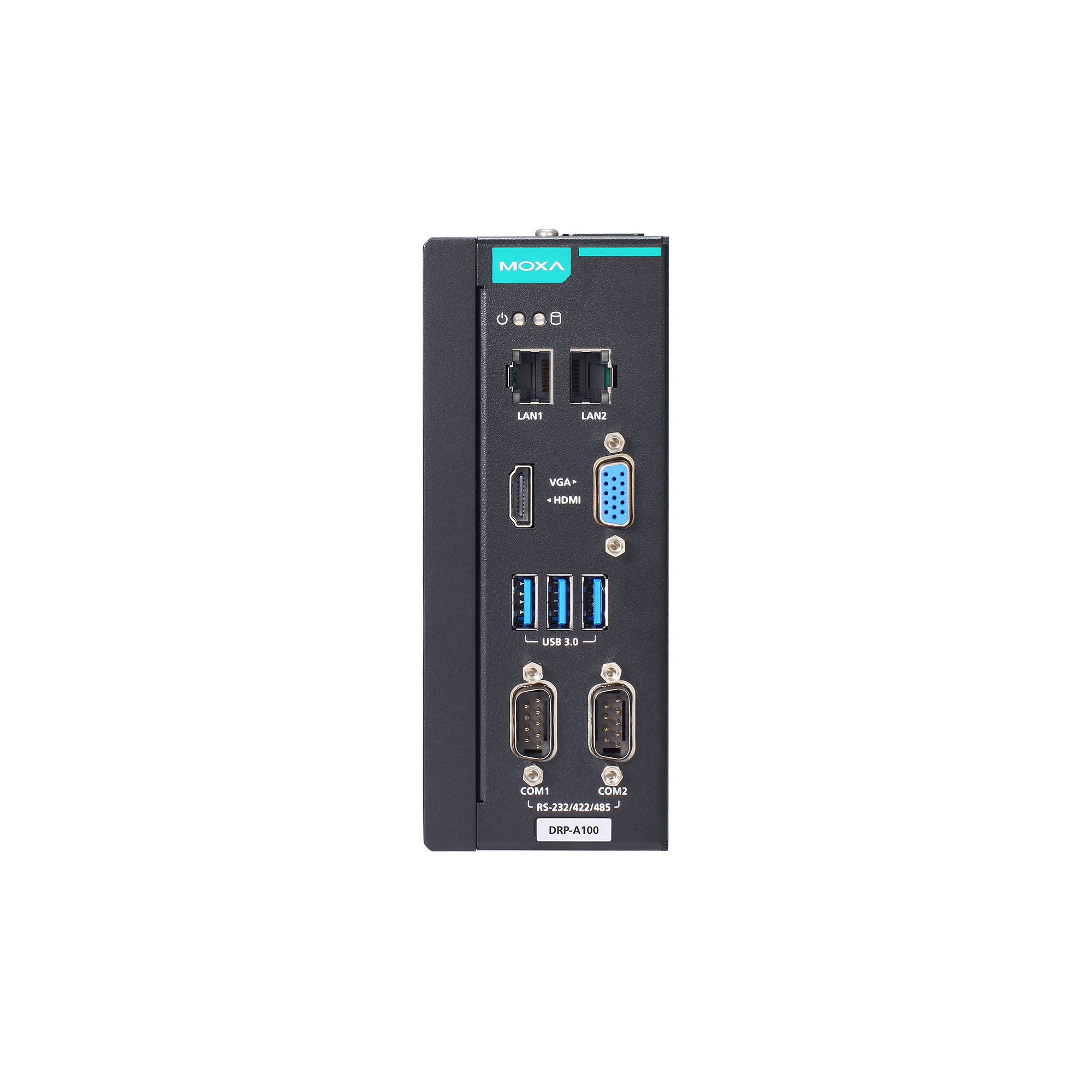

DRP-A100-E2-T/DRP-A100-E4-T/DRP-A100-E2-T-Win10/DRP-A100-E4-T-Win10 Models

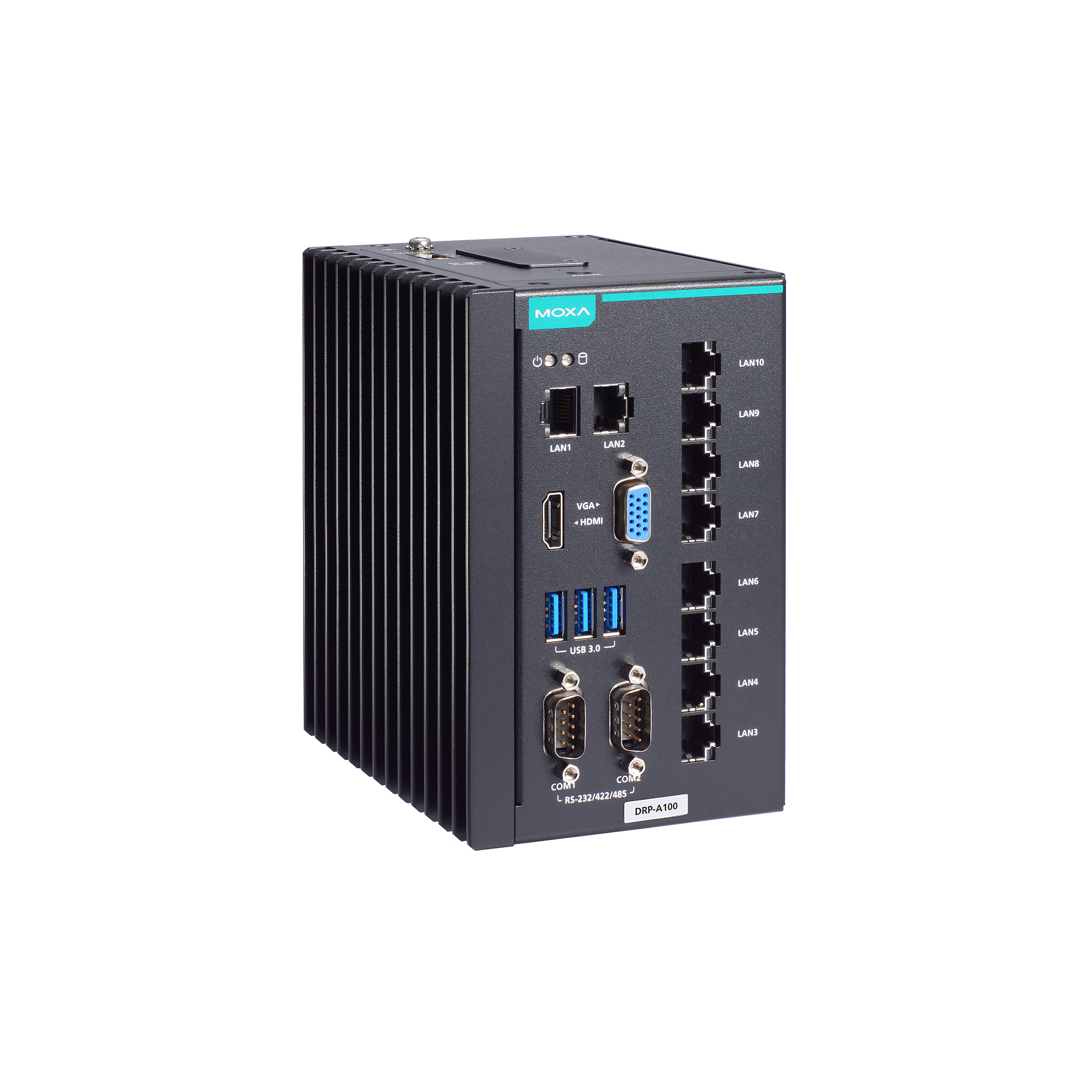

DRP-A100-E2-8L-T/DRP-A100-E4-8L-T Models

DRP-A100-E2-6C-T/DRP-A100-E4-6C-T Models

DRP-A100-E2-2L4C-T/DRP-A100-E4-2L4C-T Models

  • CPU

    DRP-A100-E2 Models: Intel Atom® x6211E Processor (Dual core, 1.5M Cache, 1.30 GHz)
    DRP-A100-E4 Models: Intel Atom® x6425E Processor (Quad core, 1.5M Cache, 2.00 GHz)

  • System Memory Slot

    SODIMM DDR4 slots x 1, up to 32 GB max.

  • System Memory Pre-installed

    8 GB DDR4

  • Storage Slot

    CFast slot x 1 (SATAIII interface)
    SD slots x 1, SD 3.0 interface (SDHC/SDXC)

  • Storage Pre-installed

    DRP-A100-E2-T-Win10: 64-GB CFast card
    DRP-A100-E4-T-Win10: 64-GB CFast card

  • Supported OS

    Windows Images and Drivers Supported:
    - Windows 10 IoT Ent LTSC 2021 64-bit
    - Windows 11 Professional 64-bit

    Linux Drivers Supported:
    - Debian 11 (Kernel 5.10)
    - Ubuntu 22.04 LTS (Kernel 5.15)
    - RHEL 9 (Kernel 5.14)

  • Graphics Controller

    Intel® UHD Graphics

  • Ethernet Ports

    DRP-A100-E2-T/E2-T-Win10/E2-6C-T/E4-T/E4-T-Win10/E4-6C-T:
    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
    DRP-A100-E2-2L4C-T/E4-2L4C-T:
    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
    DRP-A100-E2-8L-T/E4-8L-T:
    Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 10

  • Serial Ports

    DRP-A100-E2-T/E2-T-Win10/E2-8L-T/E4-T/E4-T-Win10/E4-8L-T:
    RS-232/422/485 ports x 2, software selectable (DB9 male) x 2
    DRP-A100-E2-2L4C-T/E4-2L4C-T:
    RS-232/422/485 ports x 6, software selectable (DB9 male) x 6
    DRP-A100-E2-6C-T/E4-6C-T:
    RS-232/422/485 ports x 8, software selectable (DB9 male) x 8

  • USB 3.0

    USB 3.0 hosts x 3, type-A connectors

  • TPM

    TPM v2.0

  • Video Output

    HDMI 2.0b x 1, (type A connector)
    VGA x 1, 15-pin D-sub connector (female)

  • Buttons

    Reset button
    Power button

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Baudrate

    50 bps to 115.2 kbps

  • Connector

    DB9 male

  • Data Bits

    5, 6, 7, 8

  • Parity

    None, Even, Odd, Space, Mark

  • Stop Bits

    1, 1.5, 2

  • Flow Control

    RTS/CTS, XON/XOFF

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • System

    Power x 1
    Storage x 1

  • LAN

    2 per port (10/100/1000 Mbps)

  • Input Voltage

    12/24 VDC

  • Power Connector

    Screw-fastened Euroblock terminal

  • Power Consumption

    50 W

  • Housing

    Metal

  • IP Rating

    IP20

  • Dimensions

    DRP-A100-E2-T/E2-T-Win10/E4-T/E4-T-Win10:
    60 x 130 x 150 mm (2.36 x 5.12 x 5.91 in)
    DRP-A100-E2-8L-T/E2-6C-T/E2-2L4C-T/E4-8L-T/E4-6C-T/E4-2L4C-T:
    94 x 130 x 150 mm (3.70 x 5.12 x 5.91 in)

  • Weight

    DRP-A100-E2-T/E2-T-Win10/E4-T/E4-T-Win10:
    1,213 g (2.67 lb)
    DRP-A100-E2-8L-T/E2-6C-T/E2-2L4C-T/E4-8L-T/E4-6C-T/E4-2L4C-T:
    1.612 g (3.55 lb)

  • Installation

    DIN-rail mounting

  • Green Product

    RoHS, CRoHS, WEEE

  • Operating Temperature

    -30 to 60°C (-22 to 140°F)

  • Storage Temperature

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
    IEC 61000-4-6 CS: 3 V
    IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz

  • Safety

    UL 62368-1 (CB)
    BSMI

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-64

  • Package Drop Test

    ISTA 1A

  • Package Vibration Test

    ISTA 1A

  • Time Source

    Built-in RTC (real-time clock) with lithium-battery backup

  • Automatic Reboot Trigger

    Built-in WDT

  • Time

    566,300 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

All Driver Software Package Utility
Name Type Checksum Version Operating System Release Date
Driver for DRP-A100 Series (Windows 11 Professional 2022)
454.8 MB 		Driver
SHA-512
v1.0
  • Windows 11 Professional 2022
 Feb 05, 2024 Feb 05, 2024 Release notes
Software Package for DRP-A100 Series (Windows 10 IoT Enterprise LTSC 2021 example code)
20.1 MB 		Software Package
SHA-512
v1.1
  • Windows 10 IoT Enterprise LTSC 2021
 Dec 05, 2023 Dec 05, 2023 Release notes
Utility for DRP-A100 Series (Windows 11 Professional 2022)
4.4 MB 		Utility
SHA-512
v1.0
  • Windows 11 Professional 2022
 Dec 05, 2023 Dec 05, 2023 Release notes
Software Package for DRP-A100 Series (Windows 11 Professional 2022 example code)
20.1 MB 		Software Package
SHA-512
v1.0
  • Windows 11 Professional 2023
 Dec 05, 2023 Dec 05, 2023 Release notes
Utility for DRP-A100 Series (Windows 10 Enterprise LTSC 21H2)
4.4 MB 		Utility
SHA-512
v1.1
  • Windows 10 IoT Enterprise LTSC 2021
 Dec 05, 2023 Dec 05, 2023 Release notes
Driver for DRP-A100 Series (Windows 10 IoT Enterprise LTSC 2021)
1.2 GB 		Driver
SHA-512
v1.1
  • Windows 10 IoT Enterprise LTSC 2021
 Dec 05, 2023 Dec 05, 2023 Release notes
DRP/BXP/RKP Series Computers (Linux drivers and SDK)
1.6 MB 		Software Package
SHA-512
v1.0
  • Debian 11.x
  • RHEL 9
  • Ubuntu 22.04
 Oct 06, 2023 Oct 06, 2023 Release notes

Support Documents

FILTER

All Datasheet Declaration Manual QIG
Name Type Version Release Date
DRP/BXP/RKP Series Computers Windows 11 Professional 2022 Manual
9.4 MB 		Manual v1.1 Mar 01, 2024 Mar 01, 2024
DRP/BXP/RKP Series Computers Windows 10 IoT Enterprise LTSC 2021 Manual
14.5 MB 		Manual v1.2 Mar 01, 2024 Mar 01, 2024
Declaration of Conformity for DRP-A100 Series
309.4 KB 		Declaration v1.0 Jan 30, 2024 Jan 30, 2024
DRP Series Quick Installation Guide
1.9 MB 		QIG v1.1 Nov 30, 2023 Nov 30, 2023
Datasheet for DRP-A100 Series
4.0 MB 		Datasheet v1.0 Nov 29, 2023 Nov 29, 2023
DRP/BXP/RKP Series Computers Linux Installation Manual
639.9 KB 		Manual v1.0 Nov 01, 2023 Nov 01, 2023
