MOXA

x86 Computers

Moxa’s x86 industrial-grade fanless computers have passed rigorous tests and strictly adhere to industrial standards to ensure they can provide long-lasting, reliable operation even in harsh environments, making them perfect for a variety of industrial-automation applications.

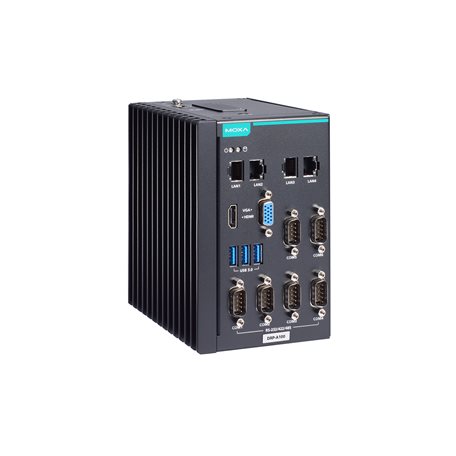

DRP-A100-E2-2L4C-T
DRP-A100 Series

DIN-rail computer with Intel Atom® x6211E processor, 4 LAN ports, 6 serial ports, 3 USB 3.0 ports, 1 VGA port, 1 HDMI port, 1 CFast slot, 1 SD slot, 12/24 VDC power input, -30 to 60°C operating temperature

Computer

  • CPU

    • Intel Atom® x6211E processor (Dual core, 1.5M cache, 1.30 GHz)

  • System Memory Slot

    • SODIMM DDR4 slots x 1, up to 32 GB max.

  • System Memory Pre-installed

    • 8 GB DDR4

  • Storage Slot

    • CFast slot x 1 (SATAIII interface)
      SD slots x 1, SD 3.0 interface (SDHC/SDXC)

  • Supported OS

    • Windows Images and Drivers Supported:
      - Windows 10 IoT Ent LTSC 2021 64-bit
      - Windows 11 Professional 64-bit

      Linux Drivers Supported:
      - Debian 11 (Kernel 5.10)
      - Ubuntu 22.04 LTS (Kernel 5.15)
      - RHEL 9 (Kernel 5.14)

  • Graphics Controller

    • Intel® UHD Graphics
Computer Interface

  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4

  • Serial Ports

    • RS-232/422/485 ports x 6, software selectable (DB9 male)

  • USB 3.0

    • USB 3.0 hosts x 3, type-A connectors

  • TPM

    • TPM v2.0

  • Video Output

    • HDMI 2.0b x 1, (type A connector)
      VGA x 1, 15-pin D-sub connector (female)

  • Buttons

    • Reset button
      Power button
Ethernet Interface

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Serial Interface

  • Baudrate

    • 50 bps to 115.2 kbps

  • Connector

    • DB9 male

  • Data Bits

    • 5, 6, 7, 8

  • Parity

    • None, Even, Odd, Space, Mark

  • Stop Bits

    • 1, 1.5, 2

  • Flow Control

    • RTS/CTS, XON/XOFF
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
LED Indicators

  • System

    • Power x 1
      Storage x 1

  • LAN

    • 2 per port (10/100/1000 Mbps)
Power Parameters

  • Input Voltage

    • 12/24 VDC

  • Power Connector

    • Screw-fastened Euroblock terminal

  • Power Consumption

    • 50 W
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP20

  • Dimensions

    • 94 x 130 x 150 mm (3.70 x 5.12 x 5.91 in)

  • Weight

    • 1,612 g (3.55 lb)

  • Installation

    • DIN-rail mounting
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
Environmental Limits

  • Operating Temperature

    • -30 to 60°C (-22 to 140°F)

  • Storage Temperature

    • -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz

  • Safety

    • UL 62368-1 (CB)
      BSMI

  • Shock

    • IEC 60068-2-27

  • Vibration

    • IEC 60068-2-64

  • Package Drop Test

    • ISTA 1A

  • Package Vibration Test

    • ISTA 1A
Reliability

  • Time Source

    • Built-in RTC (real-time clock) with lithium-battery backup

  • Automatic Reboot Trigger

    • Built-in WDT
MTBF

  • Time

    • 566,300 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
