x86 Computers

Moxa’s x86 industrial-grade fanless computers have passed rigorous tests and strictly adhere to industrial standards to ensure they can provide long-lasting, reliable operation even in harsh environments, making them perfect for a variety of industrial-automation applications.

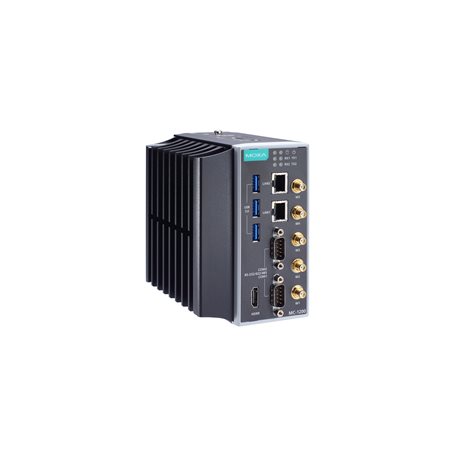

MC-1220-KL1-T-S
MC-1200 Series

Intel® Celeron® 3965U 2C/2T 2.2 GHz computer with 8 GB RAM, 2 Gigabit Ethernet ports, 2 RS/232/422/485 3-in-1 serial ports, 3 USB 3.0 ports, 3 Mini PCIe expansion slots, 1 HDMI port, TPM 2.0, 9 to 36 VDC power, -40 to 70°C operating temperature

Computer
  • CPU

    • Intel® Celeron® Processor 3965U (2M Cache, 2.20 GHz)
  • Storage Slot

    • mSATA slots x 1, SATA 3.0, internal mini-PCIe socket
  • System Memory Slot

    • SODIMM DDR4 slot x 2, up to 32 GB max.
  • Supported OS

    • Linux Debian 9, 64-bit, kernel 4.9 (optional via CTOS)
      Windows 10 Enterprise LTSC 1809 64-bit (optional via CTOS)
  • Graphics Controller

    • Intel® HD Graphics 610
Computer Interface
  • Video Input

    • HDMI x 1, up to 3840 x 2160 resolution at 30 Hz
  • USB 3.0

    • USB 3.0 hosts x 3, type-A connectors
  • Buttons

    • Reset button
Serial Interface
  • Connector

    • DB9 male
  • Serial Standards

    • RS-232/422/485 (software selectable)
  • Serial Ports

    • 2 x RS-232/422/485
  • Flow Control

    • RTS/CTS, XON/XOFF
  • Baudrate

    • 50 bps to 115.2 kbps
  • ESD Protection

    • 4 kV contact, 8 kV air
Ethernet Interface
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 2
LED Indicators
  • System

    • Power x 1
  • Serial

    • 2 per port (Tx, Rx)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Physical Characteristics
  • Installation

    • Wall mounting (with optional kit), DIN-rail mounting
  • Housing

    • Metal
  • Dimensions

    • 134 x 60.4 x 120 mm (5.28 x 2.38 x 4.72 in)
  • Weight

    • Product only: 1.40 kg (0.63 lb)
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
Power Parameters
  • Power Button

    • ON/OFF (rear panel)
      Reset button
  • Input Voltage

    • 9 to 36 VDC
  • Input Current

    • 8 A @ 9 VDC, 2 A @ 36 VDC
  • Power Consumption

    • 72 W
Environmental Limits
  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)
  • Storage Temperature

    • -40 to 75°C (-40 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Shock

    • IEC 60068-2-27
Standards and Certifications
  • Safety

    • UL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1
  • EMC

    • EN 55032/35, CISPR 32, FCC Part 15B Class A
  • Hazardous Locations

    • ATEX Zone 2, IECEx Zone 2, Class I Division 2
Reliability
  • Alert Tools

    • Built-in RTC (real-time clock) with lithium battery backup
MTBF
  • Time

    • 510,913 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
