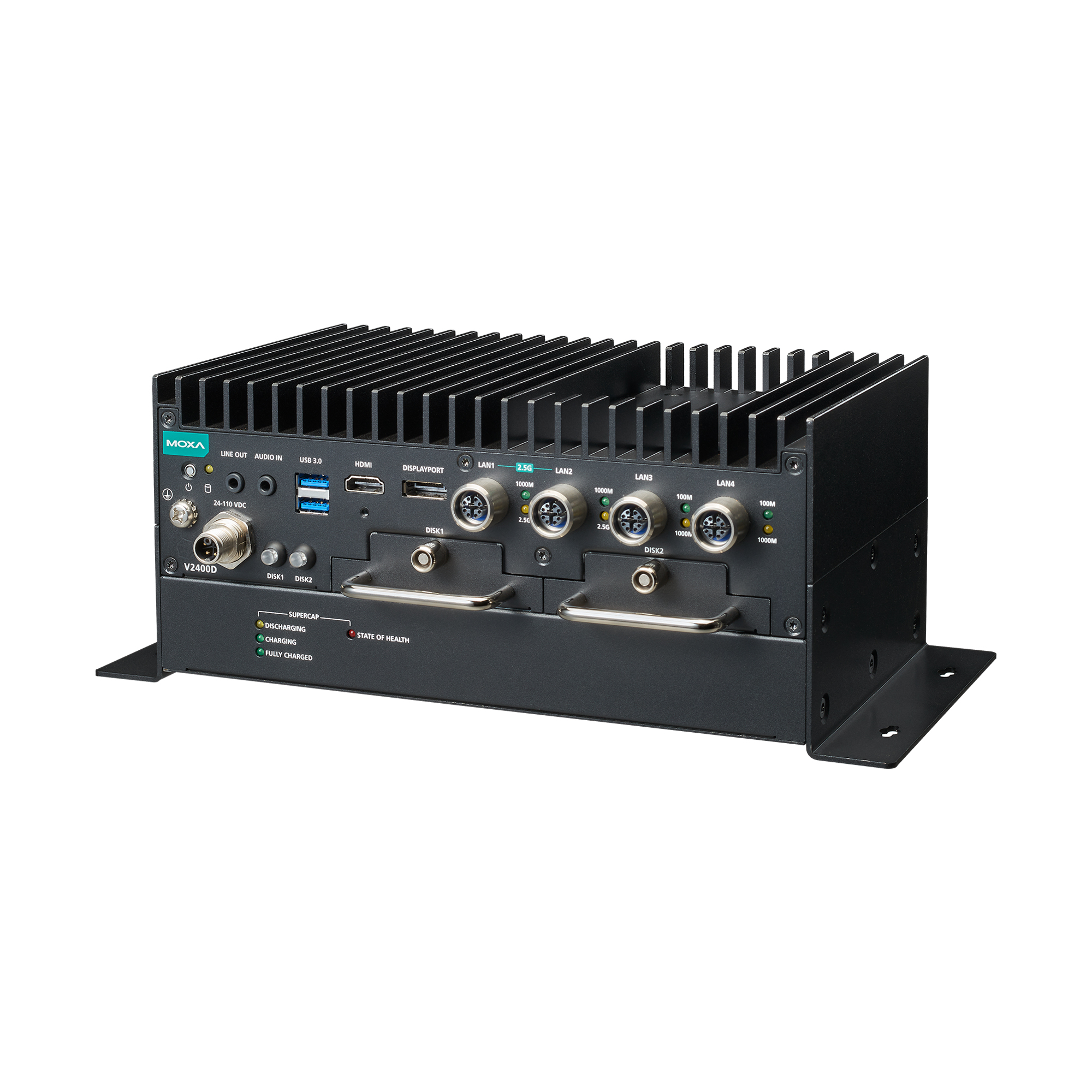

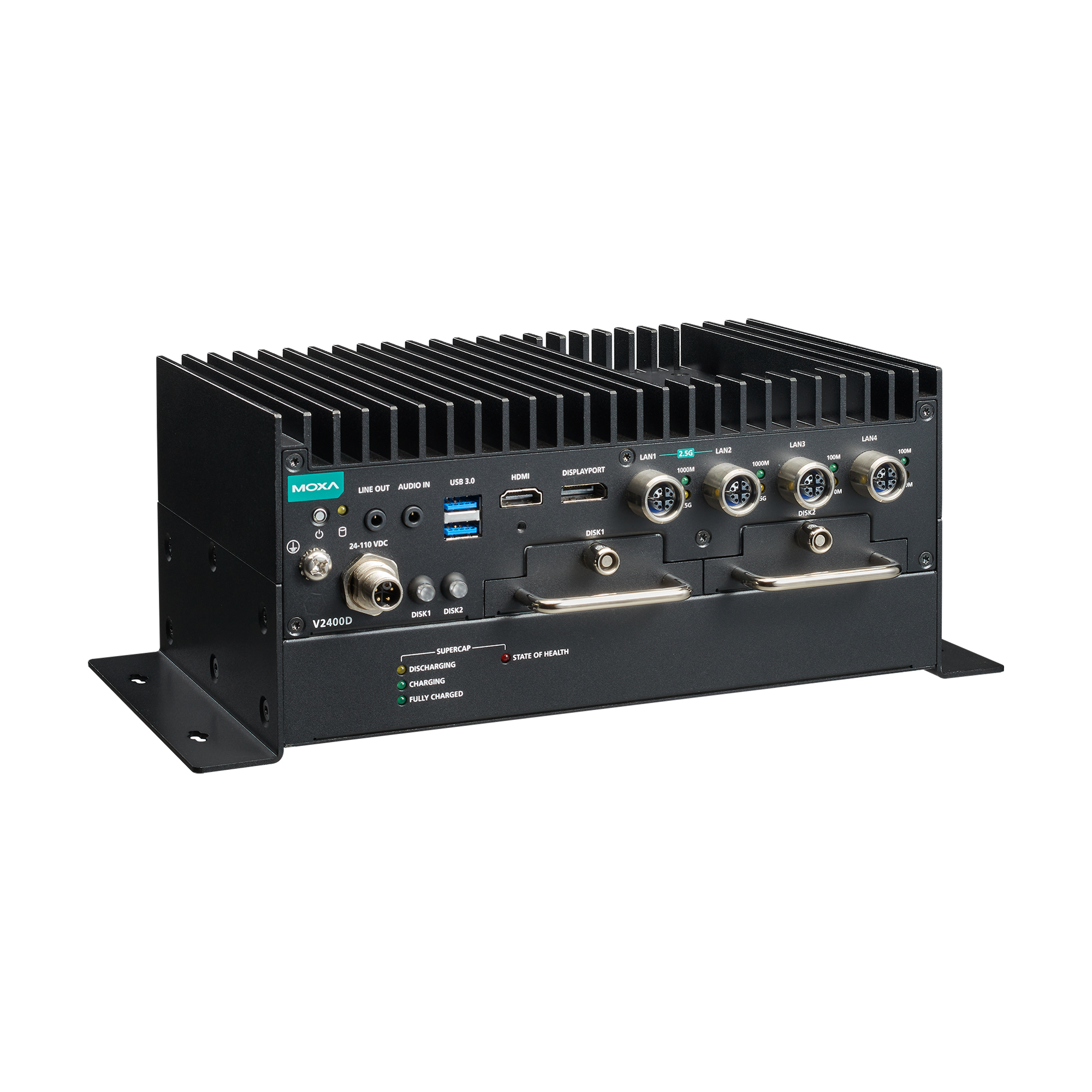

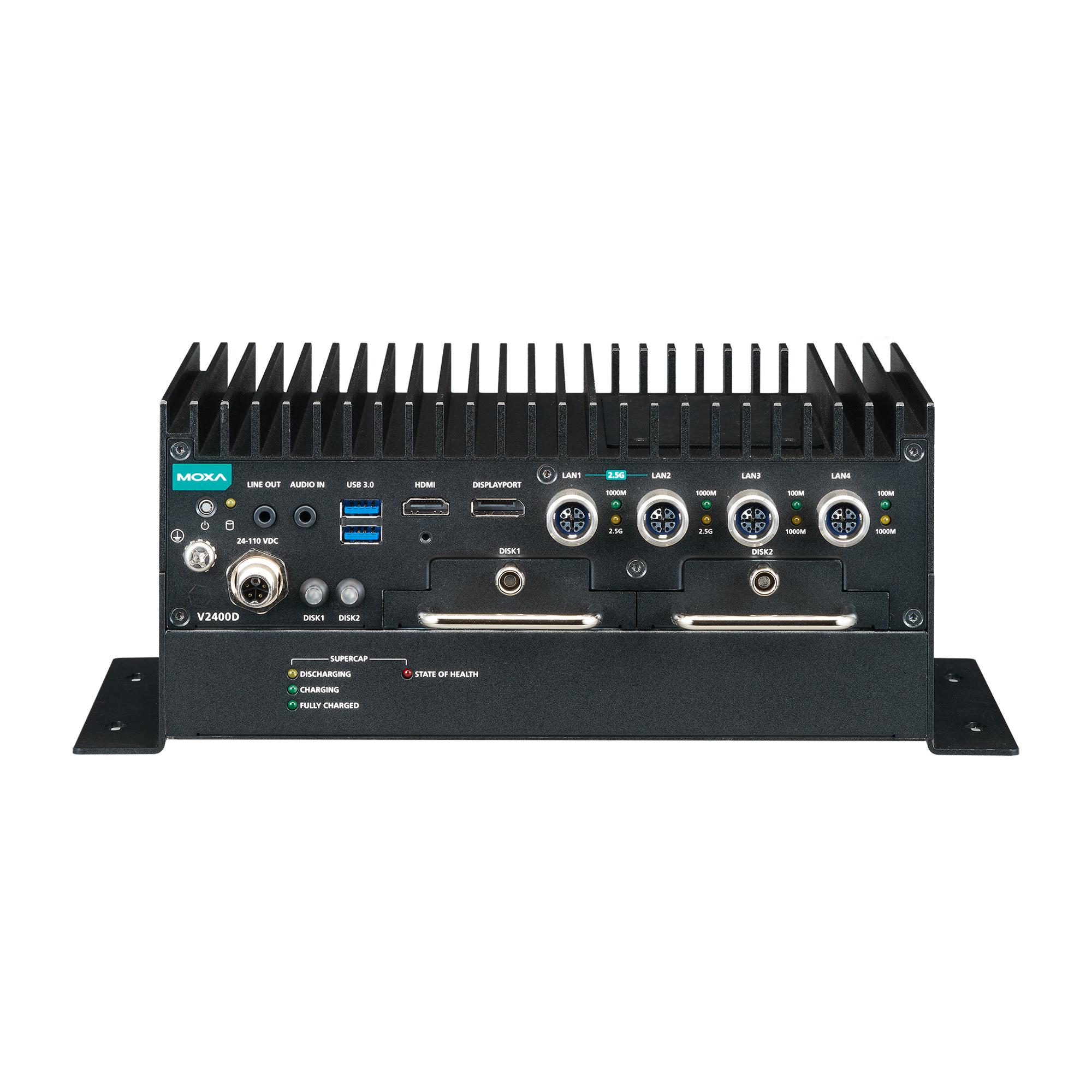

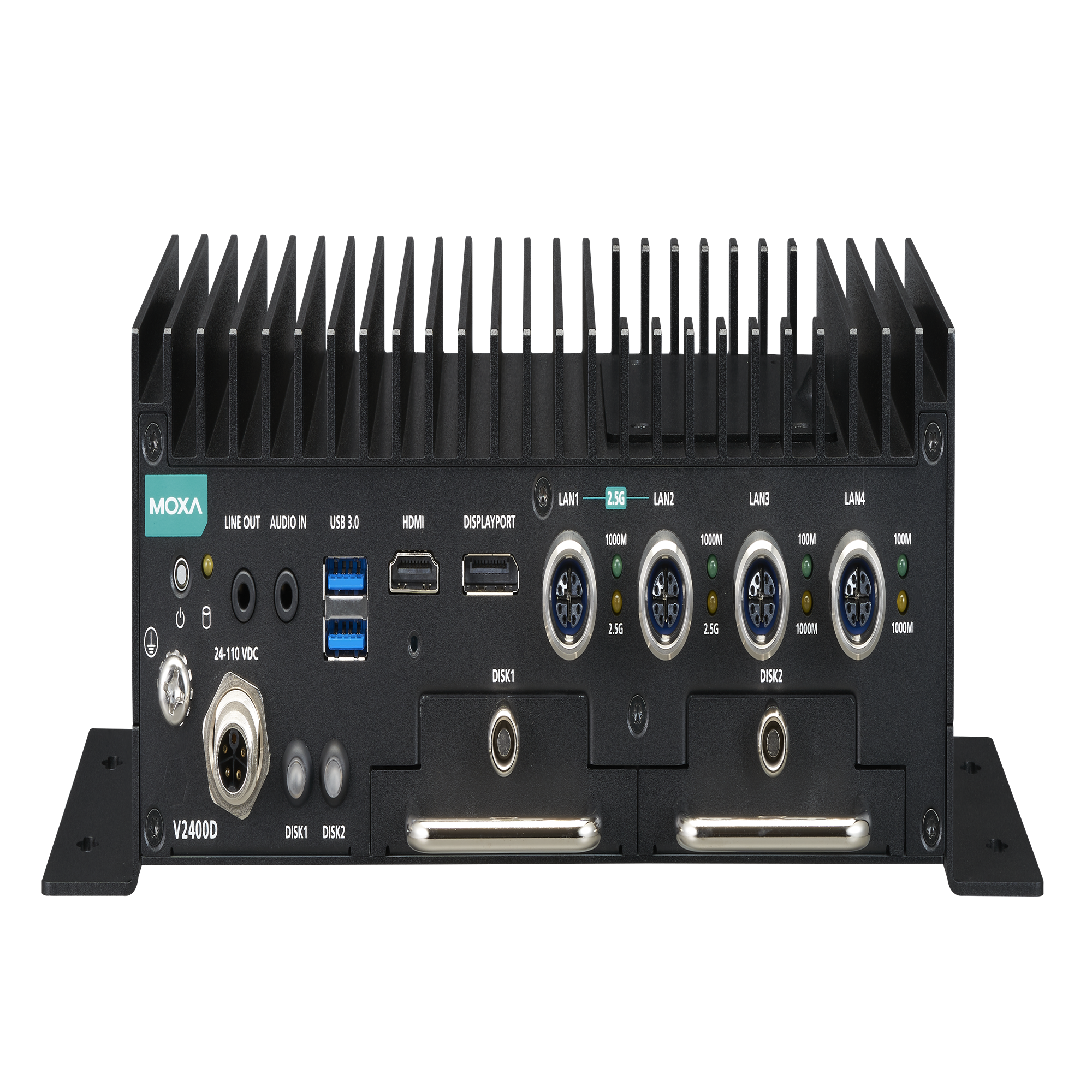

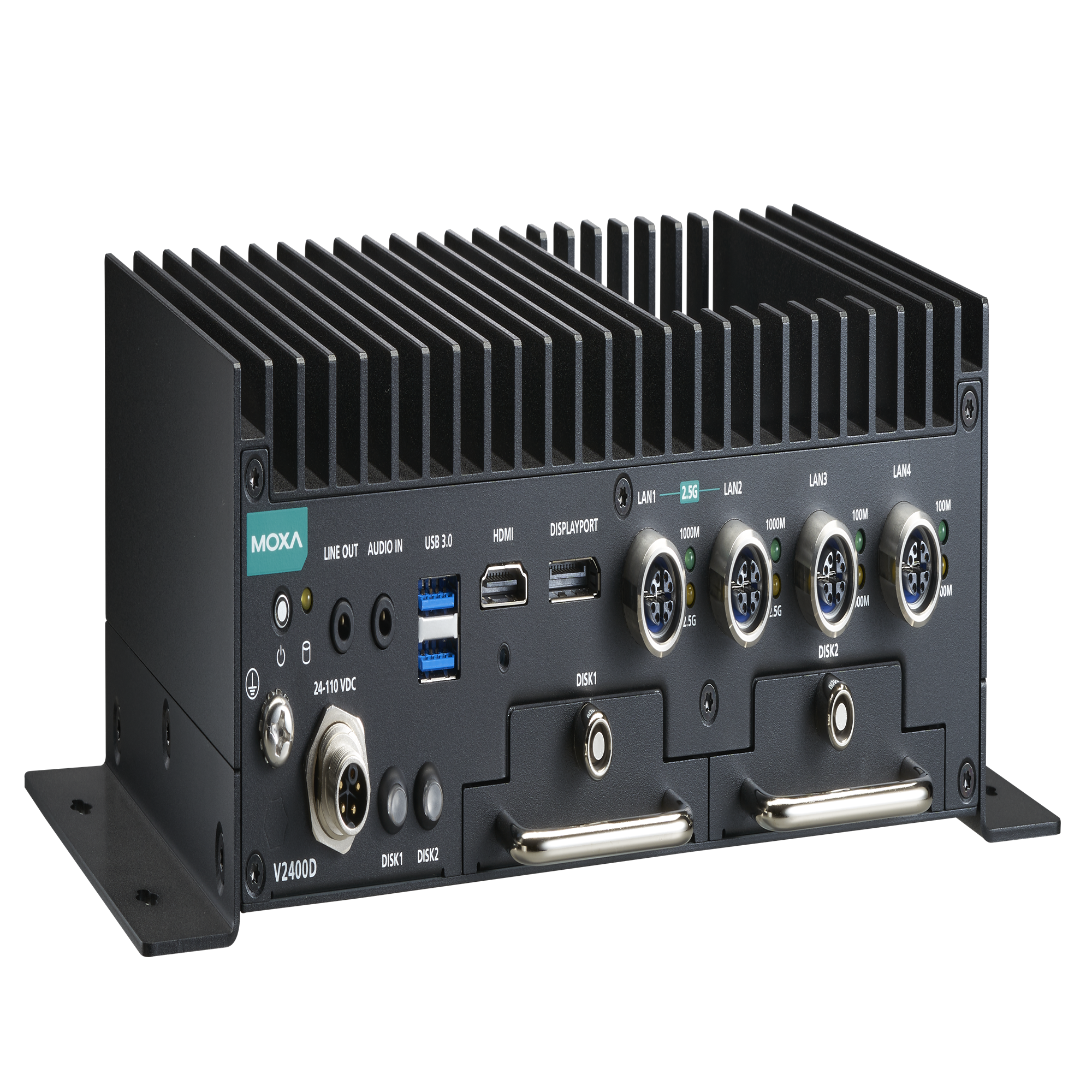

The V2400D Series embedded computers are built around an Intel® Core™ 3/7 processor and come with up to 64 GB DDR5 memory, one internal M.2 2242 M-key storage slot, and two hot-swappable 2.5–inch HDD/SSD storage slots for storage expansion. The computers comply with railway requirements for operating temperature, power input, and EMC, making them suitable for onboard and wayside applications in harsh railway environments.

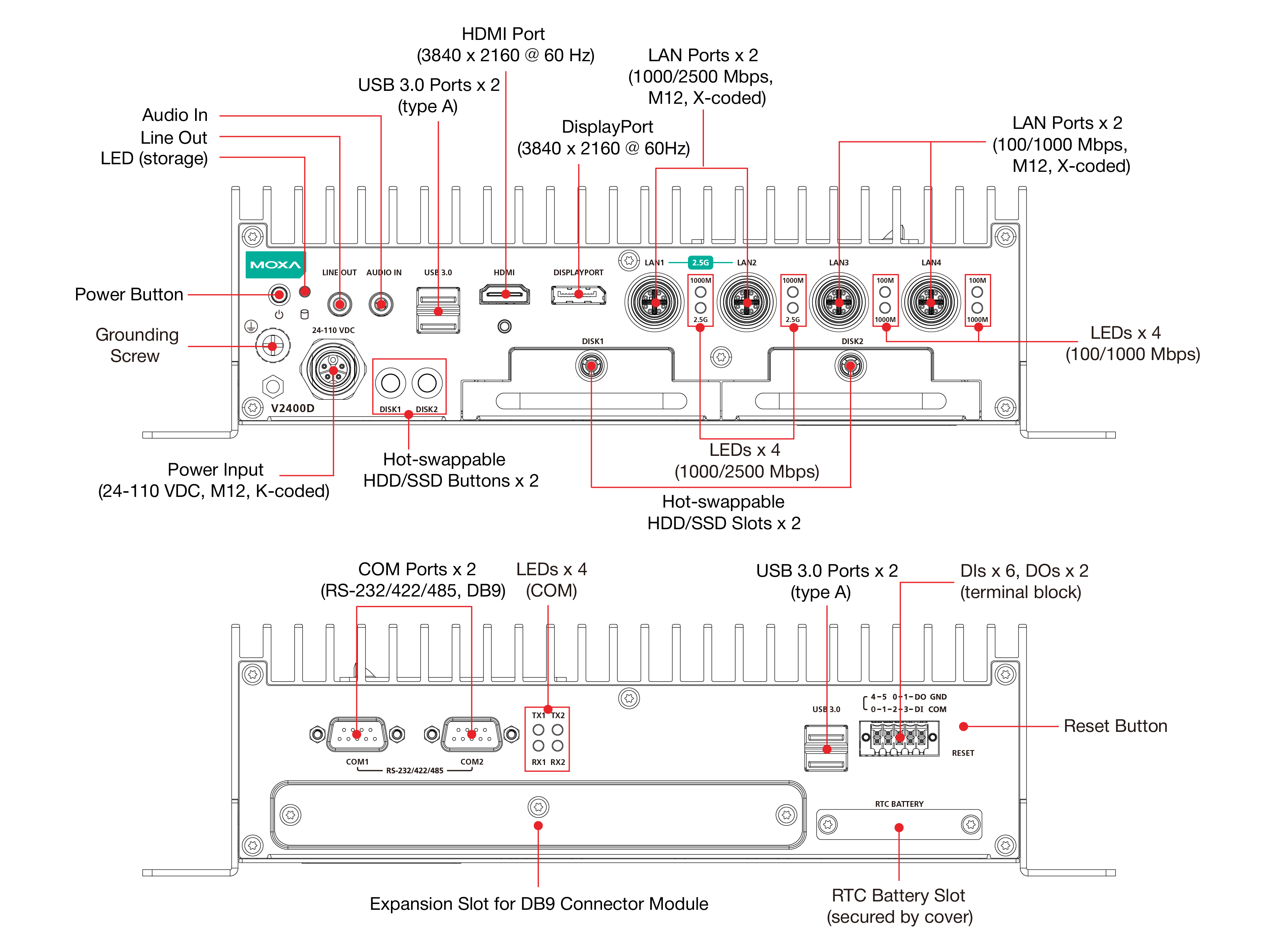

For enhanced data protection, the front-accessible storage slots are equipped with a lock, allowing only authorized personnel to access the storage devices. The V2400D computers provide a rich set of interfaces, including 2 1GbE ports, 2 2.5GbE ports, 2 RS-232/422/485 serial ports, 6 digital inputs, 2 digital outputs, 4 USB 3.0 ports, HDMI, and DisplayPort, enabling seamless integration with onboard systems and field devices.. A built-in TPM 2.0 module further strengthens platform integrity and provides hardware-based protection against unauthorized access and tampering.
V2406D-C3-CT-T/V2406D-C7-CT-T

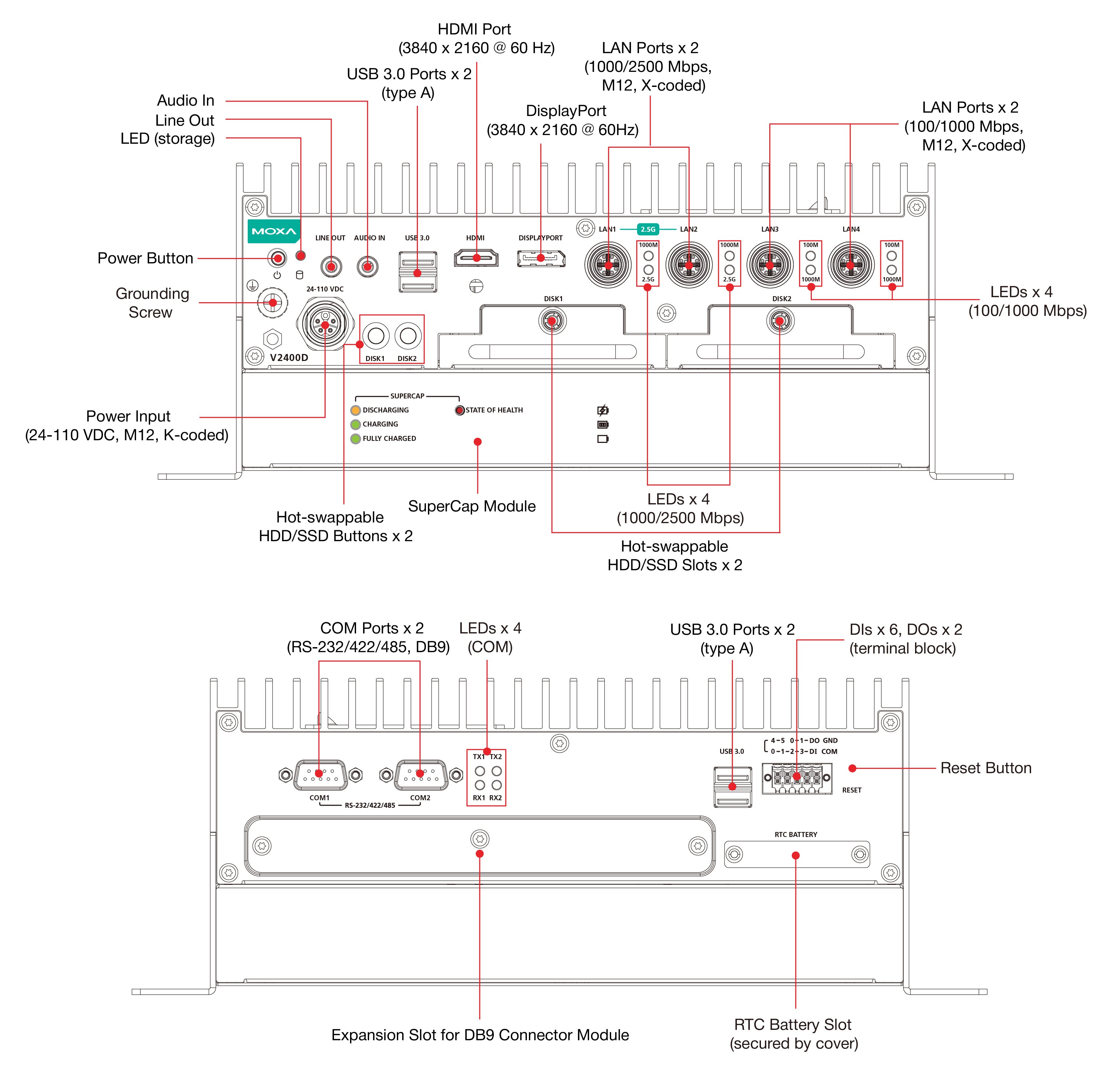

V2406D-C3-PLP-CT-T/V2406D-C7-PLP-CT-T
Save
C3 models: Intel® Core™ 3 processor 100UC7 models: Intel® Core™ 7 processor 150U
SODIMM DDR5 slots x 2 (64 GB max)
Internal: M.2 M key 2242 slots x 1**Installed by Moxa before product is shipped. Not accessible to users. External for expansion: 2.5-inch HDD/SSD slots x 2
mPCIe slots x 1
Windows 10 IoT Enterprise LTSC 2021Windows 11 IoT Enterprise LTSC 2024Linux: Debian 13 Ubuntu 22.04 LTS (driver)Moxa Industrial Linux 4See www.moxa.com/MIL
Auto-sensing 100/1000 Mbps Ethernet (M12 X-coded inner push-pull connector) x 2Auto-sensing 100/1000/2500 Mbps Ethernet (M12 X-coded inner push-pull connector) x 2

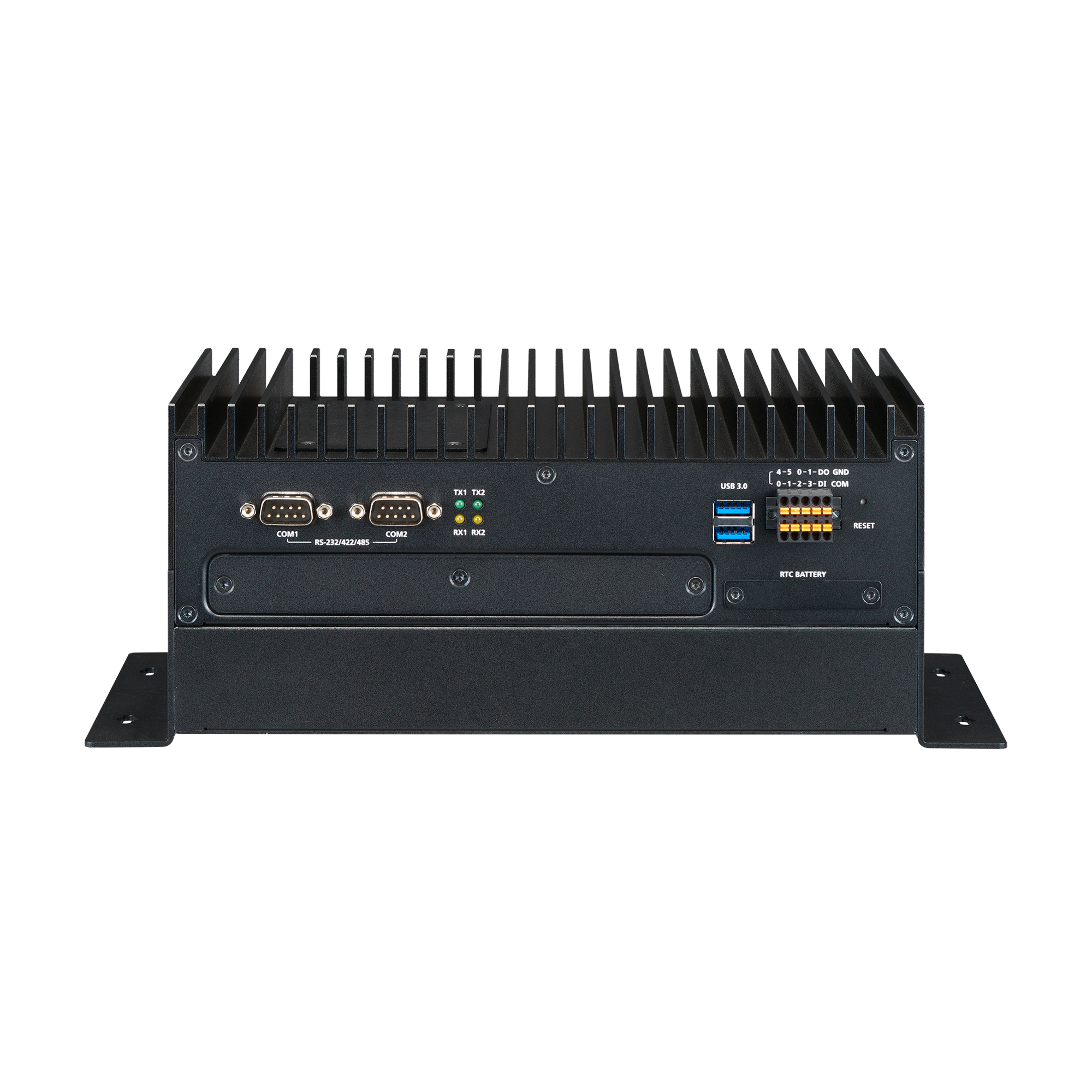

RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)
DIs x 6
DOs x 2
HDMI x 1, HDMI connector (type A) DisplayPort x 1
USB 3.0 hosts x 4, type-A connectors
TPM v2.0
Screw-fastened Euroblock terminal
Dry contact Wet contact (PNP)
Logic 0: Short to GND Logic 1: Open
Logic 0: 10 to 30 VDC Logic 1: 0 to 3 VDC
3k VDC
200 mA per channel
Sink
0 to 30 VDC
DB9 male
50 bps to 115.2 kbps
5, 6, 7, 8
1, 1.5, 2
None, Even, Odd, Space, Mark
RTS/CTS, XON/XOFF, Automatic Data Direction Control (ADDC) for RS-485, RTS Toggle (RS-232 only)
2k VDC
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Tx+, Tx-, Rx+, Rx-, GND
Data+, Data-, GND
2400 watt-second @ 2.45 V (custom) 2116 watt-second @ 2.3 V (standard)
500,000 @ 20°C
Power x 1 Storage x 1
2 per port (10/100/1000 Mbps)
1 per port (Tx, Rx)
Discharging, Charging, Fully Charged, State of Health
M12 K-coded male
24 to 110 VDC
V2406D-C3/C7-CT-T:103.92 W (max)59.52 W (average) V2406D-C3/C7-PLP-CT-T:120.72 W (max)59.52W (average)
Aluminum
IP30
V2406D-C3/C7-CT-T:250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in)V2406D-C3/C7-PLP-CT-T:250 x 110 x 150 mm (9.84 x 4.33 x 5.91 in)
Product only: V2406D-C3/C7-CT-T: 2.6 kg (5.73 lb)V2406D-C3/C7-PLP-CT-T: 3.7 kg (8.16 lb)Product with wall-mounting kit:V2406D-C3/C7-CT-T: 2.8 kg (6.17 lb)V2406D-C3/C7-PLP-CT-T: 4.1 kg (9.04 lb)
Wall mounting (default)
PCB conformal coating
V2406D-C3/C7-CT-T: -40 to 70°CV2406D-C3/C7-PLP-CT-T: -40 to 65°C
-40 to 85°C (-40 to 185°F)
5 to 95% (non-condensing)
EN 55032/35
CISPR 32, FCC Part 15B Class A
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
EN 50155 EN 50121-4 EN 50121-3-2
EN 45545-2
EN 62368-1 IEC 62368-1 UL 62368-1
IEC 60068-2-27 IEC 61373EN 50155
IEC 60068-2-64 IEC 61373EN 50155
RoHS, CRoHS, WEEE
V2406D-C5/C7-CT-T: 1,192,592V2406D-C5/C7-PLP-CT-T: 1,036,309 hrs
Telcordia (Bellcore), GB
3 years
See www.moxa.com/warranty
