x86 Computers

Moxa’s x86 industrial-grade fanless computers have passed rigorous tests and strictly adhere to industrial standards to ensure they can provide long-lasting, reliable operation even in harsh environments, making them perfect for a variety of industrial-automation applications.

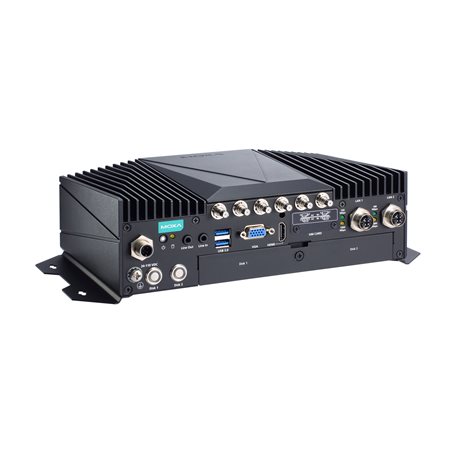

V2406C-WL1-CT-T
V2406C Series

x86 computer with Intel 8th Celeron 4305UE 2.0 GHz processor, 1 HDMI port, 1 VGA port, 2 GbE ports, 4 COM ports, 6 DIs, 2 DOs, 1 mSATA slot, dual 2.5-inch SSD/HDD slots, 2 mPCIe slots, 4 USB ports, 1 QMA connector, 24 to 110 VDC with isolation, -40 to 70°C operating temperature, conformal coating

Computer
  • CPU

    • Intel® Celeron® 4305UE processor (2M cache, 2 GHz)
  • Storage Slot

    • 2.5-inch HDD/SSD slots x 2
      mSATA slots x 1
  • Supported OS

    • Order via the Moxa Computer Configuration System (CCS):
      Windows 10 Embedded IoT Ent 2019 LTSC 64-bit
      Windows 10 Embedded IoT Ent 2021 LTSC 64-bit
      WL Models: Moxa Industrial Linux 2.x (Debian 10, kernel 4.19)
      KL Models: Debian 9 (kernel 4.9)

      Download Drivers From Website:
      Linux Debian 11/Ubuntu 20.04/CentOS 7.9 drivers
  • System Memory Slot

    • SODIMM DDR4 slot x 2
  • DRAM

    • 32 GB max
  • Graphics Controller

    • Intel® HD Graphics 620
Computer Interface
  • Ethernet Ports

    • Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2
  • Digital Output

    • DOs x 2
  • Serial Ports

    • RS-232/422/485 ports x 4, software selectable (DB9 male)
  • Digital Input

    • DIs x 6
  • USB 3.0

    • USB 3.0 hosts x 4, type-A connectors
  • Audio Input/Output

    • Line in x 1, Line out x 1, 3.5 mm phone jack
  • Video Output

    • VGA x 1, 15-pin D-sub connector (female)
      HDMI x 1, HDMI connector (type A)
  • Expansion Slots

    • mPCIe slots x 2
Digital Inputs
  • Connector

    • Screw-fastened Euroblock terminal
  • I/O Mode

    • DI
  • Isolation

    • 3k VDC
  • Sensor Type

    • Wet contact (NPN)
      Dry contact
  • Dry Contact

    • Logic 0: Close to GND
      Logic 1: Open
  • Wet Contact (COM to DI)

    • Logic 0: 10 to 30 VDC
      Logic 1: 0 to 3 VDC
Digital Outputs
  • Connector

    • Screw-fastened Euroblock terminal
      10-pin terminal block
  • Current Rating

    • 200 mA per channel
  • I/O Type

    • Sink
  • Voltage

    • 0 to 30 VDC
  • Isolation

    • 3k VDC
LED Indicators
  • System

    • Power x 1
      Storage x 1
  • LAN

    • 2 per port (10/100/1000 Mbps)
  • Serial

    • 2 per port (Tx, Rx)
Serial Interface
  • Baudrate

    • 50 bps to 115.2 kbps
  • Connector

    • DB9 male
  • ESD

    • Contact: 6 kV; Air: 8 kV (level 3)
  • Isolation

    • 2 kV
  • Data Bits

    • 5, 6, 7, 8
  • Flow Control

    • RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 1.5, 2
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Power Parameters
  • Input Voltage

    • 24 to 110 VDC
  • Power Connector

    • M12 A-coded male connector
  • Power Consumption (Max.)

    • 70 W (max.)
Physical Characteristics
  • Housing

    • Aluminum
  • IP Rating

    • IP20
  • Dimensions (without ears)

    • 250 x 75 x 150 mm (9.84 x 2.95 x 5.91 in)
  • Weight

    • 2,700 g (5.95 lb)
  • Installation

    • Wall mounting (standard)
  • Protection

    • PCB conformal coating
      Available on request
Environmental Limits
  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Railway Fire Protection

    • EN 45545-2
  • EMC

    • EN 55032/35
  • Safety

    • EN 62368-1
      IEC 62368-1
      UL 62368-1
  • Railway

    • EN 50121-4
      EN 50121-3-2
      EN 50155:2017
  • Shock

    • IEC 60068-2-27, IEC 61373
  • Vibration

    • IEC 60068-2-64, IEC 61373
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 369,408 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
