V2616A Series

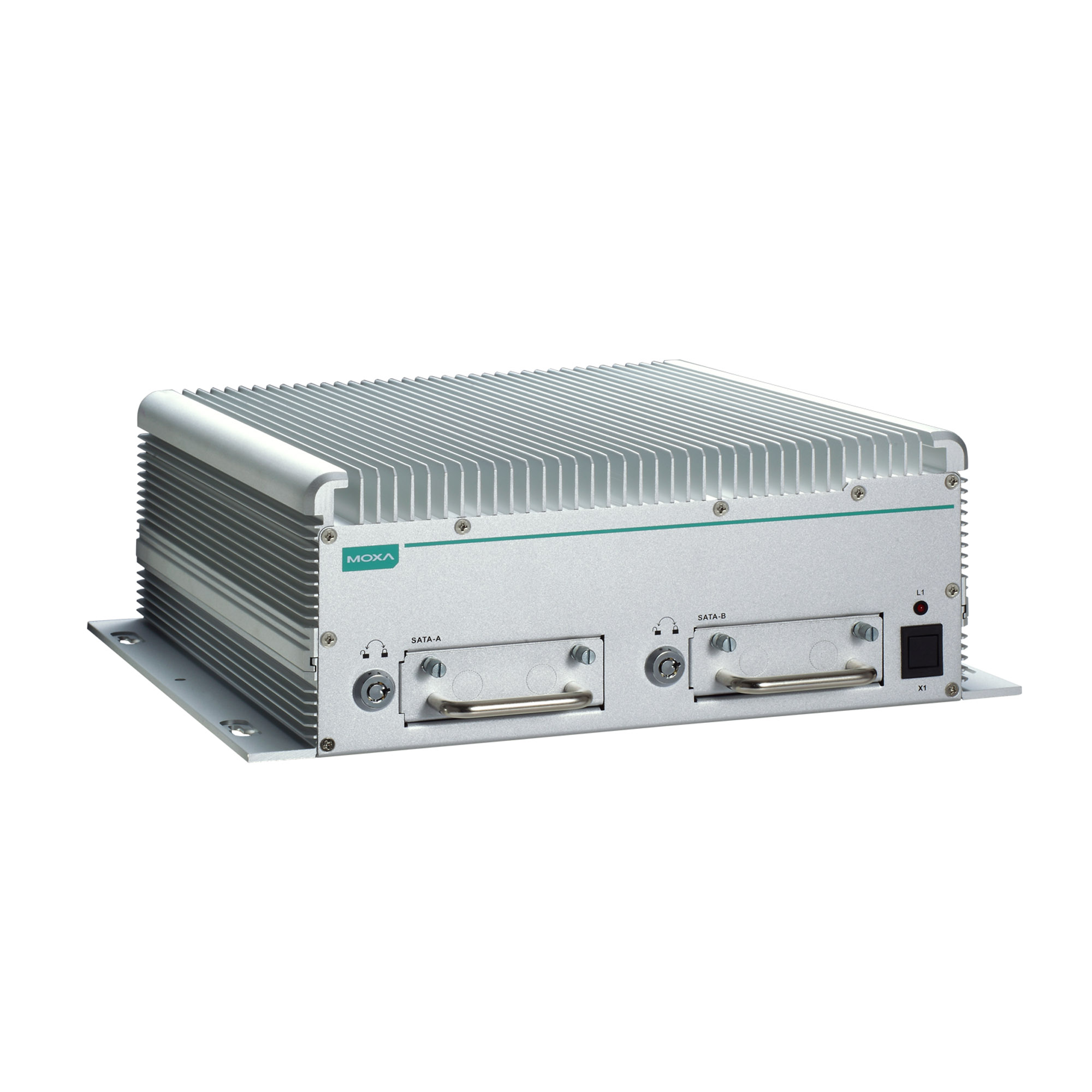

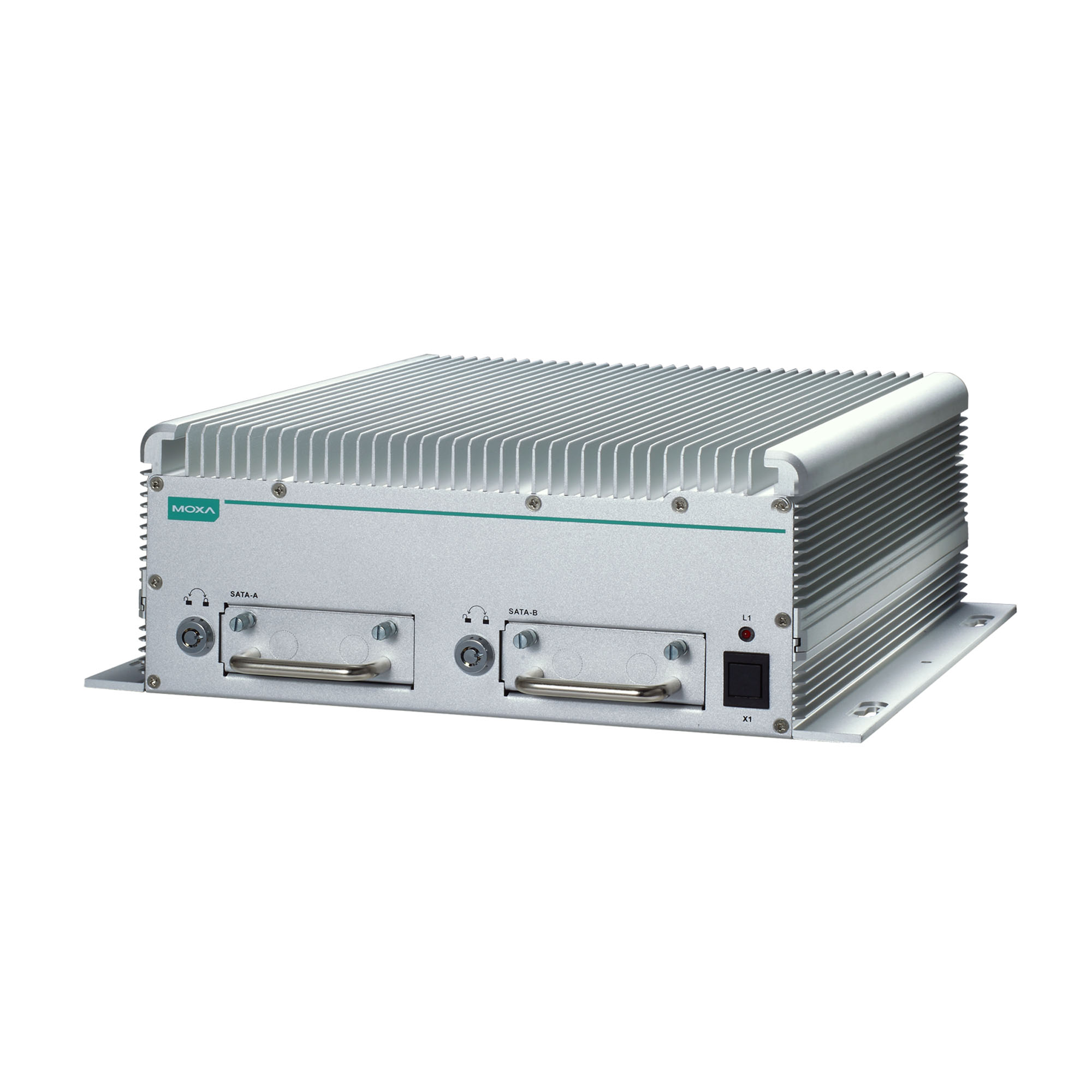

High performance network video recorder computer

moxa-v2616a-series-image-1-(1).jpg | Moxa
moxa-v2616a-series-image-2-(1).jpg | Moxa

Features and Benefits

  • Compliant with EN 50121-4
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • IEC 61373 certified for shock and vibration resistance
  • Two hot-swappable 2.5-inch HDD or SSD storage expansion trays
  • SynMap for system health monitoring
  • 24 to 110 VDC wide range isolated power input
  • Easy coin battery replacement
  • Ready-to-run Debian 7, Debian 9, Windows Embedded Standard 7, and Windows 10 Embedded IoT Enterprise 2016 LTSB platforms
  • Smart Recovery for manual or automatic system recovery

Certifications

  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The V2616A Series of embedded computers are based on the Intel Core i5/i7 processor, and feature 2 RS-232/422/485 serial ports, dual Gigabit LAN ports, 3 USB 2.0 ports, and dual VGA/DVI-D video outputs. The V2616A computers are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making them suitable for a variety of industrial applications.

The V2616A computers come with a CFast socket that provides ample and secure data buffering or additional storage expansion, as well as 2 hot-swappable storage trays that accept 2.5-inch solid state or hard disk storage drives, and may be arranged in RAID 1 arrays to give full data redundancy.

The V2616A Series comes with preinstalled Windows Embedded Standard 7 or Debian 7 environments, allowing programmers and system integrators to choose their preferred computing and development platform.

Appearance

Front View

Rear View

  • CPU

    V2616A-C5 Series: Intel® Core™ i5-3610ME Processor (3 M cache, up to 3.30 GHz)
    V2616A-C7 Series: Intel® Core™ i7-3517UE Processor (4 M cache, up to 2.80 GHz)
    V2616A-C8 Series: Intel® Core™ i7-3612QE Processor (6 M cache, up to 3.10 GHz)

  • System Chipset

    Mobile Intel® HM65 Express Chipset

  • Graphics Controller

    Intel® HD Graphics 4000 (integrated)

  • System Memory Pre-installed

    4 GB DDR3

  • Pre-installed OS

    Linux Debian 7
    Windows Embedded Standard 7 (WS7E) 32-bit

  • Storage Slot

    2.5-inch HDD/SSD slots x 2
    CFast slot x 1

  • Ethernet Ports

    Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2

  • Serial Ports

    RS-232/422/485 ports x 2, software selectable (DB9 male)

  • USB 2.0

    USB 2.0 hosts x 1, M12 D-coded connector
    USB 2.0 hosts x 2, type-A connectors

  • Audio Input/Output

    Line in x 1, Line out x 1, M12 D-coded

  • Digital Input

    DIs x 6

  • Digital Output

    DOs x 2

  • Expansion Slots

    mPCIe slot x 1

  • Video Output

    DVI-D x 1, 29-pin DVI-D connectors (female)
    VGA x 1, 15-pin D-sub connector (female)

  • Number of SIMs

    1

  • SIM Format

    Mini

  • Isolation

    3k VDC

  • Connector

    Screw-fastened Euroblock terminal

  • Dry Contact

    On: short to GND
    Off: open

  • I/O Mode

    DI

  • Sensor Type

    Wet Contact (NPN or PNP)

  • Wet Contact (DI to COM)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • Connector

    Screw-fastened Euroblock terminal

  • Current Rating

    200 mA per channel

  • I/O Type

    Sink

  • Voltage

    24 to 30 VDC

  • System

    Power x 1
    Storage x 1

  • LAN

    2 per port (10/100/1000 Mbps)

  • Serial

    2 per port (Tx, Rx)

  • ESD

    4 kV

  • Isolation

    1.5 kV (built-in)

  • Baudrate

    50 bps to 921.6 kbps

  • Flow Control

    RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)

  • Parity

    None, Even, Odd, Space, Mark

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Input Current

    2.5 A @ 24 VDC, 0.55 A @ 110 VDC

  • Power Connector

    M12 A-coded 4-pin male connector

  • Power Consumption

    2.5 A @ 24 VDC
    0.55 A @ 110 VDC

  • Power Consumption (Max.)

    60 W (max.)

  • Housing

    Aluminum

  • IP Rating

    IP40

  • Dimensions

    287 x 290 x 101 mm (11.29 x 11.41 x 3.97 in)

  • Weight

    5,000 g (11.11 lb)

  • Installation

    Wall mounting (with optional kit)

  • Protection

    -CT models: PCB conformal coating

  • Operating Temperature

    Standard Models: -25 to 55°C (-13 to 131°F)
    Wide Temp. Models: -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Railway

    EN 50121-4, EN 50155

  • Railway Fire Protection

    EN 45545-2

  • Safety

    EN 60950-1, UL 60950-1

  • Shock

    IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    IEC 60068-2-64, IEC 61373, EN 50155

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    V2616A-C5 Series: 280,726 hrs
    V2616A-C7 Series: 261,297 hrs

  • Standards

    Telcordia (Bellcore), GB
