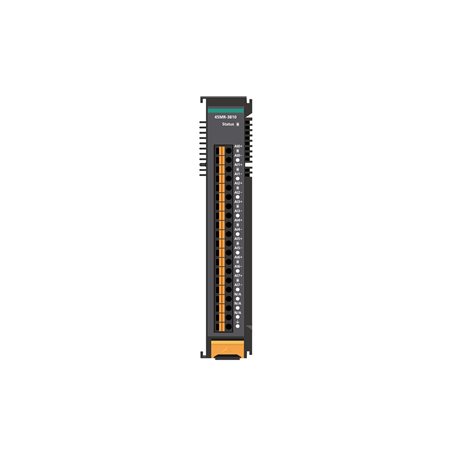

45MR-3810-T
ioThinx 4500 Series (45MR) Modules

Module for the ioThinx 4500 Series, 8 AIs, -10 to 10 V or 0 to 10 V, -40 to 75°C operating temperature

Input/Output Interface
  • Analog Input Channels

    • 8
  • Isolation

    • 3k VDC or 2k Vrms
Analog Inputs
  • Connector

    • Spring-type Euroblock terminal
  • I/O Mode

    • Voltage
  • I/O Type

    • Differential
  • Resolution

    • 16 bits
  • Input Range

    • 0 to 10 VDC
      ±10 VDC
  • Over-Voltage Protection

    • -25 to +30 VDC (power on)
      -35 to +35 VDC (power off)
  • Accuracy

    • ±0.1% FSR @ 25°C
      ±0.3% FSR @ -40 and 75°C
  • Sampling Rate

    • All channels: 100 samples/sec
      Per channel: 12.5 samples/sec
      Single channel: 100 samples/sec
  • Input Impedance

    • 10 mega-ohms (min.)
Power Consumption
  • System Power

    • 187 mA @ 3.3 VDC
Physical Characteristics
  • Housing

    • Plastic
  • Dimensions

    • 19.5 x 99 x 60.5 mm (0.77 x 3.90 x 2.38 in)
  • Weight

    • 79 g (0.175 lb)
  • Installation

    • DIN-rail mounting
  • Strip Length

    • I/O cable, 9 to 10 mm
  • Wiring

    • 18 to 24 AWG
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • Up to 4000 meters Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
  • Safety

    • UL 61010-2-201
  • Hazardous Locations

    • ATEX, Class I Division 2
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 2,478,459 hrs
  • Standards

    • Telcordia SR332
Warranty
