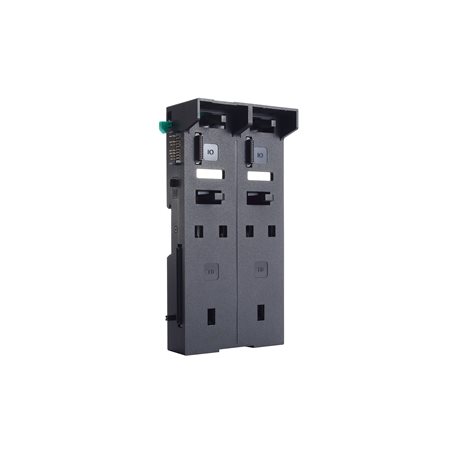

65M-BMIO02-CT-T
ioPAC 6500 Series (65M) Backplane Modules

ioPAC 6500 backplane module for I/O, 2 slots, -40 to 75°C operating temperature, conformal coating

Power Parameters

  • Power Consumption

    • 0.093 A @ 12 VDC
Physical Characteristics

  • Slots

    • 2 (for IO modules)

  • Housing

    • Plastic

  • Dimensions

    • 86 x 177 x 45.5 mm (3.39 x 6.97 x 1.79 in)

  • Weight

    • 205 g (0.45 lb)

  • Installation

    • DIN-rail mounting
      Rack mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
      Note: Proper airflow is required in an environment with
      temperature > 65°C

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Altitude

    • 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications

  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: (DC) 1 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: (DC) 0.5 kV L-N, 1 kV L/N-PE; Signal: 1 kV; IO: 0.5 kV
      IEC 61000-4-6 CS: Power: 10 Vrms; Signal: 10 Vrms
      IEC 61000-4-8 PFMF: 30 A/m

  • Safety

    • UL 61010-1
      UL 61010-2-201

  • Shock

    • IEC 60068-2-27
      Half sine wave; acceleration: 15 g; time: 11 ms

  • Vibration

    • IEC 60068-2-6
      DIN-rail mounted:
      7 mm peak-peak (p-p) (2 to 8.42 Hz), 1 g (8.42 to 150 Hz)
      Rack mounted (with optional kit):
      7 mm peak-peak (p-p) (2 to 8.42 Hz), 0.5 g (8.42 to 150 Hz)

  • Package Vibration Test

    • ISTA 1A

  • Package Drop Test

    • ISTA 1A
MTBF

  • Time

    • 65M-BMPW01-CT-T: 1,130,092,735 hrs
      65M-BMPW02-CT-T: 1,382,748,219 hrs
      65M-BMCM01-CT-T: 1,856,744,727 hrs
      65M-BMCM02-CT-T: 1,856,744,727 hrs
      65M-BMCPU01-CT-T: 5,032,783,357 hrs
      65M-BMCPU02-CT-T: 3,554,206,267 hrs
      65M-BMIO02-CT-T: 6,140,939 hrs
      65M-BMIO04-CT-T: 6,124,471 hrs

  • Standards

    • Telcordia Standard SR-332
Warranty
