ioPAC 6500 Series (65M) Backplane Modules

Backplane modules for modular programmable IIN controllers

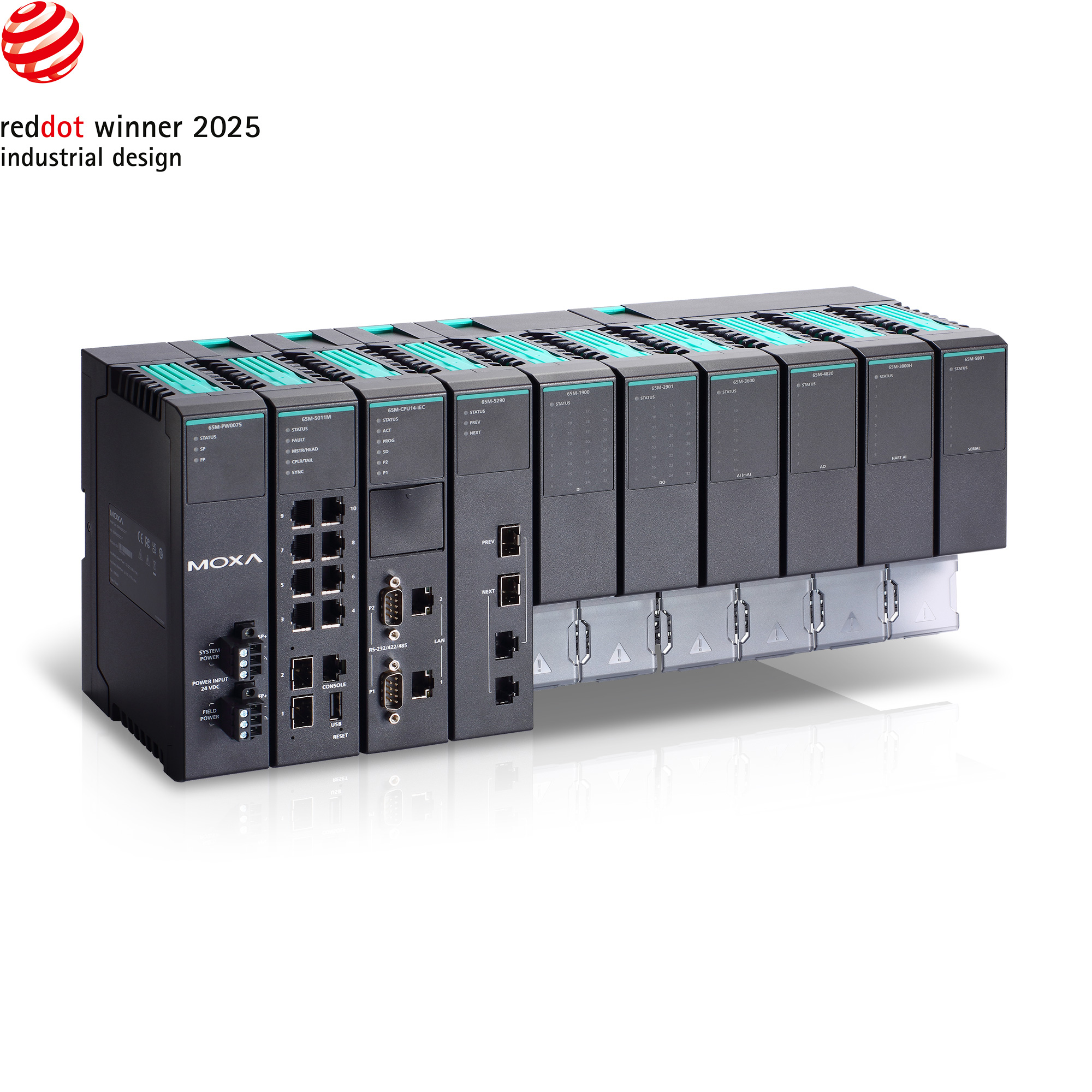

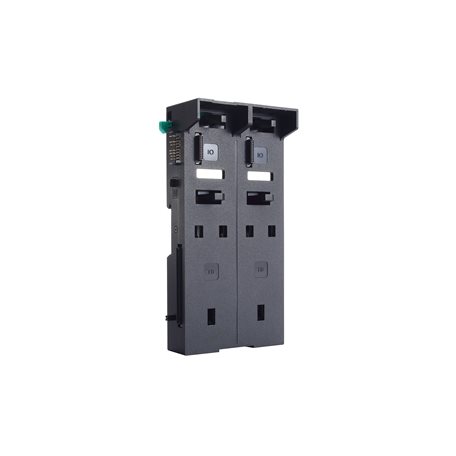

moxa-iopac-6500-series-65m-backplane-modules-image-(1).jpg | Moxa

Features and Benefits

  • Supports multiple IT/OT protocols for seamless communication between SCADA, Plant Information System, and cloud applications
  • Tool-free hardware installation and hot-swappable design , maximizing operation efficiency
  • Fully modular design for maximum deployment flexibility
  • Turbo Ring, Turbo Chain, and RSTP/STP for network redundancy
  • IINxpress IDE utility combines IEC 61131-3 programming, configuration, and protocol services to streamline workflow and reduce programming efforts
  • Developed according to IEC 62443-4-2 SL2 standards to ensure a secure foundation for critical applications

Certifications

  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
Preliminary

Contact Sales

Introduction

The ioPAC 6500 Series is a new generation of Linux-based controllers featuring a built-in Layer-2 managed switch. Equipped with an Arm Cortex-A53 quad-core CPU, the ioPAC 6500 Series delivers robust performance.

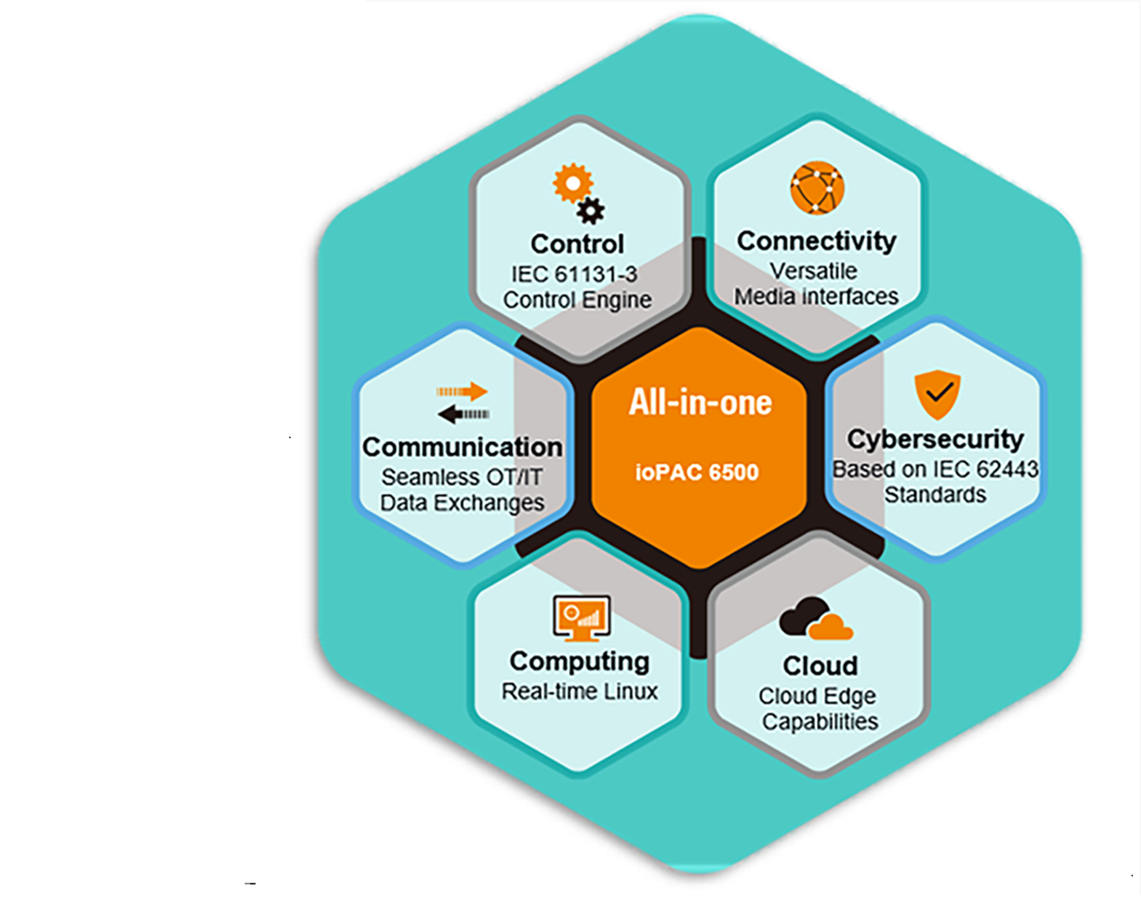

6C Competencies

The ioPAC 6500 Series delivers the following competencies to your projects:

  • Control: Precision control of your equipment

  • Communication: Protocol support to connect to other devices and systems

  • Computing: Applications for computing and data processing

  • Connectivity: Versatile set of media interface supported by the ioPAC 6500 Series

  • Cloud: Cloud connectivity and cloud edge computing

  • Cybersecurity: Security features to protect the devices and data

Fully Modular Design

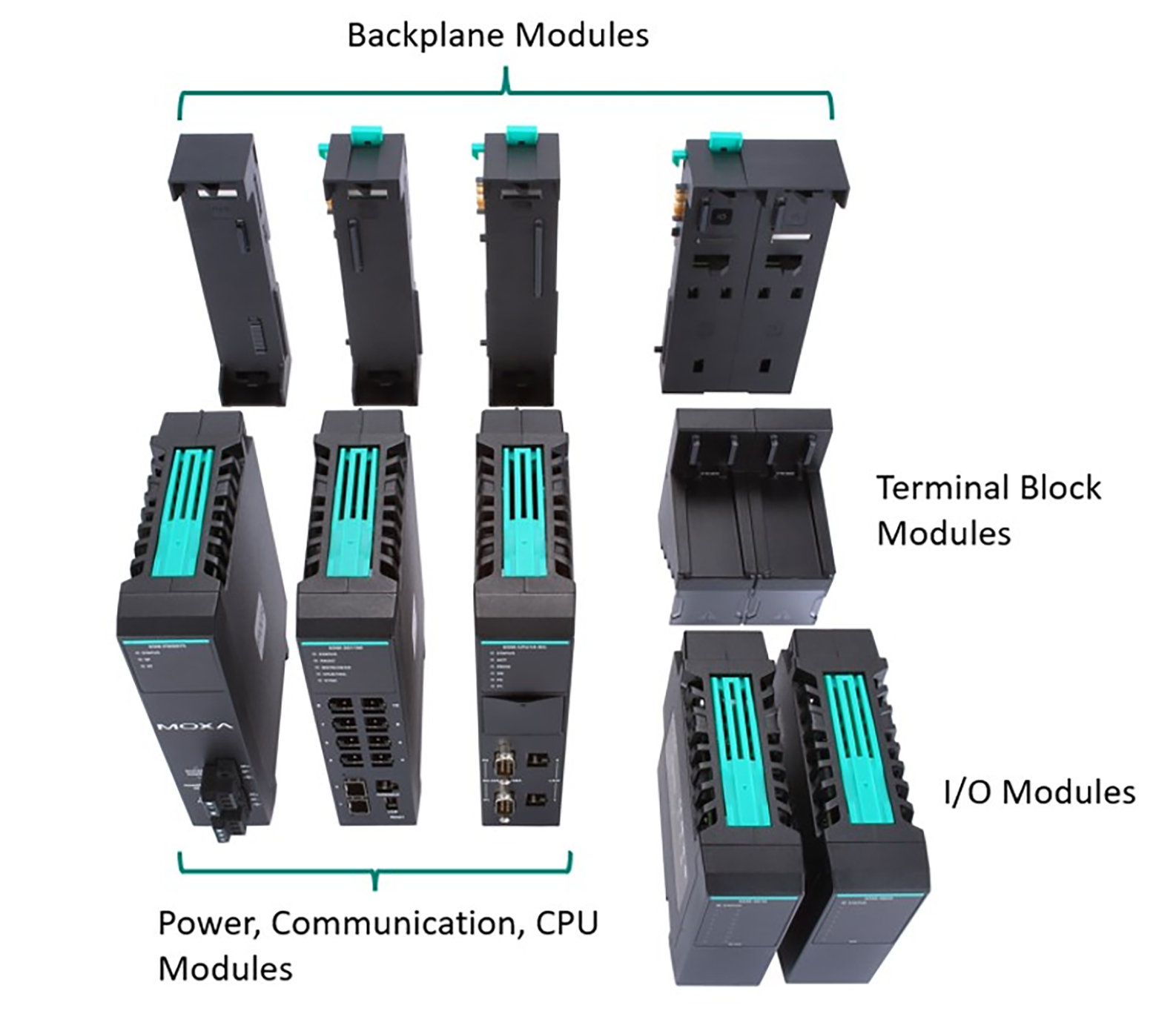

The IoPAC 6500 Series features a unique Lego-like mechanical design that allows for flexible deployment while minimizing installation efforts. The series can be divided into the components: Backplane modules, power modules, communication modules, CPU modules, I/O modules, and terminal-block modules.

IEC 61131-3 Automation Programming

IoPAC 6500 Series features IEC 61131-3 automation programming for flexibility in automation design and consistency in syntax and semantics, promoting interoperability between systems, thereby reducing development complexity in automation projects. Five languages are available: LD, FBD, SFC, IL, and ST, allowing automation professionals to choose the programming language that best suits their needs.

  • Power Consumption

    65M-BMIO02: 0.093 A @ 12 VDC
    65M-BMIO04: 0.117 A @ 12 VDC

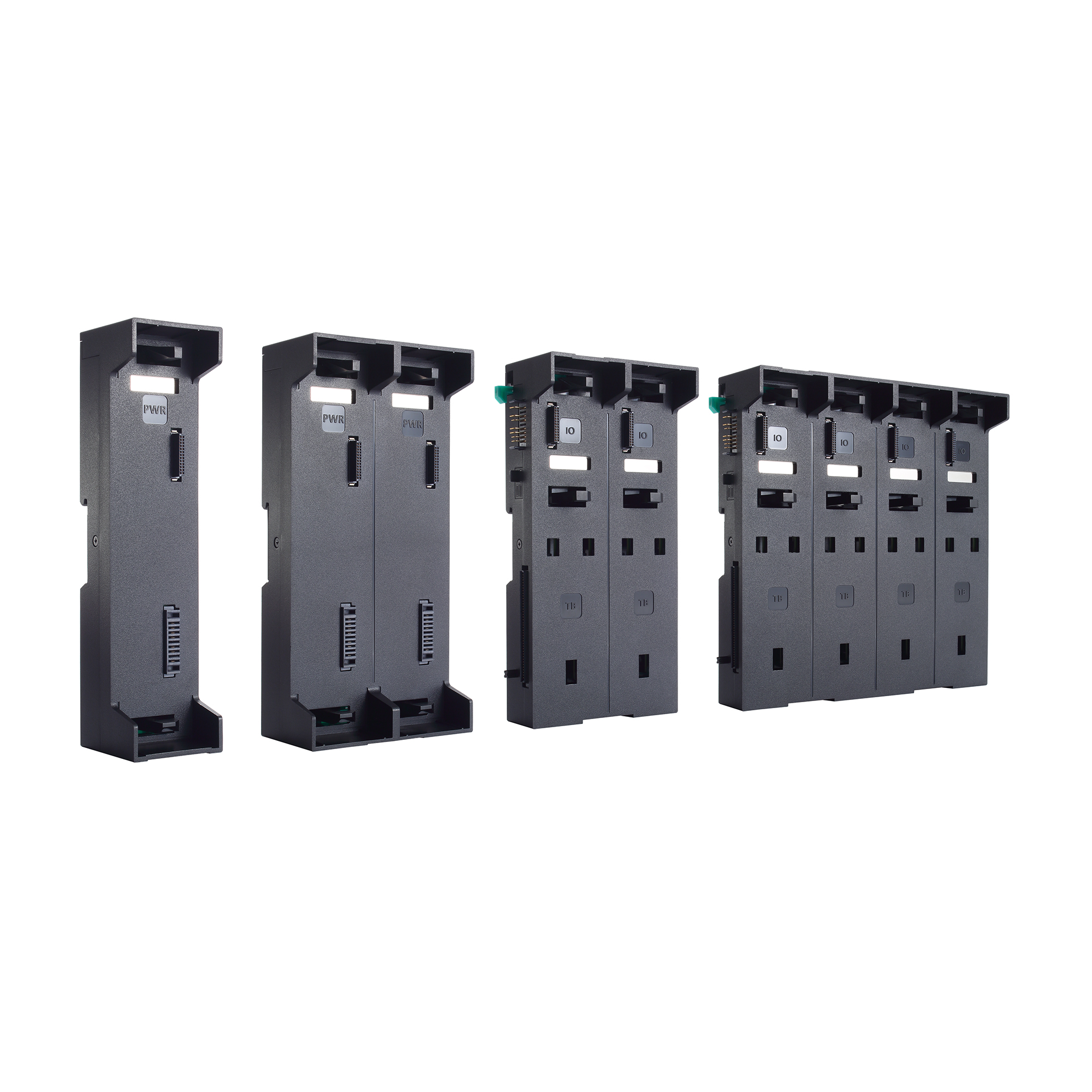

  • Slots

    65M-BMPW01-CT-T: 1 (for power module)

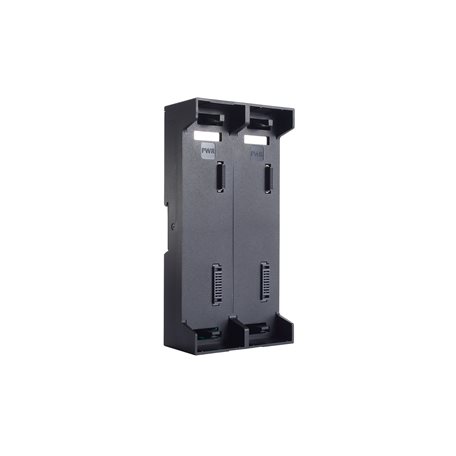

    65M-BMPW02-CT-T: 2 (for power modules)
    65M-BMCM01-CT-T: 1 (for communication module)

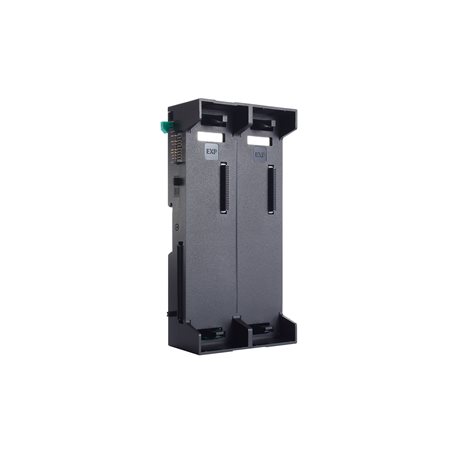

    65M-BMCM02-CT-T: 2 (for communication modules)

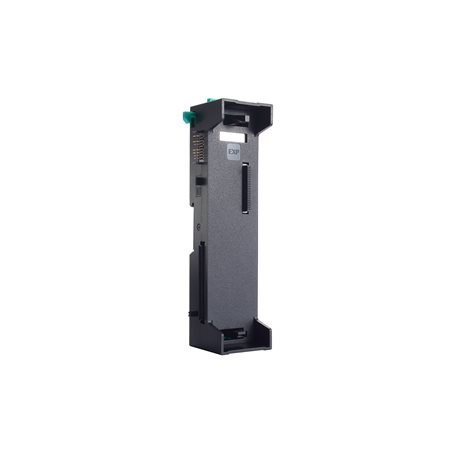

    65M-BMCPU01-CT-T: 1 (for CPU module)
    65M-BMCPU02-CT-T: 2 (for CPU modules)
    65M-BMIO02-CT-T: 2 (for IO modules)

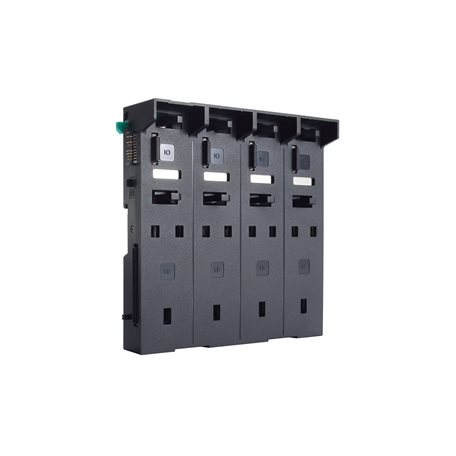

    65M-BMIO04-CT-T: 4 (for IO modules)

  • Housing

    Plastic

  • Dimensions

    65M-BMPW01-CT-T/BMCM01-CT-T/BMCPU01-CT-T:
    43 x 177 x 45.5 mm (1.69 x 6.97 x 1.79 in)
    65M-BMPW02-CT-T/BMCM02-CT-T/BMCPU02-CT-T/BMIO02-CT-T:
    86 x 177 x 45.5 mm (3.39 x 6.97 x 1.79 in)
    65M-BMIO04-CT-T:
    172 x 177 x 45.5 mm (6.77 x 6.97 x 1.79 in)

  • Weight

    65M-BMPW01-CT-T: 162 g (0.36 lb)
    65M-BMPW02-CT-T: 320 g (0.71 lb)
    65M-BMCM01-CT-T: 169 g (0.37 lb)
    65M-BMCM02-CT-T: 330 g (0.73 lb)
    65M-BMCPU01-CT-T: 170 g (0.37 lb)
    65M-BMCPU02-CT-T: 325 g (0.72 lb)
    65M-BMIO02-CT-T: 205 g (0.45 lb)
    65M-BMIO04-CT-T: 395 g (0.87 lb)

  • Installation

    DIN-rail mounting
    Rack mounting (with optional kit)

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)
    Note: Proper airflow is required in an environment with
    temperature > 65°C

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: (DC) 1 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: (DC) 0.5 kV L-N, 1 kV L/N-PE; Signal: 1 kV; IO: 0.5 kV
    IEC 61000-4-6 CS: Power: 10 Vrms; Signal: 10 Vrms
    IEC 61000-4-8 PFMF: 30 A/m

  • Safety

    UL 61010-1
    UL 61010-2-201

  • Shock

    IEC 60068-2-27
    Half sine wave; acceleration: 15 g; time: 11 ms

  • Vibration

    IEC 60068-2-6
    DIN-rail mounted:
    7 mm peak-peak (p-p) (2 to 8.42 Hz), 1 g (8.42 to 150 Hz)
    Rack mounted (with optional kit):
    7 mm peak-peak (p-p) (2 to 8.42 Hz), 0.5 g (8.42 to 150 Hz)

  • Package Vibration Test

    ISTA 1A

  • Package Drop Test

    ISTA 1A

  • Time

    65M-BMPW01-CT-T: 1,130,092,735 hrs
    65M-BMPW02-CT-T: 1,382,748,219 hrs
    65M-BMCM01-CT-T: 1,856,744,727 hrs
    65M-BMCM02-CT-T: 1,856,744,727 hrs
    65M-BMCPU01-CT-T: 5,032,783,357 hrs
    65M-BMCPU02-CT-T: 3,554,206,267 hrs
    65M-BMIO02-CT-T: 6,140,939 hrs
    65M-BMIO04-CT-T: 6,124,471 hrs

  • Standards

    Telcordia Standard SR-332
