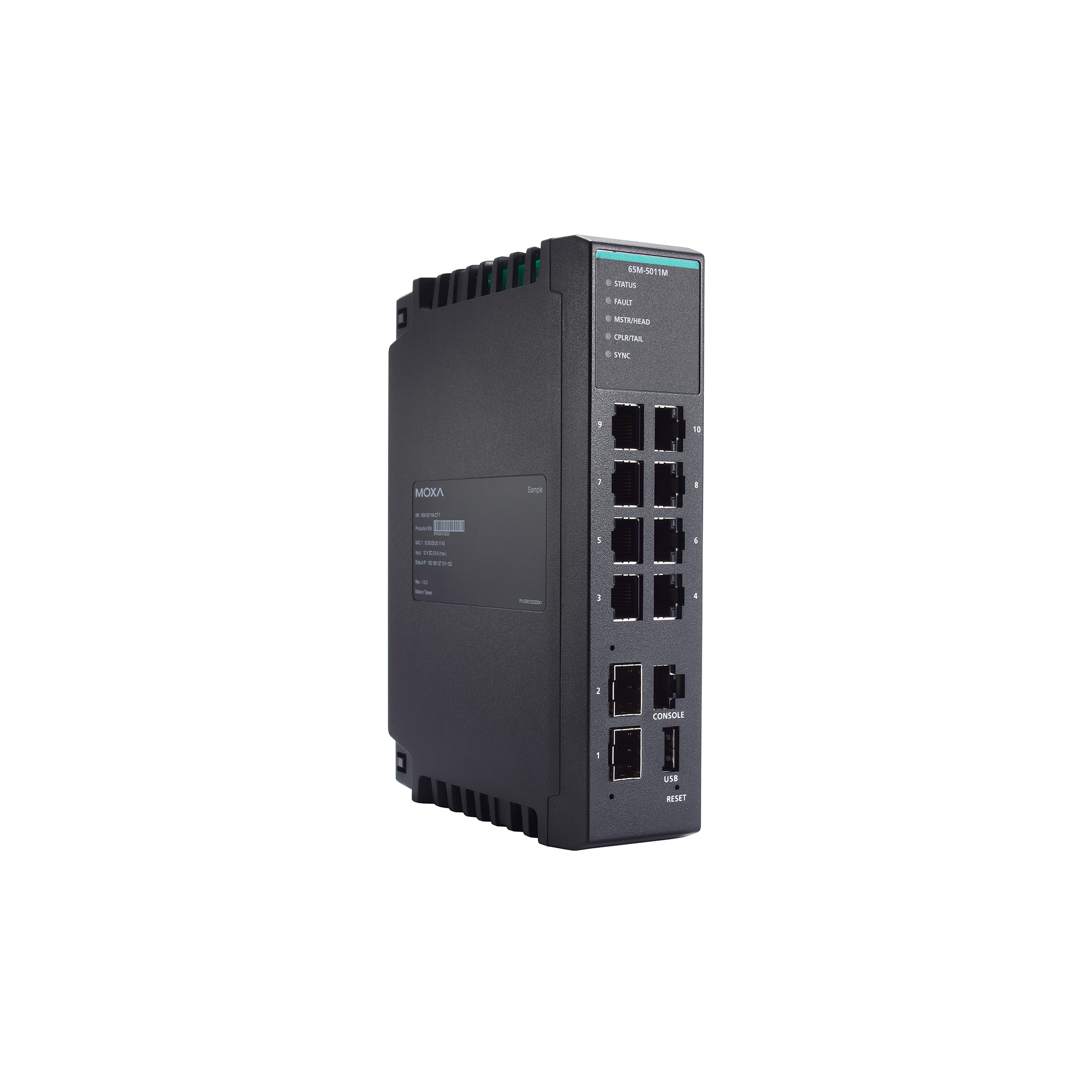

ioPAC 6500 Series (65M) Communication Modules

Communication modules for modular programmable IIN controllers

moxa-iopac-6500-series-65m-communication-modules-image-(1).jpg | Moxa

Features and Benefits

  • Supports multiple IT/OT protocols for seamless communication between SCADA, Plant Information System, and cloud applications
  • Tool-free hardware installation and hot-swappable design , maximizing operation efficiency
  • Fully modular design for maximum deployment flexibility
  • Turbo Ring, Turbo Chain, and RSTP/STP for network redundancy
  • IINxpress IDE utility combines IEC 61131-3 programming, configuration, and protocol services to streamline workflow and reduce programming efforts
  • Developed according to IEC 62443-4-2 SL2 standards to ensure a secure foundation for critical applications

Certifications

  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
Preliminary

Contact Sales

Introduction

The ioPAC 6500 Series is a new generation of Linux-based controllers featuring a built-in Layer-2 managed switch. Equipped with an Arm Cortex-A53 quad-core CPU, the ioPAC 6500 Series delivers robust performance.

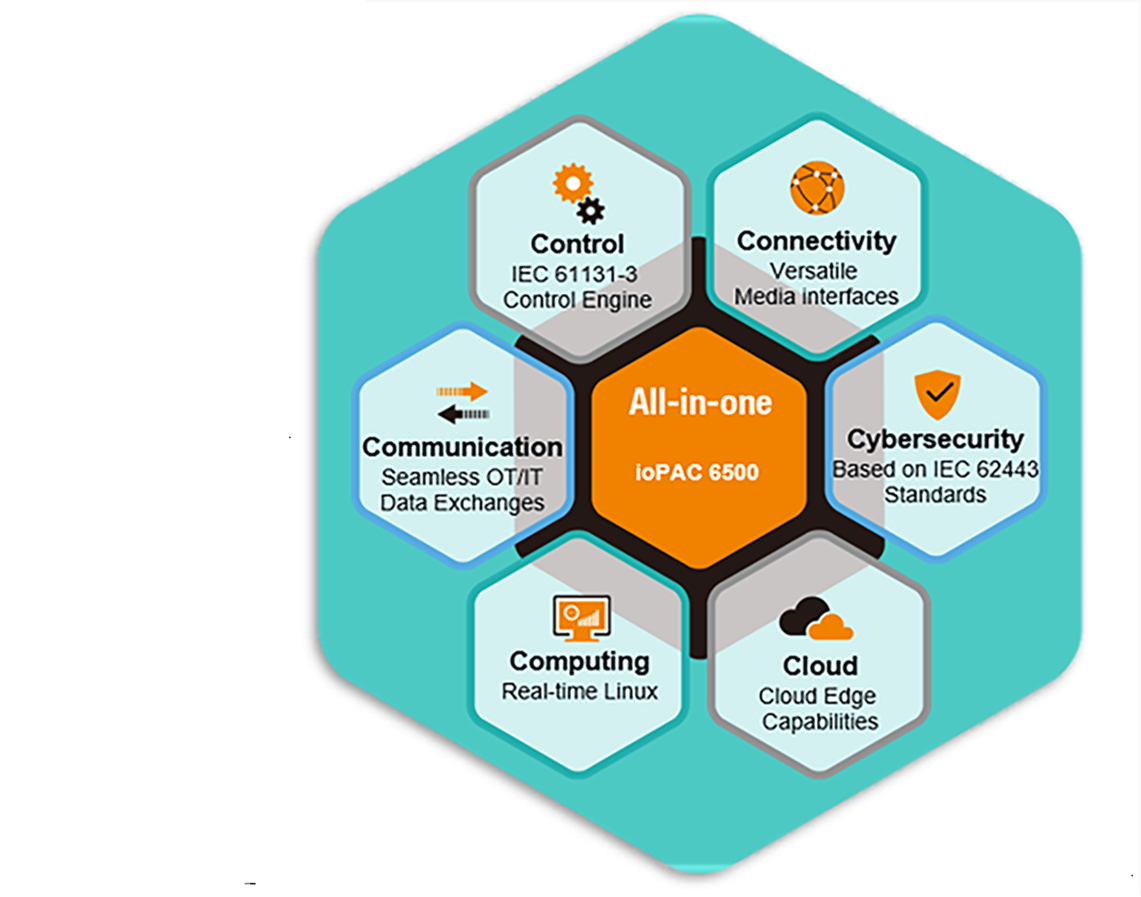

6C Competencies

The ioPAC 6500 Series delivers the following competencies to your projects:

  • Control: Precision control of your equipment

  • Communication: Protocol support to connect to other devices and systems

  • Computing: Applications for computing and data processing

  • Connectivity: Versatile set of media interface supported by the ioPAC 6500 Series

  • Cloud: Cloud connectivity and cloud edge computing

  • Cybersecurity: Security features to protect the devices and data

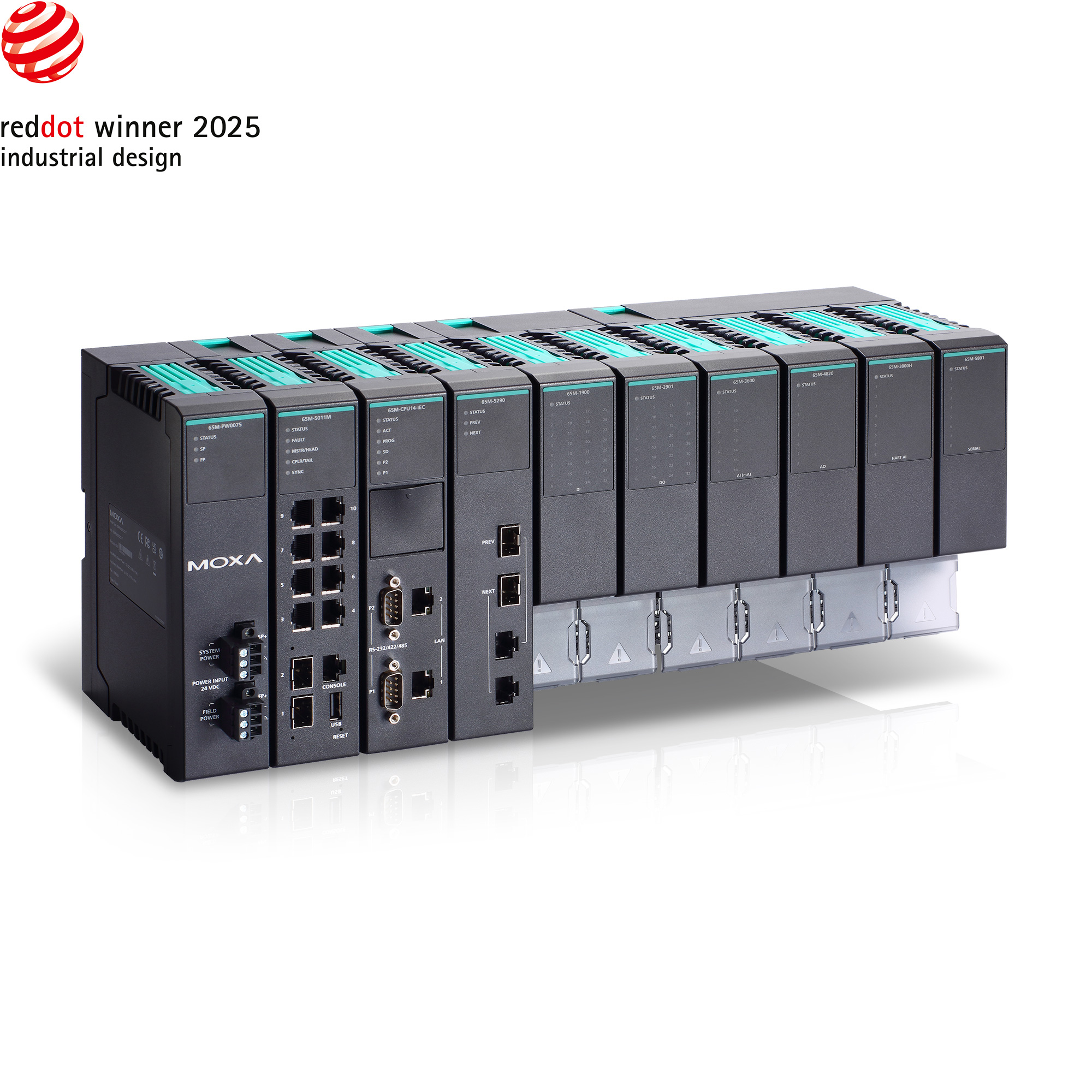

Fully Modular Design

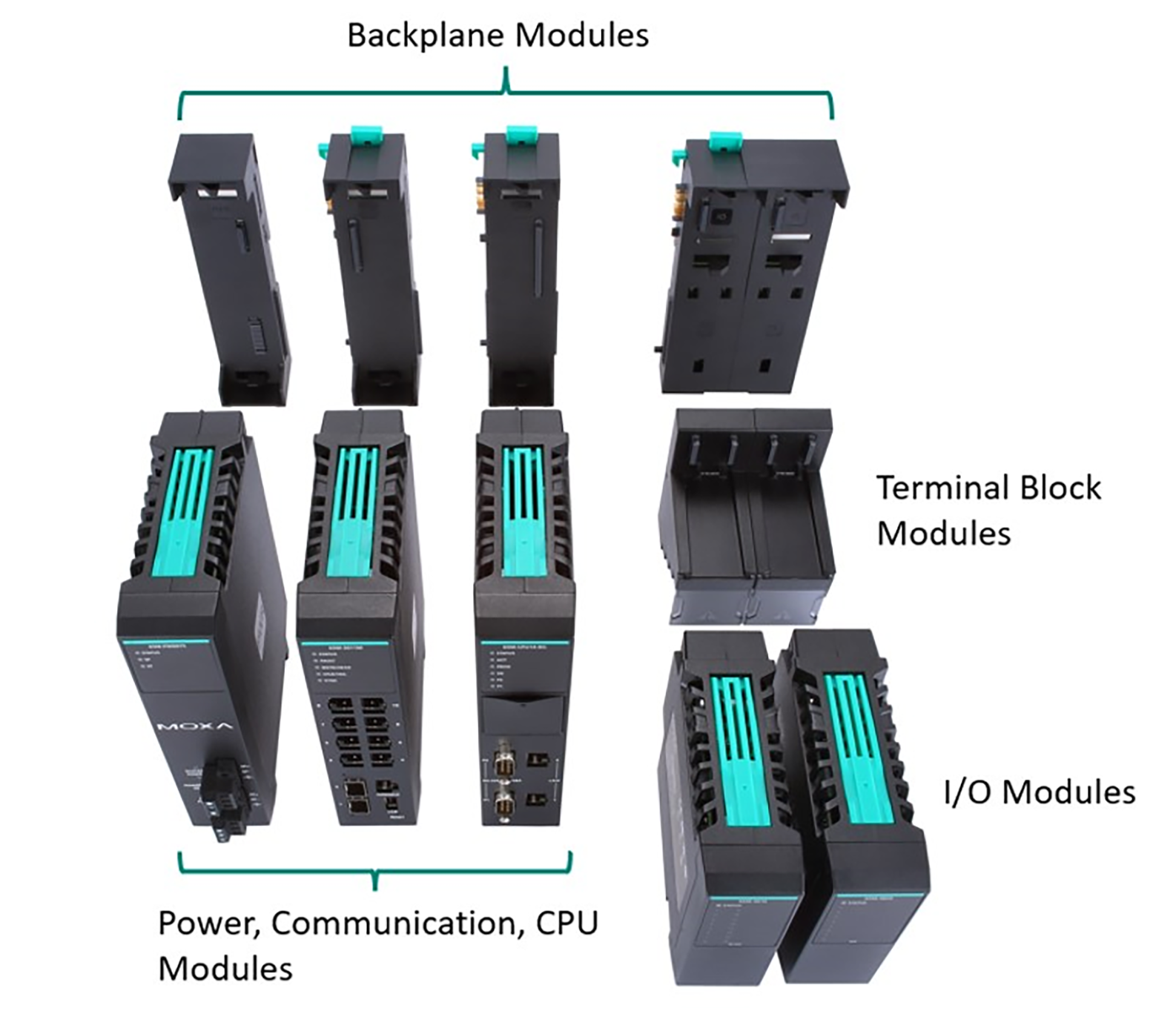

The ioPAC 6500 Series features a unique Lego-like mechanical design that allows for flexible deployment while minimizing installation efforts. The series can be divided into the components: Backplane modules, power modules, communication modules, CPU modules, I/O modules, and terminal-block modules.

IEC 61131-3 Automation Programming

IoPAC 6500 Series features IEC 61131-3 automation programming for flexibility in automation design and consistency in syntax and semantics, promoting interoperability between systems, thereby reducing development complexity in automation projects. Five languages are available: LD, FBD, SFC, IL, and ST, allowing automation professionals to choose the programming language that best suits their needs.

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    8
    Auto MDI/MDI-X connection
    Auto negotiation speed
    Full/Half duplex mode

  • 100/1000BaseSFP Slots

    2

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3z for 1000BaseX
    IEEE 802.3x for flow control
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1X for authentication

  • Management

    IPv4/IPv6
    Flow control
    Back Pressure Flow Control
    DHCP Server/Client
    ARP
    RARP
    LLDP
    Port Mirroring
    Linkup Delay
    SMTP
    SNMP Trap
    SNMP Inform
    SNMPv1/v2c/v3
    RMON
    TFTP
    SFTP
    HTTP
    HTTPS
    Telnet
    Syslog
    Private MIB
    Fiber check

  • Filter

    GMRP
    GVRP
    GARP
    802.1Q VLAN
    IGMP Snooping v1/v2/v3
    IGMP Querier

  • Redundancy Protocols

    STP
    RSTP
    Turbo Ring v2
    Turbo Chain
    Ring Coupling
    Dual Homing
    Link Aggregation

  • Security

    Broadcast storm protection
    Rate Limit
    Trust access control
    Static Port Lock
    Sticky MAC
    HTTPS/SSL
    SSH
    RADIUS
    TACACS+
    Login and Password Policy

  • Time Management

    SNTP
    NTP Server/Client
    NTP Authentication

  • Protocols

    IPv4/IPv6
    TCP/IP
    UDP
    ICMP
    ARP
    RARP
    TFTP
    DNS
    NTP Client
    DHCP Server
    DHCP Client
    802.1X
    QoS
    HTTPS
    HTTP
    Telnet
    SMTP
    SNMPv1/v2c/v3
    RMON
    Syslog

  • MIB

    P-BRIDGE MIB
    Q-BRIDGE MIB
    IEEE8021-SPANNING-TREE-MIB
    IEEE8021-PAE-MIB
    IEEE8023-LAG-MIB
    LLDP-EXT-DOT1-MIB
    LLDP-EXT-DOT3-MIB
    SNMPv2-MIB
    RMON MIB Groups 1, 2, 3, 9

  • MAC Table Size

    16 K

  • Jumbo Frame Size

    9.216 KB

  • Max. No. of VLANs

    256

  • VLAN ID Range

    VID 1 to 4094

  • IGMP Groups

    512

  • Priority Queues

    4

  • Packet Buffer Size

    1 MB

  • Console Port

    RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

  • Buttons

    Reset button

  • USB Ports

    USB 2.0 Type A
    (only supports Moxa's ABC-02-USB backup and storage device)

  • Input Current

    0.9 A @ 12 VDC

  • Housing

    Plastic

  • Dimensions

    42 x 177 x 131.5 mm (1.65 x 6.97 x 5.18 in)

  • Weight

    660 g (1.46 lb)

  • Installation

    DIN-rail mounting
    Rack mounting (with optional kit)

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)
    (with SFP module installed)
    Note: Proper airflow is required in an environment with temperature > 65°C

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: (DC) 1 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: (DC) 0.5 kV L-N, 1 kV L/N-PE; Signal: 1 kV; IO: 0.5 kV
    IEC 61000-4-6 CS: Power: (DC) 10 V
    IEC 61000-4-8 PFMF: 30 A/m

  • Safety

    UL 61010-2-201
    UL 61010-1

  • Shock

    IEC 60068-2-27
    Half sine wave; acceleration: 15 g; time: 11 ms

  • Vibration

    IEC 60068-2-6
    DIN-rail mounted:
    7 mm peak-peak (p-p) (2 to 8.42 Hz), 1 g (8.42 to 150 Hz)
    Rack mounted (with optional kit):
    7 mm peak-peak (p-p) (2 to 8.42 Hz), 0.5 g (8.42 to 150 Hz)

  • Package Vibration Test

    ISTA 1A

  • Package Drop Test

    ISTA 1A

  • Time

    3,104,403 hrs

  • Standards

    Telcordia Standard SR-332
