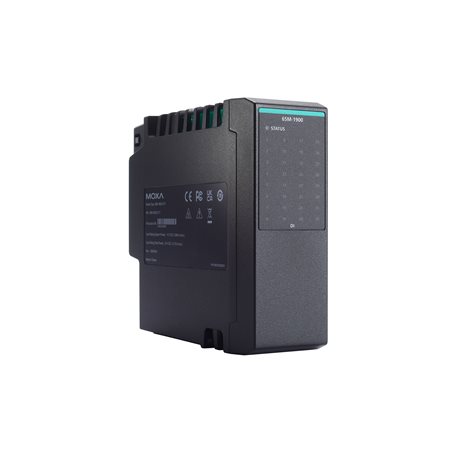

65M-3800H-CT-T
ioPAC 6500 Series (65M) I/O Modules

ioPAC 6500 HART AI module, 8 ch, current mode, -40 to 75°C operating temperature, conformal coating

Input/Output Interface

  • Analog Input Channels

    • 8 (HART)

  • Isolation

    • 65M-3600-CT-T/65M-3610-CT-T/65M-4820-CT-T/65M-5801-CT-T:
      - Between signal and system: 3k VDC
      - Between groups: 1k VDC per min
      All other models:
      - Between signal and system: 3k VDC
Digital Inputs

  • I/O Type

    • Sink
      (Internal/external field circuit supply for dry contact)

  • I/O Mode

    • DI or event counter
      (channels 1 to 8, group configurable by software)

  • Internal Field Circuit Supply Voltage

    • 24 VDC
      22.8 to 25.2 VDC

  • Internal Field Circuit Supply Current

    • 125 mA (max.)
      (Only for dry contact)

  • Input Voltage

    • On: 11 to 30 VDC
      Off: 0 to 5 VDC

  • Input Current (voltage on)

    • 2.35 mA ± 20% per channel

  • Counter Frequency

    • Square wave: 0 to 10 kHz

  • Digital Filtering Time Interval

    • Software configurable

  • Diagnostics

    • Input Wire-break Detection (current: 50 µA max., delay: 20 ms)
      Internal Field Circuit Supply Detection (17.5 VDC, 16 to 19 VDC)
Digital Outputs

  • I/O Type

    • Source

  • I/O Mode

    • DO or pulse output
      (channel 1 to 8, group configurable by software)

  • Common Power Input Voltage

    • 24 VDC
      19.2 to 28.8 VDC

  • Common Power Input Current

    • 6.4 A (max.)

  • Load Current

    • 200 mA/channel (typ.)
      500 mA/channel (max.)

  • Pulse Duration

    • 500 μs

  • Protection

    • Output Short-circuit Protection
      Common Power Input Over-voltage Protection
      Inductive Load Shutdown Voltage Protection

  • Diagnostics

    • Wire Break Detection (on state, output current < 3 mA)
      Wire Break Detection (off state, output load impedance > 58 kilo-ohms)
      Output Short-Circuit Detection (output current > 0.87 A, range: 0.64 to 1.2 A)
      External Power Detection (17.5 VDC, 16 to 19 VDC)
      Failsafe Configuration (hold last/failsafe state)
Analog Inputs

  • I/O Mode

    • 65M-3600-CT-T: Current
      65M-3610-CT-T: Voltage
      65M-3800H-CT-T: HART

  • I/O Type

    • Differential

  • Input Range

    • 65M-3600-CT-T:
      0 to 20 mA
      4 to 20 mA
      65M-3610-CT-T:
      0 to 10 V
      1 to 5 V
      65M-3800H-CT-T:
      4 to 20 mA

  • Overload Permitted on Inputs

    • 65M-3600-CT-T: ±30 mA
      65M-3610-CT-T: ±12 V
      65M-3800H-CT-T: 30 mA

  • Internal Loop Power Supply Current

    • 2-wire connection: 500 mA (max.)

  • Converter Resolution

    • 16 bits

  • Measurement Resolution

    • 65M-3600-CT-T:
      2 μA (0 to 20 mA)
      1.6 μA (4 to 20 mA)
      65M-3610-CT-T:
      1 mV (0 to 10 V)
      0.4 mV (1 to 5 V)
      65M-3800H-CT-T:
      1.6 μA (4 to 20 mA)

  • Accuracy

    • ±0.1% FSR @ 25°C
      ±0.3% FSR @ -40 to 75°C

  • Conversion Time

    • 100 ms

  • Rejection Ratio

    • Normal mode: > 60 dB @ 60 Hz (min.), conversion time: 100 ms
      Common mode: > 90 dB @ 60 Hz (min.), conversion time: 100 ms

  • Input Impedance

    • 65M-3800H-CT-T: 250 ohms
      65M-3600-CT-T: 250 ohms
      65M-3610-CT-T: 1 mega-ohms

  • Diagnostics

    • 65M-3800H-CT-T:
      Input Wire-break
      Input Short-circuit
      Input Underflow/Overflow Detection
      65M-3600-CT-T:
      Internal Loop Power Detection (17.5 VDA, 16 to 19 VDC)
      Input Short-circuit Detection
      65M-3600-CT-T (in 4 to 20 mA mode):
      Input Wire-break Detection (delay: 0.8 s)
      65M-3610-CT-T:
      Input Wire-break Detection (delay:1.6 s max)
Analog Outputs

  • I/O Mode

    • Voltage/Current

  • Output Range

    • 0 to 10 V
      1 to 5 V
      0 to 20 mA
      4 to 20 mA

  • Converter Resolution

    • 16-bit

  • Output Resolution

    • 0.1 mV (0 to 10 V)
      0.4 mV (1 to 5 V)
      2 μA (0 to 20 mA)
      1.6 μA (4 to 20 mA)

  • Accuracy

    • ±0.1% FSR @ 25°C
      ±0.3% FSR @ -40 to 75°C

  • Output Refresh Time

    • 16 ms

  • Output Impedance

    • Voltage mode:
      1 kilo-ohms (min.)
      Current mode:
      750 ohms (max.)

  • Diagnostics

    • Output Short-circuit Detection (voltage)
      Failsafe Configuration (hold last/failsafe state)
      Output Wire-break Detection (current)
Serial Interface

  • Serial Standards

    • RS-232, RS-422, RS-485-2w

  • Baudrate

    • 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 38400, 57600, and 115200 bps

  • Data Bits

    • 7, 8

  • Stop Bits

    • 1, 2

  • Parity

    • None
      Even
      Odd

  • Flow Control

    • RTS/CTS, XON/XOFF

  • Serial Signals

    • RS-232: TxD, RxD, RTS, CTS, GND
      RS-422: Tx+, Tx-, Rx+, Rx-, GND
      RS-485-2w: Data+, Data-, GND
Terminal Blocks

  • Connector

    • Screw-fastened terminal block

  • Dimensions

    • 42.3 x 102.38 x 80.8 mm (1.67 x 4.03 x 3.18 in)

  • Weight

    • 164 g (0.36 lb)
Power Consumption

  • System Power

    • 65M-1900-CT-T/65M-2901-CT-T:
      0.068 A @ 12 VDC
      65M-3610-CT-T/65M-4820-CT-T:
      0.069 A @ 12 VDC
      65M-3600-CT-T:
      0.073 A @ 12 VDC
      65M-3800H-CT-T:
      0.072 A @ 12 VDC
      65M-5801-CT-T:
      0.143 @ 12 VDC

  • Field Power

    • 65M-1900-CT-T:
      0.019 A @ 24 VDC (without internal field circuit supply)
      0.115 A @ 24 VDC (32-channel dry contact with internal field circuit supply)
      65M-2901-CT-T:
      0.005 A @ 24 VDC
      65M-3600-CT-T:
      0.053 A @ 24 VDC (without internal loop power)
      0.466 A @ 24 VDC (16-channel 20 mA input with internal loop power)
      65M-3610-CT-T:
      0.038 A @ 24 VDC
      65M-3800H-CT-T:
      0.05 A (max.) @ 24 VDC (without internal loop power)
      0.25 A (max.) @ 24 VDC (8-channel 4 to 20 mA input with internal loop power all in 20 mA)
      0.66 A (max.) @ 24 VDC (500 mA input with internal loop power)
      65M-4820-CT-T:
      0.022 A @ 24 VDC (without external load)
      0.266 A @ 24 VDC (4-channel 20 mA output)
      65M-5801-CT-T:
      0.11 A @ 24 VDC
Physical Characteristics

  • Housing

    • Plastic

  • Dimensions

    • 42 x 116 x 130 mm (1.65 x 4,57 x 5.12 in)

  • Weight

    • 262 g (0.58 lb)
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
      Note: Proper airflow is required in an environment with temperature > 65°C.

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Altitude

    • Up to 2000 meters Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications

  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: (DC) 1 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: (DC) 0.5 kV L-N, 1 kV L/N-PE; Signal: 1 kV; IO: 0.5 kV
      IEC 61000-4-6 CS: Power: (DC) 10 V; Signal: 10 Vrms
      IEC 61000-4-8 PFMF: 30 A/m

  • Safety

    • UL 61010-1
      UL 61010-2-201

  • Shock

    • IEC 60068-2-27
      Half sine wave; acceleration: 15 g; time: 11 ms

  • Vibration

    • IEC 60068-2-6
      DIN-rail mounted:
      7 mm peak-peak (p-p) (2 to 8.42 Hz), 1 g (8.42 to 150 Hz)
      Rack mounted (with optional kit):
      7 mm peak-peak (p-p) (2 to 8.42 Hz), 0.5 g (8.42 to 150 Hz)
MTBF

  • Time

    • 1,016,573 hrs

  • Standards

    • Telcordia Standard SR-332
