ioPAC 8500 Series (85M) Modules

Rugged modules for the ioPAC 8500 Series

moxa-iopac-8500-series-85m-modules-image-1-(1).jpg | Moxa

Features and Benefits

  • Compliant with EN 50121-3-2, EN 50121-4, and a portion of EN 50155 specifications
  • Rugged and compact design for harsh environments
  • Expand the I/O and communication capabilities of your ioPAC 8600 or 8500 Series device
  • Wide operating temperature range: -40 to 75°C (-40 to 167°F)
  • Millisecond timestamp granularity for digital input and analog input
  • Supports sampling rates up to 40 kHz for analog input
  • Pre-recording for analog input data logging
  • Up to 4 3-in-1 RS-232/422/485 serial ports

Certifications

  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

Moxa’s ioPAC 8500 Series 85M Modules can be installed in both ioPAC 8500 and ioPAC 8600 Series devices. Modules are available with DI/Os, AIs, Fast AIs, and serial interfaces, giving users a wide variety of options to choose from and allowing them to select the I/O combination that best fits their target application. All 85M modules are designed for railway industry applications, and as such, are compliant with EN 50121-3-2, EN 50121-4, and a portion of the EN 50155 specifications. In addition, these modules all support a wide operating temperature range of -40 to 75°C for reliable operation even in harsh environments.

  • Analog Input Channels

    85M-3800-T/3801-T/3810-T/3811-T: 8

  • Digital Input Channels

    85M-1602-T: 16

  • Digital Output Channels

    85M-2600-T: 16

  • Isolation

    3k VDC or 2k Vrms

  • RTD Channels

    85M-6600-T: 6

  • Thermocouple Channels

    85M-6810-T: 8

  • Serial Ports

    85M-5401-T: 4

  • Voltage

    24 VDC

  • Connector

    Spring-type Euroblock terminal

  • Counter Frequency

    5 kHz

  • Dry Contact

    On: short to GND
    Off: open

  • I/O Mode

    DI, event counter, or frequency

  • Points per COM

    8 channels

  • Sensor Type

    Dry contact
    Wet Contact (NPN or PNP)

  • Wet Contact (DI to COM)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • Voltage

    24 VDC

  • Connector

    Spring-type Euroblock terminal

  • Current Rating

    200 mA per channel

  • I/O Mode

    DO or PWM

  • I/O Type

    Sink

  • Over-Current Protection

    0.65 A per channel @ 25°C

  • Over-Temperature Shutdown

    175°C (typical), 150°C (min.)

  • Pulse Output Frequency

    5 kHz

  • Over-Voltage Protection

    85M-2600-T: 45 VDC (typical)
    45 VDC (typical)

  • Accuracy

    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 to 75°C

  • Built-in Resistor for Current Input

    85M-3800-T/3801-T: 125 ohms

  • Connector

    Spring-type Euroblock terminal

  • Historical Data Buffering

    85M-3801-T/3811-T: 60 KB per channel, 6-second data buffer at 5 kHz

  • I/O Type

    Differential

  • Input Impedance

    85M-3800-T/3801-T: 125 ohms (min.)
    85M-3810-T: 200 kilo-ohms (min.)
    85M-3811-T: 20 mega-ohms (min.)

  • Input Range

    85M-3800-T/3801-T: 4 to 20 mA (with burn-out detection)
    85M-3810-T/3811-T: 0 to 10 VDC

  • Resolution

    16 bits

  • Sampling Rate

    85M-3800-T/3810-T:
    All channels: 100 samples/sec
    Per channel: 12.5 samples/sec

    85M-3801-T/3811-T:
    All channels: 40k samples/sec
    Per channel: 5k samples/sec

  • Accuracy

    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 to 75°C

  • Connector

    Spring-type Euroblock terminal

  • Input Connection

    2- or 3-wire

  • Input Impedance

    625 kilo-ohms (min.)

  • Sensor Type

    JPT100, JPT200, JPT500 (-200 to 640°C)
    JPT1000 (-200 to 350°C)
    NI100, NI50, NI500 (-60 to 250°C)
    NI1000 (-60 to 150°C)
    NI120 (-80 to 260°C)
    PT1000 (-200 to 350°C)
    PT50, PT100, PT200, PT500 (-200 to 850°C)
    Resistance of 310, 620, 1250, and 2200 ohms

  • Resolution

    0.1°C or 0.1 ohms

  • Sampling Rate

    All channels: 12 samples/sec
    Per channel: 2 samples/sec

  • Millivolt Accuracy

    ±0.1% FSR @ 25°C
    ±0.3% FSR @ -40 to 75°C

  • Connector

    Spring-type Euroblock terminal

  • Input Impedance

    1 mega-ohms (min.)

  • Millivolt Type

    ±19.532 mV
    ±39.062 mV
    ±78.126 mV
    Fault and over-voltage protection: -35 to +35 VDC (power off); -25 to +30 VDC (power on)

  • Resolution

    16 bits

  • Sampling Rate

    All channels: 12 samples/sec
    Per channel: 1.5 samples/sec

  • Sensor Type

    J, K, T, E, R, S, B, N

  • Baudrate

    300 bps to 921.6 kbps

  • Data Bits

    7, 8

  • Flow Control

    RTS/CTS
    XON/XOFF

  • Parity

    Even
    None
    Odd

  • Serial Standards

    RS-232/422/485

  • Stop Bits

    1, 2

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Power Consumption

    85M-1602-T: 50.0 mA @ 24 VDC
    85M-2600-T: 35.4 mA @ 24 VDC
    85M-3800-T: 43.8 mA @ 24 VDC
    85M-3801-T: 43.8 mA @ 24 VDC
    85M-3810-T: 43.3 mA @ 24 VDC
    85M-3811-T: 521 mA @ 24 VDC
    85M-5401-T: 51.7 mA @ 24 VDC
    85M-6600-T: 27.7 mA @ 24 VDC
    85M-6810-T: 24.1 mA @ 24 VDC

  • Dimensions

    25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)

  • Weight

    Under 80 g

  • Wiring

    I/O cable, 14 to 28 AWG

  • Operating Temperature

    -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    2000 m
    Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

  • EMC

    EN 55032/24
    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Railway

    EN 50121-4
    EN 50155 (complies with a portion of EN 50155 specifications)

  • Safety

    UL 508

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Time

    85M-1602-T: 1,132,561 hrs
    85M-2600-T: 792,571 hrs
    85M-3800-T: 1,512,906 hrs
    85M-3801-T: 1,426,112 hrs
    85M-3810-T: 1,530,690 hrs
    85M-3811-T: 1,426,112 hrs
    85M-5401-T: 596,611 hrs
    85M-6600-T: 571,446 hrs
    85M-6810-T: 2,324,891 hrs

  • Standards

    Telcordia SR332

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
Software Package for ioPAC 8500 Series (85M) Modules (IEC Sample Code)
11.5 MB
Software Package v1.0.0
  • Windows
2019-01-18 Jan 18, 2019 Release notes
Software Package for ioPAC 8500 Series (85M) Modules (C Sample Code)
257.9 KB
Software Package v1.1.0
  • Linux
2019-01-17 Jan 17, 2019 Release notes
MX-AOPC UA Logger
44.2 MB
Utility v1.1
  • Windows Server 2008
  • Windows Server 2003
  • Windows 8
  • Windows 10
  • Windows 7
  • Windows Server 2012
2017-06-15 Jun 15, 2017 Release notes
MX-AOPC UA Server
36.3 MB
Utility v1.6
  • Windows Server 2008
  • Windows Server 2003
  • Windows 8
  • Windows 10
  • Windows 7
  • Windows Server 2012
2017-06-15 Jun 15, 2017 Release notes
RTUxpress Configuration Utility
17.3 MB
Utility v1.6
  • Windows Server 2008
  • Windows Server 2003
  • Windows 8
  • Windows 10
  • Windows 7
  • Windows Server 2012
2017-06-14 Jun 14, 2017 Release notes
Toolchain for ioPAC 8500 Series
143.2 MB
Software Package v1.11.0
  • Linux
2017-03-14 Mar 14, 2017 Release notes

Support Documents

Name Type Version Release Date
Datasheet for ioPAC 8500 Series (85M) Modules
308.1 KB
Datasheet v1.0 2018-11-12 Nov 12, 2018
Manual for ioPAC 8500 Series (85M) Modules
7.9 MB
Manual v3.0 2017-11-17 Nov 17, 2017
3D CAD for 85M-6600-T
374.7 KB
3D CAD 2015-09-17 Sep 17, 2015
3D CAD for 85M-6810-T
374.7 KB
3D CAD 2015-09-17 Sep 17, 2015
2D CAD for 85M-6600-T
126.0 KB
2D CAD 2015-09-17 Sep 17, 2015
2D CAD for 85M-6810-T
129.4 KB
2D CAD 2015-09-17 Sep 17, 2015
3D CAD for 85M-5401
415.5 KB
3D CAD 2014-09-11 Sep 11, 2014
3D CAD for 85M-1602/2600/38xx
314.0 KB
3D CAD 2014-09-11 Sep 11, 2014
2D CAD for 85M-1602/2600/38xx TOP
404.1 KB
2D CAD 2013-05-29 May 29, 2013
2D CAD for 85M-5401 TOP
172.1 KB
2D CAD 2013-05-29 May 29, 2013

Available Models (9)

Show Images
moxa-85m-1602-t-image.jpg | Moxa85M-1602-Tmoxa-85m-2600-t-image.jpg | Moxa85M-2600-Tmoxa-85m-3800-t-image.jpg | Moxa85M-3800-Tmoxa-85m-3801-t-image.jpg | Moxa85M-3801-T
Input/Output Interface16 x DI16 x DO8 x AI8 x AI
Analog Input Type4-20 mA4-20 mA
Analog Input Sampling RatePer channel: 12.5 samples/secPer channel: 5k samples/sec
Serial Standards
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-85m-3810-t-image.jpg | Moxa85M-3810-Tmoxa-85m-3811-t-image.jpg | Moxa85M-3811-Tmoxa-85m-5401-t-image.jpg | Moxa85M-5401-Tmoxa-85m-6600-t-image.jpg | Moxa85M-6600-T
Input/Output Interface8 x AI8 x AI4 x Serial port6 x RTD
Analog Input Type0-10 V0-10 V
Analog Input Sampling RatePer channel: 12.5 samples/secPer channel: 5k samples/sec
Serial StandardsRS-232/422/485
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-85m-6810-t-image.jpg | Moxa85M-6810-T
Input/Output Interface8 x TC
Analog Input Type
Analog Input Sampling Rate
Serial Standards
Add to QuoteView Bag
Added To Bag

ioPAC 8500 Series (85M) Modules

85M-1602-T

moxa-85m-1602-t-image.jpg | Moxa

Buy online from our distributors

ioPAC 8500 Series (85M) Modules

85M-2600-T

moxa-85m-2600-t-image.jpg | Moxa

Buy online from our distributors

ioPAC 8500 Series (85M) Modules

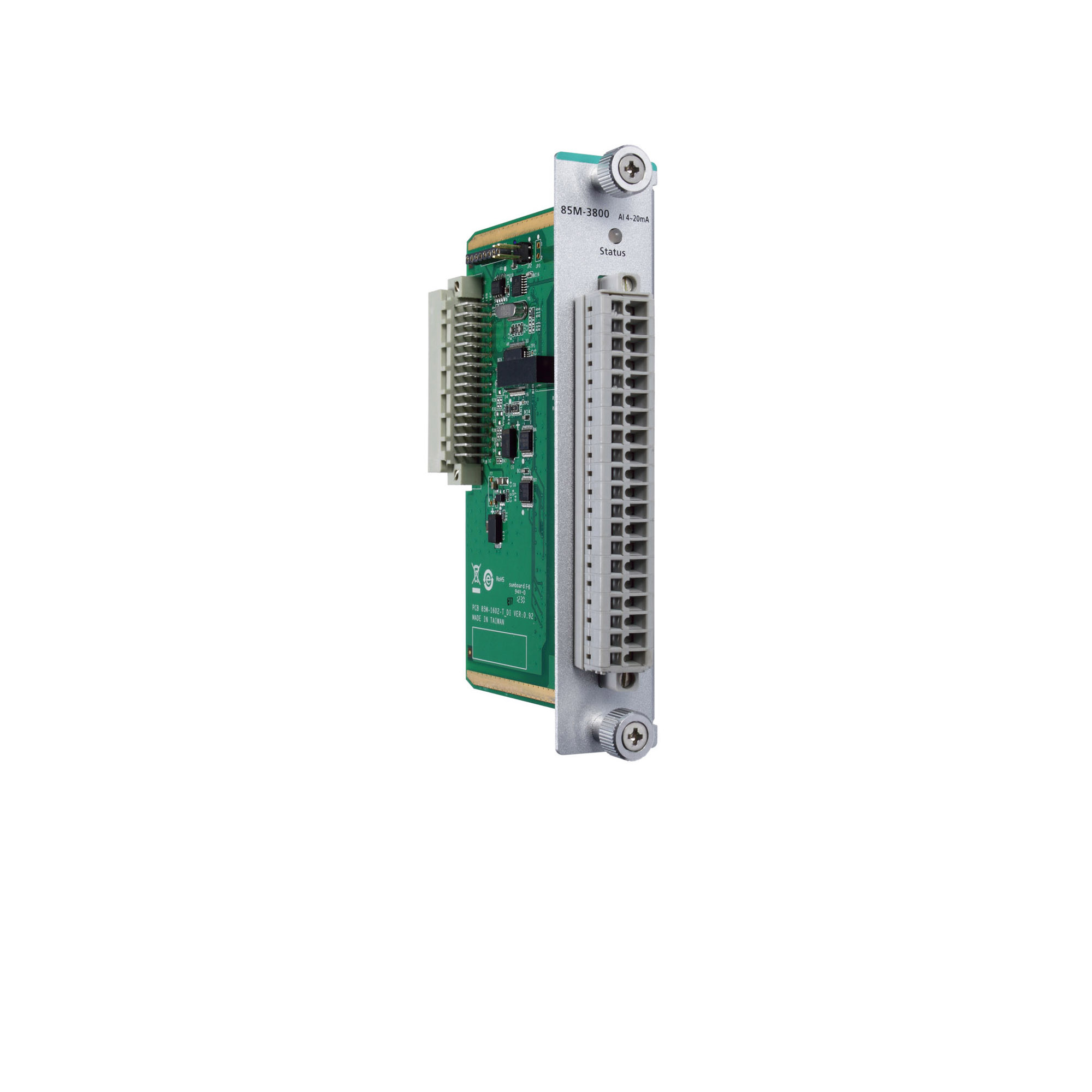

85M-3800-T

moxa-85m-3800-t-image.jpg | Moxa

Buy online from our distributors

ioPAC 8500 Series (85M) Modules

85M-3801-T

moxa-85m-3801-t-image.jpg | Moxa

Buy online from our distributors

ioPAC 8500 Series (85M) Modules

85M-3810-T

moxa-85m-3810-t-image.jpg | Moxa

Buy online from our distributors

ioPAC 8500 Series (85M) Modules

85M-3811-T

moxa-85m-3811-t-image.jpg | Moxa

Buy online from our distributors

ioPAC 8500 Series (85M) Modules

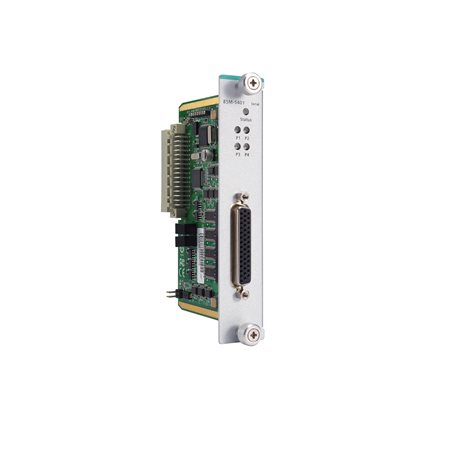

85M-5401-T
