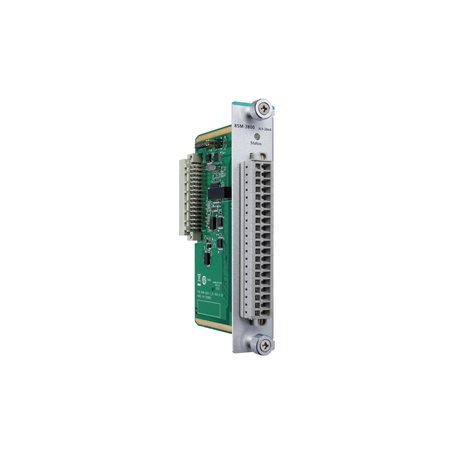

86M-1620D-T
ioPAC 8600 Series (86M) Modules

Module for the ioPAC 8600 Series, 16 DIs, 24 to 110 VDC, sink, channel LED, -40 to 75°C operating temperature

Input/Output Interface
  • Digital Input Channels

    • 16
  • Isolation

    • 3k VDC or 2k Vrms
Digital Inputs
  • Connector

    • Spring-type Euroblock terminal
  • Voltage

    • 24 to 110 VDC
  • Debouncing Function

    • Software enable/disable
  • Debouncing Time

    • 1 to 15 ms (software-selectable)
  • I/O Mode

    • DI
  • Points per COM

    • 8 channels
  • Scan on Time

    • 0.5 ms
  • Scan Period

    • 8 ms (typical)
  • Sensor Type

    • PNP
  • Wet Contact (DI to COM)

    • On: > 0.3 times external power voltage
      Off: < 0.15 times external power voltage
Digital Outputs
  • Connector

    • Spring-type Euroblock terminal
  • I/O Mode

    • DO or PWM
Power Parameters
  • Power Consumption

    • 12.6 mA @ 24 VDC
Physical Characteristics
  • Dimensions

    • 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)
  • Weight

    • Under 80 g
  • Wiring

    • I/O cable, 16 to 28 AWG
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
  • EMC

    • EN 55032/24, EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Railway

    • EN 50121-4, EN 50155
  • Safety

    • UL 508
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 1,115,244 hrs
  • Standards

    • Telcordia SR332
Warranty
