Rugged Controllers & I/Os

Rail, wind power, and offshore applications demand system reliability and stability, even in harsh environments. Our rugged controllers and I/O products are designed to perform in extreme conditions while providing versatile data acquisition and control capabilities.

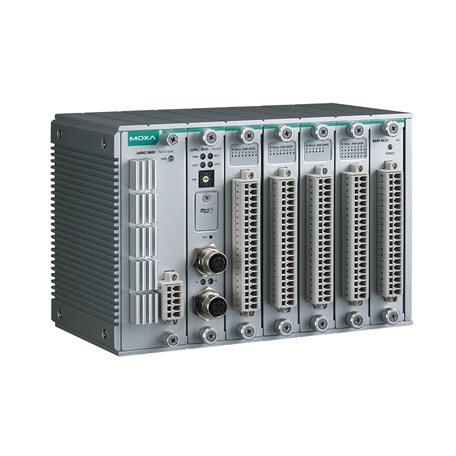

ioPAC 8600-PW10-30W-T
ioPAC 8600 Series

Module for the ioPAC 8600 Series, 24-110 VDC, 30 W, dual-power inputs, -40 to 75°C operating temperature

Security Functions
  • Authentication

    • Local database
  • Encryption

    • AES-256
      HMAC
      RSA-1024
      SHA-1
      SHA-256
  • Security Protocols

    • SNMPv3
      SSHv2
Power Parameters
  • Power Connector

    • Spring-type Euroblock terminal
  • No. of Power Inputs

    • 2
  • Input Voltage

    • 24 to 110 VDC
  • Galvanic Isolation

    • 3k VDC
Physical Characteristics
  • Housing

    • Metal
  • Weight

    • 370 g (0.82 lb)
  • Wiring

    • Power cable, 14 to 28 AWG
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Railway

    • EN 50121-4
      EN 50155
  • Safety

    • UL 508
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • ioPAC 8600-CPU30 models (HW Rev 1.0.1): 1,358,656 hrs
      ioPAC 8600-CPU30 models (HW Rev 1.1.0): 1,273,872 hrs
      ioPAC 8600-PW10-15W-T: 1,752,960 hrs
      ioPAC 8600-PW10-30W-T: 1,341,777 hrs
      ioPAC 8600-BM005-T: 2,678,587 hrs
      ioPAC 8600-BM009-T: 1,350,621 hrs
      ioPAC 8600-BM012-T: 1,238,479 hrs
  • Standards

    • Telcordia SR332
