VPort 06-2 Series

EN 50155, 1080P video image, compact IP cameras

moxa-vport-06-2-series-image-2-(1).jpg | Moxa

moxa-vport-06-2-series-image-3-(1).jpg | Moxa

moxa-vport-06-2-series-image-4-(1).jpg | Moxa

moxa-vport-06-2-series-image-5-(1).jpg | Moxa

Features and Benefits

1/3” progressive scan camera with maximum 1920 x 1080 resolution at up to 30 fps
High quality video imaging with DNR and WDR
Up to 4 simultaneous H.264 or MJPEG independent video streams
DynaStream™ for optimized network efficiency
CBR Pro™ for high image quality in limited bandwidth transmissions
Supports SDXC (up to 2 TB SD card) for local storage
1 built-in audio input or microphone
ONVIF conformity for standardization and interoperability

Certifications

Contact Sales

Introduction

The VPort 06-2 cameras are compact, 1080P (1920 x 1080), H.264/MJPEG dome IP cameras designed for mobile video surveillance applications. The cameras are compliant with EN 62262 IK8, mandatory sections of EN 50155, This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, refer to: www.moxa.com/doc/specs/EN_50155_Compliance.pdf and support a -25 to 55°C or -40 to 70°C operating temperature range. With a rugged M12 Ethernet port, SDXC slot for SD cards up to 2 TB, ONVIF Profile S standardization, built-in audio line port or microphone, PoE or 24 VDC power inputs, IP66-rated, and the option of changing the lens, the VPort 06-2 cameras will perform reliably in a variety of extreme environmental conditions, making them suitable for a wide variety of mobile video surveillance applications.

Download datasheet
Print this page
Save

You can manage and share your saved list in My Moxa

microSD Slot

SDXC

Digital Input Channels

1
Digital Inputs

+13 to +30 V for state 1
-30 to +1 V for state 0
Max. input current: 8 mA
Connector

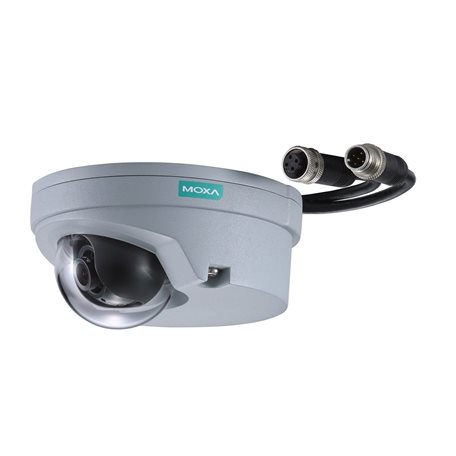

VPort P06-2 Series: 5-pin male M12 connector with 20 cm cable

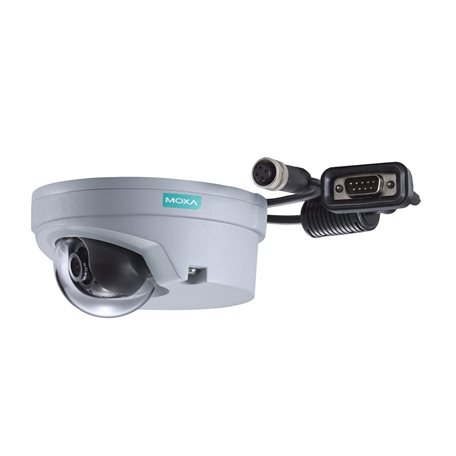

VPort 06-2 Series: DB9 male

PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

VPort P06-2 Series: 1
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

VPort 06-2 Series: 1

Protocols

TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS, SIP

Password

User-level password protection
Filter

IP address
Encryption

HTTPS

No. of Power Inputs

1
Source of Input Power

VPort P06-2 Series: PoE (IEEE 802.3af)
Input Voltage

VPort 06-2 Series: 12/24 VDC
Input Current

VPort 06-2 Series: 0.86 A @ 12 VDC; 0.38 A @ 24 VDC
VPort P06-2 Series: 0.17 A @ 48 VDC
Power Connector

VPort 06-2 Series: DB9 connector

Sensor

1/3-in 1080P progressive scan CMOS
Lens

VPort 06/P06-2x25M Series: f=2.5 mm, F1.6, Diagonal 120°, Horizontal 101°, Vertical 57°
VPort 06/P06-2x36M Series: f=3.6 mm, F1.6, Diagonal 99°, Horizontal 70°, Vertical 39°
VPort 06/P06-2x42M Series: f=4.2 mm, F1.6, Diagonal 82°, Horizontal 62°, Vertical 34°
VPort 06/P06-2x60M Series: f=6.0 mm, F1.8, Diagonal 62°, Horizontal 43°, Vertical 24°
VPort 06/P06-2x80M Series: f=8.0 mm, F1.6, Diagonal 42°, Horizontal 33°, Vertical 17°
Minimum Illumination

Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
Synchronization

Internal
White Balance

ATW/AWB
Electronic Shutter

Auto, Fixed (1/30 to 1/25000 sec)
S/N Ratio

Maximum 50 dB (AGC off; DNR on)
DNR (digital noise reduction)

Built-in 2D/3D DNR
WDR (wide dynamic range)

100 dB
AGC (auto gain control)

2X, 4X, 8X, 16X
Flickerless Control

Automatic, 50 Hz, 60 Hz modes
Image Rotation

Flip, Mirror, 90°, 180°, 270° rotation
Image Setting

Manual tuning with saturation, sharpness, and contrast
Camera Angle

Pan: ±15°, Tilt: 0° to 90° (controlled manually)
Note: Tilt of 2.5 mm lens model is 30° to 60°

Video Compression

H.264 (ISO/IEC 14496-10) or MJPEG
Video Output

via Ethernet
Video Streams

4 independent H.264 or MJPEG video streams
Video Resolution and FPS (frames per second)

Video Resolution and FPS (frames per second)

	NTSC		PAL
	Size	Max. FPS	Size	Max. FPS
QCIF	176 x 112	30	176 x 144	25
CIF	352 x 240	30	352 x 288	25
VGA	640 x 480	30	640 x 480	25
4CIF	704 x 480	30	704 x 576	25
Full D1	720 x 480	30	720 x 576	25
SVGA	800 x 600	30	800 x 600	25
HD	1280 x 720	30	1280 x 720	25
WXGA	1280 x 800	30	1280 x 800	25
Full HD	1920 x 1080	30	1920 x 1080	25

Video Viewing

DynaStream™ support for changing the video frame rate automatically
CBR Pro™ for good image quality in limited bandwidth transmissions
3 privacy mask areas provided
Adjustable image size and quality
Timestamp and text overlay
OSD (On Screen Display) position adjustable
Maximum of 5 simultaneous unicast connections, 50 multicast clients

Audio Format

Mono, PCM (G.711)
AAC
Audio Inputs

VPort 06/P06-2MxxM Series: 1 x built-in microphone
VPort 06-2LxxM Series: 1 x line-in, with DB9 connector
VPort P06-2LxxM Series: 1 x line-in, with M12 connector

Video Standards

ONVIF Profile S

Intelligent Video

Camera tampering detection
Video Motion Detection

3 independently configurable areas
Shock Detection

Built-in G sensor
Scheduling

Daily repeat timing schedule
Imaging

JPEG snapshots for pre/trigger/post alarm images
Custom Alarms

HTTP event servers for setting customized alarm actions
Email/FTP Messaging

Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-Alarm Buffer

50 MB video buffer for JPEG snapshot images
Video Recording

Event recordings stored on the SD card

Memory Size

2 GB
Operating System

Windows 7 or above
Browser

Internet Explorer 9.x or above
Multimedia

DirectX 9.0C or above

Housing

IP66 rain and dust protection
Metal housing, PC dome cover
IK8 vandal resistant protection
Dimensions

110 x 115.5 x 61.8 mm (4.33 x 4.53 x 2.43 in)
Weight

620 g (1.37 lb)
Installation

Panel mounting
Protection

-CT models: PCB conformal coating

Operating Temperature

Standard Models: -25 to 55°C (-13 to 131°F)
Wide Temp. Models: -40 to 70°C (-40 to 158°F)
Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity

5 to 95% (non-condensing)
Ingress Protection

IEC 60529, IP66
Vandal Resistance

EN 62262, IK8
Altitude

2000 m
Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

EMI

CISPR 32, FCC Part 15B Class A
EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
Freefall

IEC 60068-2-31
Railway Fire Protection

EN 45545-2
Safety

UL 60950-1
Shock

IEC 60068-2-27, IEC 61373, EN 50155
Vibration

IEC 60068-2-64, IEC 61373, EN 50155
Railway

EN 50155 (complies with a portion of EN 50155 specifications), GB/T 24338.4-2009

Time

VPort 06-2LXXM Series: 1,063,089 hrs
VPort 06-2MXXM Series: 1,039,008 hrs
VPort P06-2LXXM Series: 1,075,216 hrs
VPort P06-2MXXM Series: 1,050,590 hrs
Standards

Telcordia SR332

Warranty Period

5 years
Details

See www.moxa.com/warranty

Download datasheet

Software, Firmware, and Drivers

Name	Type	Version	Operating System	Release Date
Firmware for VPort 06-2 Series 45.0 MB	Firmware	v1.4		Feb 25, 2021 Feb 25, 2021 Release notes
SoftNVR-IA IP Surveillance Software Trial Version 48.1 MB	Software Package	v3.5	Windows 7 Windows XP	Nov 08, 2017 Nov 08, 2017 Release notes
Software Package for VPort 06-2 Series (MIB file) 27.6 KB	Software Package	v1.2		Jun 20, 2016 Jun 20, 2016 Release notes
Moxa VPort and EtherDevice Configurator Utility 1.6 MB	Utility	v5.3	Windows	Apr 09, 2012 Apr 09, 2012 Release notes

Support Documents

Name	Type	Version	Release Date
QIG for VPort 06-2 Series 1.0 MB	QIG	v2.2	Apr 29, 2021 Apr 29, 2021
Datasheet for VPort 06-2 Series 768.9 KB	Datasheet	v1.1	Dec 31, 2019 Dec 31, 2019
Manual for VPort 06-2 Series 6.9 MB	Manual	v3.4	Feb 09, 2018 Feb 09, 2018
2D CAD for VPort 06-2LxxM 455.9 KB	2D CAD		Apr 13, 2016 Apr 13, 2016
2D CAD for VPort 06-2MxxM 382.0 KB	2D CAD		Apr 13, 2016 Apr 13, 2016

Available Models (64)

Show Images

	Compare VPort 06-2L36M-CT-T	Compare VPort 06-2L36M-CT	Compare VPort 06-2L36M-T	Compare VPort 06-2L36M
Lens	3.6 mm	3.6 mm	3.6 mm	3.6 mm
Audio Interface	Line-in	Line-in	Line-in	Line-in
Local Storage	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface
Power Input	12/24 VDC	12/24 VDC	12/24 VDC	12/24 VDC
Operating Temp.	-40 to 70°C	-25 to 55°C	-40 to 70°C	-25 to 55°C
Conformal Coating	✓	✓	–	–
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare VPort 06-2L42M-CT-T	Compare VPort 06-2L42M-CT	Compare VPort 06-2L42M-T	Compare VPort 06-2L42M
Lens	4.2 mm	4.2 mm	4.2 mm	4.2 mm
Audio Interface	Line-in	Line-in	Line-in	Line-in
Local Storage	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface
Power Input	12/24 VDC	12/24 VDC	12/24 VDC	12/24 VDC
Operating Temp.	-40 to 70°C	-25 to 55°C	-40 to 70°C	-25 to 55°C
Conformal Coating	✓	✓	–	–
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare VPort 06-2L60M-CT-T	Compare VPort 06-2L60M-CT	Compare VPort 06-2L60M-T	Compare VPort 06-2L60M
Lens	6.0 mm	6.0 mm	6.0 mm	6.0 mm
Audio Interface	Line-in	Line-in	Line-in	Line-in
Local Storage	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface
Power Input	12/24 VDC	12/24 VDC	12/24 VDC	12/24 VDC
Operating Temp.	-40 to 70°C	-25 to 55°C	-40 to 70°C	-25 to 55°C
Conformal Coating	✓	✓	–	–
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare VPort 06-2L80M-CT-T	Compare VPort 06-2L80M-CT	Compare VPort 06-2L80M-T	Compare VPort 06-2L80M
Lens	8.0 mm	8.0 mm	8.0 mm	8.0 mm
Audio Interface	Line-in	Line-in	Line-in	Line-in
Local Storage	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface
Power Input	12/24 VDC	12/24 VDC	12/24 VDC	12/24 VDC
Operating Temp.	-40 to 70°C	-25 to 55°C	-40 to 70°C	-25 to 55°C
Conformal Coating	✓	✓	–	–
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare VPort 06-2M36M-CT-T	Compare VPort 06-2M36M-CT	Compare VPort 06-2M36M-T	Compare VPort 06-2M36M
Lens	3.6 mm	3.6 mm	3.6 mm	3.6 mm
Audio Interface	Microphone	Microphone	Microphone	Microphone
Local Storage	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface
Power Input	12/24 VDC	12/24 VDC	12/24 VDC	12/24 VDC
Operating Temp.	-40 to 70°C	-25 to 55°C	-40 to 70°C	-25 to 55°C
Conformal Coating	✓	✓	–	–
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare VPort 06-2M42M-CT-T	Compare VPort 06-2M42M-CT	Compare VPort 06-2M42M-T	Compare VPort 06-2M42M
Lens	4.2 mm	4.2 mm	4.2 mm	4.2 mm
Audio Interface	Microphone	Microphone	Microphone	Microphone
Local Storage	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface
Power Input	12/24 VDC	12/24 VDC	12/24 VDC	12/24 VDC
Operating Temp.	-40 to 70°C	-25 to 55°C	-40 to 70°C	-25 to 55°C
Conformal Coating	✓	✓	–	–
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare VPort 06-2M60M-CT-T	Compare VPort 06-2M60M-CT	Compare VPort 06-2M60M-T	Compare VPort 06-2M60M
Lens	6.0 mm	6.0 mm	6.0 mm	6.0 mm
Audio Interface	Microphone	Microphone	Microphone	Microphone
Local Storage	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface
Power Input	12/24 VDC	12/24 VDC	12/24 VDC	12/24 VDC
Operating Temp.	-40 to 70°C	-25 to 55°C	-40 to 70°C	-25 to 55°C
Conformal Coating	✓	✓	–	–
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare VPort 06-2M80M-CT-T	Compare VPort 06-2M80M-CT	Compare VPort 06-2M80M-T	Compare VPort 06-2M80M
Lens	8.0 mm	8.0 mm	8.0 mm	8.0 mm
Audio Interface	Microphone	Microphone	Microphone	Microphone
Local Storage	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface
Power Input	12/24 VDC	12/24 VDC	12/24 VDC	12/24 VDC
Operating Temp.	-40 to 70°C	-25 to 55°C	-40 to 70°C	-25 to 55°C
Conformal Coating	✓	✓	–	–
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare VPort P06-2L36M-CT-T	Compare VPort P06-2L36M-CT	Compare VPort P06-2L36M-T	Compare VPort P06-2L36M
Lens	3.6 mm	3.6 mm	3.6 mm	3.6 mm
Audio Interface	Line-in	Line-in	Line-in	Line-in
Local Storage	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface
Power Input	PoE	PoE	PoE	PoE
Operating Temp.	-40 to 70°C	-25 to 55°C	-40 to 70°C	-25 to 55°C
Conformal Coating	✓	✓	–	–
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare VPort P06-2L42M-CT-T	Compare VPort P06-2L42M-CT	Compare VPort P06-2L42M-T	Compare VPort P06-2L42M
Lens	4.2 mm	4.2 mm	4.2 mm	4.2 mm
Audio Interface	Line-in	Line-in	Line-in	Line-in
Local Storage	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface
Power Input	PoE	PoE	PoE	PoE
Operating Temp.	-40 to 70°C	-25 to 55°C	-40 to 70°C	-25 to 55°C
Conformal Coating	✓	✓	–	–
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare VPort P06-2L60M-CT-T	Compare VPort P06-2L60M-CT	Compare VPort P06-2L60M-T	Compare VPort P06-2L60M
Lens	6.0 mm	6.0 mm	6.0 mm	6.0 mm
Audio Interface	Line-in	Line-in	Line-in	Line-in
Local Storage	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface
Power Input	PoE	PoE	PoE	PoE
Operating Temp.	-40 to 70°C	-25 to 55°C	-40 to 70°C	-25 to 55°C
Conformal Coating	✓	✓	–	–
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare VPort P06-2L80M-CT-T	Compare VPort P06-2L80M-CT	Compare VPort P06-2L80M-T	Compare VPort P06-2L80M
Lens	8.0 mm	8.0 mm	8.0 mm	8.0 mm
Audio Interface	Line-in	Line-in	Line-in	Line-in
Local Storage	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface
Power Input	PoE	PoE	PoE	PoE
Operating Temp.	-40 to 70°C	-25 to 55°C	-40 to 70°C	-25 to 55°C
Conformal Coating	✓	✓	–	–
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare VPort P06-2M36M-CT-T	Compare VPort P06-2M36M-CT	Compare VPort P06-2M36M-T	Compare VPort P06-2M36M
Lens	3.6 mm	3.6 mm	3.6 mm	3.6 mm
Audio Interface	Microphone	Microphone	Microphone	Microphone
Local Storage	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface
Power Input	PoE	PoE	PoE	PoE
Operating Temp.	-40 to 70°C	-25 to 55°C	-40 to 70°C	-25 to 55°C
Conformal Coating	✓	✓	–	–
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare VPort P06-2M42M-CT-T	Compare VPort P06-2M42M-CT	Compare VPort P06-2M42M-T	Compare VPort P06-2M42M
Lens	4.2 mm	4.2 mm	4.2 mm	4.2 mm
Audio Interface	Microphone	Microphone	Microphone	Microphone
Local Storage	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface
Power Input	PoE	PoE	PoE	PoE
Operating Temp.	-40 to 70°C	-25 to 55°C	-40 to 70°C	-25 to 55°C
Conformal Coating	✓	✓	–	–
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare VPort P06-2M60M-CT-T	Compare VPort P06-2M60M-CT	Compare VPort P06-2M60M-T	Compare VPort P06-2M60M
Lens	6.0 mm	6.0 mm	6.0 mm	6.0 mm
Audio Interface	Microphone	Microphone	Microphone	Microphone
Local Storage	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface
Power Input	PoE	PoE	PoE	PoE
Operating Temp.	-40 to 70°C	-25 to 55°C	-40 to 70°C	-25 to 55°C
Conformal Coating	✓	✓	–	–
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

	Compare VPort P06-2M80M-CT-T	Compare VPort P06-2M80M-CT	Compare VPort P06-2M80M-T	Compare VPort P06-2M80M
Lens	8.0 mm	8.0 mm	8.0 mm	8.0 mm
Audio Interface	Microphone	Microphone	Microphone	Microphone
Local Storage	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface	microSD slot, SDXC interface
Power Input	PoE	PoE	PoE	PoE
Operating Temp.	-40 to 70°C	-25 to 55°C	-40 to 70°C	-25 to 55°C
Conformal Coating	✓	✓	–	–
	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag	Add to Quote View Bag

VPort 06-2 Series

VPort P06-2L60M-CT

Buy online from our distributors

Allied Electronics & Automation Buy Online
Allied Electronics & Automation Buy Online
Controller Service & Sales Buy Online
Express Systems & Peripherals Buy Online
iComTech Buy Online
Mid Atlantic Rugged Systems

Industrial Network Infrastructure

Industrial Edge Connectivity

IndustrialComputing

Industry Focus

Technology Focus

Enabling IIoT Connectivity

Secure Your OT Networks

Product Support

Repair & Warranty

Resources

Get in Touch

About Us

Get to Know Moxa

Create Value That Lasts

Convert Your Passion Into New Possibilities

VPort 06-2 Series

EN 50155, 1080P video image, compact IP cameras

Features and Benefits

Certifications

Introduction

Memory

microSD Slot

Input/Output Interface

Digital Input Channels

Digital Inputs

Connector

Ethernet Interface

PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

Ethernet Software Features

Protocols

Security Functions

Password

Filter

Encryption

Power Parameters

No. of Power Inputs

Source of Input Power

Input Voltage

Input Current

Power Connector

Camera Characteristics

Sensor

Lens

Minimum Illumination

Synchronization

White Balance

Electronic Shutter

S/N Ratio

DNR (digital noise reduction)

WDR (wide dynamic range)

AGC (auto gain control)

Flickerless Control

Image Rotation

Image Setting

Camera Angle

Video Interface

Video Compression

Video Output

Video Streams

Video Resolution and FPS (frames per second)

Video Resolution and FPS (frames per second)

Video Viewing

Audio Interface

Audio Format

Audio Inputs

Camera Software Development

Video Standards

Camera Alarm Software Features

Intelligent Video

Video Motion Detection

Shock Detection

Scheduling

Imaging

Custom Alarms

Email/FTP Messaging

Pre-Alarm Buffer

Video Recording

Software Requirements

Memory Size

Industrial
Computing
