IP Cameras

Our selection of IP cameras includes dome, box, and cameras that have rugged designs. They comply with parts of the EN 50155 standard, enabling them to perform reliably and deliver superior image quality suitable for a range of applications.

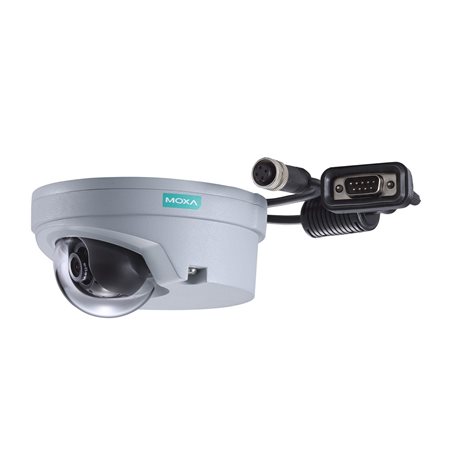

VPort 06-2L36M
VPort 06-2 Series

EN 50155, FHD, H.264/MJPEG IP camera with M12 connector, 1 audio input, 24 VDC, 3.6 mm lens, -25 to 55°C operating temperature

Memory
  • microSD Slot

    • SDXC
Input/Output Interface
  • Digital Input Channels

    • 1
  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +1 V for state 0
      Max. input current: 8 mA
  • Connector

    • DB9 male
Ethernet Interface
  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    • 1
Ethernet Software Features
  • Protocols

    • TCP/IP
      IPv4/IPv6
      UDP
      HTTP
      RTP/RTSP
      ARP
      UPnP
      FTP
      TFTP
      NTP Client
      DNS
      QoS
      IGMP v3
      ICMP
      SNMPv1/v2c/v3
      DHCP Opt66/67
      HTTPS
      SIP
Security Functions
  • Password

    • User-level password protection
  • Filter

    • IP address
  • Encryption

    • HTTPS
      SSH
Power Parameters
  • No. of Power Inputs

    • 1
  • Input Voltage

    • 12/24 VDC
  • Input Current

    • 0.86 A @ 12 VDC, 0.35 A @ 24 VDC
  • Power Connector

    • DB9 male
Camera Characteristics
  • Sensor

    • 1/3-in 1080P progressive scan CMOS
  • Lens

    • f=3,6 mm, F1.6, Diagonal 99°, Horizontal 70°, Vertical 39°
  • Minimum Illumination

    • Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
  • Synchronization

    • Internal
  • White Balance

    • ATW/AWB
  • Electronic Shutter

    • Auto, Fixed (1/30 to 1/25000 sec)
  • S/N Ratio

    • Maximum 50 dB (AGC off; DNR on)
  • DNR (digital noise reduction)

    • Built-in 2D/3D DNR
  • WDR (wide dynamic range)

    • 100 dB
  • AGC (auto gain control)

    • 2X, 4X, 8X, 16X
  • Flickerless Control

    • Automatic, 50 Hz, 60 Hz modes
  • Image Rotation

    • Flip, Mirror, 90°, 180°, 270° rotation
  • Image Setting

    • Manual tuning with saturation, sharpness, and contrast
  • Camera Angle

    • Pan: ±15°, Tilt: 0° to 90° (controlled manually)
Video Interface
  • Video Compression

    • H.264 (ISO/IEC 14496-10) or MJPEG
  • Video Output

    • via Ethernet
  • Video Streams

    • 4 independent H.264 or MJPEG video streams
  • Video Resolution and FPS (frames per second)

  • Video Viewing

    • DynaStream™ support for changing the video frame rate automatically
      CBR Pro™ for good image quality in limited bandwidth transmissions
      3 privacy mask areas provided
      Adjustable image size and quality
      Timestamp and text overlay
      OSD (On Screen Display) position adjustable
      Maximum of 10 simultaneous unicast connections, 50 multicast clients
Audio Interface
  • Audio Format

    • Mono, PCM (G.711)
      AAC
  • Audio Inputs

    • 1 x line-in, with DB9 maleconnector
Camera Software Development
  • Video Standards

    • ONVIF Profile S
Camera Alarm Software Features
  • Intelligent Video

    • Camera tampering detection
  • Video Motion Detection

    • 3 independently configurable areas
  • Scheduling

    • Daily repeat timing schedule
  • Imaging

    • JPEG snapshots for pre/trigger/post alarm images
  • Custom Alarms

    • HTTP event servers for setting customized alarm actions
  • FTP Messaging

    • Automatic transfer of stored images via FTP as event-triggered actions
  • Pre-Alarm Buffer

    • 50 MB video buffer for JPEG snapshot images
  • Video Recording

    • Event recordings stored on the SD card
Software Requirements
  • Memory Size

    • 2 GB
  • Operating System

    • Windows 7 or above
  • Browser

    • Internet Explorer 9.x or above
  • Multimedia

    • DirectX 9.0C or above
Physical Characteristics
  • Housing

    • IP66 rain and dust protection
      Metal housing, PC dome cover
      IK8 vandal resistant protection
  • Dimensions

    • 110 x 115.5 x 61.8 mm (4.33 x 4.53 x 2.43 in)
  • Weight

    • 620 g (1.37 lb)
  • Installation

    • Panel mounting
  • Protection

    • PCB conformal coating is optional and provided on request. If conformal coating is required, please contact Moxa.
Environmental Limits
  • Operating Temperature

    • -25 to 55°C (-13 to 131°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Ingress Protection

    • IEC 60529, IP66
  • Vandal Resistance

    • EN 62262, IK8
  • Altitude

    • 2000 m
      Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Freefall

    • IEC 60068-2-31
  • Railway Fire Protection

    • EN 45545-2
  • Safety

    • UL 62368-1
  • Shock

    • IEC 60068-2-27, IEC 61373, EN 50155
  • Vibration

    • IEC 60068-2-64, IEC 61373, EN 50155
  • Railway

    • EN 50155 (complies with a portion of EN 50155 specifications)
MTBF
  • Time

    • 1,063,089 hrs
  • Standards

    • Telcordia SR332
