Our selection of IP cameras includes dome, box, and cameras that have rugged designs. They comply with parts of the EN 50155 standard, enabling them to perform reliably and deliver superior image quality suitable for a range of applications.

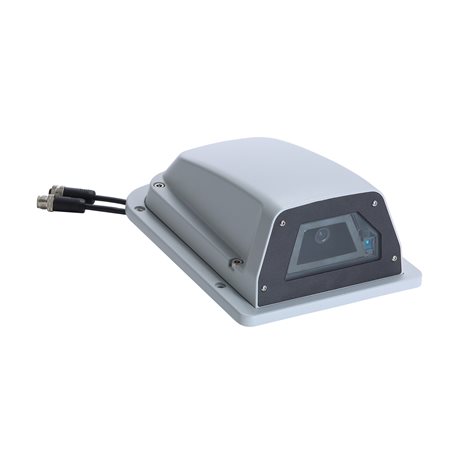

VPort 06EC-2V80M
VPort 06EC-2V Series

EN50155, 1080P, day & night outdoor IP camera, 8 mm lens, -25 to 55°C operating temperature

Memory
  • microSD Slot

    • SDXC
Input/Output Interface
  • Digital Output Channels

    • 1
  • Contact Current Rating

    • Resistive load: 1 A @ 24 VDC
  • Connector

    • 5-pin A-coded male M12 connector with 20 cm cable
Ethernet Interface
  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    • 1
Ethernet Software Features
  • Protocols

    • TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS
Security Functions
  • Password

    • User-level password protection
  • Filter

    • IP address
  • Encryption

    • HTTPS
Power Parameters
  • No. of Power Inputs

    • 2
  • Source of Input Power

    • PoE (IEEE 802.3af)
  • Input Voltage

    • 24 VDC for front-window heater (for defrosting)
  • Input Current

    • 0.167 A @ 48 VDC, 0.9 A @ 24 VDC
  • Power Connector

    • M12 connector
  • Note

    • PoE is for powering the camera; 24 VDC is for powering the heater
Camera Characteristics
  • Sensor

    • 1/3-in 1080P progressive scan CMOS
  • Lens

    • f=8.0 mm, F1.6, Diagonal 42°, Horizontal 33°, Vertical 17°
  • Minimum Illumination

    • Color: 0.2 lux, at F1.6 (Gain High, 50 IRE, 1/30 sec)
      B/W: 0.05 lux, at F1.6 (Gain High, 50 IRE, 1/30 sec)
  • Day & Night

    • Auto/Color/BW; ICR control
  • ICR Control

    • Auto
  • Synchronization

    • Internal
  • White Balance

    • ATW/AWB
  • Electronic Shutter

    • Auto, Fixed (1/30 to 1/25000 sec)
  • S/N Ratio

    • Maximum 50 dB (AGC off; DNR on)
  • DNR (digital noise reduction)

    • Built-in 2D/3D DNR
  • WDR (wide dynamic range)

    • 100 dB
  • AGC (auto gain control)

    • 2X, 4X, 8X, 16X
  • Flickerless Control

    • Automatic, 50 Hz, 60 Hz modes
  • Image Rotation

    • Flip, Mirror, 90°, 180°, 270° rotation
  • Image Setting

    • Manual tuning with saturation, sharpness, and contrast
  • Camera Angle

    • Pan: ±5°, Tilt: +10/-5° (controlled manually)
Video Interface
  • Video Compression

    • H.264 (ISO/IEC 14496-10) or MJPEG
  • Video Output

    • via Ethernet
  • Video Streams

    • 4 independent H.264 or MJPEG video streams
  • NTSC/PAL

    • Auto-sensing or manual
  • Video Resolution and FPS (frames per second)

  • Video Viewing

    • DynaStream™ support for changing the video frame rate automatically
      CBR Pro™ for good image quality in limited bandwidth transmissions
      3 privacy mask areas provided
      Adjustable image size and quality
      Timestamp and text overlay
      OSD (On Screen Display) position adjustable
      Maximum of 5 simultaneous unicast connections, 50 multicast clients
      Digital PTZ
Camera Software Development
  • Video Standards

    • ONVIF Profile S
Camera Alarm Software Features
  • Intelligent Video

    • Camera tampering detection
  • Video Motion Detection

    • 3 independently configurable areas
  • Shock Detection

    • Built-in G sensor
  • Humidity

    • Detects camera’s internal humidity
  • Scheduling

    • Daily repeat timing schedule
  • Imaging

    • JPEG snapshots for pre/trigger/post alarm images
  • Custom Alarms

    • HTTP event servers for setting customized alarm actions
  • Email/FTP Messaging

    • Automatic transfer of stored images via email or FTP as event-triggered actions
  • Pre-Alarm Buffer

    • 50 MB video buffer for JPEG snapshot images
  • Video Recording

    • Event recordings stored on the SD card
Software Requirements
  • Memory Size

    • 2 GB
  • Operating System

    • Windows 7 or above
  • Browser

    • Internet Explorer 9.x or above
  • Multimedia

    • DirectX 9.0C or above
Physical Characteristics
  • Housing

    • Metal
      IP67
      Transparent Glass cover
  • Dimensions

    • 83 x 168 x 233 mm (3.27 x 6.61 x 8.78 in)
  • Weight

    • 1630 g (3.59 lb)
  • Installation

    • Wall mounting (standard)
Environmental Limits
  • Operating Temperature

    • -25 to 55°C (-13 to 131°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Ingress Protection

    • IEC 60529, IP67
  • Salt Spray Test

    • ASTM B368 (CASS), 125 hours
  • Altitude

    • 2000 m
Standards and Certifications
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Freefall

    • IEC 60068-2-31
  • Railway Fire Protection

    • EN 45545-2
  • Safety

    • UL 60950-1
  • Shock

    • IEC 60068-2-27, IEC 61373, EN 50155
  • Vibration

    • IEC 60068-2-64, IEC 61373, EN 50155
  • Railway

    • EN 50155 (complies with a portion of EN 50155 specifications)
MTBF
  • Time

    • 480,269 hrs
  • Standards

    • Telcordia SR332
Warranty
  • Warranty Period

    • 5 years
      Note: Limited warranty on moving parts; see Moxa's online warranty policy for details.
  • Details
