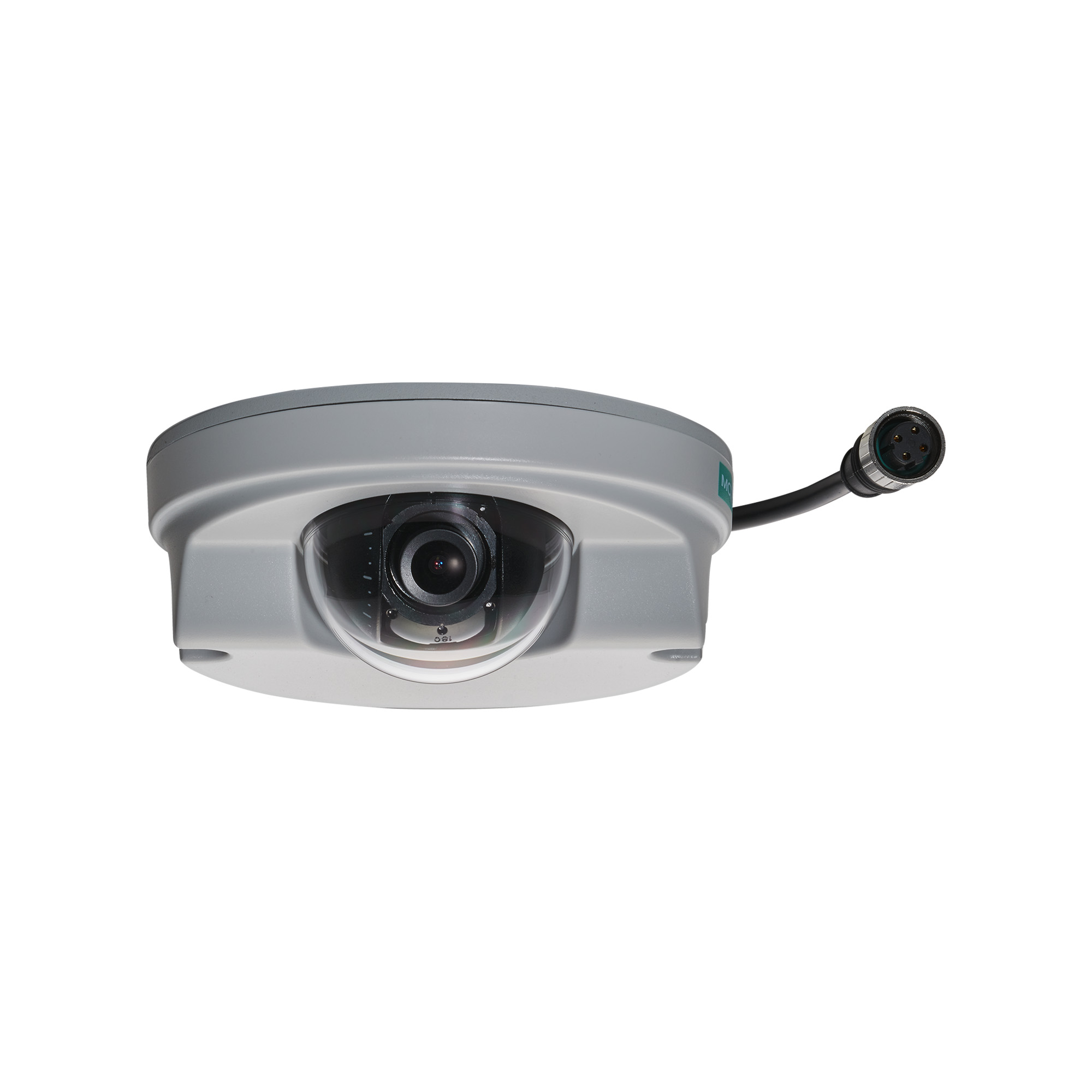

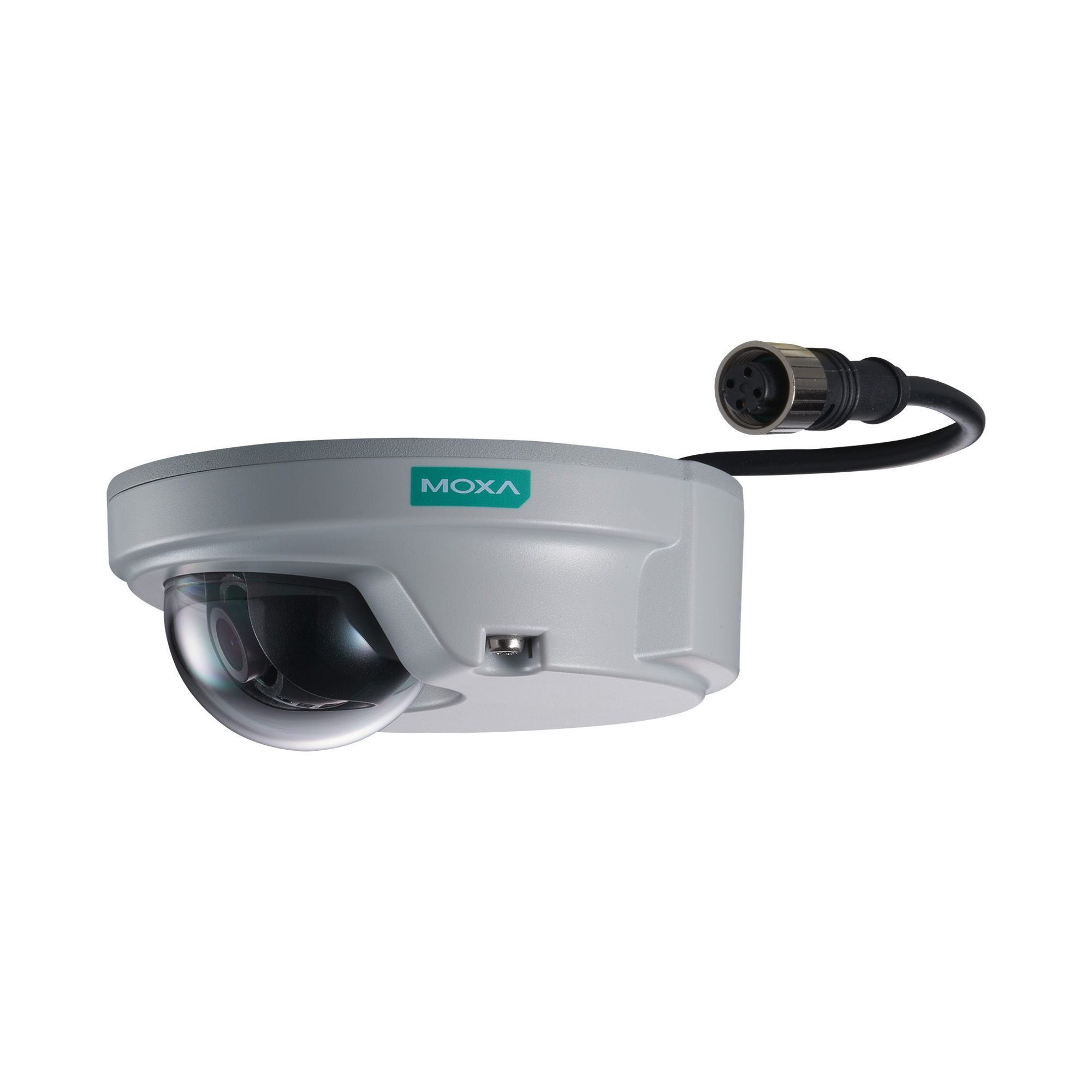

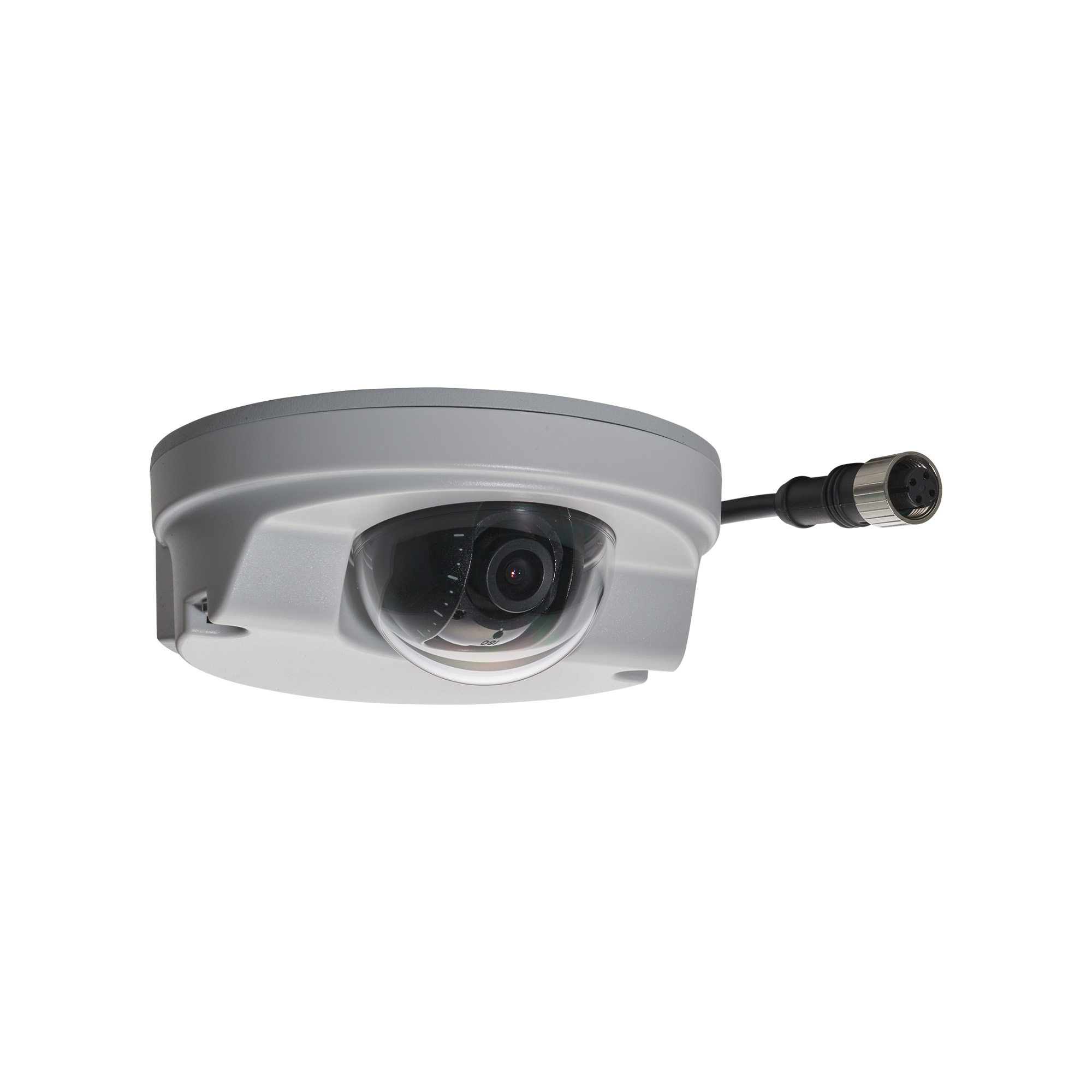

The VPort P07–2 cameras are compact, 2 megapixels (1920 x 1080), H.265/H.264/MJPEG dome IP cameras designed for mobile video surveillance applications. The cameras are compliant with EN 62262 IK10, mandatory sections of EN 50155, This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, refer to: www.moxa.com/doc/specs/EN_50155_Compliance.pdf and support a -40 to 60°C operating temperature range. With a rugged M12 Ethernet port, ONVIF Profile S, T, M, standardization, PoE power inputs, IP66-rated, and the option of changing the different fixed focal-length lens, the VPort P07-2 cameras will perform reliably in a variety of extreme environmental conditions, making them suitable for a wide variety of mobile video surveillance applications.
Save
1
TCP/IP IPv4/IPv6 UDP HTTP RTP/RTSP ARP UPnP FTP TFTP SFTP NTP Client DNS QoS IGMP v3 ICMP SNMPv1/v2c/v3 DHCP Opt66/67 HTTPS
User-level password protection
IP address
HTTPS SSH
PoE (IEEE 802.3af)
48 VDC @ 0.097 A
M12 Dcode Ethernet connector
1/2.8-in progressive scan CMOS
VPort P07-2V24M: f=2.4 mm, F2.0, Diagonal 158°, Horizontal 137°, Vertical 76°VPort P07-2V36M: f=3.6 mm, F1.6, Diagonal 117°, Horizontal 95°, Vertical 50°VPort P07-2V42M: f=4.2 mm, F1.6, Diagonal 94°, Horizontal 81°, Vertical 44°VPort P07-2V60M: f=6.0 mm, F1.8, Diagonal 64°, Horizontal 54°, Vertical 30°VPort P07-2V80M: f=8.0 mm, F1.6, Diagonal 48°, Horizontal 40°, Vertical 22°
Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
Internal
ATW/AWB
Auto, Fixed (1/30 to 1/25000 sec)
Maximum 50 dB (AGC off; DNR on)
Built-in 2D/3D DNR
80 dB
2X, 4X, 8X, 16X
Automatic, 50 Hz, 60 Hz modes
Flip, Mirror, 90°, 180°, 270° rotation
Manual tuning with saturation, sharpness, and contrast
Pan: ±15°, Tilt: 35° to 90° for 2.4mm lens, 20° to 70° for 8.0mm lens, 0° to 90° for other lens (controlled manually)
H.265 (MPEG-H part 2/HEVC), H.264 (ISO/IEC 14496-10/AVC), or MJPEG
via Ethernet
4 independent video streams
Read more
Note: * The FPS can be up to 60 and 50 respectively when the WDR function is disabled.
DynaStream™ support for changing the video frame rate automatically CBR Pro™ for good image quality in limited bandwidth transmissions 3 privacy mask areas provided Adjustable image size and quality Timestamp and text overlay OSD (On Screen Display) position adjustable LDC (Lens distortion correction) for less image warp Maximum of 5 simultaneous unicast connections, 50 multicast clients
ONVIF Profile S, T, M
Camera tampering detection
3 independently configurable areas
JPEG snapshots for pre/trigger/post alarm images
HTTP event servers for setting customized alarm actions
Automatic transfer of stored images via FTP as event-triggered actions
Video buffer for JPEG snapshot images
8 GB
Windows 10 or above
Internet Explorer 11 or above Chrome: Version 118 or above Microsoft Edge: Version 118 or above
DirectX 12 or above
Plastic top cover, metal bottom plate IP66 rain and dust protection IK10 vandal resistant protection Transparent PC cover
110 x 47 mm (4.33 x 1.85 in)
310 g (0.68 lb)
Panel mounting
-30 to 60°C (-22 to 140°F)
-40 to 85°C (-40 to 185°F)
5 to 95% (non-condensing)
IEC 60529, IP66
EN 62262, IK10
2000 m
CISPR 32, FCC Part 15B Class A
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
IEC 60068-2-31
EN 45545-2
UL 62368-1 BSMI
IEC 60068-2-27, IEC 61373, EN 50155
IEC 60068-2-64, IEC 61373, EN 50155
EN 50155 (complies with a portion of EN 50155 specifications)
5 years
See www.moxa.com/warranty
