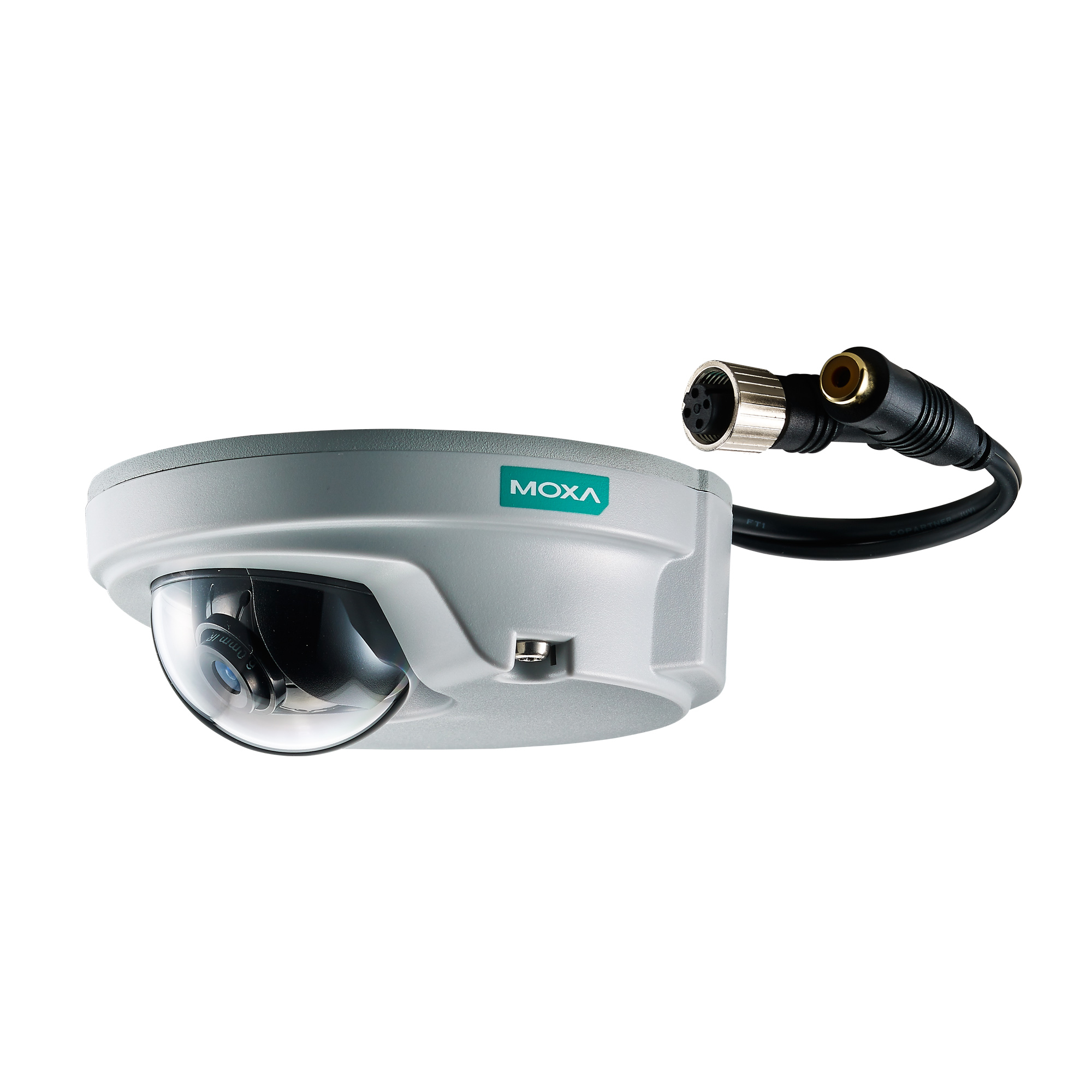

VPort P06-1MP-M12 Series

EN 50155, HD video image, compact IP cameras

moxa-vport-p06-1mp-m12-series-image-1-(1).jpg | Moxa
moxa-vport-p06-1mp-m12-series-image-2-(1).jpg | Moxa

Features and Benefits

  • 1/2.7” progressive scan camera with maximum 1280 x 800 resolution at up to 30 fps
  • High quality video imaging with DNR and WDR
  • Up to 3 H.264 or MJPEG independent video streams
  • DynaStream™ for optimized network efficiency
  • CBR Pro™ for high image quality in limited bandwidth transmissions
  • Supports DHCP options 66 and 67 for auto-configuration
  • 1 built-in audio input or microphone
  • ONVIF support for standardization and interoperability

Certifications

  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The compact VPort P06-1MP-M12 cameras provide an HD (720P, 1280 x 720) video image, and feature 3 H.264/MJPEG video streams, giving them the versatility and ruggedness to excel in many different installations and environments for mobile IP video surveillance applications. In addition, the cameras are compliant with mandatory sections of EN 50155, This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, refer to: www.moxa.com/doc/specs/EN_50155_Compliance.pdf covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making them suitable for a variety of industrial applications. The cameras feature vandal-proofing (EN 62262 IK10), a -25 to 55°C or -40 to 70°C (T models) operating temperature range, a rugged M12 Ethernet port, 1 audio input, PoE power inputs, IP66 rain and dust protection, a dehumidifying membrane, and a selectable lens.

  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    1

  • Protocols

    TCP/IP
    IPv4
    UDP
    HTTP
    RTP/RTSP
    ARP
    UPnP
    FTP
    TFTP
    NTP Client
    DNS
    QoS
    IGMP v3
    ICMP
    SNMPv1/v2c/v3
    DHCP Opt66/67
    HTTPS

  • Password

    User-level password protection

  • Filter

    IP address

  • Encryption

    HTTPS

  • No. of Power Inputs

    1

  • Source of Input Power

    PoE (IEEE 802.3af)

  • Input Current

    0.12 A @ 48 VDC

  • Sensor

    1/2.7-in HD progressive scan CMOS

  • Lens

    VPort P06-1MP-M12-CAM28 Series: f=2.8 mm, F2.0, Diagonal 126°, Horizontal 113°, Vertical 58°
    VPort P06-1MP-M12-CAM36 Series: f=3.6 mm, F1.6, Diagonal 99°, Horizontal 94°, Vertical 47°
    VPort P06-1MP-M12-CAM42 Series: f=4.2 mm, F1.8, Diagonal 87°, Horizontal 80°, Vertical 43°
    VPort P06-1MP-M12-CAM60 Series: f=6.0 mm, F1.6, Diagonal 60°, Horizontal 55°, Vertical 29°
    VPort P06-1MP-M12-CAM80 Series: f=8.0 mm, F1.6, Diagonal 45°, Horizontal 40°, Vertical 22°

  • Camera Angle

    Pan: ±30°, Tilt: 0° to 90° (controlled manually)

  • Minimum Illumination

    Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)

  • Synchronization

    Internal

  • White Balance

    ATW/AWB

  • Electronic Shutter

    Auto, Fixed (1/30 to 1/25000 sec)

  • S/N Ratio

    Maximum 50 dB (AGC off; DNR on)

  • DNR (digital noise reduction)

    Built-in 2D/3D DNR

  • WDR (wide dynamic range)

    110 dB

  • Flickerless Control

    Automatic, 50 Hz, 60 Hz modes

  • Image Rotation

    Flip, Mirror, and 180° rotation

  • Image Setting

    Manual tuning with saturation, sharpness, and contrast

  • AGC (auto gain control)

    2X, 4X, 8X, 16X, 32X, 64X

  • BLC (back light compensation)

    High/Medium/Low

  • Video Compression

    H.264 (ISO/IEC 14496-10) or MJPEG

  • Video Output

    via Ethernet

  • Video Streams

    3 independent H.264 or MJPEG video streams

  • Video Resolution and FPS (frames per second)

    NTSC PAL
    Size Max. FPS Size Max. FPS
    QCIF 176 x 112 30 176 x 144 25
    QVGA 320 x 240 30 320 x 240 25
    CIF 352 x 240 30 352 x 288 25
    VGA 640 x 480 30 640 x 480 25
    4CIF 704 x 480 30 704 x 576 25
    Full D1 720 x 480 30 720 x 576 25
    SVGA 800 x 600 30 800 x 600 25
    HD 1280 x 720 30 1280 x 720 25
    WXGA 1280 x 800 30 1280 x 800 25
    Note: Multiple streams may not support up to 30 FPS.

  • Video Viewing

    DynaStream™ support for changing the video frame rate automatically
    CBR Pro™ for good image quality in limited bandwidth transmissions
    3 privacy mask areas provided
    Adjustable image size and quality
    Timestamp and text overlay
    OSD (On Screen Display) position adjustable
    Maximum of 5 simultaneous unicast connections, 50 multicast clients

  • Audio Inputs

    VPort P06-1MP-M12-MIC Series: 1 x built-in microphone
    VPort P06-1MP-M12 Series: 1 x Line-in, with RCA connector

  • Audio Format

    Mono, PCM (G.711)

  • Video Standards

    ONVIF Profile S

  • Intelligent Video

    Camera tampering detection

  • Video Motion Detection

    3 independently configurable areas

  • Scheduling

    Daily repeat timing schedule

  • Imaging

    JPEG snapshots for pre/trigger/post alarm images

  • Custom Alarms

    HTTP event servers for setting customized alarm actions

  • FTP Messaging

    Automatic transfer of stored images via FTP as event-triggered actions

  • Memory Size

    1 GB

  • Operating System

    Windows 7 or above

  • Browser

    Internet Explorer 9.x or above

  • Multimedia

    DirectX 9.0C or above

  • Housing

    Plastic top cover, metal bottom plate
    IP66 rain and dust protection
    IK10 vandal resistant protection
    Transparent PC cover

  • Dimensions

    110 x 47 mm (4.33 x 1.85 in)

  • Weight

    310 g (0.68 lb)

  • Installation

    Panel mounting

  • Protection

    -CT models: PCB conformal coating

  • Operating Temperature

    Standard Models: -25 to 55°C (-13 to 131°F)
    Wide Temp. Models: -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Ingress Protection

    IEC 60529, IP66

  • Vandal Resistance

    EN 62262, IK10

  • Altitude

    2000 m

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Signal: 2 kV
    IEC 61000-4-5 Surge: Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Freefall

    IEC 60068-2-31

  • Railway Fire Protection

    EN 45545-2

  • Safety

    UL 62368-1

  • Shock

    IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    IEC 60068-2-64, IEC 61373, EN 50155

  • Railway

    EN 50155 (complies with a portion of EN 50155 specifications)

  • Time

    1,944,687 hrs

  • Standards

    Telcordia SR332

Software, Firmware, and Drivers

FILTER

All Firmware Software Package Utility
Name Type Checksum Version Operating System Release Date
Software Package for MXview One Series (Windows version)
300.8 MB 		Software Package
SHA-512
v1.4.1
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
 Sep 20, 2024 Sep 20, 2024 Release notes
Software Package for MXview One Series (Linux version)
404.8 MB 		Software Package
SHA-512
v1.4.1
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
 Sep 20, 2024 Sep 20, 2024 Release notes
Software Package for VPort P06-1MP-M12 Series (MIB file)
38.4 KB 		Software Package
SHA-512
v3.0
Aug 31, 2022 Aug 31, 2022 Release notes
Firmware for VPort P06-1MP-M12 Series
20.1 MB 		Firmware
SHA-512
v3.0
Aug 31, 2022 Aug 31, 2022 Release notes
SoftNVR-IA IP Surveillance Software Trial Version
48.1 MB 		Software Package
SHA-512
v3.5
  • Windows 7
  • Windows XP
 Nov 08, 2017 Nov 08, 2017 Release notes
Moxa VPort and EtherDevice Configurator Utility
1.6 MB 		Utility
SHA-512
v5.3
  • Windows
 Apr 09, 2012 Apr 09, 2012 Release notes

Support Documents

FILTER

All 2D CAD Datasheet Manual QIG
Name Type Version Release Date
Datasheet for VPort P06-1MP-M12 Series
738.4 KB 		Datasheet v1.3 May 30, 2023 May 30, 2023
2D CAD for VPort P06-1MP-M12 Series (VPort P06-1MP-M12 Series)
861.1 KB 		2D CAD Sep 14, 2022 Sep 14, 2022
2D CAD for VPort P06-1MP-M12 Series (VPort P06-1MP MIC Series)
2.7 MB 		2D CAD Sep 14, 2022 Sep 14, 2022
QIG for VPort P06-1MP-M12 Series
3.6 MB 		QIG v6.0 Sep 01, 2022 Sep 01, 2022
Manual for VPort P06-1MP-M12 Series
5.6 MB 		Manual v4.0 Sep 01, 2022 Sep 01, 2022
Manual for VPort P06-1MP-M12 Series (Non-ONVIF version)
4.6 MB 		Manual v3.0 Mar 21, 2017 Mar 21, 2017
2D CAD for VPort P06-1MP
556.0 KB 		2D CAD Apr 10, 2012 Apr 10, 2012
Moxa SoftNVR-IA IP Surveillance Software User's Manual
3.6 MB 		Manual v1.0 Apr 22, 2010 Apr 22, 2010

Available Models (10)

Show Images
Compare
moxa-vport-p06-1mp-m12-cam80-image.jpg | MoxaVPort P06-1MP-M12-CAM80
Compare
moxa-vport-p06-1mp-m12-cam60-t-image.jpg | MoxaVPort P06-1MP-M12-CAM60-T
Compare
moxa-vport-p06-1mp-m12-cam42-t-image.jpg | MoxaVPort P06-1MP-M12-CAM42-T
Compare
moxa-vport-p06-1mp-m12-cam36-t-image.jpg | MoxaVPort P06-1MP-M12-CAM36-T
Lens8.0 mm6.0 mm4.2 mm3.6 mm
Audio InterfaceLine-inLine-inLine-inLine-in
Operating Temp.-25 to 55°C-40 to 70°C-40 to 70°C-40 to 70°C
Conformal Coating––––
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Compare
VPort P06-1MP-M12-CAM28-T
Compare
moxa-vport-p06-1mp-m12-cam60-image.jpg | MoxaVPort P06-1MP-M12-CAM60
Compare
moxa-vport-p06-1mp-m12-cam36-image.jpg | MoxaVPort P06-1MP-M12-CAM36
Compare
VPort P06-1MP-M12-CAM28
Lens2.8 mm6.0 mm3.6 mm2.8 mm
Audio InterfaceLine-inLine-inLine-inLine-in
Operating Temp.-40 to 70°C-25 to 55°C-25 to 55°C-25 to 55°C
Conformal Coating––––
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Compare
moxa-vport-p06-1mp-m12-cam80-t-image.jpg | MoxaVPort P06-1MP-M12-CAM80-T
Compare
moxa-vport-p06-1mp-m12-cam42-image.jpg | MoxaVPort P06-1MP-M12-CAM42
Lens8.0 mm4.2 mm
Audio InterfaceLine-inLine-in
Operating Temp.-40 to 70°C-25 to 55°C
Conformal Coating––
