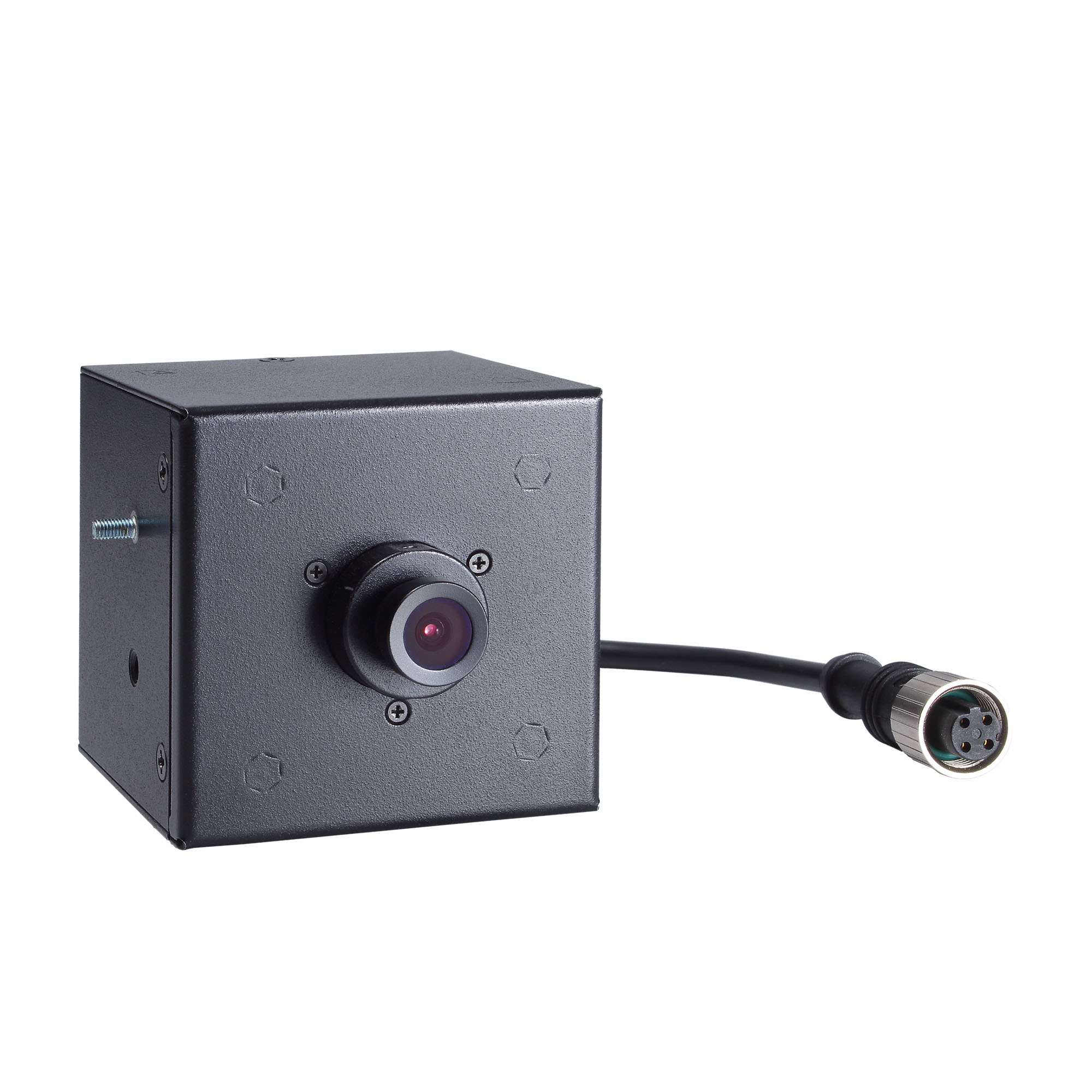

VPort P06HC-1V Series

EN 50155, HD, cubic IP cameras

moxa-vport-p06hc-1v-series-image-(1).jpg | Moxa

Features and Benefits

  • 1/2.7” progressive scan camera with maximum 1280 x 800 resolution at up to 30 fps
  • High quality video imaging with DNR and WDR
  • Up to 3 H.264 or MJPEG independent video streams
  • DynaStream™ for optimized network efficiency
  • CBR Pro™ for high image quality in limited bandwidth transmissions
  • Supports DHCP options 66 and 67 for auto-configuration
  • ONVIF support for standardization and interoperability

Certifications

  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The VPort P06HC-1V Series cubic IP cameras provide an HD (720P, 1280 x 720) video image, and feature 3 H.264 video streams, giving them the versatility and ruggedness to excel in many different installations and environments for IP video surveillance applications. In addition, the cameras comply with a portion of EN 50155 specifications, covering operating temperature, power input voltage, surge, ESD, and vibration, making them suitable for a variety of industrial applications. The cameras feature a -40 to 55°C operating temperature, a rugged M12 Ethernet port, PoE power inputs, and a selectable lens.

  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    1

  • Protocols

    TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS

  • Password

    User-level password protection

  • Filter

    IP address

  • Encryption

    HTTPS

  • No. of Power Inputs

    1

  • Source of Input Power

    PoE (IEEE 802.3af)

  • Input Current

    0.17 A @ 48 VDC

  • Sensor

    1/2.7-in HD progressive scan CMOS

  • Lens

    VPort P06HC-1V28M Series: f=2.8 mm, F2.0, Diagonal 126°, Horizontal 113°, Vertical 58°
    VPort P06HC-1V36M Series: f=3.6 mm, F1.6, Diagonal 99°, Horizontal 94°, Vertical 47°
    VPort P06HC-1V42M Series: f=4.2 mm, F1.8, Diagonal 87°, Horizontal 80°, Vertical 43°
    VPort P06HC-1V60M Series: f=6.0 mm, F1.6, Diagonal 60°, Horizontal 55°, Vertical 29°
    VPort P06HC-1V80M Series: f=8.0 mm, F1.6, Diagonal 45°, Horizontal 40°, Vertical 22°

  • Minimum Illumination

    Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)

  • Synchronization

    Internal

  • White Balance

    ATW/AWB

  • Electronic Shutter

    Auto (1/30 to 1/25000 sec)

  • S/N Ratio

    Maximum 50 dB (AGC off; DNR on)

  • DNR (digital noise reduction)

    Built-in DNR

  • WDR (wide dynamic range)

    110 dB

  • Flickerless Control

    Automatic, 50 Hz, 60 Hz modes

  • Image Rotation

    Flip, Mirror, and 180° rotation

  • Image Setting

    Manual tuning with saturation, sharpness, and contrast

  • AGC (auto gain control)

    2X, 4X, 8X, 16X, 32X, 64X

  • BLC (back light compensation)

    High/Medium/Low

  • Video Compression

    H.264 (ISO/IEC 14496-10) or MJPEG

  • Video Output

    via Ethernet

  • Video Streams

    3 independent H.264 or MJPEG video streams

  • Video Resolution and FPS (frames per second)

    NTSC PAL
    Size Max. FPS Size Max. FPS
    QCIF 176 x 112 30 176 x 144 25
    QVGA 320 x 240 30 320 x 240 25
    CIF 352 x 240 30 352 x 288 25
    VGA 640 x 480 30 640 x 480 25
    4CIF 704 x 480 30 704 x 576 25
    Full D1 720 x 480 30 720 x 576 25
    SVGA 800 x 600 30 800 x 600 25
    HD 1280 x 720 30 1280 x 720 25
    WXGA 1280 x 800 30 1280 x 800 25
    Note: Multiple streams may not support up to 30 FPS.

  • Video Viewing

    DynaStream™ support for changing the video frame rate automatically
    CBR Pro™ for good image quality in limited bandwidth transmissions
    3 privacy mask areas provided
    Adjustable image size and quality
    Timestamp and text overlay
    OSD (On Screen Display) position adjustable
    Maximum of 5 simultaneous unicast connections, 50 multicast clients

  • Video Standards

    ONVIF Profile S

  • Intelligent Video

    Camera tampering detection

  • Video Motion Detection

    3 independently configurable areas

  • Scheduling

    Daily repeat timing schedule

  • Imaging

    JPEG snapshots for pre/trigger/post alarm images

  • Custom Alarms

    HTTP event servers for setting customized alarm actions

  • FTP Messaging

    Automatic transfer of stored images via FTP as event-triggered actions

  • Memory Size

    1 GB

  • Operating System

    Windows 7 or above

  • Browser

    Internet Explorer 9.x or above

  • Multimedia

    DirectX 9.0C or above

  • Housing

    Metal

  • Dimensions

    60 x 60 x 74.6 mm (2.36 x 2.36 x 2.94 in)

  • Weight

    300 g (0.66 lb)

  • Installation

    Flush mounting

  • Protection

    -CT models: PCB conformal coating

  • Operating Temperature

    -40 to 55°C (-40 to 131°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Ingress Protection

    IEC 60529, IP30 (provided screws are used to fill the camera housing screw holes)

  • Altitude

    2000 m

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Signal: 2 kV
    IEC 61000-4-5 Surge: Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Freefall

    IEC 60068-2-31

  • Railway Fire Protection

    EN 45545-2

  • Safety

    UL 62368-1

  • Shock

    IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    IEC 60068-2-64, IEC 61373, EN 50155

  • Railway

    EN 50155 (complies with a portion of EN 50155 specifications)

  • Time

    692,847 hrs

  • Standards

    IEC 62380

Software, Firmware, and Drivers

FILTER

All Firmware Software Package
Name Type Checksum Version Operating System Release Date
Software Package for VPort P06HC-1V Series (MIB file)
34.8 KB 		Software Package
SHA-512
v2.0
Oct 25, 2021 Oct 25, 2021 Release notes
Firmware for VPort P06HC-1V Series
19.6 MB 		Firmware
SHA-512
v2.0
Oct 25, 2021 Oct 25, 2021 Release notes

Support Documents

FILTER

All Datasheet Declaration Manual QIG
Name Type Version Release Date
Declaration of Conformity for VPort P06HC-1V Series
310.7 KB 		Declaration v1.0 Oct 30, 2023 Oct 30, 2023
Datasheet for VPort P06HC-1V Series
730.5 KB 		Datasheet v1.0 Oct 25, 2021 Oct 25, 2021
QIG for VPort P06HC-1V Series
1.4 MB 		QIG v1.0 Oct 25, 2021 Oct 25, 2021
Manual for VPort P06HC-1V Series
4.2 MB 		Manual v1.0 Oct 25, 2021 Oct 25, 2021

Available Models (10)

Show Images
Compare
VPort P06HC-1V28M-CT
Compare
VPort P06HC-1V36M-CT
Compare
VPort P06HC-1V42M-CT
Compare
VPort P06HC-1V60M-CT
Lens2.8 mm3.6 mm4.2 mm6.0 mm
Conformal coating✓✓✓✓
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Compare
VPort P06HC-1V80M-CT
Compare
VPort P06HC-1V28M
Compare
VPort P06HC-1V36M
Compare
VPort P06HC-1V42M
Lens8.0 mm2.8 mm3.6 mm4.2 mm
Conformal coating✓–––
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Compare
VPort P06HC-1V60M
Compare
VPort P06HC-1V80M
Lens6.0 mm8.0 mm
Conformal coating––
Add to QuoteView BagAdd to QuoteView Bag
