VPort P16-2MR Series

EN 50155, 1080P image, infrared IP cameras

moxa-vport-p16-2mr-series-image-1-(1).jpg | Moxa
moxa-vport-p16-2mr-series-image-2-(1).jpg | Moxa
moxa-vport-p16-2mr-series-image-3-(1).jpg | Moxa
moxa-vport-p16-2mr-series-image-4-(1).jpg | Moxa

Features and Benefits

  • 1/3” progressive scan camera with maximum 1920 x 1080 resolution at up to 30 fps
  • Built-in IR illuminator and ICR (Infrared Cut Filter Removal) for day & night images
  • High quality video imaging with DNR and WDR
  • Up to 4 H.264 or MJPEG independent simultaneous video streams
  • DynaStream™ for optimized network efficiency
  • CBR Pro™ for high image quality in limited bandwidth transmissions
  • Supports SDXC (up to 2 TB SD card) for local storage
  • 1 built-in microphone for audio input, and 1 digital input for external sensor
  • ONVIF support for standardization and interoperability

Certifications

  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The rugged VPort P16-2MR cameras produce Full HD (1920 x 1080) video images and feature 4 H.264/MJPEG video streams, giving them the versatility and ruggedness needed for mobile IP video surveillance applications in a variety of different installations and environments. In addition, the cameras feature vandal-proofing (EN 62262 IK8), a -25 to 55°C or -40 to 70°C (T models) operating temperature, a rugged M12 Ethernet port, PoE power input, a built-in microphone, a digital input, IP66 rain and dust protection, an IR illuminator for day & night image capabilities, and are compliant with the mandatory sections of EN 50155. This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, refer to: www.moxa.com/doc/specs/EN_50155_Compliance.pdf

  • microSD Slot

    SDXC

  • Digital Input Channels

    1

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +1 V for state 0
    Max. input current: 8 mA

  • Connector

    5-pin A-coded male M12 connector with 20 cm cable

  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    1

  • Standards

    IEEE 802.3af for PoE

  • Protocols

    TCP/IP, IPv4/IPv6, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS

  • Password

    User-level password protection

  • Filter

    IP address

  • Encryption

    HTTPS

  • No. of Power Inputs

    1

  • Source of Input Power

    PoE (IEEE 802.3af)

  • Input Current

    0.26 A @ 48 VDC

  • Sensor

    1/3-in 1080P progressive scan CMOS

  • Lens

    VPort P16-2MR36M Series: f=3.6mm, F1.6, Diagonal 99°, Horizontal 70°, Vertical 39°
    VPort P16-2MR42M Series: f=4.2mm, F1.6, Diagonal 82°, Horizontal 62°, Vertical 34°
    VPort P16-2MR60M Series: f=6.0mm, F1.8, Diagonal 62°, Horizontal 43°, Vertical 24°
    VPort P16-2MR80M Series: f=8.0mm, F1.6, Diagonal 42°, Horizontal 33°, Vertical 17°

  • Minimum Illumination

    Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
    B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
    Note: 0 lux if IR illuminator is on

  • Camera Angle

    Pan 350°, Tilt 65° (controlled manually)

  • Day & Night

    Auto/Color/BW; ICR control

  • Synchronization

    Internal

  • White Balance

    ATW/AWB

  • Electronic Shutter

    Auto, Fixed (1/30 to 1/25000 sec)

  • S/N Ratio

    Maximum 50 dB (AGC off; DNR on)

  • ICR Control

    Auto (light sensor control) or DI control

  • IR Illumination

    IR LED illuminators, 5-meter (max.) effective distance; On/Off controlled manually (night mode) or by the light sensor

  • DNR (digital noise reduction)

    Built-in 2D/3D DNR

  • WDR (wide dynamic range)

    100 dB

  • AGC (auto gain control)

    2X, 4X, 8X, 16X

  • Flickerless Control

    Automatic, 50 Hz, 60 Hz modes

  • Image Rotation

    Flip, Mirror, 90°, 180°, 270° rotation

  • Image Setting

    Manual tuning with saturation, sharpness, and contrast

  • Video Compression

    H.264 (ISO/IEC 14496-10) or MJPEG

  • Video Output

    via Ethernet

  • Video Streams

    4 independent H.264 or MJPEG video streams

  • Video Resolution and FPS (frames per second)

  • Video Viewing

    DynaStream™ support for changing the video frame rate automatically
    CBR Pro™ for good image quality in limited bandwidth transmissions
    3 privacy mask areas provided
    Adjustable image size and quality
    Timestamp and text overlay
    OSD (On Screen Display) position adjustable
    Maximum of 5 simultaneous unicast connections, 50 multicast clients

  • Audio Format

    Mono, PCM (G.711)
    AAC

  • Audio Inputs

    1 x built-in microphone

  • VPort SDK PLUS

    Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers

  • Video Standards

    ONVIF Profile S

  • Intelligent Video

    Camera tampering detection

  • Video Motion Detection

    3 independently configurable areas

  • Shock Detection

    Built-in G sensor

  • Scheduling

    Daily repeat timing schedule

  • Imaging

    JPEG snapshots for pre/trigger/post alarm images

  • Custom Alarms

    HTTP event servers for setting customized alarm actions

  • Email/FTP Messaging

    Automatic transfer of stored images via email or FTP as event-triggered actions

  • Pre-Alarm Buffer

    50 MB video buffer for JPEG snapshot images

  • Video Recording

    Event recordings stored on the SD card

  • Memory Size

    2 GB

  • Operating System

    Windows 7 or above

  • Browser

    Internet Explorer 9.x or above

  • Multimedia

    DirectX 9.0C or above

  • Housing

    IP66 rain and dust protection
    Metal housing, PC dome cover
    IK8 vandal resistant protection

  • Dimensions

    125 x 125 x 120.7 mm (4.92 x 4.92 x 4.8 in)

  • Weight

    890 g (1.96 lb)

  • Installation

    Panel mounting

  • Protection

    -CT models: PCB conformal coating

  • Operating Temperature

    Standard Models: -25 to 55°C (-13 to 131°F)
    Wide Temp. Models: -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Ingress Protection

    IEC 60529, IP66

  • Salt Spray Test

    ASTM-B117

  • Vandal Resistance

    EN 62262, IK8

  • Altitude

    2000 m

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Freefall

    IEC 60068-2-31

  • Railway Fire Protection

    EN 45545-2

  • Safety

    UL 60950-1

  • Shock

    IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    IEC 60068-2-64, IEC 61373, EN 50155

  • Railway

    EN 50155 (complies with a portion of EN 50155 specifications)

  • Time

    997,474 hrs

  • Standards

    Telcordia SR332

  • Warranty Period

    5 years
    Note: Limited warranty on moving parts; see Moxa's online warranty policy for details.

  • Details

Software, Firmware, and Drivers

Name Type Version Operating System Release Date
SoftNVR-IA IP Surveillance Software Trial Version
48.1 MB
Software Package v3.5
2017-11-08 Nov 08, 2017 Release notes
Firmware for VPort P16-2MR Series
44.5 MB
Firmware v1.1
2016-11-27 Nov 27, 2016 Release notes
Software Package for VPort P16-2MR Series (MIB file)
27.8 KB
Software Package v1.1
2016-10-13 Oct 13, 2016 Release notes
Moxa VPort and EtherDevice Configurator Utility
1.6 MB
Utility v5.3
2012-04-09 Apr 09, 2012 Release notes

Support Documents

Name Type Version Release Date
Datasheet for VPort P16-2MR Series
686.3 KB
Datasheet v1.0 2018-11-12 Nov 12, 2018
Manual for VPort P16-2MR Series
6.9 MB
Manual v3.4 2018-02-09 Feb 09, 2018
3D CAD for Vport P16-2MR
2.0 MB
3D CAD 2016-11-15 Nov 15, 2016
2D CAD for VPort P16-2MR
392.0 KB
2D CAD 2016-11-15 Nov 15, 2016
QIG for VPort P16-2MR Series
1.9 MB
QIG v1.2 2016-05-31 May 31, 2016
Moxa SoftNVR-IA IP Surveillance Software User's Manual
3.6 MB
Manual v1.0 2010-04-22 Apr 22, 2010

Available Models (16)

Show Images
moxa-vport-p16-2mr36m-image.jpg | MoxaVPort P16-2MR36Mmoxa-vport-p16-2mr42m-image.jpg | MoxaVPort P16-2MR42Mmoxa-vport-p16-2mr60m-image.jpg | MoxaVPort P16-2MR60Mmoxa-vport-p16-2mr80m-image.jpg | MoxaVPort P16-2MR80M
Lens3.6 mm4.2 mm6.0 mm8.0 mm
Local StoragemicroSD slot, SDXC interfacemicroSD slot, SDXC interfacemicroSD slot, SDXC interfacemicroSD slot, SDXC interface
Operating Temp.-25 to 55°C-25 to 55°C-25 to 55°C-25 to 55°C
Conformal Coating
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-vport-p16-2mr36m-t-image.jpg | MoxaVPort P16-2MR36M-Tmoxa-vport-p16-2mr42m-t-image.jpg | MoxaVPort P16-2MR42M-Tmoxa-vport-p16-2mr60m-t-image.jpg | MoxaVPort P16-2MR60M-Tmoxa-vport-p16-2mr80m-t-image.jpg | MoxaVPort P16-2MR80M-T
Lens3.6 mm4.2 mm6.0 mm8.0 mm
Local StoragemicroSD slot, SDXC interfacemicroSD slot, SDXC interfacemicroSD slot, SDXC interfacemicroSD slot, SDXC interface
Operating Temp.-40 to 70°C-40 to 70°C-40 to 70°C-40 to 70°C
Conformal Coating
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-vport-p16-2mr36m-ct-image.jpg | MoxaVPort P16-2MR36M-CTmoxa-vport-p16-2mr42m-ct-image.jpg | MoxaVPort P16-2MR42M-CTmoxa-vport-p16-2mr60m-ct-image.jpg | MoxaVPort P16-2MR60M-CTmoxa-vport-p16-2mr80m-ct-image.jpg | MoxaVPort P16-2MR80M-CT
Lens3.6 mm4.2 mm6.0 mm8.0 mm
Local StoragemicroSD slot, SDXC interfacemicroSD slot, SDXC interfacemicroSD slot, SDXC interfacemicroSD slot, SDXC interface
Operating Temp.-25 to 55°C-25 to 55°C-25 to 55°C-25 to 55°C
Conformal Coating
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-vport-p16-2mr36m-ct-t-image.jpg | MoxaVPort P16-2MR36M-CT-Tmoxa-vport-p16-2mr42m-ct-t-image.jpg | MoxaVPort P16-2MR42M-CT-Tmoxa-vport-p16-2mr60m-ct-t-image.jpg | MoxaVPort P16-2MR60M-CT-Tmoxa-vport-p16-2mr80m-ct-t-image.jpg | MoxaVPort P16-2MR80M-CT-T
Lens3.6 mm4.2 mm6.0 mm8.0 mm
Local StoragemicroSD slot, SDXC interfacemicroSD slot, SDXC interfacemicroSD slot, SDXC interfacemicroSD slot, SDXC interface
Operating Temp.-40 to 70°C-40 to 70°C-40 to 70°C-40 to 70°C
Conformal Coating
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Added To Bag

VPort P16-2MR Series

VPort P16-2MR36M

moxa-vport-p16-2mr36m-image.jpg | Moxa

Buy online from our distributors

VPort P16-2MR Series

VPort P16-2MR42M

moxa-vport-p16-2mr42m-image.jpg | Moxa

Buy online from our distributors

VPort P16-2MR Series

VPort P16-2MR60M

moxa-vport-p16-2mr60m-image.jpg | Moxa

Buy online from our distributors

VPort P16-2MR Series

VPort P16-2MR80M

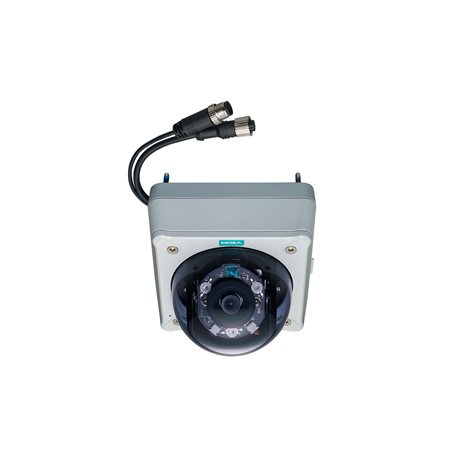

moxa-vport-p16-2mr80m-image.jpg | Moxa
