POS-104UL Series

4-port RS-232 Universal PCI boards with power over serial

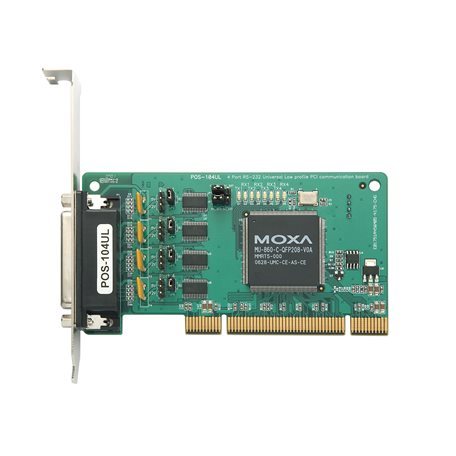

moxa-pos-104ul-series-image-1-(1).jpg | Moxa

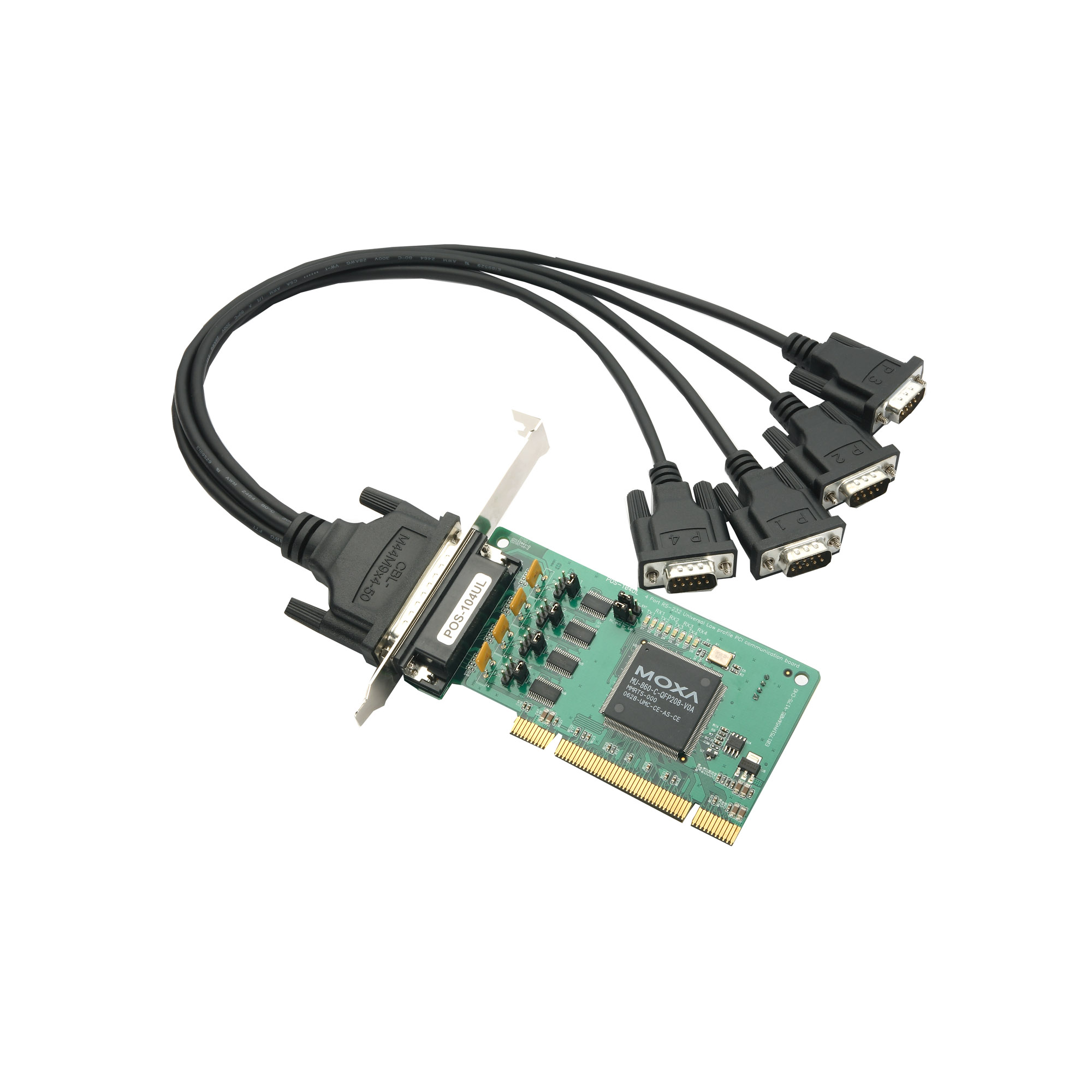

moxa-pos-104ul-series-image-2-(1).jpg | Moxa

Features and Benefits

  • Over 800 kbps data throughput for top performance
  • Power options for each port: 5 V (output), 12 V (output), and RI (input)
  • Serial port power from bus or power supply
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible with 3.3/5 V PCI and PCI-X
  • Low-profile board, suitable for compact-sized PCs
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Wide-temperature model available for -40 to 85°C environments

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The POS-104UL is a smart, 4-port Universal PCI serial board designed for POS and ATM applications and for use by industrial automation system manufacturers and system integrators. The POS-104UL is compatible with all major operating systems. In addition, each of the 4 RS-232 serial ports supports data rates up to 921.6 kbps and provides full modem control signals to ensure compatibility with a wide range of serial peripherals. The POS-104UL supplies 5 or 12 volts of power to each serial port, and it works with both 3.3 V and 5 V PCI buses, making it suitable for installation in most PC servers.

  • Comm. Controller

    16C550C compatible

  • Baudrate

    50 bps to 921.6 kbps

  • Bus

    32-bit Universal PCI

  • Connector

    DB44 female

  • Data Bits

    5, 6, 7, 8

  • Flow Control

    None, RTS/CTS, XON/XOFF

  • Max. No. of Boards per PC

    8

  • No. of Ports

    4

  • Parity

    None, Even, Odd, Space, Mark

  • Serial Standards

    RS-232

  • Stop Bits

    1, 1.5, 2

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI (optional)

  • Windows Drivers

    DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Drivers

    Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x

  • UNIX Drivers

    Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6

  • Output Power Rating

    1 A @ 5 V, 1 A @ 12 V (per port)

  • Dimensions

    64.4 x 120 mm (2.53 x 4.72 in)

  • Operating Temperature

    POS-104UL-DB9M: 0 to 55°C (32 to 131°F)
    POS-104UL-T: -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 61000-6-2/-6-4

  • EMI

    EN 61000-6-4, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
    IEC 61000-4-8 PFMF

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    2,124,022 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Linux Kernel 6.x Driver for Multiport Serial PCI Express and Universal PCI Boards
780.0 KB
Driver
SHA-512
v6.1
  • Linux Kernel 6.x
Oct 01, 2024 Oct 01, 2024 Release notes
Linux Kernel 4.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
161.1 KB
Driver
SHA-512
v4.2
  • Linux Kernel 4.x
Jan 17, 2023 Jan 17, 2023 Release notes
Linux Kernel 5.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
162.0 KB
Driver
SHA-512
v5.2
  • Linux Kernel 5.x
Jan 17, 2023 Jan 17, 2023 Release notes
Driver for Multiport Serial PCI Express and Universal PCI Boards (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
6.4 MB
Driver
SHA-512
v3.1
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
Sep 06, 2022 Sep 06, 2022 Release notes
Driver for Multiport Serial PCI Express and Universal PCI Boards (Windows 11 and Windows Server 2022, WHQL certified)
4.1 MB
Driver
SHA-512
v4.0
  • Windows 11
  • Windows Server 2022
Sep 02, 2022 Sep 02, 2022 Release notes
MSB Linux kernel 5.x.x driver
160.1 KB
Driver
SHA-512
v5.1
  • Linux Kernel 5.x
Oct 25, 2021 Oct 25, 2021 Release notes
MSB Linux kernel 4.x.x driver
161.9 KB
Driver
SHA-512
v4.1
  • Linux Kernel 4.x
Oct 25, 2021 Oct 25, 2021 Release notes
Driver for Windows (Windows 7 2008 R2 or later)
1.9 MB
Driver
SHA-512
v3.0
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
May 18, 2020 May 18, 2020 Release notes
Driver for Linux kernel 3.x.x
161.1 KB
Driver
SHA-512
v3.0
  • Linux Kernel 3.x
Dec 31, 2019 Dec 31, 2019 Release notes
Driver for Linux kernel 2.x.x
161.3 KB
Driver
SHA-512
v2.0
  • Linux Kernel 2.6.x
Dec 31, 2019 Dec 31, 2019 Release notes
Driver for POS-104UL Series (SCO 5)
649.5 KB
Driver
SHA-512
v1.13
  • SCO OpenServer 5
Mar 30, 2014 Mar 30, 2014 Release notes
Driver for POS-104UL Series (SCO 6)
322.0 KB
Driver
SHA-512
v1.13
  • SCO OpenServer 6
Mar 30, 2014 Mar 30, 2014 Release notes
Driver for POS-104UL Series (UnixWare)
330.0 KB
Driver
SHA-512
v1.13
  • SCO UnixWare 7
Mar 30, 2014 Mar 30, 2014 Release notes
Driver for POS-104UL Series (Sun Solaris)
118.0 KB
Driver
SHA-512
v1.1
  • Solaris 10
Mar 30, 2014 Mar 30, 2014 Release notes
PComm Lite - Serial Communication Tool for Windows
1.6 MB
Utility
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
May 13, 2012 May 13, 2012 Release notes
Driver for POS-104UL Series (WinCE 5)
370.8 KB
Driver
SHA-512
v1.1
  • Windows CE 5.0
Jul 11, 2010 Jul 11, 2010 Release notes
Driver for POS-104UL Series (WinNT)
193.5 KB
Driver
SHA-512
v5.11
  • Windows NT
Jul 11, 2010 Jul 11, 2010 Release notes
Driver for POS-104UL Series (UnixWare 2.1)
270.0 KB
Driver
SHA-512
v1.7
  • SCO UnixWare 2.x
Jul 11, 2010 Jul 11, 2010 Release notes
Driver for POS-104UL Series (WinCE 6)
280.7 KB
Driver
SHA-512
v1.0
  • Windows CE 6.0
Jul 11, 2010 Jul 11, 2010 Release notes
Viewcom
451.1 KB
Utility
SHA-512
v1.0
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
Jul 11, 2010 Jul 11, 2010 Release notes
Driver for POS-104UL Series (Windows 95/98)
341.1 KB
Driver
SHA-512
v5.11
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
Jul 11, 2010 Jul 11, 2010 Release notes
Driver for POS-104UL Series (FreeBSD)
33.0 KB
Driver
SHA-512
v1.3
  • FreeBSD 4.x
  • FreeBSD 5.x
Feb 10, 2010 Feb 10, 2010 Release notes
Driver for POS-104UL Series (QNX6)
120.8 KB
Driver
SHA-512
v1.1
  • QNX 6.x
Feb 10, 2010 Feb 10, 2010 Release notes
Driver for POS-104UL Series (WinXP Embedded)
289.1 KB
Driver
SHA-512
v1.16
  • Windows XP Embedded
Feb 08, 2010 Feb 08, 2010 Release notes

Support Documents

Name Type Version Release Date
FOSS Statement for Multiport Serial PCI Express and Universal PCI Boards Linux Driver
108.4 KB
Declaration v1.0 Oct 29, 2024 Oct 29, 2024
Manual for Multiport Serial PCI Express Boards
15.7 MB
Manual v12.0 Jun 23, 2022 Jun 23, 2022
QIG for Universal PCI Smart Serial Board
301.8 KB
QIG v1.2 May 18, 2021 May 18, 2021
Datasheet for POS-104UL Series
580.2 KB
Datasheet v1.1 Mar 09, 2020 Mar 09, 2020
Manual for POS-104UL Series
10.8 MB
Manual v12.1 Dec 31, 2019 Dec 31, 2019
Tech Note: The Secrets of Flow Control in Serial Communication
42.8 KB
Tech Note v1.0 Feb 22, 2010 Feb 22, 2010
Tech Note: The Secrets of UART FIFO
41.1 KB
Tech Note v1.0 Feb 22, 2010 Feb 22, 2010
Tech Note: The Secrets of RS-485 Half-duplex Communication
133.5 KB
Tech Note v1.0 Feb 22, 2010 Feb 22, 2010

Available Models (2)

Show Images

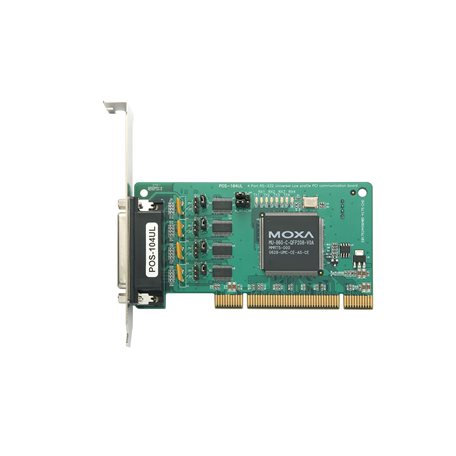

moxa-pos-104ul-db9m-image.jpg | MoxaPOS-104UL-DB9Mmoxa-pos-104ul-t-image.jpg | MoxaPOS-104UL-T
Serial StandardsRS-232RS-232
No. of Serial Ports44
Operating Temp.0 to 55°C-40 to 85°C
Included CableCBL-M44M9x4-50
Add to QuoteView BagAdd to QuoteView Bag
