PCIe/UPCI/PCI Serial Cards

Moxa's dedication to being a trusted provider of serial connectivity is demonstrated by our long-term commitment to serial products and service availability. Our PCI Express, Universal PCI, and PCI serial boards are built for industrial applications, and include models that can operate reliably in a wide temperature range.

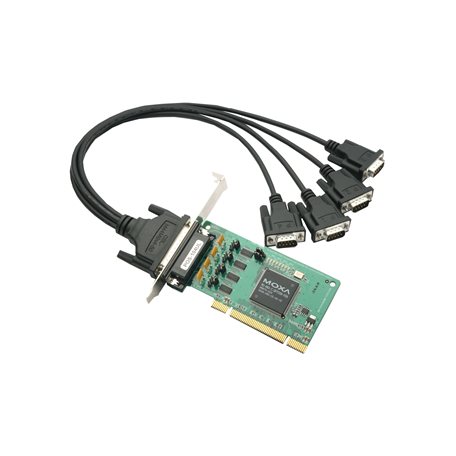

POS-104UL-DB9M
POS-104UL Series

4-port RS-232 low-profile Universal PCI board with serial port power, 0 to 55°C operating temperature (DB9 male cable included)

Serial Interface
  • Comm. Controller

    • 16C550C compatible
  • Baudrate

    • 50 bps to 921.6 kbps
  • Bus

    • 32-bit Universal PCI
  • Connector

    • DB44 female
  • Data Bits

    • 5, 6, 7, 8
  • Flow Control

    • None, RTS/CTS, XON/XOFF
  • Max. No. of Boards per PC

    • 8
  • No. of Ports

    • 4
  • Parity

    • None, Even, Odd, Space, Mark
  • Serial Standards

    • RS-232
  • Stop Bits

    • 1, 1.5, 2
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI (optional)
Serial Software Features
  • Windows Drivers

    • DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Linux Drivers

    • Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
  • UNIX Drivers

    • Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6
Power Parameters
  • Output Power Rating

    • 1 A @ 5 V, 1 A @ 12 V (per port)
Physical Characteristics
  • Dimensions

    • 64.4 x 120 mm (2.53 x 4.72 in)
Environmental Limits
  • Operating Temperature

    • 0 to 55°C (32 to 131°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 61000-6-2/-6-4
  • EMI

    • EN 61000-6-4, FCC Part 15B Class B
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 2,124,022 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
