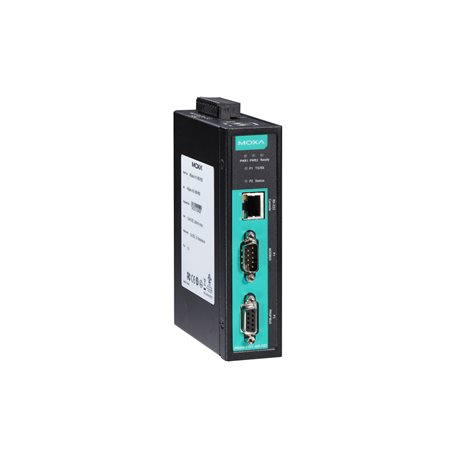

MGate 4101-MB-PBS-T
MGate 4101-MB-PBS Series

1-port Modbus-to-PROFIBUS Slave gateway, 12 to 48 VDC, -40 to 75°C operating temperature

Serial Interface
  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
  • No. of Ports

    • 1
  • Connector

    • DB9 male
  • Serial Standards

    • RS-232/422/485
  • Baudrate

    • 50 bps to 921.6 kbps
  • Data Bits

    • 7, 8
  • Parity

    • None, Even, Odd, Space, Mark
  • Stop Bits

    • 1, 2
  • Flow Control

    • DTR/DSR
      RTS/CTS
  • RS-485 Data Direction Control

    • Automatic Data Direction Control (ADDC)
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485

    • 120 ohms
  • Isolation

    • 2 kV (I models)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
  • Configuration Options

    • MGate Manager
  • Industrial Protocols

    • Modbus RTU/ASCII Master
      Modbus RTU/ASCII Slave
      PROFIBUS DP-V0 Slave
Modbus RTU/ASCII
  • Mode

    • Master, Slave
  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Commands

    • 100
  • Input Data Size

    • 7744 bytes
  • Output Data Size

    • 7744 bytes
PROFIBUS Interface
  • Industrial Protocols

    • PROFIBUS DP
  • No. of Ports

    • 1
  • Connector

    • DB9 female
  • Baudrate

    • 9600 bps to 12 Mbps
  • Isolation

    • 2 kV (built-in)
  • Signals

    • PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V
PROFIBUS
  • Rotary Switch

    • PROFIBUS addresses 0-99 (addresses 100-125 supported through software configuration)
  • Mode

    • DP-V0 Slave
  • Max. No. of Master Connections

    • 1
  • Max. No. of PROFIBUS I/O Modules

    • 24 per page
  • Max. No. of PROFIBUS Pages

    • 32
  • Input Data Size

    • 7744 bytes
  • Output Data Size

    • 7744 bytes
Power Parameters
  • Input Voltage

    • 12 to 48 VDC
  • Input Current

    • 275 mA @ 12 VDC
  • Power Connector

    • Screw-fastened Euroblock terminal
Relays
  • Contact Current Rating

    • Resistive load: 1 A @ 24 VDC
Physical Characteristics
  • Housing

    • Metal
  • Dimensions

    • 36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
  • Weight

    • 500 g (1.10 lb)
  • IP Rating

    • IP30
      Note: It is recommended to attach the M3x3mm Nylok screws at the rear side
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF
  • Safety

    • IEC 60950-1
      UL 60950-1
      IEC 62368-1
      UL 62368-1
  • Hazardous Locations

    • ATEX
      Class I Division 2
      IECEx
  • Freefall

    • IEC 60068-2-32
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
      IEC 60068-2-64
MTBF
  • Time

    • MGate 4101-MB-PBS models: 1,537,948 hrs
      MGate 4101I-MB-PBS models: 1,315,666 hrs
  • Standards

    • Telcordia SR332
Warranty
