Modbus TCP Gateways

Whether single or multiple serial ports, Moxa’s Modbus TCP gateway solutions convert data in networks between Modbus RTU/ASCII, Modbus TCP, DNP3, CANopen, J1939, PROFIBUS, BACnet/IP, IEC 101/104, IEC 61850, and EtherCAT making configuration, troubleshooting, and conversion quick and easy.

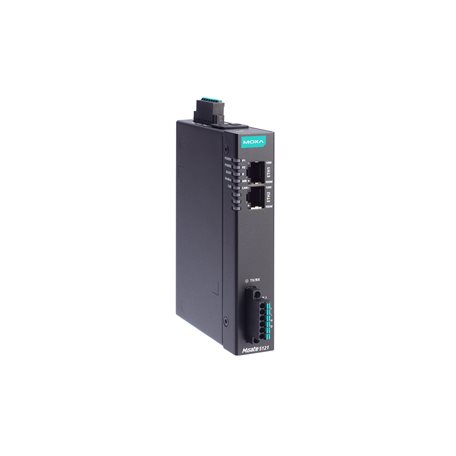

MGate 5121
MGate 5121 Series

1-port CANopen/J1939-to-Modbus TCP gateways, -10 to 60°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2
      Auto MDI/MDI-X connection
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Industrial Protocols

    • Modbus TCP Client
  • Configuration Options

    • Web Console (HTTPS)
      Device Search Utility (DSU)
  • Management

    • ARP
      DHCP Client
      DNS
      HTTP
      HTTPS
      SMTP
      SNMP Trap
      SNMPv1/v2c/v3
      TCP/IP
      UDP
  • MIB

    • RFC1213
  • Time Management

    • NTP Client
Security Functions
  • Authentication

    • Local database
  • Encryption

    • HTTPS
      AES-128
      AES-256
      SHA-256
  • Security Protocols

    • SNMPv3
      SNMPv2c Trap
      HTTPS (TLS 1.3)
CAN Interface
  • No. of Ports

    • 1
  • Connector

    • Spring-type Euroblock terminal
  • Standards

    • ISO 11898-2
  • Baudrate

    • CANopen: 10 kbps, 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, 1 Mbps
      J1939: 250 kbps, 500 kbps, 1 Mbps
  • Terminator

    • 120 ohms
      software configurable
  • Signals

    • CAN_H, CAN_L, GND, Ext_CAN_H, Ext_CAN_L, CAN_Shield
CAN Software Features
  • Industrial Protocols

    • CANopen master, J1939
CANopen
  • Mode

    • Master
  • Max No. of Nodes

    • 64
  • Max No. of Receive PDOs

    • 256
  • Max No. of Transmit PDOs

    • 256
  • SDOs

    • Supported
  • Input Data Size

    • 2048 bytes
  • Output Data Size

    • 2048 bytes
J1939
  • Max. No. of Commands

    • 256
  • Input Data Size

    • 2048 bytes
  • Output Data Size

    • 2048 bytes
Modbus TCP
  • Mode

    • Server
  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Client Connections

    • 16
  • Total Input Data Size

    • 2048 bytes
  • Total Output Data Size

    • 2048 bytes
Memory
  • microSD Slot

    • Up to 32 GB (SD 2.0 compatible)
Power Parameters
  • Input Voltage

    • 12 to 48 VDC
  • Input Current

    • 455 mA (max)
  • Power Connector

    • Spring-type Euroblock terminal
Relays
  • Contact Current Rating

    • Resistive load: 2 A @ 30 VDC
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 25 x 90 x 129.6 mm (0.98 x 3.54 x 5.1 in)
  • Weight

    • 294 g (0.65 lb)
Environmental Limits
  • Operating Temperature

    • -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • EN 61010-2-201
      UL 61010-2-201
  • EMC

    • EN 61000-6-2/-6-4
  • EMI

    • FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF
  • Freefall

    • IEC 60068-2-31
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
      IEC 60068-2-64
MTBF
  • Time

    • 1,408,984 hrs hrs
  • Standards

    • Telcordia SR332
