MOXA

Fieldbus-to-Fiber Converters

Moxa's fieldbus-to-fiber converters convert fieldbus to fiber with ease, and also feature easy configuration and effortless troubleshooting. Our industrial-grade ICF converters can convert PROFIBUS to fiber, even in harsh environments.

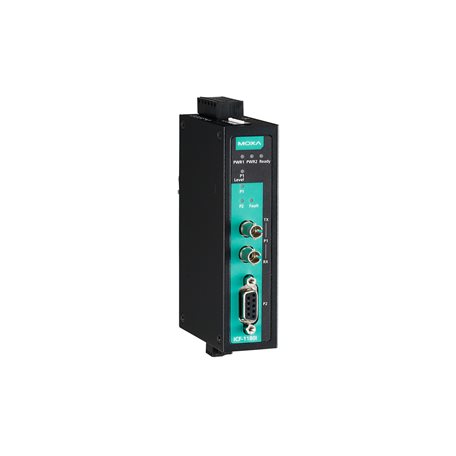

ICF-1180I-S-ST-T
ICF-1180I Series

PROFIBUS to fiber converter, single-mode, ST connector, -40 to 75°C operating temperature

Serial Interface

  • Connector

    • Single-mode ST connector

  • Optical Fiber

  • Optical Fiber

    • Multi-Mode Single-Mode
      Wavelength 820 nm 1310 nm
      Tx Output -14 dBm -7 dBm
      Rx Sensitivity -28 dBm -29 dBm
      Link Budget 14 dBm 21 dBm
      Typical Distance 4 km 45 km
PROFIBUS Interface

  • Industrial Protocols

    • PROFIBUS DP

  • No. of Ports

    • 1

  • Connector

    • DB9 female

  • Baudrate

    • 9600 bps to 12 Mbps

  • Isolation

    • 2 kV (built-in)

  • Signals

    • PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V
Power Parameters

  • Input Current

    • 269 mA @ 12 to 48 VDC

  • Input Voltage

    • 12 to 48 VDC

  • No. of Power Inputs

    • 2

  • Overload Current Protection

    • Supported

  • Power Connector

    • Terminal block (for DC models)

  • Power Consumption

    • 269 mA @ 12 to 48 VDC
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 30.3 x 115 x 70 mm (1.19 x 4.53 x 2.76 in)

  • Weight

    • 180 g (0.39 lb)

  • Installation

    • DIN-rail mounting (with optional kit)
      Wall mounting
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 0.5 kV
      IEC 61000-4-5 Surge: Power: 0.5 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF

  • Environmental Testing

    • IEC 60068-2-1
      IEC 60068-2-2
      IEC 60068-2-3

  • Hazardous Locations

    • ATEX
      Class I Division 2
      IECEx

  • Maritime

    • DNV

  • Safety

    • IEC 60950-1
      UL 508

  • Vibration

    • IEC 60068-2-6
MTBF

  • Time

    • 1,722,769 hrs

  • Standards

    • Telcordia (Bellcore), GB
Warranty
