MOXA

Serial-to-Fiber Converters

Moxa's industrial-grade serial-to-fiber optic converters can convert RS-232/422/485 to optical fiber, which provides users with an easy and reliable way to communicate with their serial devices.

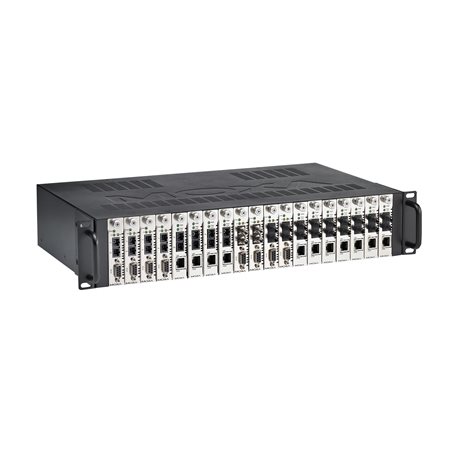

TRC-190-AC
TRC-190 Series

Rack chassis, 2U, single 110 to 240 VAC input, with 19 slots on front panel

Power Parameters
  • Input Voltage

    • 100 to 240 VAC
  • No. of Power Inputs

    • 2
  • Overload Current Protection

    • Supported
  • Power Consumption

    • 1.5 A @ 100 to 240 VAC
Physical Characteristics
  • Dimensions

    • 440 x 260 x 88 mm (17.32 x 10.24 x 3.46 in)
  • Installation

    • 19-inch rack mounting
  • IP Rating

    • IP30
  • Weight

    • 5200 g (11.4 lb)
Environmental Limits
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Operating Temperature

    • 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included)

    • -20 to 75°C (-4 to 167°F)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC)
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
  • Environmental Testing

    • IEC 60068-2-1
      IEC 60068-2-2
      IEC 60068-2-3
  • Safety

    • IEC 62368-1, UL 62368-1
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 1,055,112 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
